3-Bedroom, 3622 Sq Ft Contemporary Plan with Main Level Laundry

Front elevation of Contemporary home (ThePlanCollection: House Plan #108-1934)
108-1934: Home Plan Rear Elevation

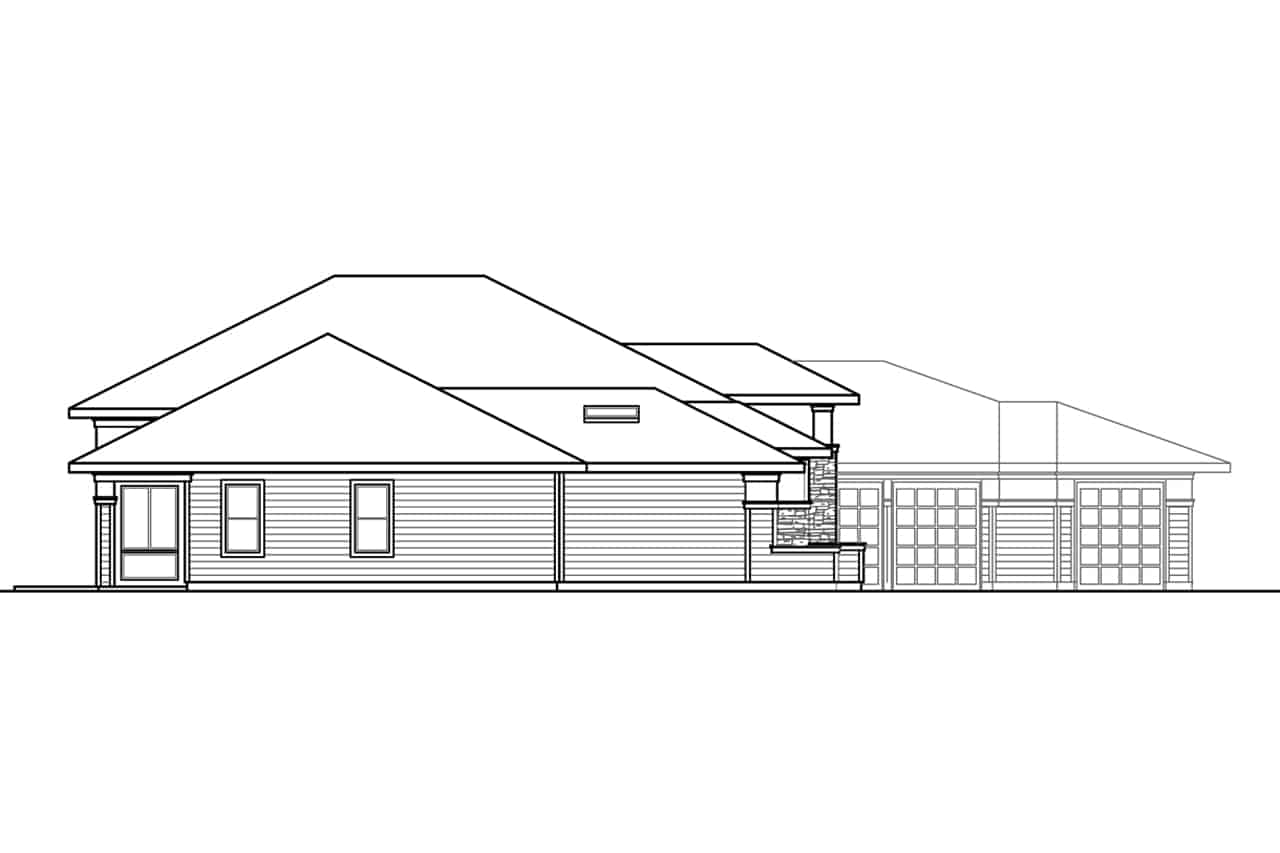

108-1934: Home Plan Left Elevation
108-1934: Home Plan Right Elevation
3-Bedroom, 3622 Sq Ft Contemporary House Plan - 108-1934 - Front Exterior

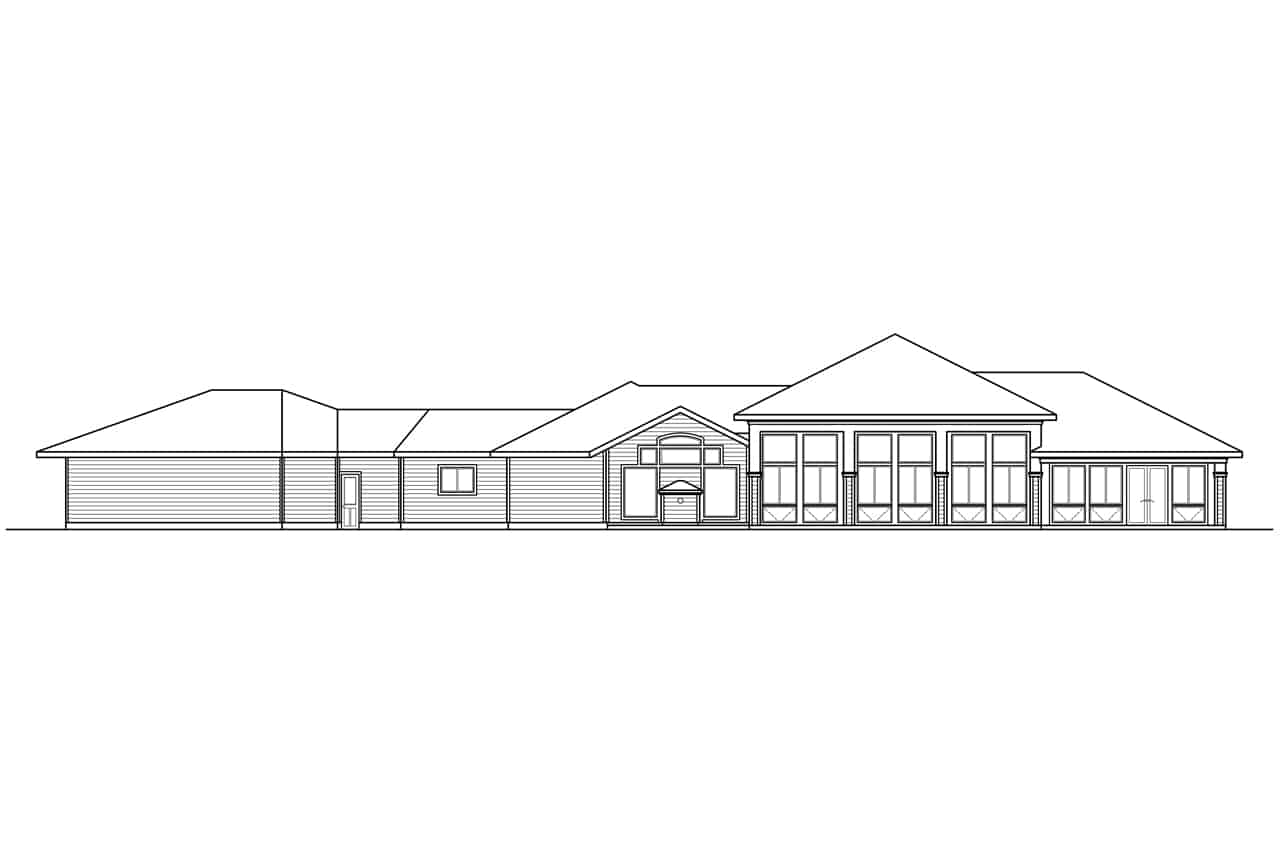

108-1934: Home Plan Rear Elevation

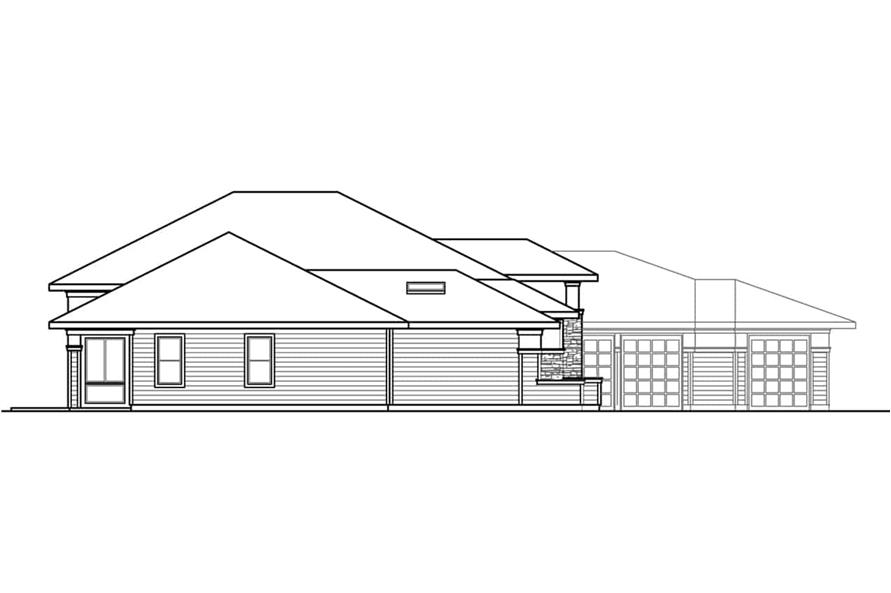

108-1934: Home Plan Left Elevation

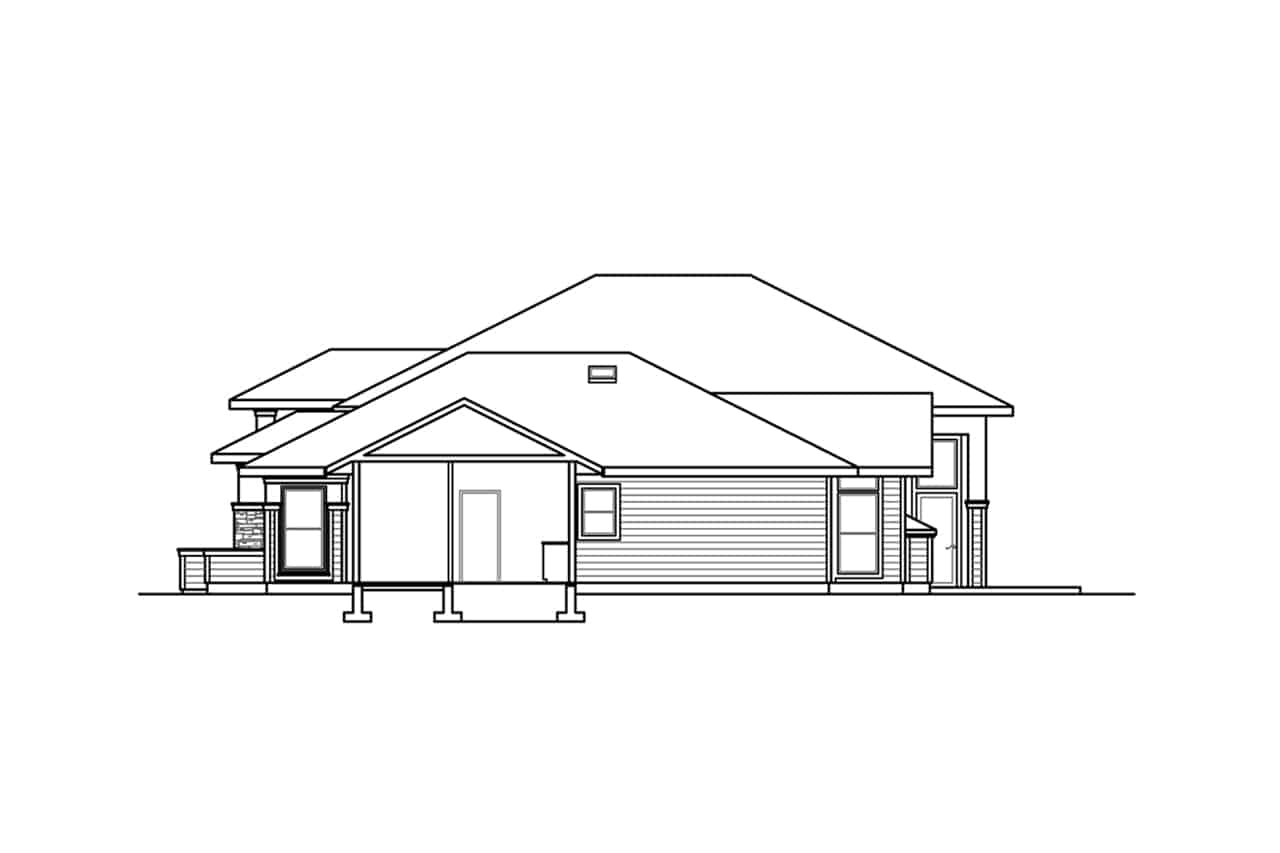

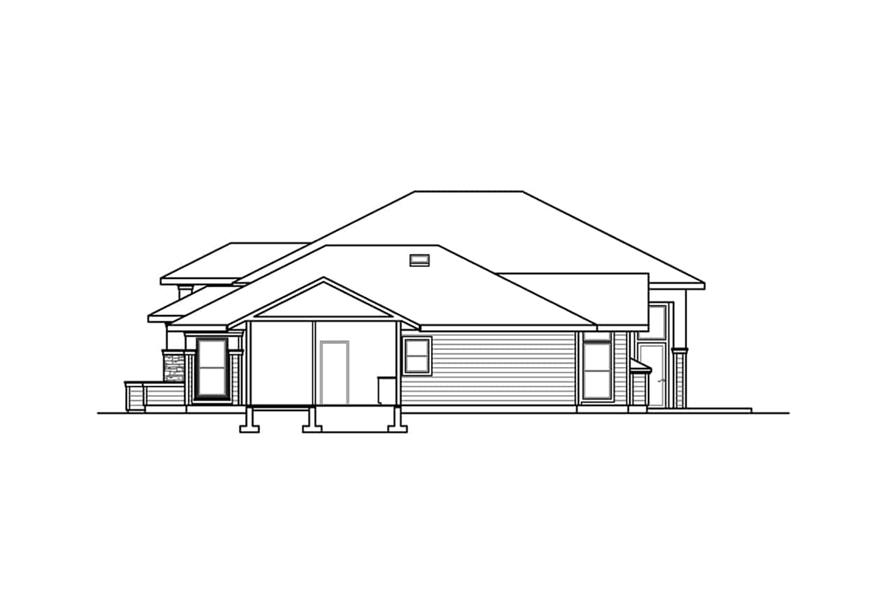

108-1934: Home Plan Right Elevation

About Plan # 108-1934

About Plan # 108-1934

3622 SQUARE FEET 3 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 141' 1" WIDTH 81' 0" DEPTH 4 GARAGE BAY

This one is truly an amazing house design both inside out and a must-have for you and your family's enjoyment. It's every car enthusiast's dream house. with its oversize 1,157-square-foot 4-car garage, which has an ample amount of storage and workshop space. This 1-story floor has 3,622 square feet of living space and includes 3 bedrooms.

Each plan set includes the following:

  • ARTIST'S RENDERING: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Each plan set is drawn at 1/4"=1' scale. Showing the placement and dimensions of all walls, windows, and doors. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • SECOND FLOOR PLAN (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • FOUNDATION PLAN: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • ROOF FRAMING PLAN: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
  • SECTIONS AND DETAILS: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints. These details can be helpful for the contractor.
  • ELECTRICAL PLAN: A schematic layout of all lighting, switches, and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

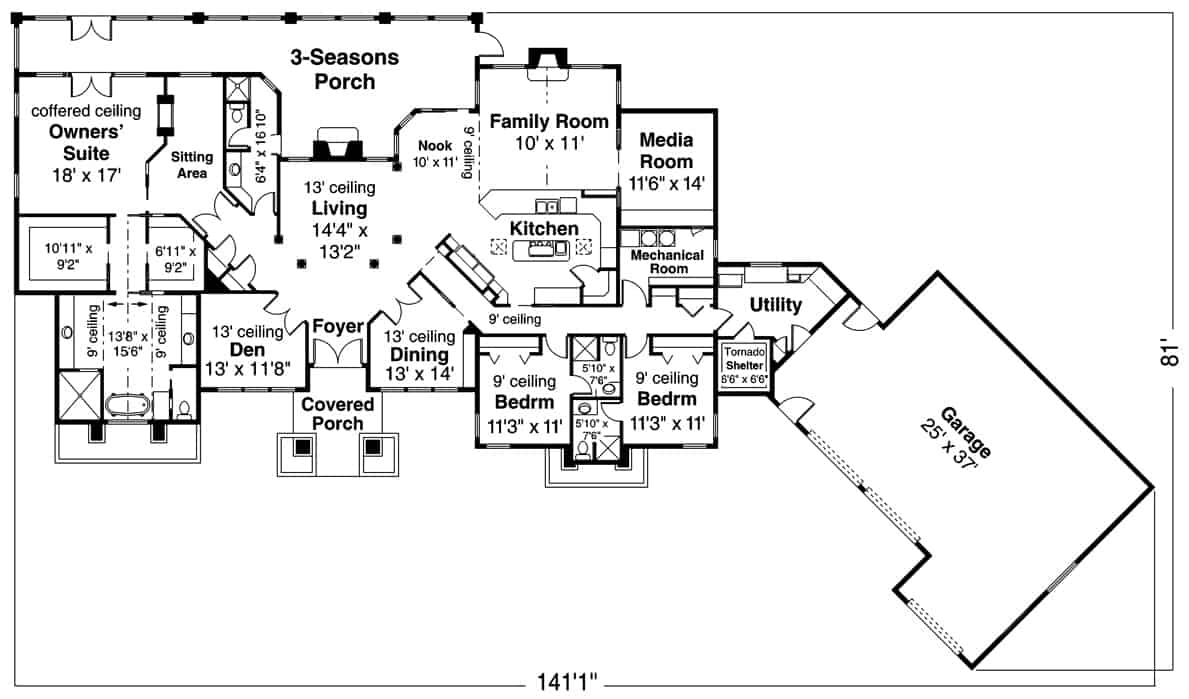

Home Plan: #108-1934 Floor Plan First Story - main level Floor Plan Main Level of Contemporary Plan #108-1934
Home Plan: #108-1934 Floor Plan First Story - main level Floor Plan Main Level of Contemporary Plan #108-1934
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 108-1934
Floors:
1
Bedrooms:
3
Full Baths:
4
Garage :
4

Square Footage

Heated Sq Feet:
3622
Main Floor:
3622
Unfinished Sq Ft:
Garage :
1157

Dimensions

Width:
141' 1"
Depth:
81' 0"
Ridge Height:
23' 8"

Architectural Styles

Contemporary
Luxury
Ranch

Exterior Wall Material

Rock/Stone
Stucco
Vinyl Siding
Wood Siding

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

6/12

Ceiling Height

9 Foot Ceiling

Special Feature

Den
Dining Room
Family Room
Fireplace
Main Level Laundry
Media Room
Open Floor Plan
Split Bathroom

Garage Type

Attached Garage
Courtyard Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x6

Kitchen Features

Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Sitting Area
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.
