4-Bedroom, 3015 Sq Ft Craftsman Plan with Mudroom

Craftsman home (ThePlanCollection: Plan #115-1410)

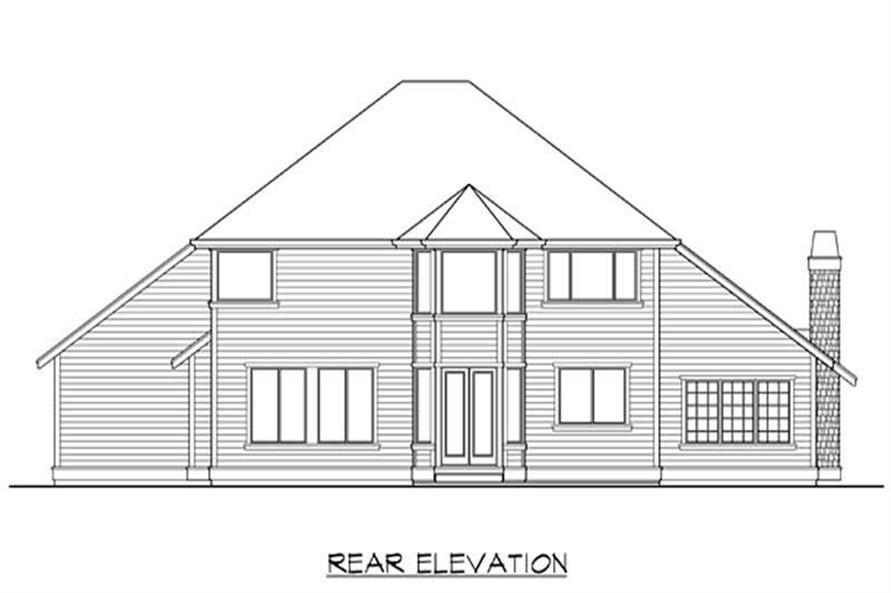

Rear Elevation

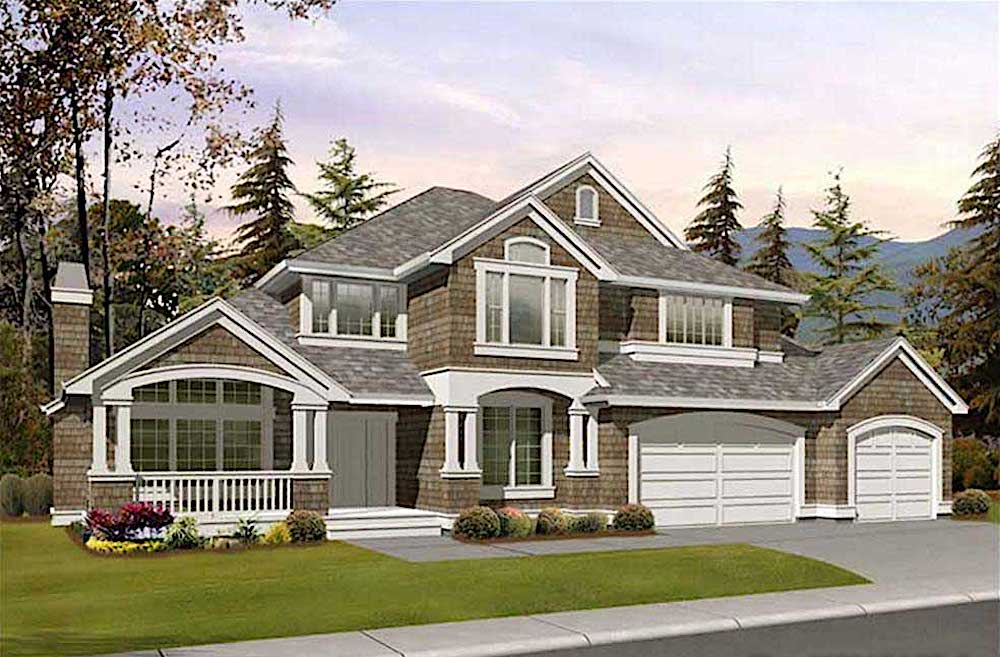

4-Bedroom, 3015 Sq Ft Craftsman House - Plan #115-1410 - Front Exterior
Rear Elevation

About Plan # 115-1410

About Plan # 115-1410


This is a beautiful craftsman/shingle take on the great American two-story. You will notice similar features on many French, European or country homes, but we think this one brings forth the essence of the American shingle style home. A spacious front porch adorns the front of this home, covered by a spanning arch that rests on classic mission style split pillars. A great foyer directs guests and family into all parts of this home. There is a library/den with French doors on the front of the house off of the foyer; a formal living room with a fireplace that opens to a formal dining room, and open to above; a kitchen within close proximity to the dining room, attached to a breakfast nook, and open to a wonderful family room. This plan has a half bathroom on the main floor as well as a utility closet and a three-car garage. Upstairs, the stairs and upper-floor landing overlook the foyer and living room. A huge master suit with French doors awaits you at the top of the stairs, and is complete with a spacious walk-in closet, a linen closet, a master bath with a shower, jetted tub, split vanities and more - and don't forget the sitting area. Three additional bedrooms, a linen closet and a full bath also grace the second floor, and make this the perfect family home for almost any neighborhood. For a similar plan, see also Plan #115-1227.

Each plan set includes the following:

  • DETAIL SHEET: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • FLOOR PLAN: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • FOUNDATION PLAN: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information.
  • ROOF PLAN: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
  • FRONT, REAR, AND SIDE ELEVATIONS: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • BUILDING SECTION SHEET: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.


Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

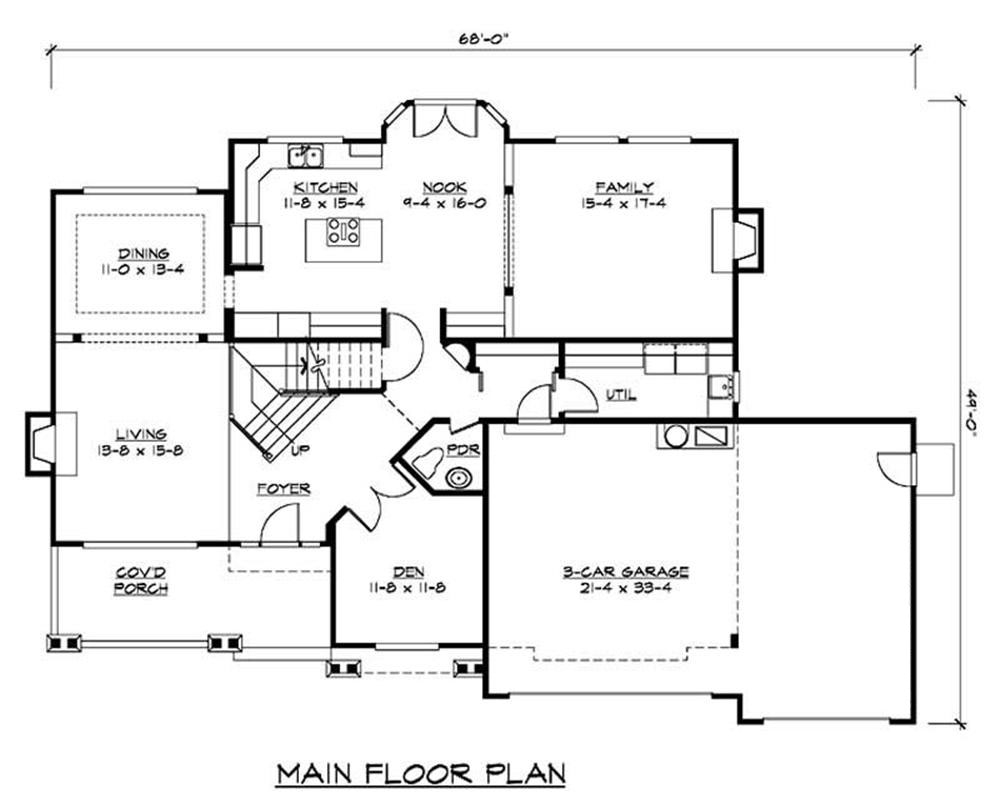

Home Plan: #115-1410 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #115-1410

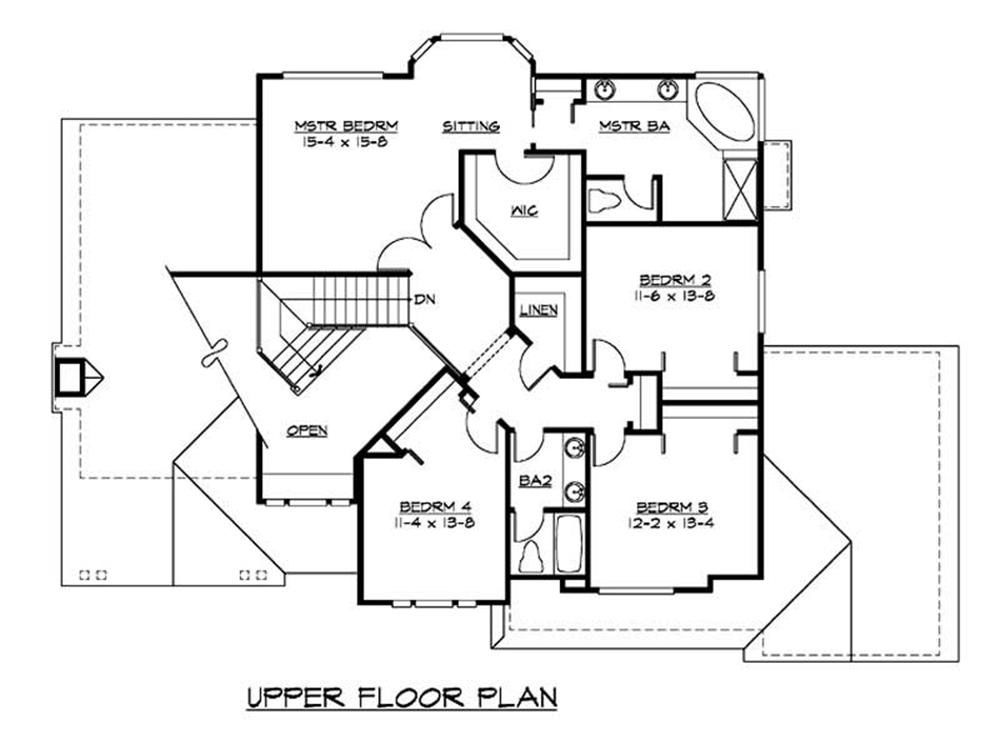

#115-1410 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #115-1410
Home Plan: #115-1410 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #115-1410
#115-1410 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #115-1410
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 115-1410
Full Baths:
Half Baths:
Garage :

Square Footage

Heated Sq Feet:
Main Floor:
Upper Floor:
Unfinished Sq Ft:
Garage :


68' 0"
49' 0"
Ridge Height:
29'11' 0"

Architectural Styles


Exterior Wall Material


Roofing Type


Roofing Material

Asphalt Shingles

Roof Pitch


Ceiling Height

8 Foot Ceiling
9 Foot Ceiling

Special Feature

Dining Room
Family Room
Guest Room
Main Level Laundry
Mud Room
Open Floor Plan

Garage Type

Attached Garage
Front Entry


Two Fireplaces

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Master Bathroom
Second Floor Master
Walk In Closet

Additional Notes from Designer

Please Note: This plan is not available for purchase if to be built in Washington State.

Please Note: The plans by this designer DO NOT include electrical plans or electrical layout plans. NOTE: If you are building this home in Washington State, please contact us BEFORE placing your order!


A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build one home. Recommended if making major modifications to your plans.


All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
