Multi-Unit House Plan #108-1846: 3 Bedrm, 1468-1473 Sq Ft Per Unit Home

Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.

About House Plan #108-1846

2941

Sq Ft

6

Bedrooms

4

Baths

2

Half Baths

2

Cars

2

Stories

102' 0'

Width

34

Depth

From$2250What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Start with Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

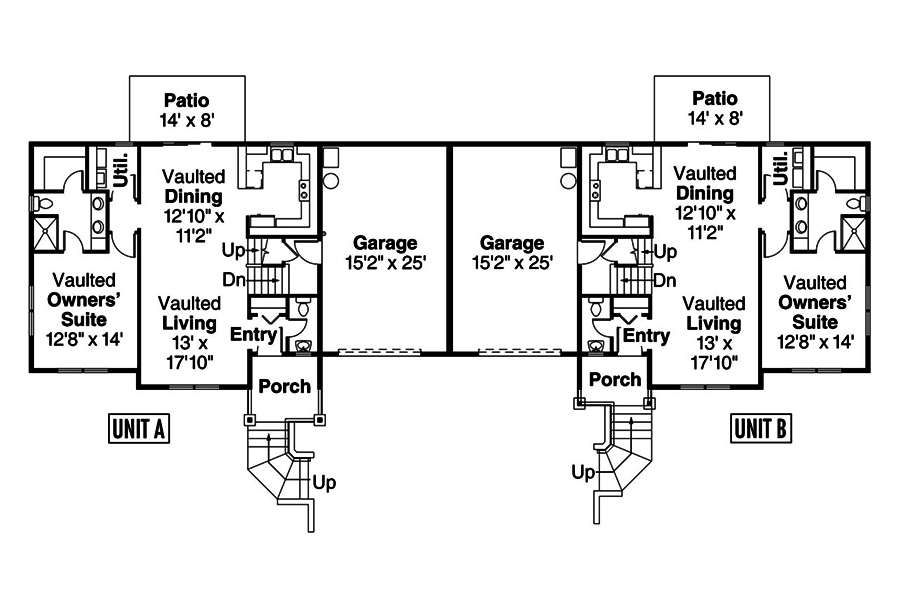

Floor Plan Main Level

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!

House Plan Description

This duplex with country influences (Multi-Family Plan #108-1846) has 1468 square feet of living space in unit A and 1473 square feet of living space in unit B. The 2-story floor plan includes 3 bedrooms and 2.5 bathrooms per unit. Each unit has a 403 sq ft 1-car garage.

Home Details

Summary

Plan #:108-1846

Floors:2

Bedrooms:6

Full Baths:4

Half Baths:2

Garage:

Square Footage

Heated Area::2941 Sq. Ft.

Main Floor:2010 Sq. Ft.

Upper Floor:931 Sq. Ft.

Dimensions

Architectural Styles

Country Duplex/Multi-Unit Contemporary Bungalow Cottage

Exterior Wall Material

Vinyl SidingRock/StoneWood SidingShakes

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

6/12

Ceiling Height

9 Foot Ceiling

Special Feature

Main Level LaundryColor PhotosColor PhotosVaulted CeilingsOpen Floor Plan

Garage Type

Attached GarageUnder Main Floor Entry

Exterior Wall Framing

2x6

Kitchen Features

Peninsula/Eating Bar

Porches and Exterior Features

Covered Front PorchCovered Rear Patio

Master Suite Features

Main Floor MasterMaster BathroomWalk In ClosetSplit Master Bedroom

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Artist’s rendering of the home,

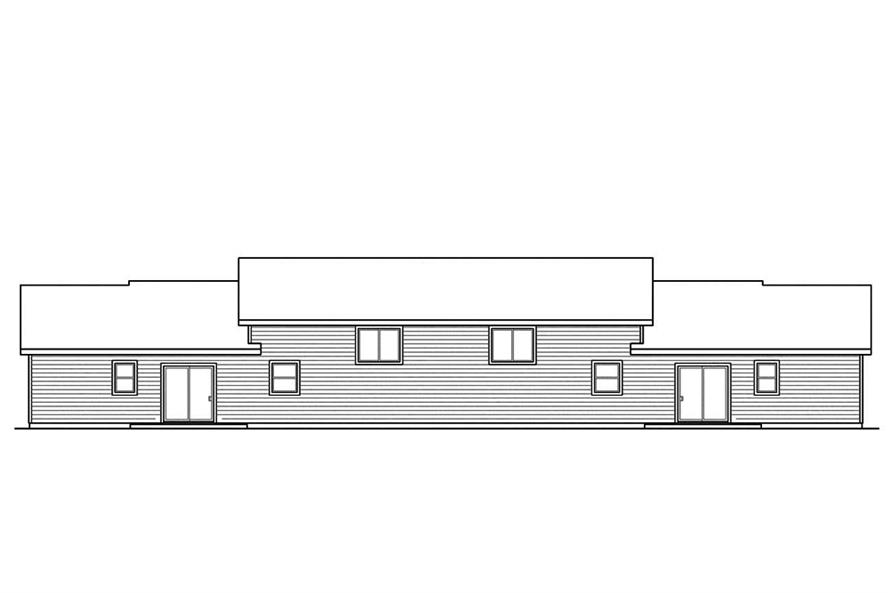

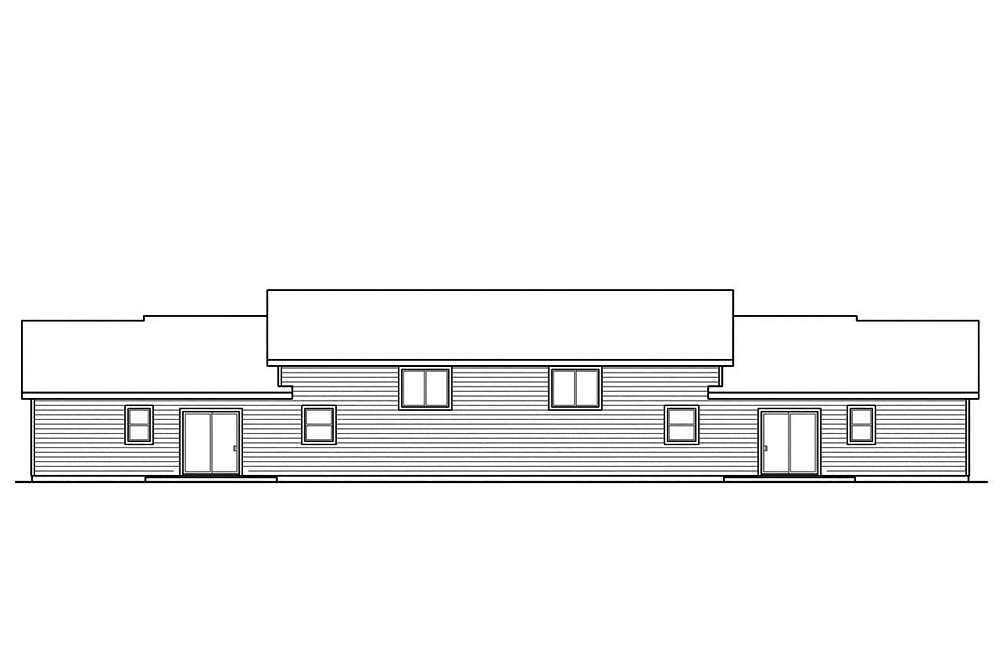

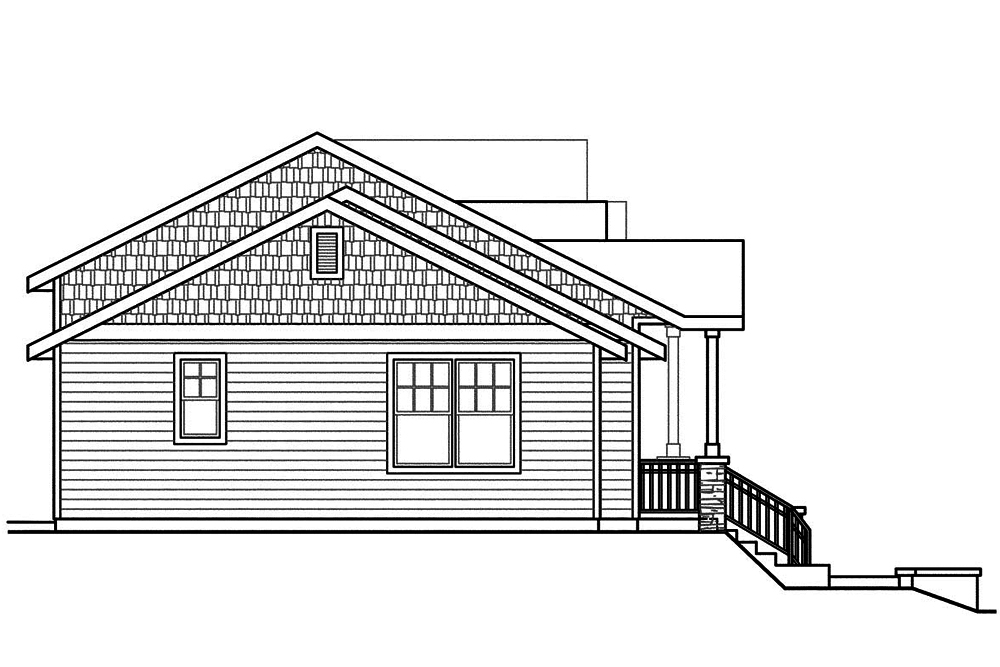

Front/Rear/Left and Right Elevations,

Main floor plan, Second or Basement floor plans (if applicable),

Foundation plan and detail,

Floor framing plan,

Roof framing plan, supporting details and

Electric layout.

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
