3-Bedroom, 2859 Sq Ft Transitional Plan with Study Room
Related House Plans
Photographs may reflect modified designs. Copyright held by designer.
| 2859 SQUARE FEET | 3 BEDROOMS | 3 FULL BATH | 1 HALF BATH |
| 1.5 FLOOR | 78' 0" WIDTH | 79' 0" DEPTH | 3 GARAGE BAY |
Each plan set includes the following:
- Cover sheet
- Foundation plan
- Dimensional floor plan

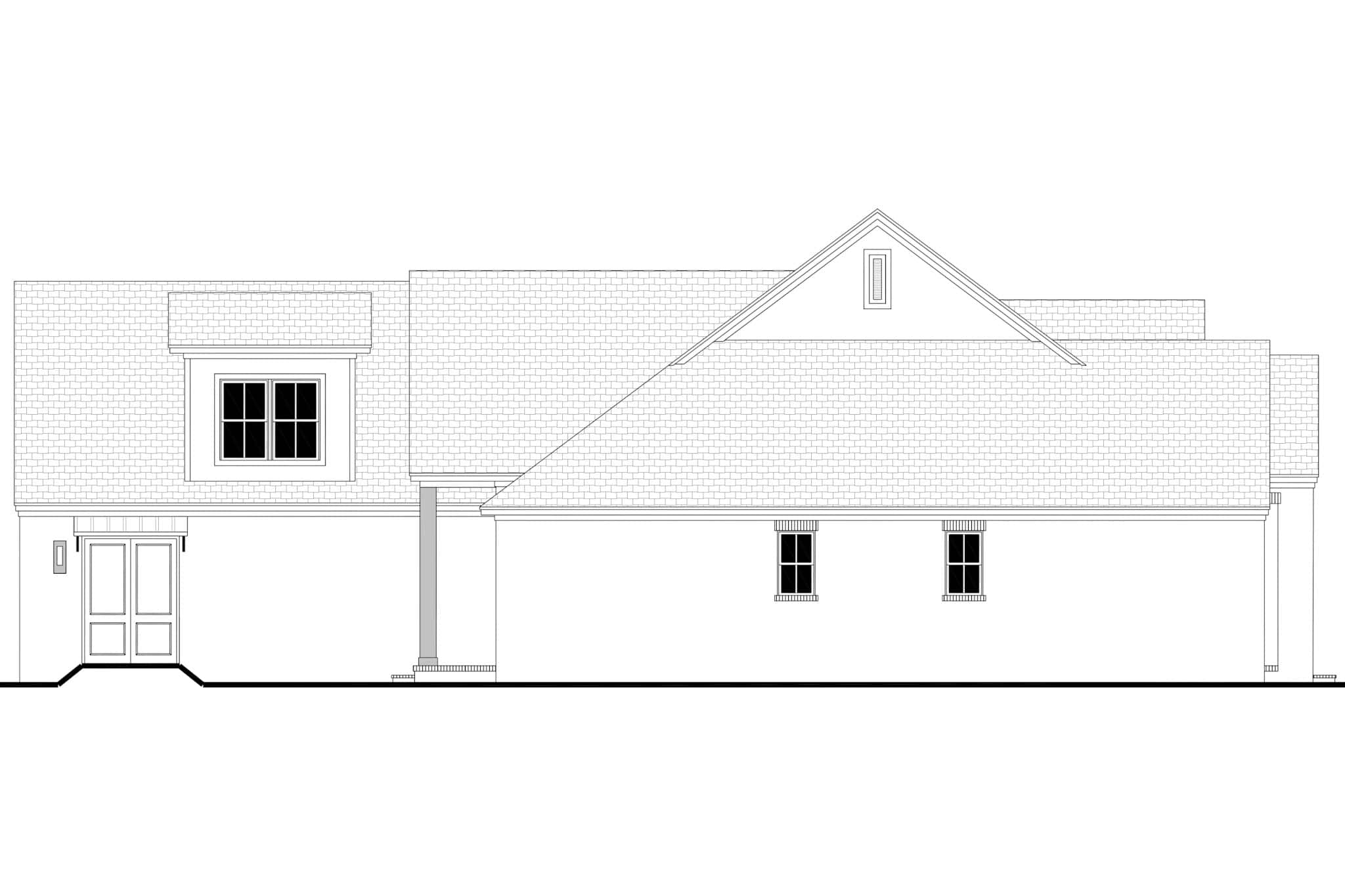

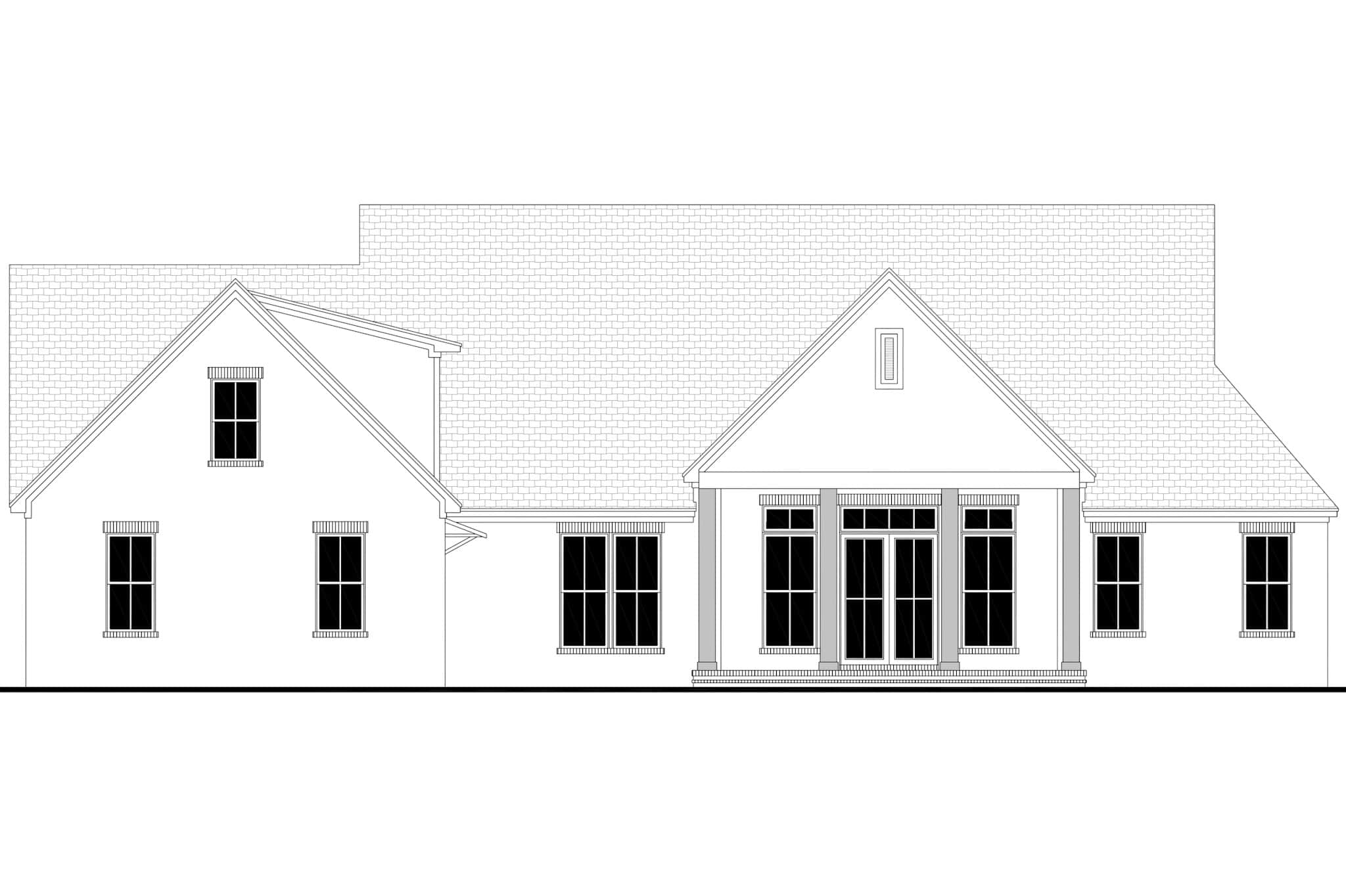

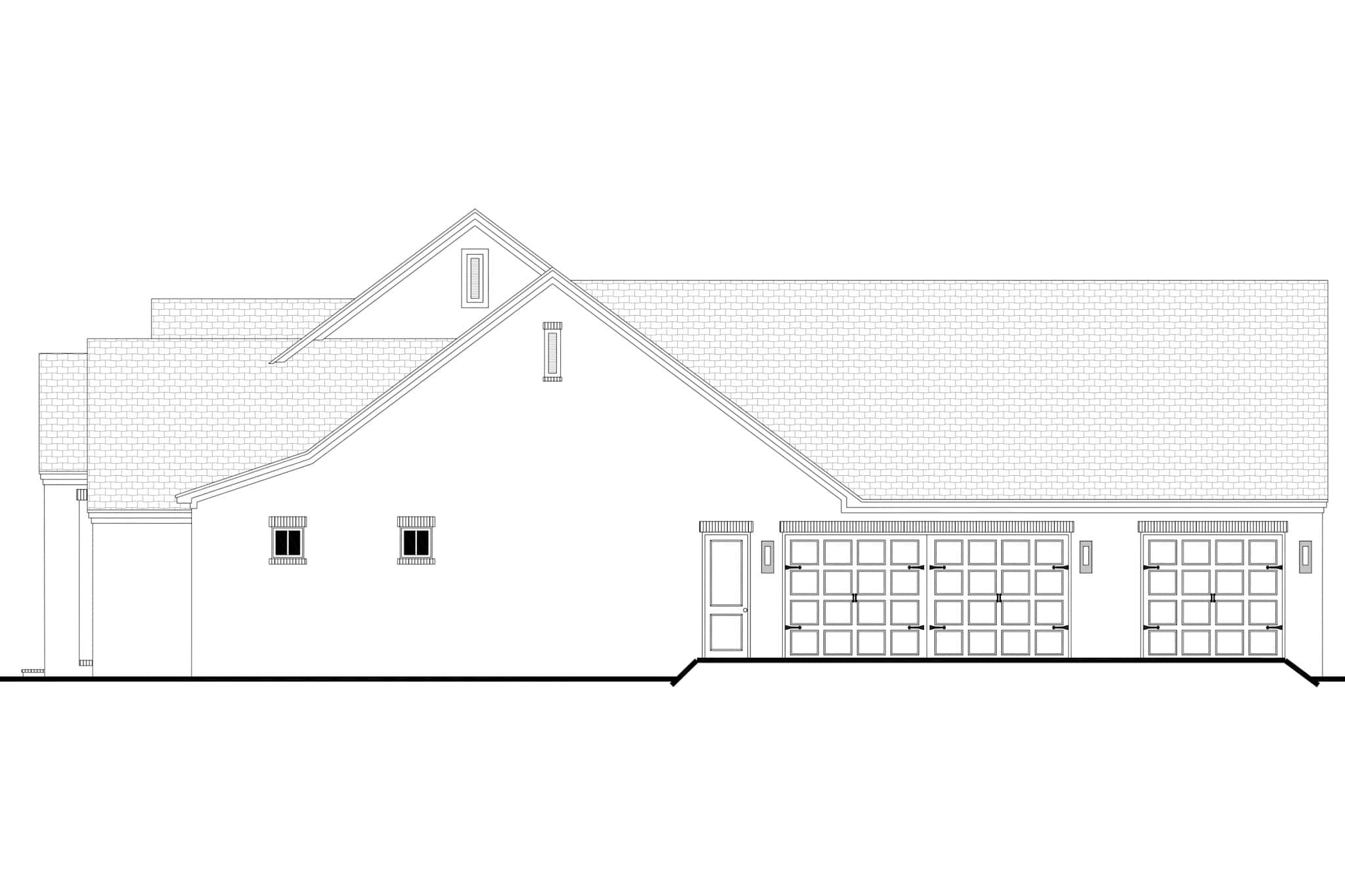

- Exterior views
- Roof plan
- Electrical layout
- Wall section(s)
- Building section(s)
- Cabinet elevations
.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
- No Framing
Write Your Own Review
FLOOR PLANS Flip Images

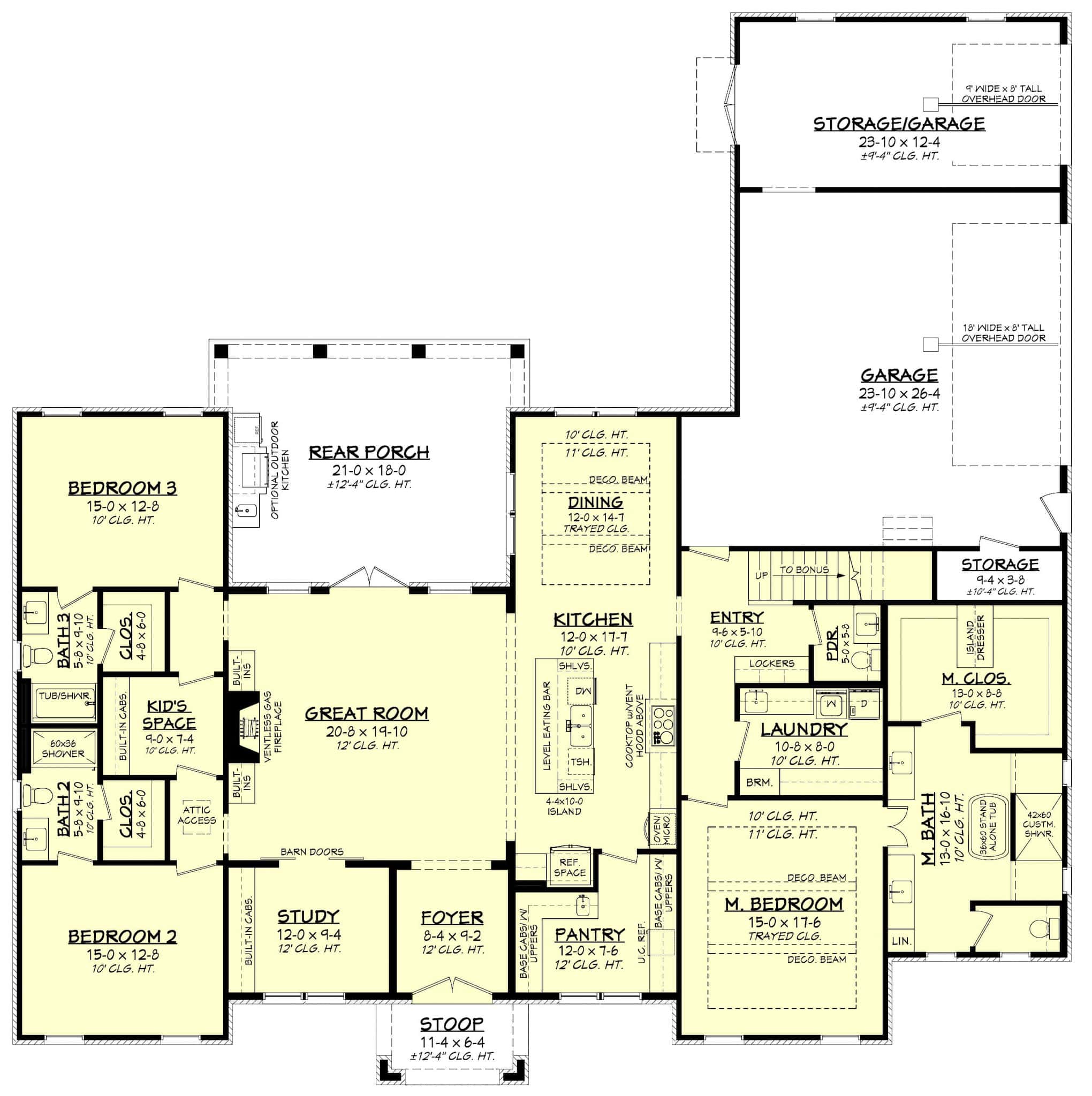

Home Plan: #142-1493 Floor Plan First Story
-
first story
![Main Level of Transitional Plan #142-1493]( "142-1493: Floor Plan First Story")
#142-1493 Floor Plan First Story
-
basement option stair location
![Main Level of Transitional Plan #142-1493]( "142-1493: Floor Plan First Story-Basement Option Stair Location")

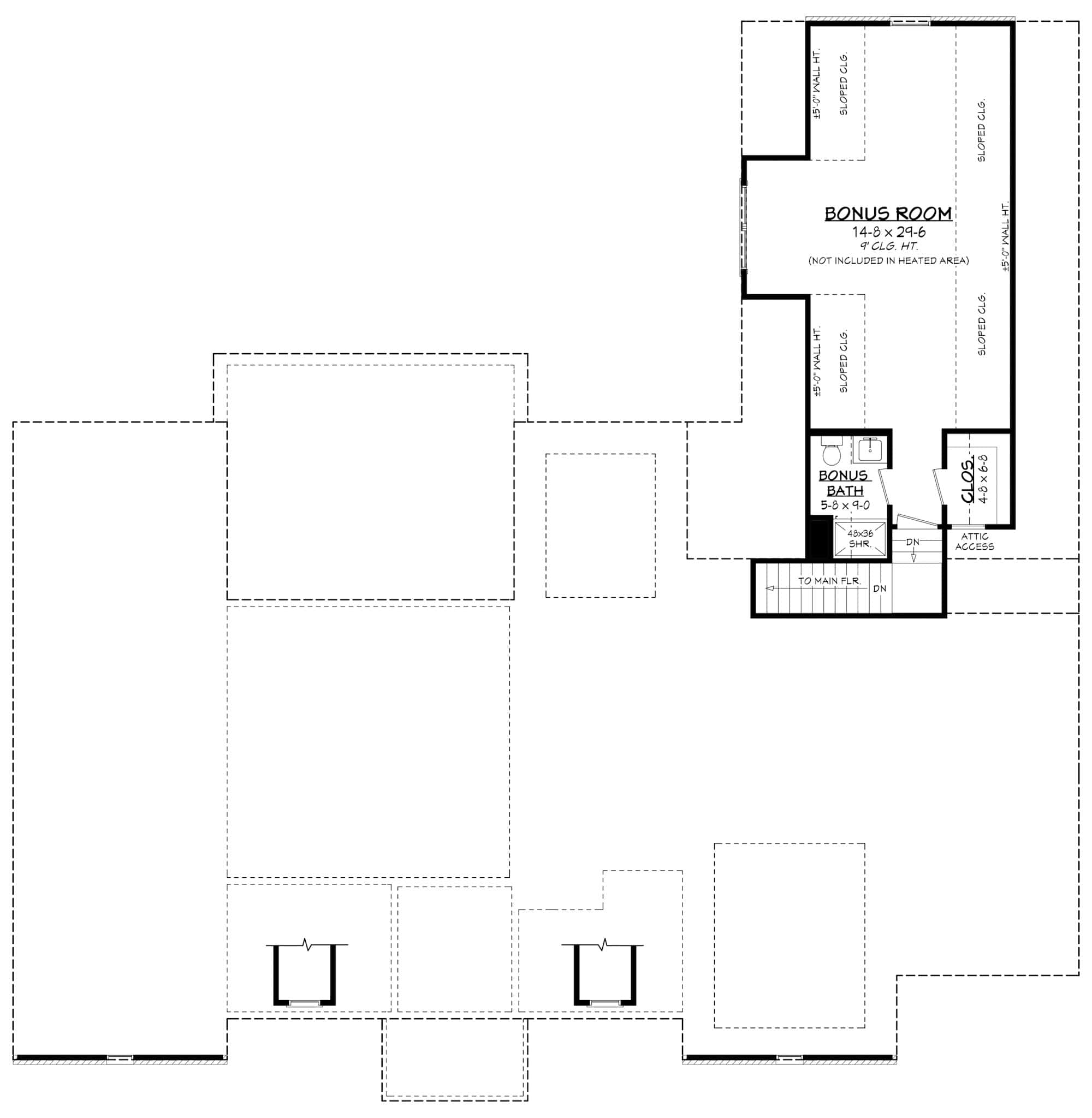

#142-1493 Floor Plan Bonus Room
-
bonus room
![Bonus Room of Transitional Plan #142-1493]( "142-1493: Bonus Room")
Home Plan: #142-1493 Floor Plan First Story
-
first story
![Main Level of Transitional Plan #142-1493]( "142-1493: Floor Plan First Story")
#142-1493 Floor Plan First Story
-
basement option stair location
![Main Level of Transitional Plan #142-1493]( "142-1493: Floor Plan First Story-Basement Option Stair Location")
#142-1493 Floor Plan Bonus Room
-
bonus room
![Bonus Room of Transitional Plan #142-1493]( "142-1493: Bonus Room")
Special Offer
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Plan #:
# 142-1493
Floors:
1.5
Bedrooms:
3
Full Baths:
3
Half Baths:
1
Garage :
3
Square Footage
Heated Sq Feet:
2859
Main Floor:
2859
Unfinished Sq Ft:
Bonus Room:
639
Garage :
1010
Porch :
452
Dimensions
Width:
78' 0"
Depth:
79' 0"
Ridge Height:
28' 0"
Architectural Styles
Southern
Modern
Traditional
Transitional
Modern Farmhouse
Exterior Wall Material
Vinyl Siding
Brick
Roofing Type
Gable
Roof Pitch
3/12
4/12
9/12
14/12
Ceiling Height
10 Foot Ceiling
9 Foot Ceiling
11 Foot Ceiling
12 Foot Ceiling
Special Feature
Fireplace
Dining Room
Home Office
Bonus Room
Main Level Laundry
Color Photos
Storage
Open Floor Plan
Garage Type
Attached Garage
Fireplaces
One Fireplace
Exterior Wall Framing
2x4
Kitchen Features
Kitchen Island
Walk-in Pantry
Peninsula/Eating Bar
Porches and Exterior Features
Covered Front Porch
Covered Rear Porch
Master Suite Features
Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom
Additional Notes from Designer
On some plans, Basement Foundations, Walkout Basement Foundations & 2x6 Conversions could take up to ONE WEEK to produce. Materials Lists could take up to FOUR WEEKS to produce and they will be for the ORIGINAL plan! Any modifications will NOT be reflected on the Materials List. NOTE FROM DESIGNER: If you purchase a CAD, you will automatically receive the unlimited build license - no need to purchase separately!
