3-Bedroom, 2851 Sq Ft Coastal Plan with Sundeck

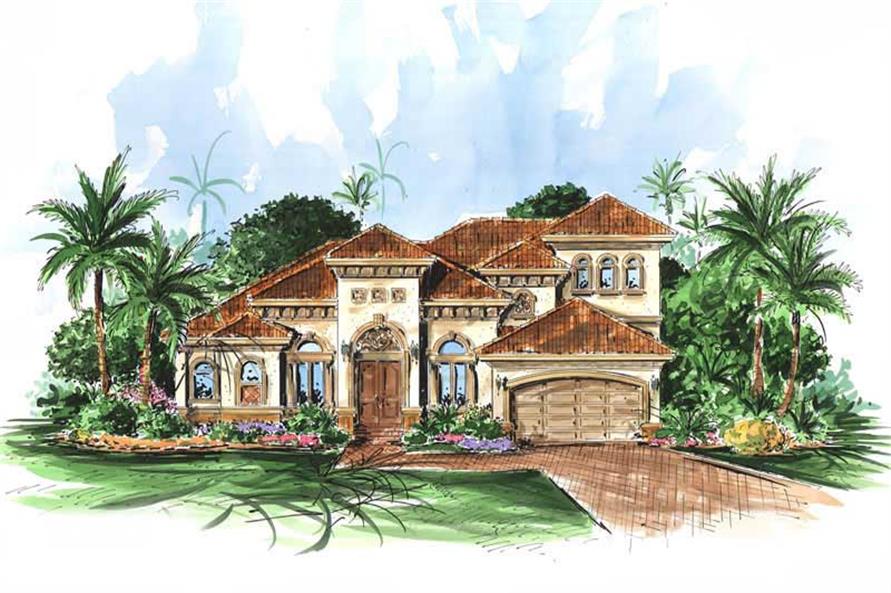

This image shows the exterior to this set of Mediterranean House Plans.
3-Bedroom, 2851 Sq Ft Coastal Home Plan - 175-1045 - Main Exterior

About Plan # 175-1045

About Plan # 175-1045

2851 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 64' 6" WIDTH 59' 0" DEPTH 2 GARAGE BAY

Mediterranean style that will fit on a smaller lot defines this home plan of over 2800 sq. ft. Your guests will feel welcome in their own quarters upstairs complete with covered lanai, full bath, and wet bar. Downstairs floor plan find the master suite with two walk-in closets and access to the lanai. Family room, living room, dinette, kitchen with island and walk-in pantry, dining area, laundry, another bathroom and bedroom, and den complete the first floor. This house plans special features include: Walk-in Pantry Peninsula/Eating Bar Nook/Breakfast Area Island Volume/vaulted ceilings Open floor plan Loft/Balcony Family Room Den/Home Office Handicapped Adaptable Screened Lanai Rear covered lanai Covered front porch Walk-in Closet Teen Suite Split Bedrooms Master Sitting Area Main Floor Master This plan is not for sale for use in Collier County, Florida or Lee County, Florida without the consent of the designer. Please contact us if you want to build this plan in those areas.

Each plan set includes the following:

  • Elevations
  • Floor Plans
  • Building Section Markers
  • Electrical Layout
  • Slab Plan
  • Roof Plan
  • Building Sections
  • Typical Wall Sections
  • Miscellaneous Notes & Details



Not Included with the Plan:

  • NO MEPs, NO Framing,
  • No Trusses: The client gets that from the truss manufacturer
  • No Engineering, You will need to get the plans stamped and engineered locally
  • HVAC and Plumbing is not included




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

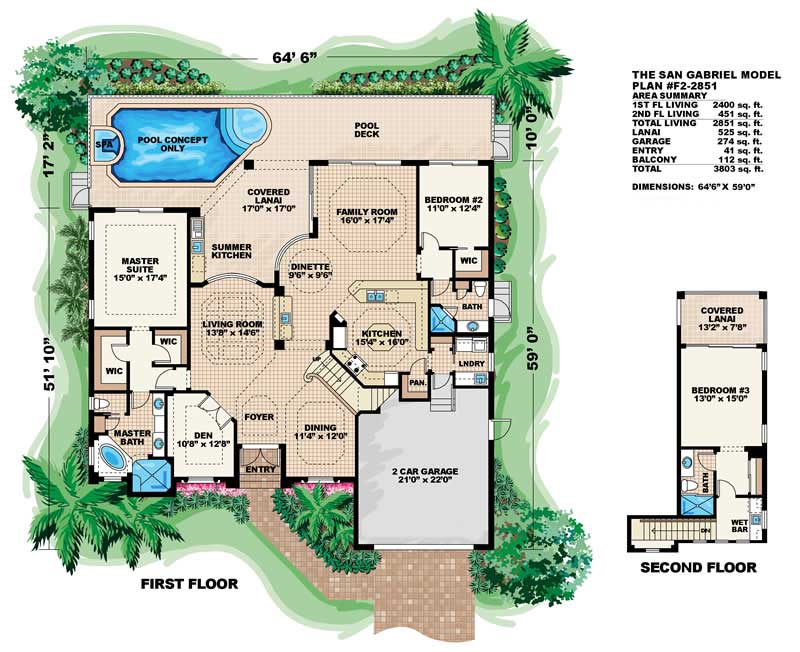

Home Plan: #175-1045 Floor Plan First Story Floor Plan First Story of Coastal Plan #175-1045
Home Plan: #175-1045 Floor Plan First Story Floor Plan First Story of Coastal Plan #175-1045
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1045
Floors:
2
Bedrooms:
3
Full Baths:
3

Square Footage

Heated Sq Feet:
2851
Main Floor:
2400
Upper Floor:
451
Unfinished Sq Ft:

Dimensions

Width:
64' 6"
Depth:
59' 0"
Ridge Height:
28'1' 0"

Architectural Styles

Mediterranean
Beachfront
Coastal
Spanish
Concrete Block/ ICF Design
Florida Style

Exterior Wall Material

Stucco

Roofing Material

Tiles

Roof Pitch

6/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Family Room
Main Level Laundry
Loft
Split Bathroom
Den
Balcony

Garage Type

Attached Garage
Front Entry

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Screened in Lanai
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Sitting Area

Additional Notes from Designer

PLEASE NOTE: This designer has zip code restrictions and a 5-7 day processing time for their CAD and PDF orders. Please contact us to verify your zip code BEFORE you order!! 2x6 and Right-Reading Reverse options are available. PLEASE NOTE: The designer is currently not providing modifications. We suggest you purchase a CAD file and work with a local engineer for changes. Additionally, orders (including electronic formats) could take up to 5 days to be delivered or shipped. Thank you!

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
