Mediterranean House Plans - Home Design HW-3631 # 18221

Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.

About House Plan #137-1423

2831

Sq Ft

4

Bedrooms

3

Baths

0

Half Baths

3

Cars

1

Stories

84' 0'

Width

77

Depth

From$1030What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Start with Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

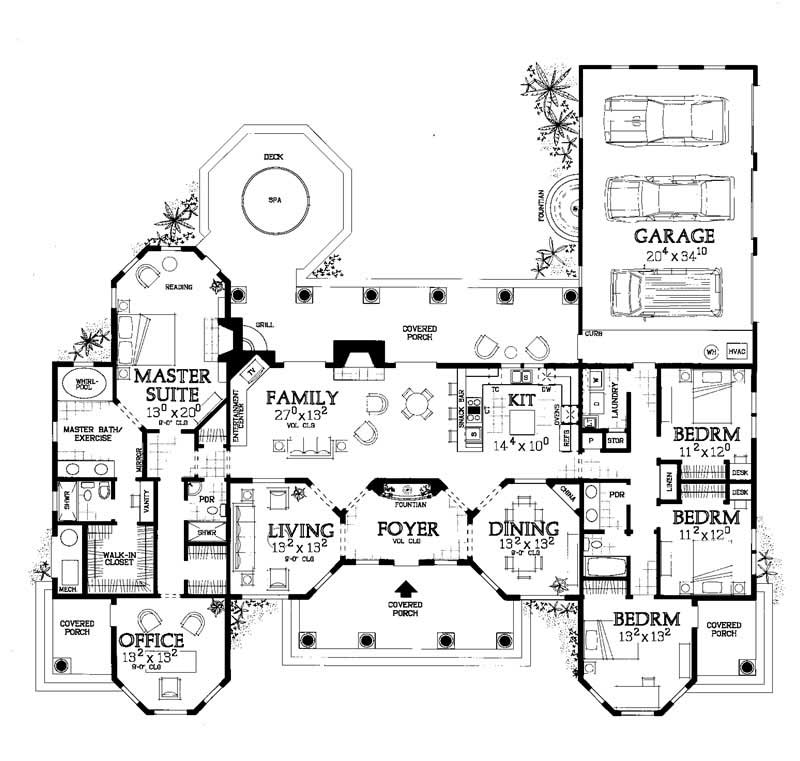

MAIN FLOOR PLAN

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!

House Plan Description

Large Mediterranean home plan entering the foyer from the large covered porc there is a fountain and the dining/living are off to the sides. The home has a open floor. And the master suite is beautifully done.

Home Details

Summary

Plan #:137-1423

Floors:1

Bedrooms:4

Full Baths:3

Half Baths:0

Garage:

Square Footage

Heated Area::2831 Sq. Ft.

Main Floor:2831 Sq. Ft.

Dimensions

Ridge Height:18' 0''

Architectural Styles

Mediterranean

Exterior Wall Material

Stucco

Roof Pitch

6/12

Garage Type

Side Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x6

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

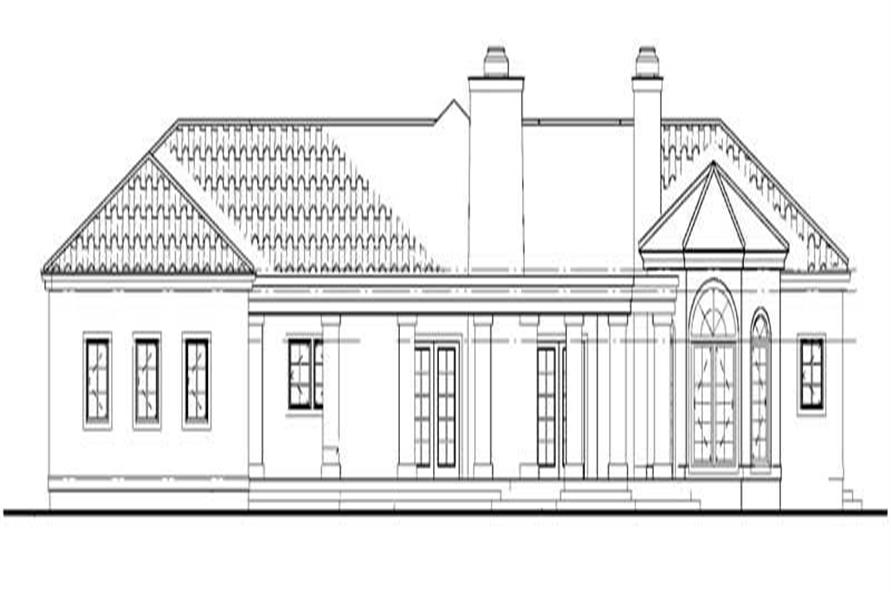

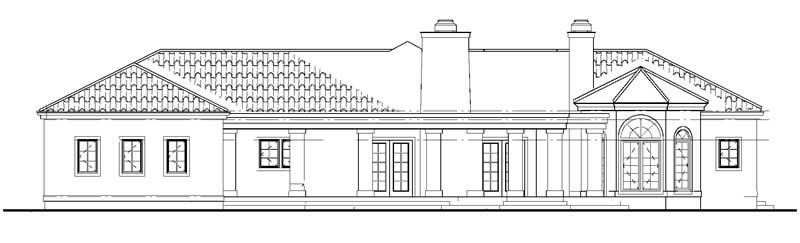

All 4 elevations

Floor plan

Foundation plan

Sections

Interior elevations

Detail page

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
