3-Bedroom, 2701 Sq Ft Ranch Plan with Eat-In Kitchen

Front elevation of Ranch home (ThePlanCollection: House Plan #146-1965)
Front View
3-Bedroom, 2701 Sq Ft Ranch House Plan - 146-1965 - Front Exterior
Front View

About Plan # 146-1965

About Plan # 146-1965

2701 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 64' 0" WIDTH 51' 0" DEPTH 2 GARAGE BAY

Reminiscent of Mom's house on the outside, but with a modern edge inside, this Craftsman-style home will make you feel comfortable right from the start. The sidelighted foyer opens to the living room and the adjoining den, as well as the formal dining room that is framed by decorative columns. On the upper floor, the master suite enjoys amenities such as a deluze bath and a large walk-in closet.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

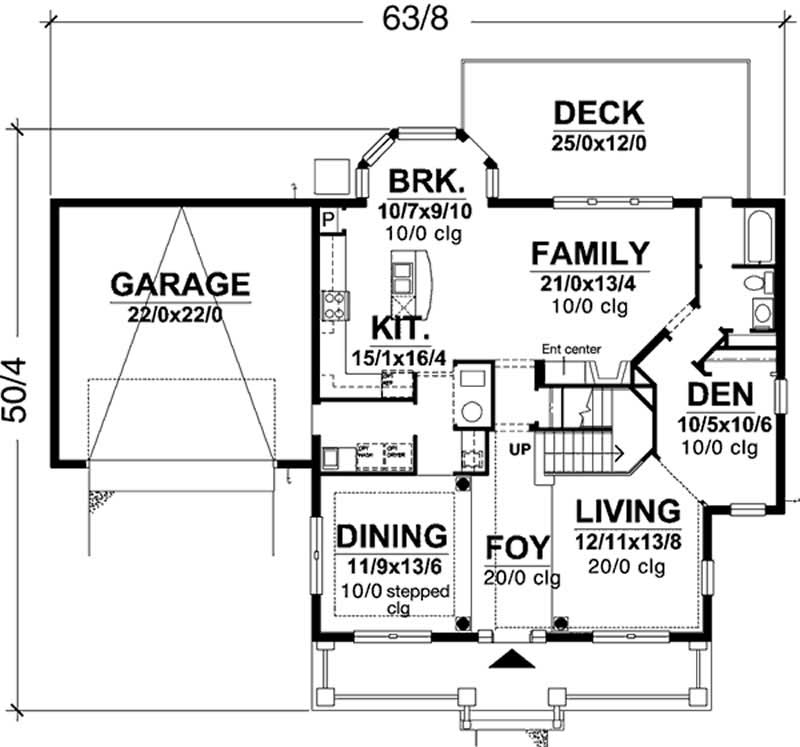

Home Plan: #146-1965 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #146-1965

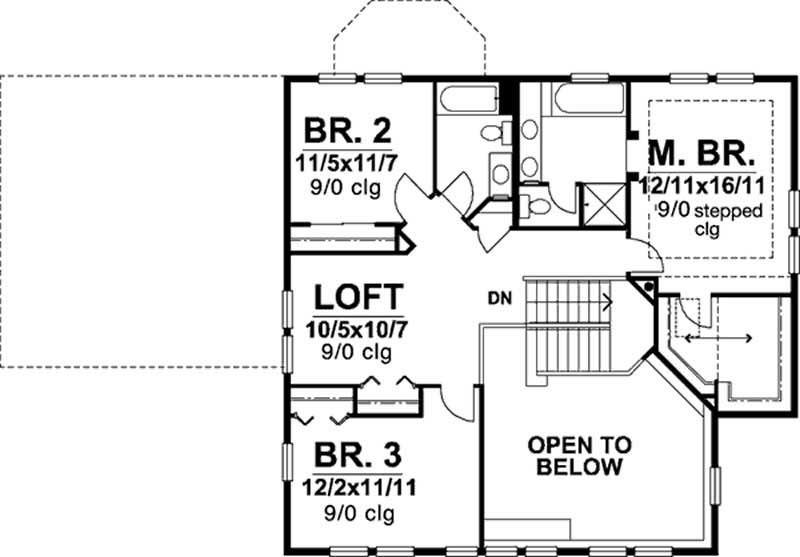

#146-1965 Floor Plan Second Story - upper level Floor Plan Second Story of Ranch Plan #146-1965
