3-Bedroom, 2699 Sq Ft Ranch Plan with Main Floor Master

Front elevation of Ranch home (ThePlanCollection: House Plan #121-1063)
3-Bedroom, 2699 Sq Ft Ranch House Plan - 121-1063 - Front Exterior

About Plan # 121-1063

About Plan # 121-1063

2699 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 81' 0" WIDTH 51' 0" DEPTH 3 GARAGE BAY

This smartly-designed ranch home with contemporary characteristics (House Plan #121-1063) has 2699 sq. ft. of living space. The 1-story floor plan includes 3 bedrooms. The use of vaulted ceilings and skylights makes the entire home feel much larger than it actually is. The see-through fireplace is the focal point when you enter the foyer. The attached, 3-car garage provides plenty of space for cars and recreational toys.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

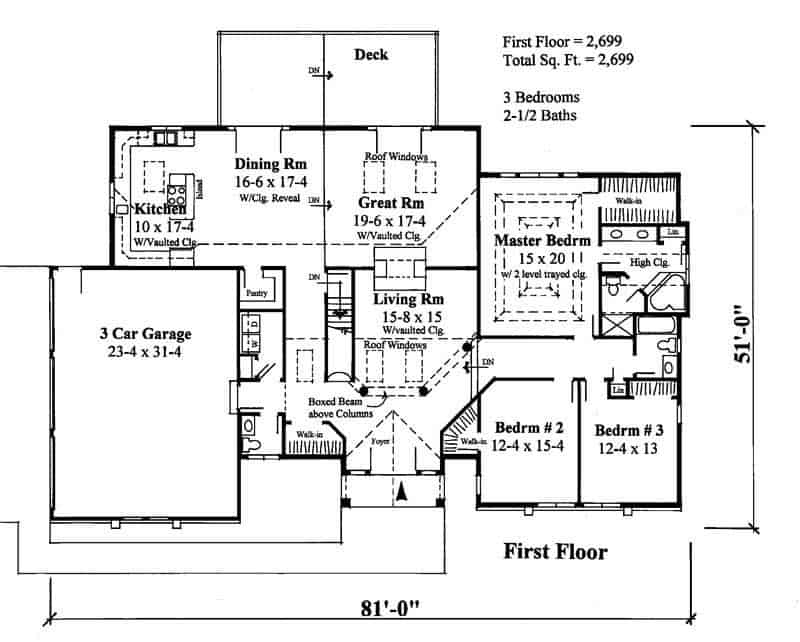

Home Plan: #121-1063 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #121-1063
Home Plan: #121-1063 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #121-1063
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 121-1063
Floors:
1
Bedrooms:
3
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
2699
Main Floor:
2699
Lower Floor:
2699
Garage:
768
Unfinished Sq Ft:

Dimensions

Width:
81' 0"
Depth:
51' 0"
Ridge Height:
24' 0"

Architectural Styles

Contemporary
Country
Ranch
Southern
Texas Style

Roof Pitch

7/12

Special Feature

Fireplace
Main Level Laundry
Open Floor Plan
Vaulted Ceilings

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Kitchen Features

Kitchen Island
Walk-in Pantry

Porches and Exterior Features

Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
