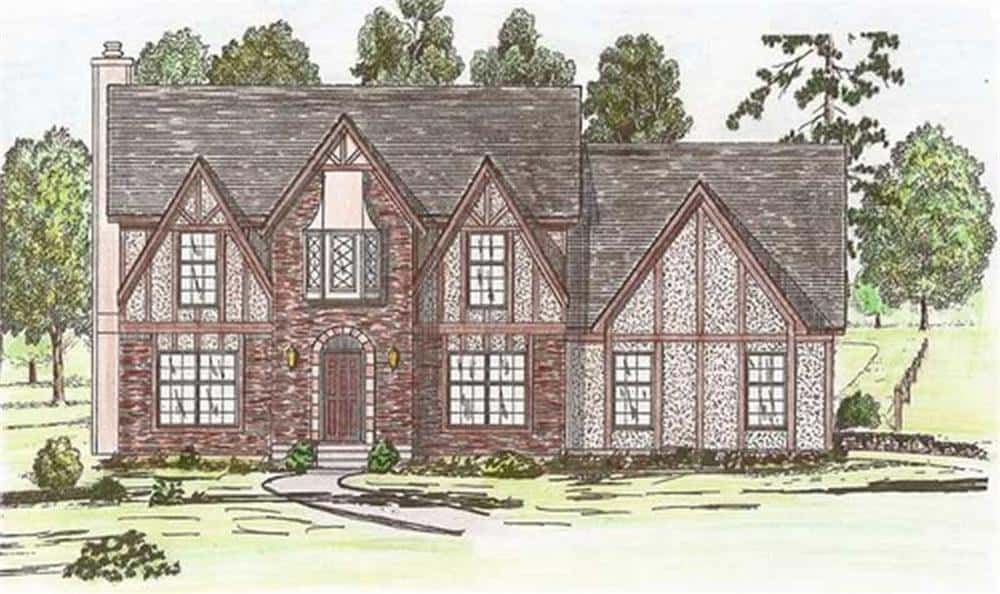

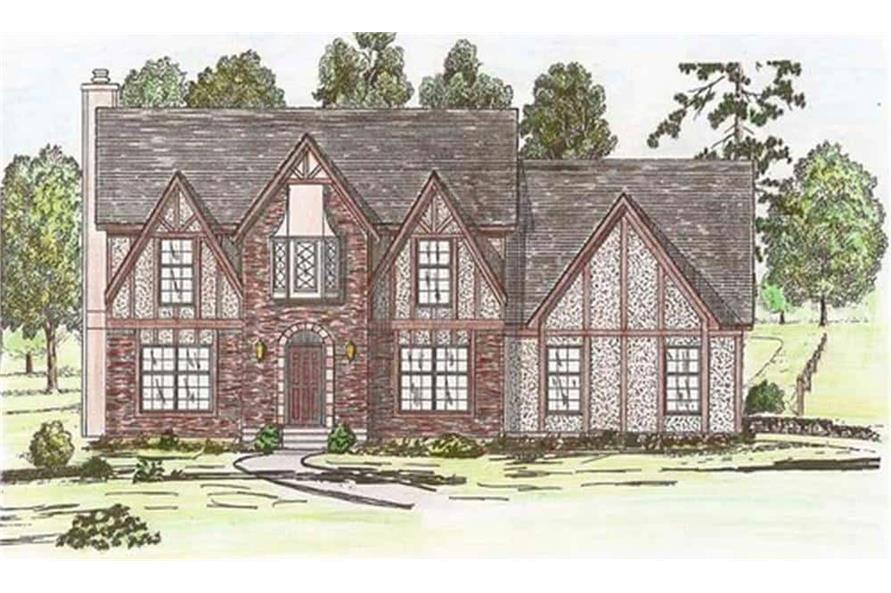

4 Bedrm, 2628 Sq Ft Tudor House

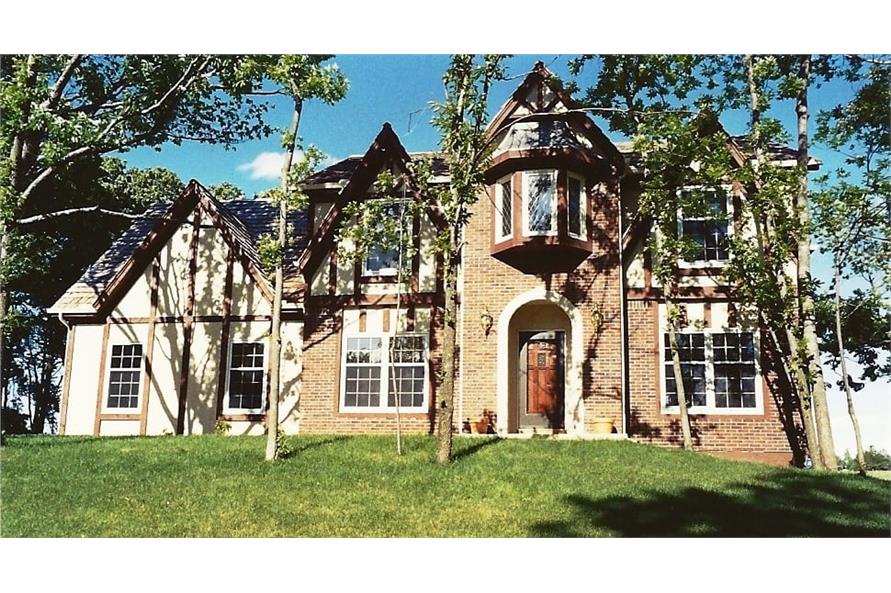

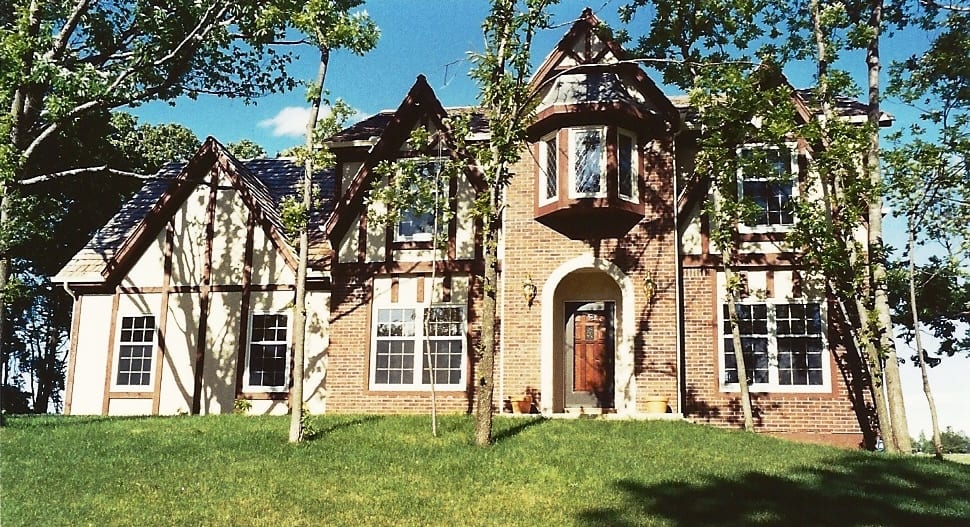

Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.

About House Plan #147-1083

2628

Sq Ft

4

Bedrooms

2

Baths

1

Half Baths

2

Cars

2

Stories

54' 0'

Width

42

Depth

From$1233.75What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Start with Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

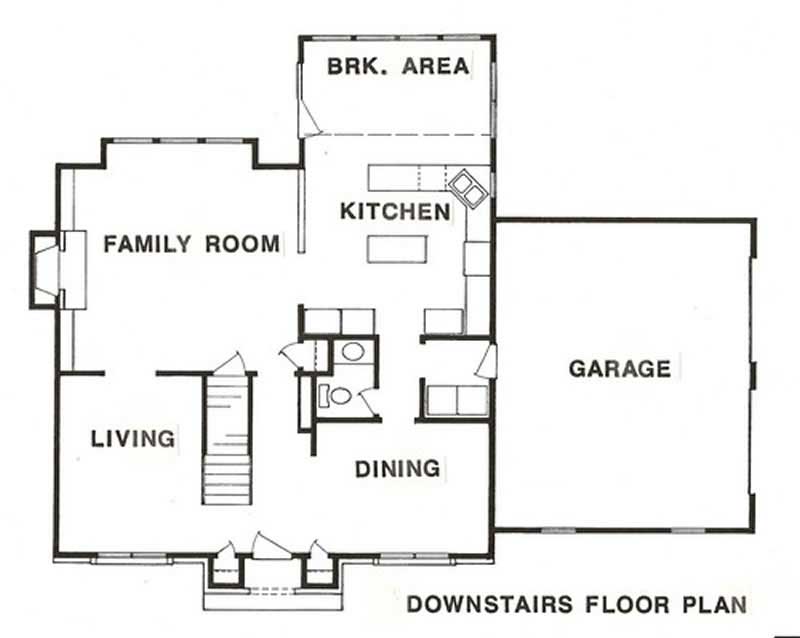

MAIN FLOOR PLAN

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!

House Plan Description

This delightful Tudor style home with Traditional attributes (Plan #147-1083) has 2628 square feet of living space. The 2-story floor plan includes 4 bedrooms.

• Fireplace in family room

• Large kitchen with island

• 9-foot ceilings downstairs

• Unfinished basement

• Home office with fireplace

Home Details

Summary

Plan #:147-1083

Floors:2

Bedrooms:4

Full Baths:2

Half Baths:1

Garage:

Square Footage

Heated Area::2628 Sq. Ft.

Main Floor:1207 Sq. Ft.

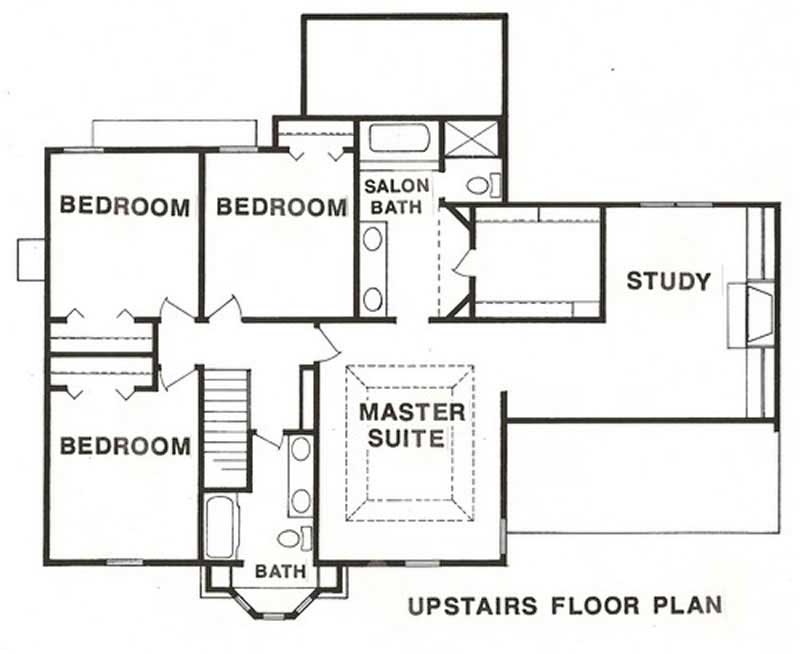

Upper Floor:1421 Sq. Ft.

Dimensions

Depth:42' 4''

Architectural Styles

European Traditional Tudor

Exterior Wall Material

BrickRock/Stone

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Ceiling Height

9 Foot Ceiling8 Foot Ceiling

Special Feature

FireplaceDining RoomHome OfficeFamily RoomMain Level LaundryL-Shaped

Garage Type

Attached GarageSide Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x4

Building Lot Type

Corner Lot

Kitchen Features

Kitchen IslandNook/Breakfast Area

Porches and Exterior Features

Portico

Master Suite Features

Fireplace in MasterMaster BathroomWalk In ClosetSitting AreaSecond Floor Master

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Foundation Plan

Floor plans

Roof plan

Exterior Elevations

Cross Sections & typical details

Interior elevations as needed

Door & Window schedule

Electrical layout

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
