4-Bedroom, 2590 Sq Ft Ranch Plan with Fireplace in Master

Main image for house plan # 14750
Rear Elevation
Front Elevation
4-Bedroom, 2590 Sq Ft Ranch Home Plan - 115-1285 - Main Exterior

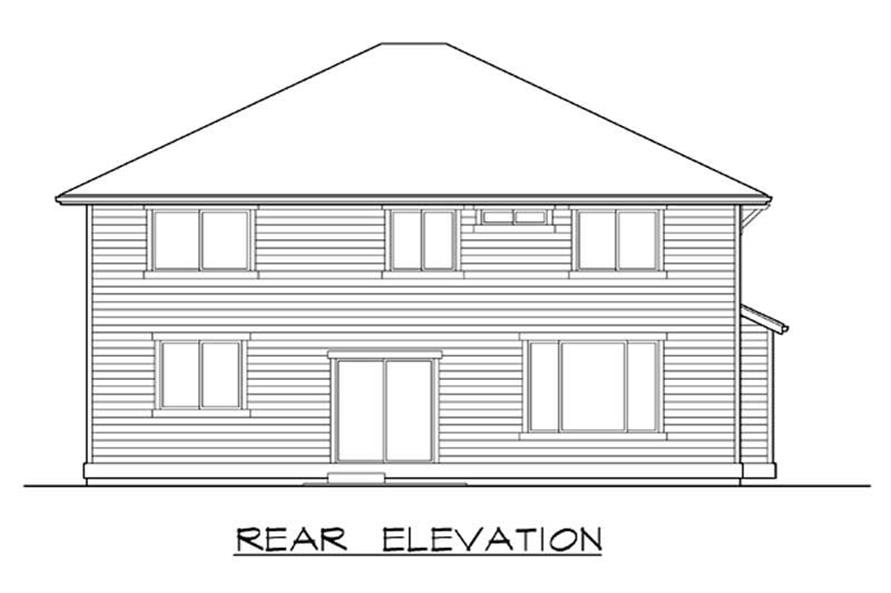

Rear Elevation
Front Elevation

About Plan # 115-1285

About Plan # 115-1285

2590 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 40' 0" WIDTH 46' 0" DEPTH 2 GARAGE BAY
This beautiful and amazing house plan has many exciting features to offer you. In the kitchen it is very open and extends into the family room for further room for entertaining guests. There is a nice nook in the kitchen where you can enjoy having early morning breakfast together as a family. You have the nice convenience of the laundry room and powder room being just oft from the garage where others can freshen up in. In the family room you have a warm and inviting fireplace to cuddle up by. There is a nice covered porch as the entrance of the home. The dining room and living room has an easy flow between each other. Upstairs you have a beautiful master bedroom. In the master bedroom you have the luxury of a master bath along with a nice walk-in closet.

Each plan set includes the following:

  • DETAIL SHEET: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • FLOOR PLAN: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • FOUNDATION PLAN: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information.
  • ROOF PLAN: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
  • FRONT, REAR, AND SIDE ELEVATIONS: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • BUILDING SECTION SHEET: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

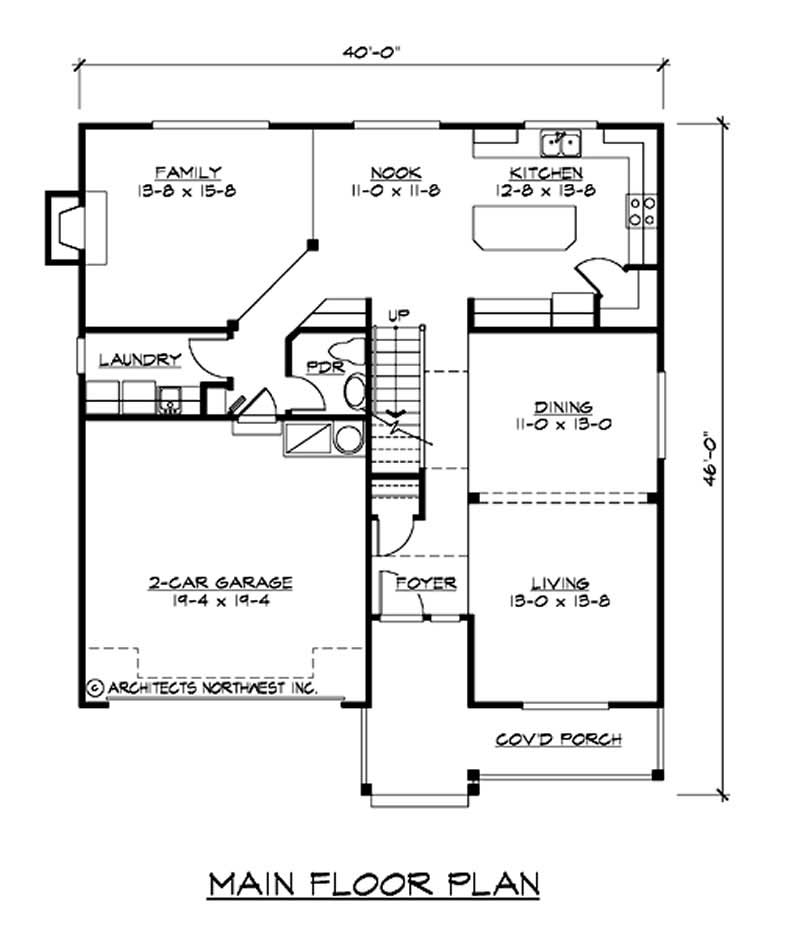

Home Plan: #115-1285 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #115-1285

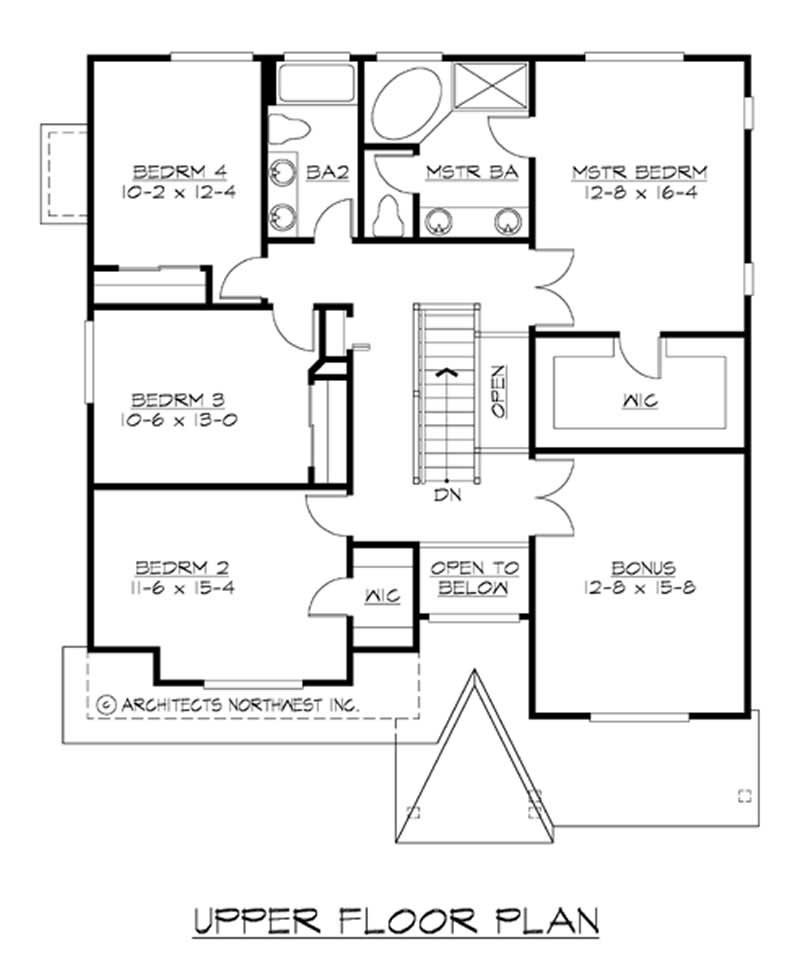

#115-1285 Floor Plan Second Story - second Floor Plan Second Story of Ranch Plan #115-1285
