4-Bedroom, 2579 Sq Ft Country Plan with Covered Front Porch

Main image for house plan # 16988
House Plan E161g3 Front Elevation
4-Bedroom, 2579 Sq Ft Country Home Plan - 173-1013 - Main Exterior
House Plan E161g3 Front Elevation

About Plan # 173-1013

About Plan # 173-1013

2579 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 72' 0" WIDTH 58' 3" DEPTH 3 GARAGE BAY

This House Plan brings a great layout and plenty of additional space. A large three car garage with workshop sits just outside the kitchen. The first floor is dedicated to living and entertaining, while the second floor houses the bedrooms and is more private. There are spacious bonus and storage rooms on the second floor.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Cabinet details are also included.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

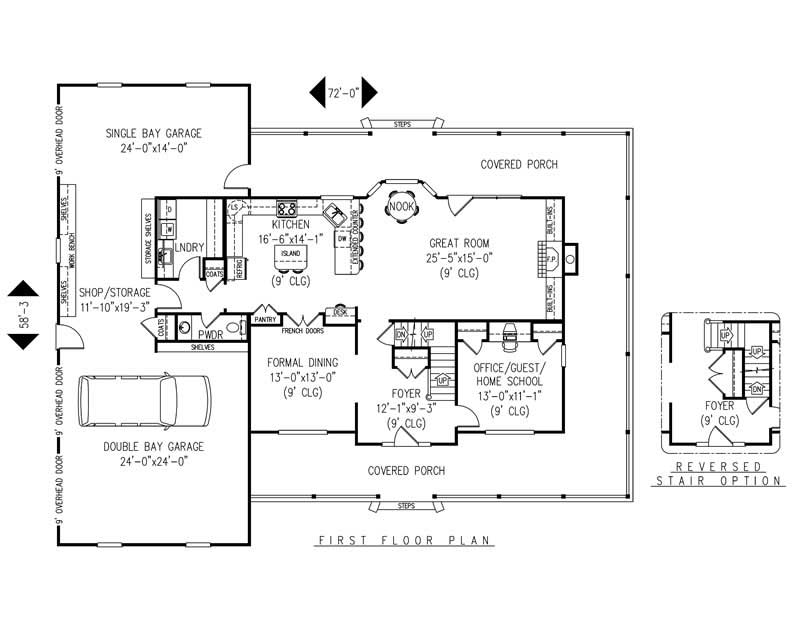

Home Plan: #173-1013 Floor Plan First Story - main Floor Plan First Story of Country Plan #173-1013

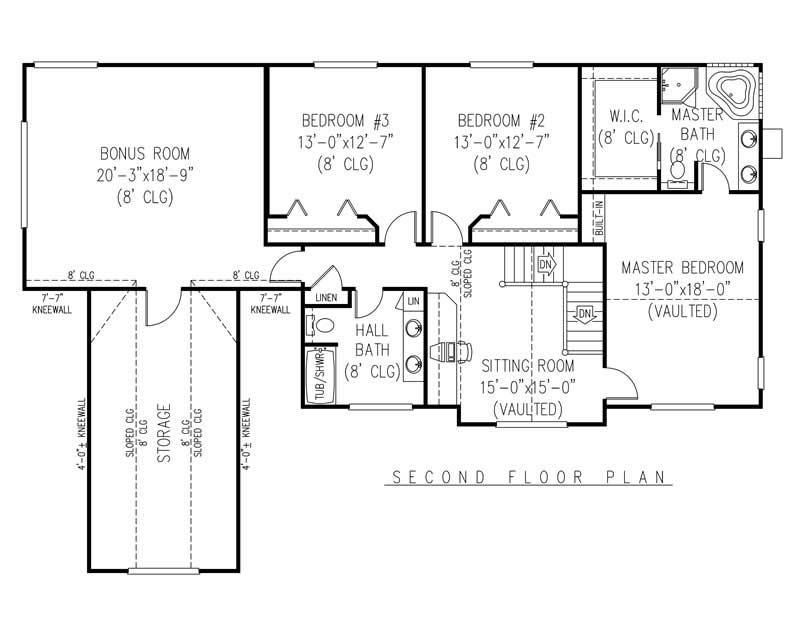

#173-1013 Floor Plan Second Story - second Floor Plan Second Story of Country Plan #173-1013
