3-6 Bed, 2343–4651 Sq Ft Ranch with Walk-in Pantry

Craftsman home (ThePlanCollection: Plan #187-1003)
187-1003: Home Exterior Photograph-Left Side View
187-1003: Home Exterior Photograph-Right Side View
187-1003: Home Interior Photograph-Great Room

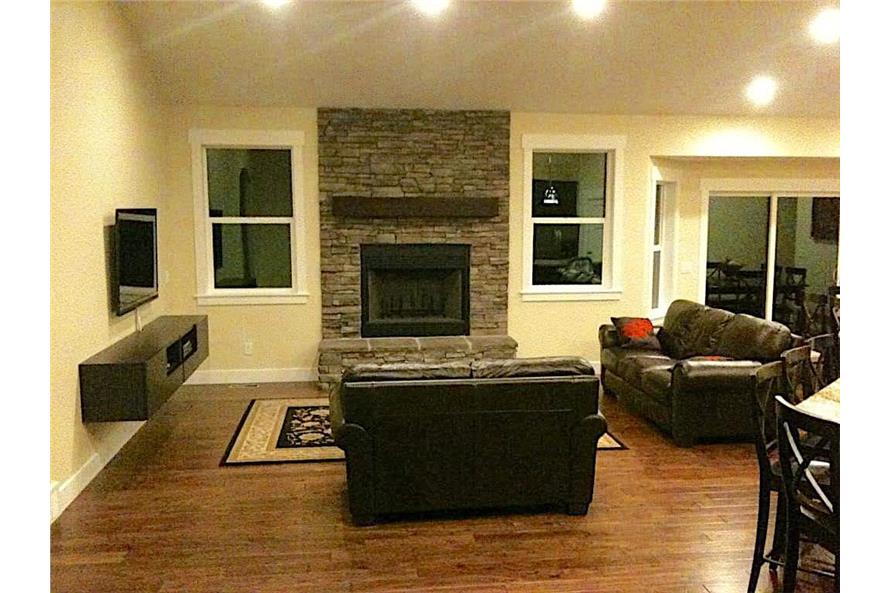

187-1003: Home Interior Photograph-Great Room: Fireplace

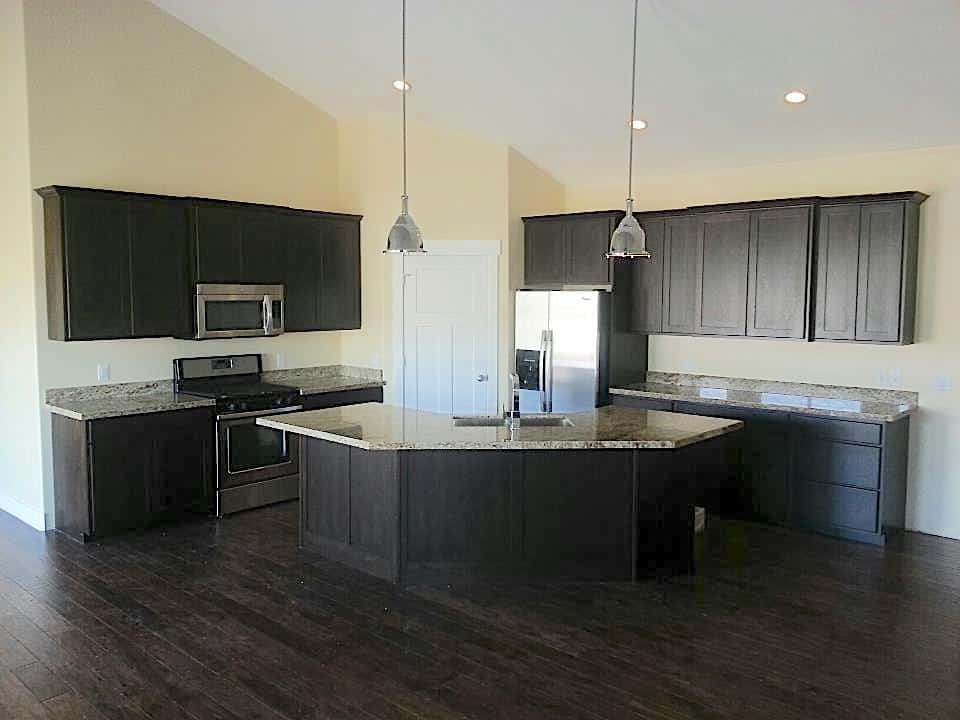

187-1003: Home Interior Photograph-Kitchen

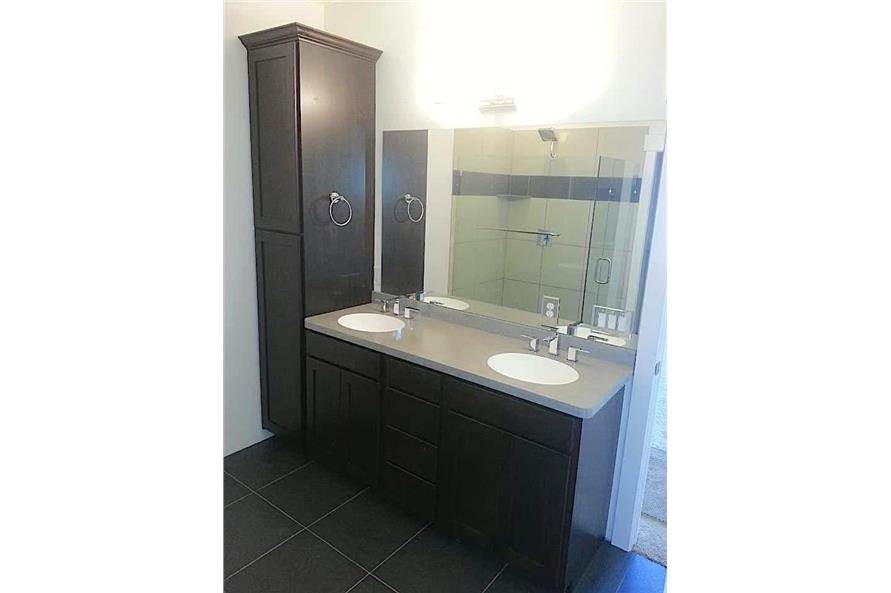

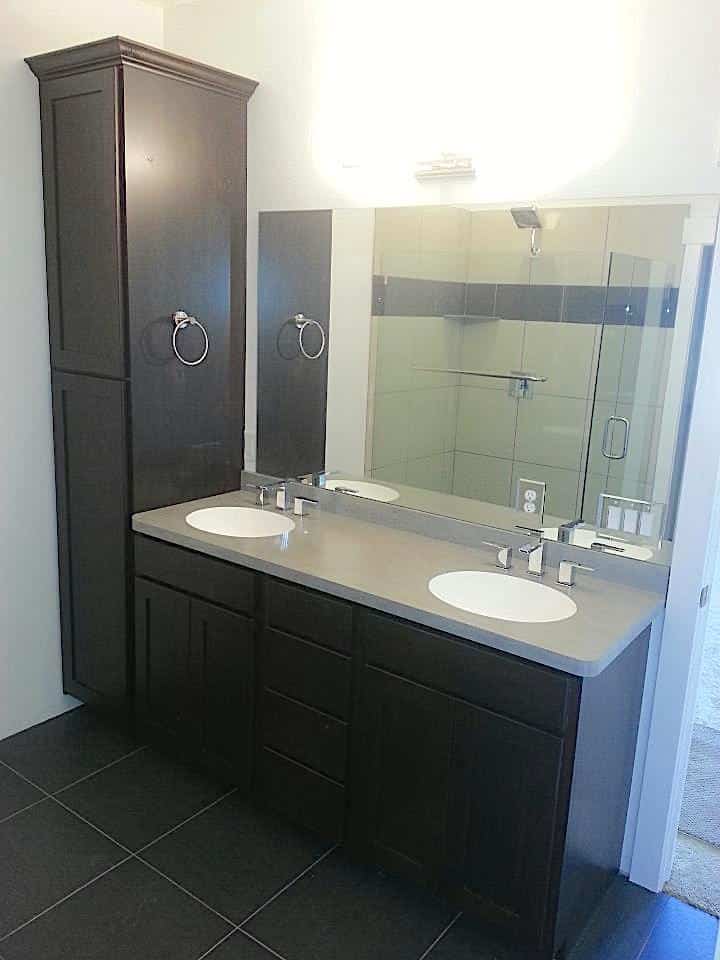

187-1003: Home Interior Photograph-Master Bathroom: Sink/Vanity

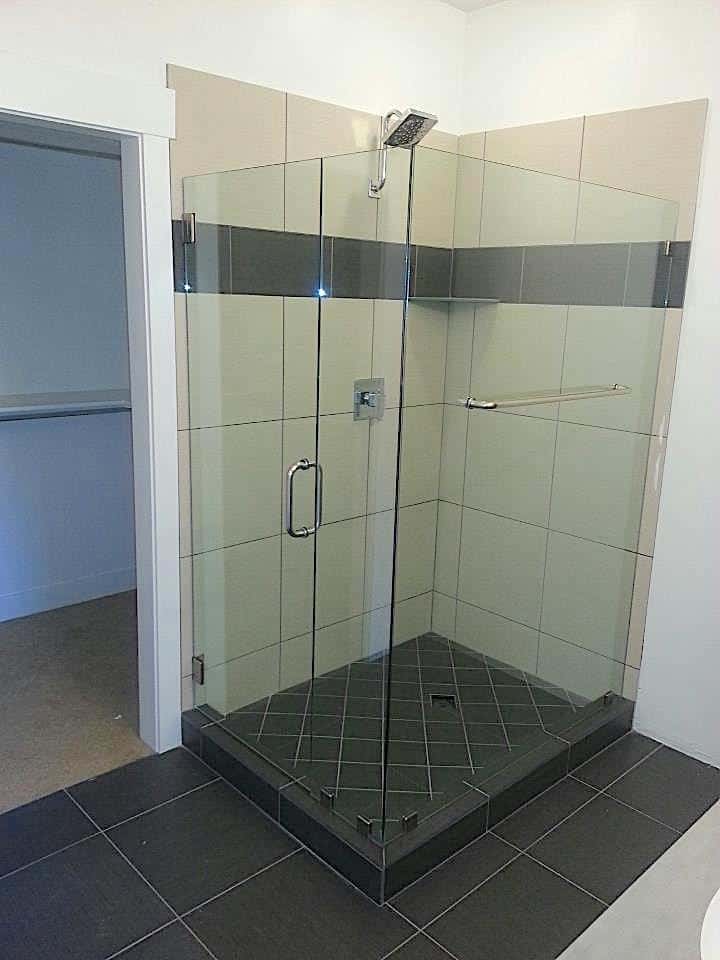

187-1003: Home Interior Photograph-Master Bathroom: Shower

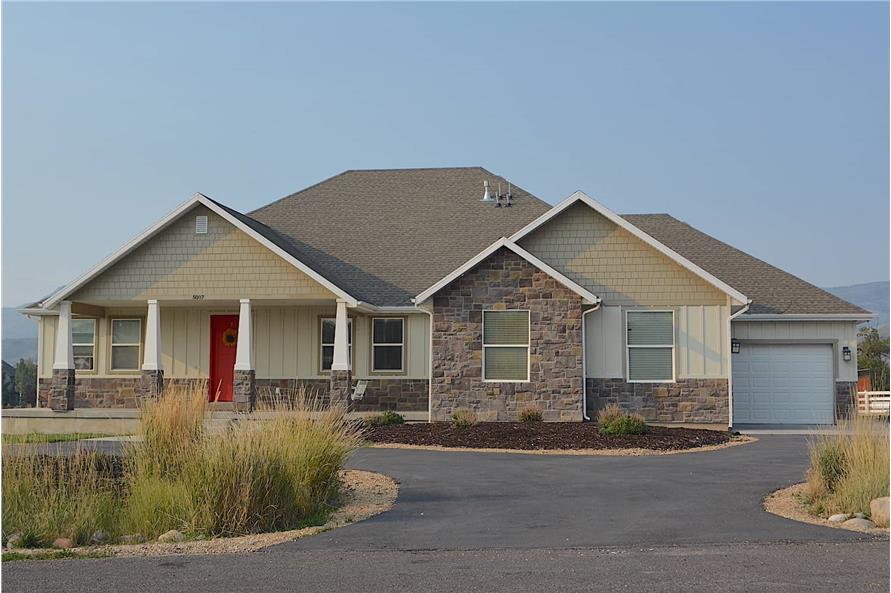

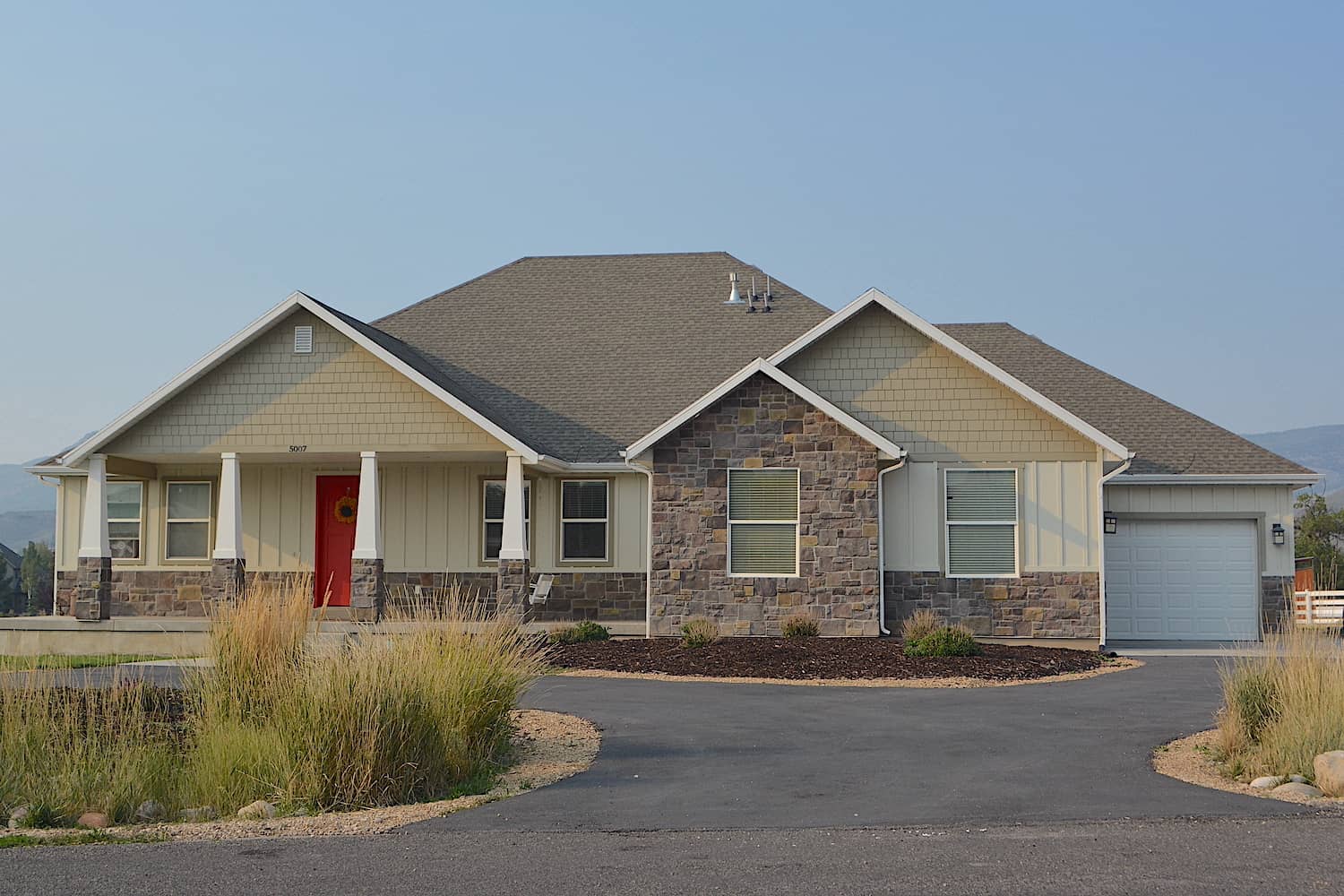

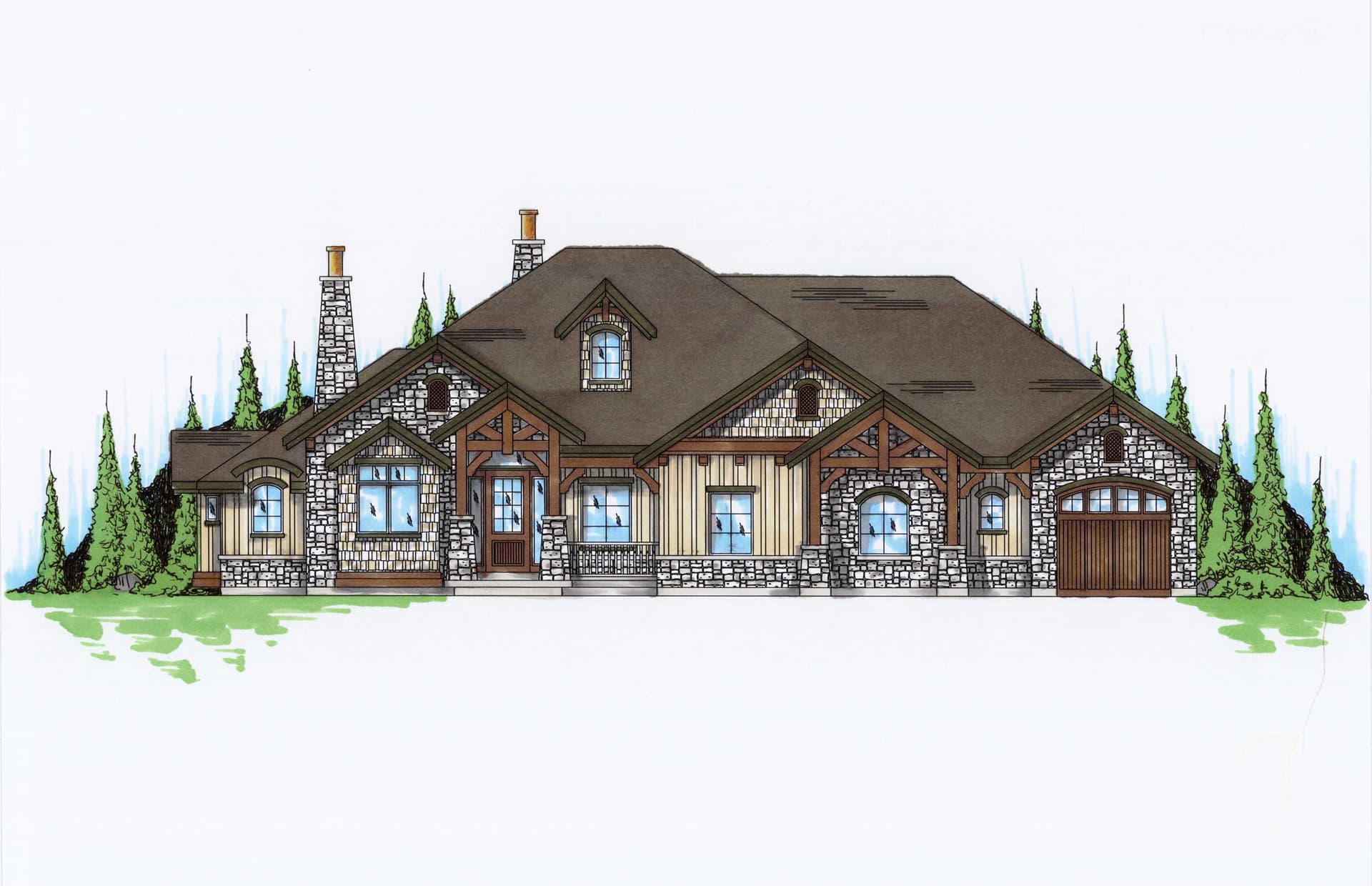

3-6 Bedroom, 2343–4651 Sq Ft Craftsman Home - Plan #187-1003 - Main Exterior

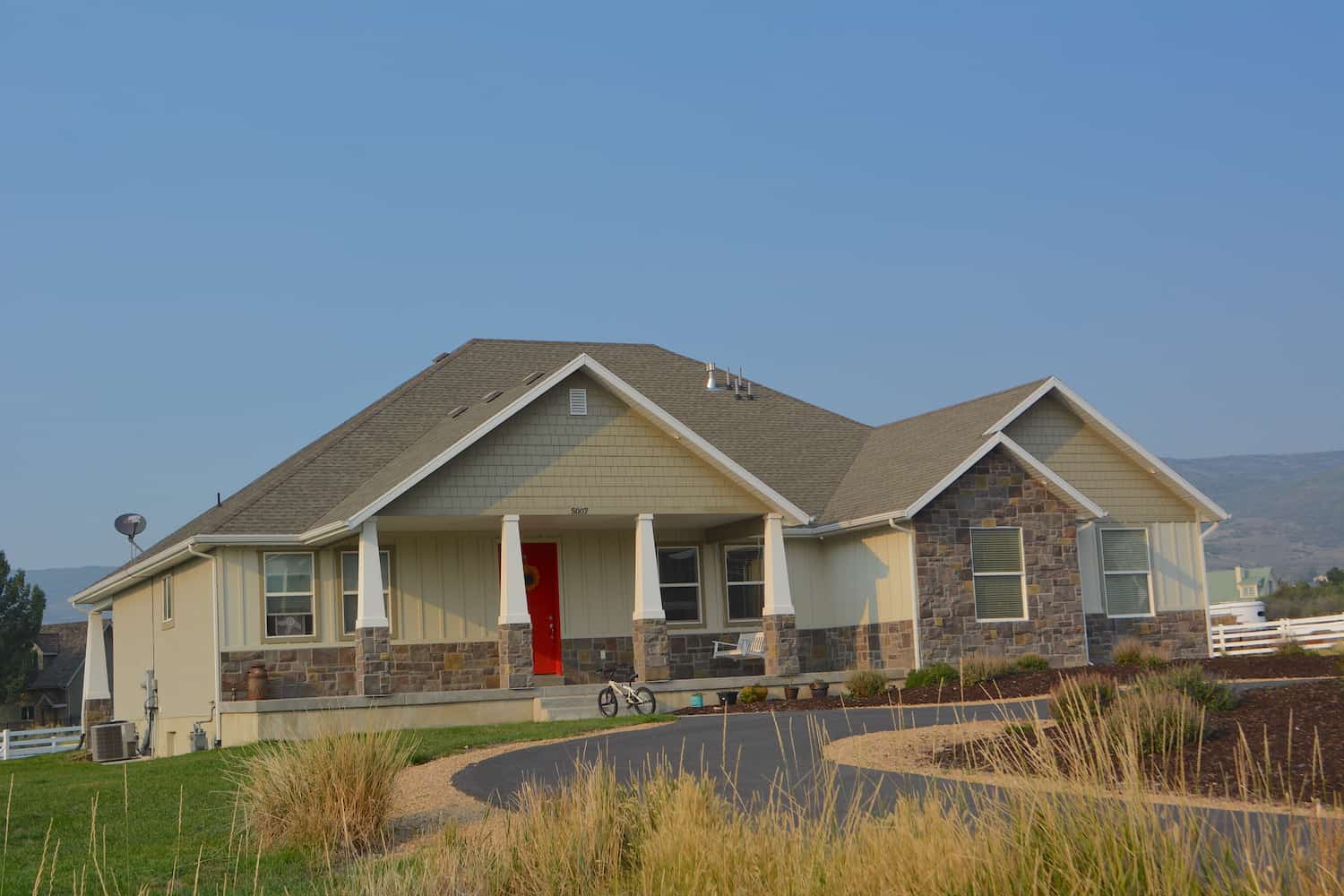

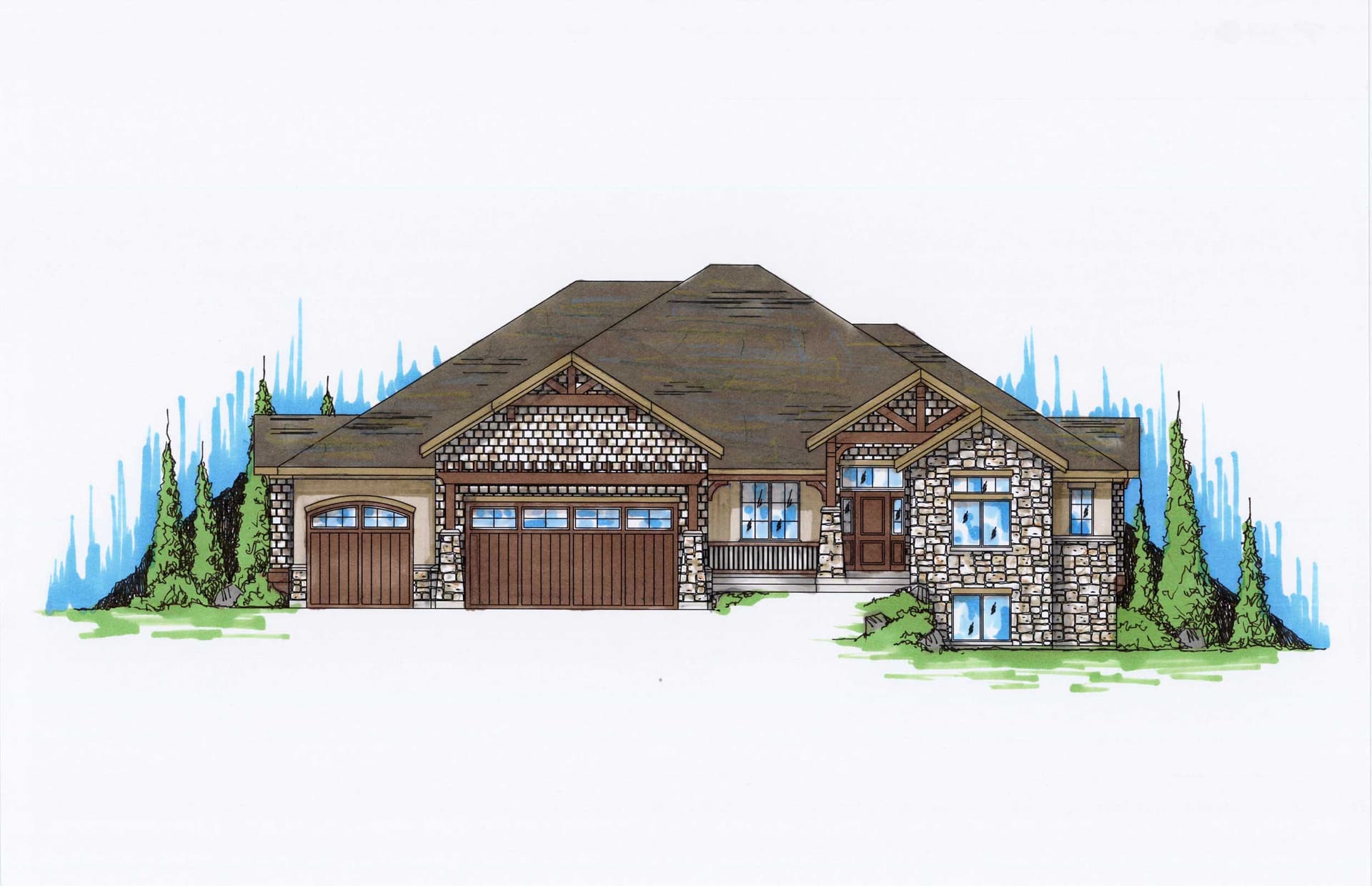

187-1003: Home Exterior Photograph-Left Side View

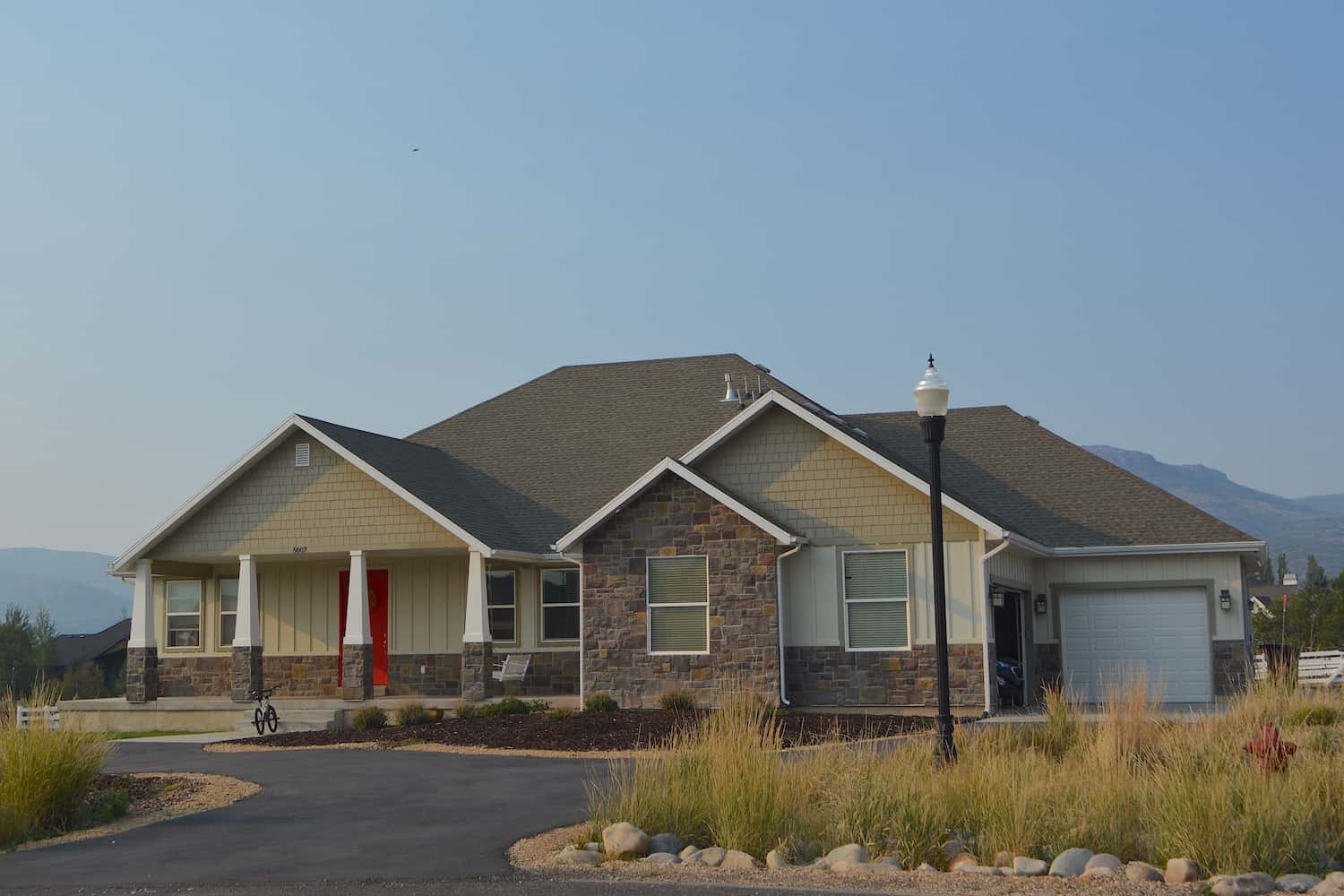

187-1003: Home Exterior Photograph-Right Side View

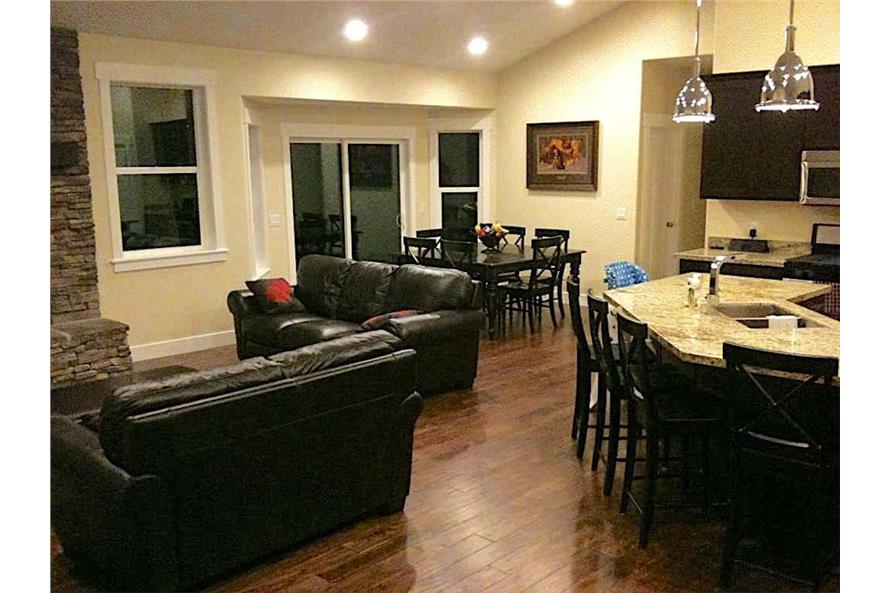

187-1003: Home Interior Photograph-Great Room

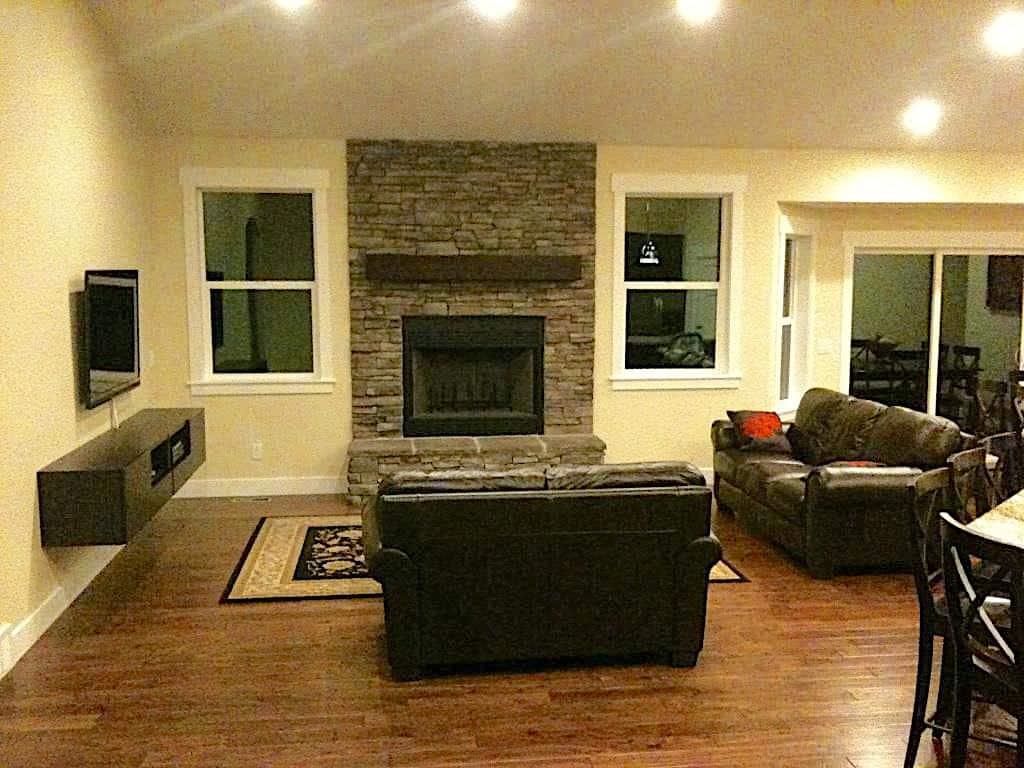

187-1003: Home Interior Photograph-Great Room: Fireplace

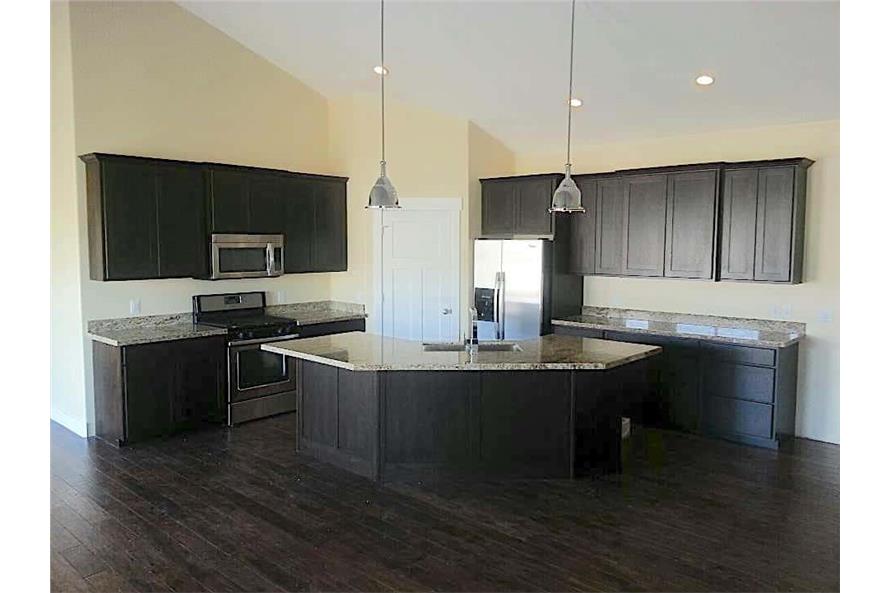

187-1003: Home Interior Photograph-Kitchen
187-1003: Home Interior Photograph-Master Bathroom: Sink/Vanity

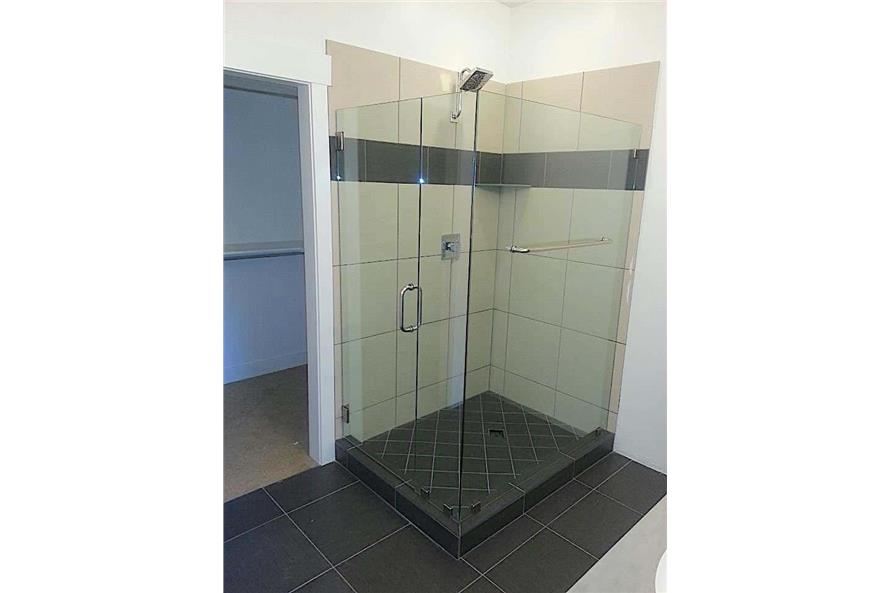

187-1003: Home Interior Photograph-Master Bathroom: Shower

About Plan # 187-1003

About Plan # 187-1003

2343 SQUARE FEET 6 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 78' 0" WIDTH 60' 6" DEPTH 3 GARAGE BAY

This is a great starter or empty nester house plan. This 1-story Craftsman style Ranch home has 3-6 bedrooms and 2.5-3.5 baths, depending on whether you finish the unfinished basement, with ceiling height(s) of 9 feet. Above grade is a 2343-square-foot area of heated and cooled living space; the additional square footage in the basement yields 2308 square feet of living space, for a total of 4651 square feet of living space if you decide to finish the basement. There is a 3-car garage. The house has a ridge height of 27 feet 3 inches. The truss-framed roof and 2x6 walls offer solid framing. We are sure you will find a lot to like about this design.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FLOOR FRAMING PLANS
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

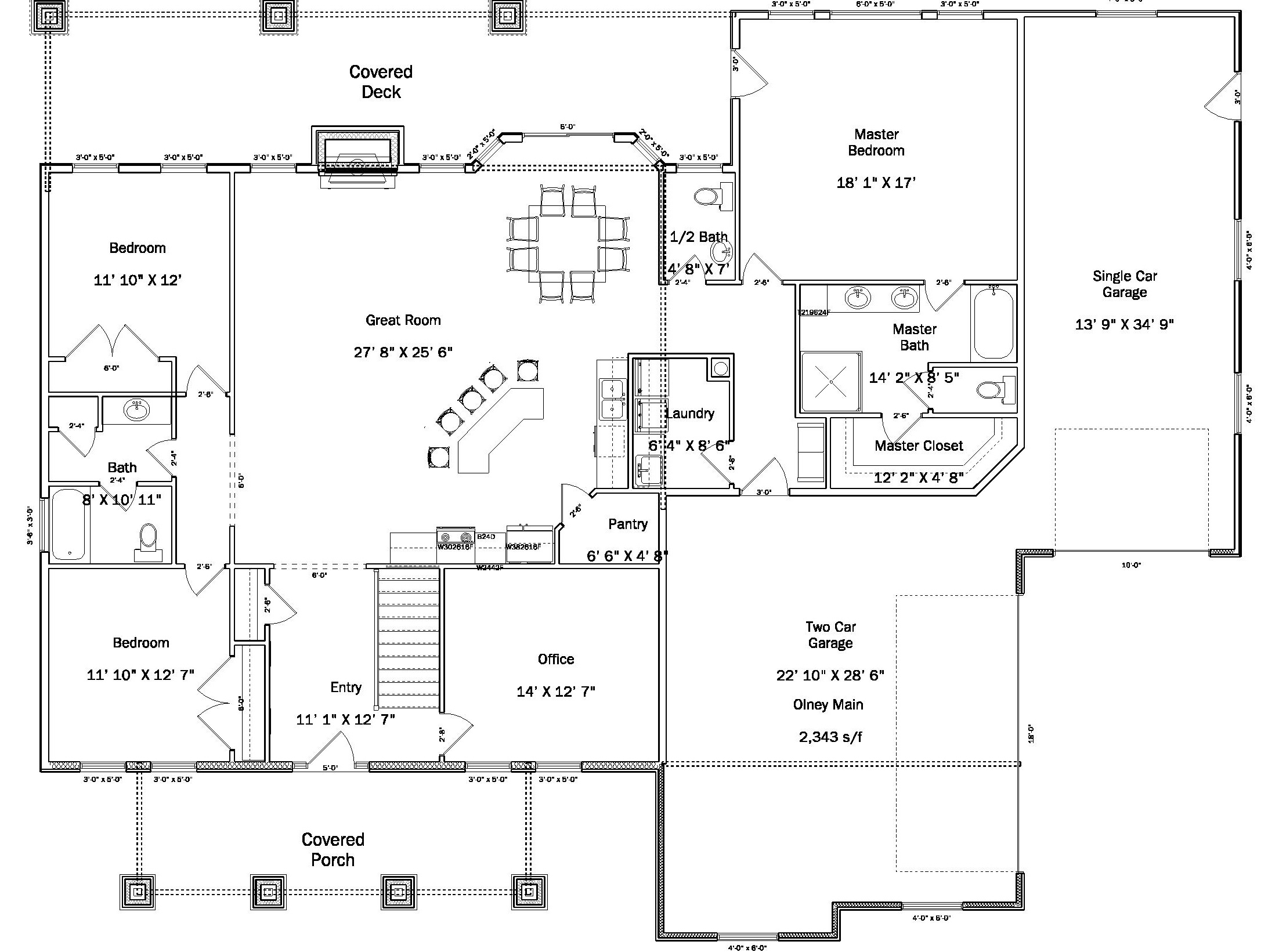

Home Plan: #187-1003 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #187-1003

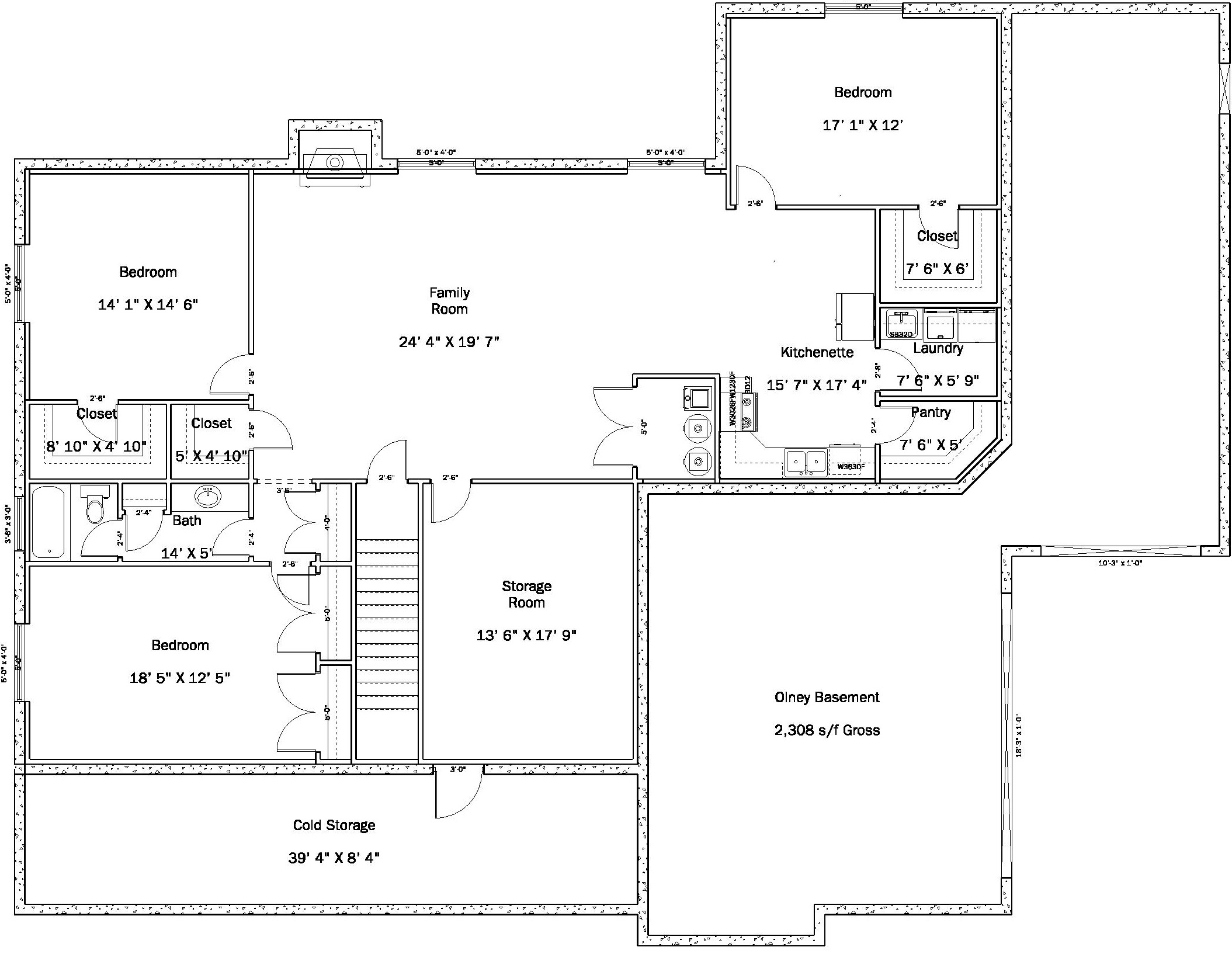

#187-1003 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #187-1003

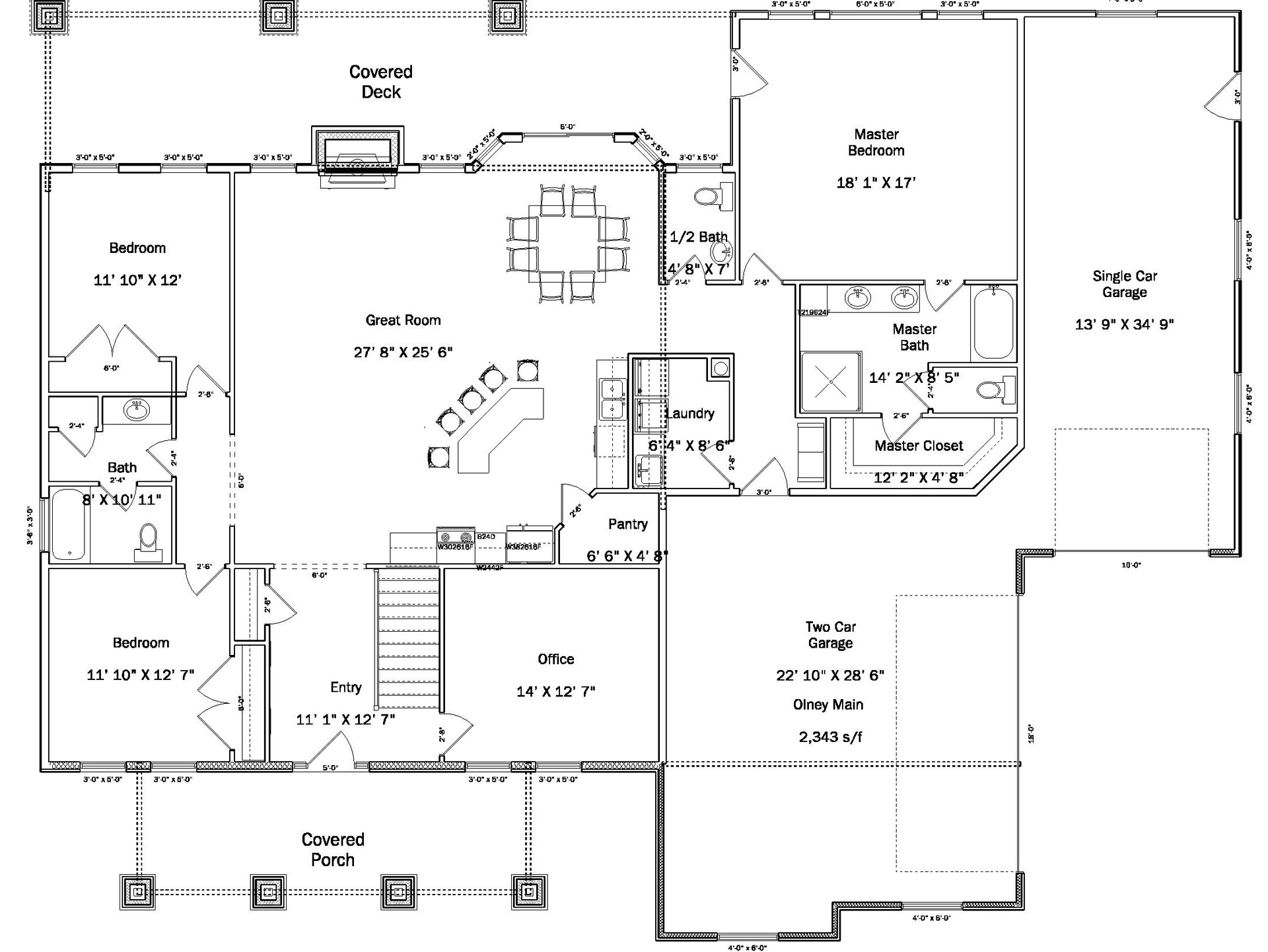

Home Plan: #187-1003 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #187-1003
#187-1003 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #187-1003
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 187-1003
Floors:
1
Bedrooms:
6
Full Baths:
3
Half Baths:
1
Garage :
3

Square Footage

Heated Sq Feet:
2343
Main Floor:
2343
Unfinished Sq Ft:
Lower Floor:
2308

Dimensions

Width:
78' 0"
Depth:
60' 6"
Ridge Height:
27' 3"

Architectural Styles

Arts and Crafts
Craftsman
Ranch
Southern

Exterior Wall Material

Rock/Stone
Shakes
Wood Siding

Roofing Type

Gable
Hip

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling

Special Feature

Color Photos
Family Room
Fireplace
Home Office
Main Level Laundry
Open Floor Plan
Split Bathroom
Storage

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Flat Site

Kitchen Features

Eat-In Kitchen
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE! On some plans, alternate foundations could take up to ONE WEEK to produce. NOTE FROM DESIGNER: If you purchase a CAD, you will automatically receive the unlimited build license!

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
