5-Bedroom, 2012 Sq Ft Traditional Plan with Sitting Area

Front elevation of Traditional home (ThePlanCollection: House Plan #138-1065)

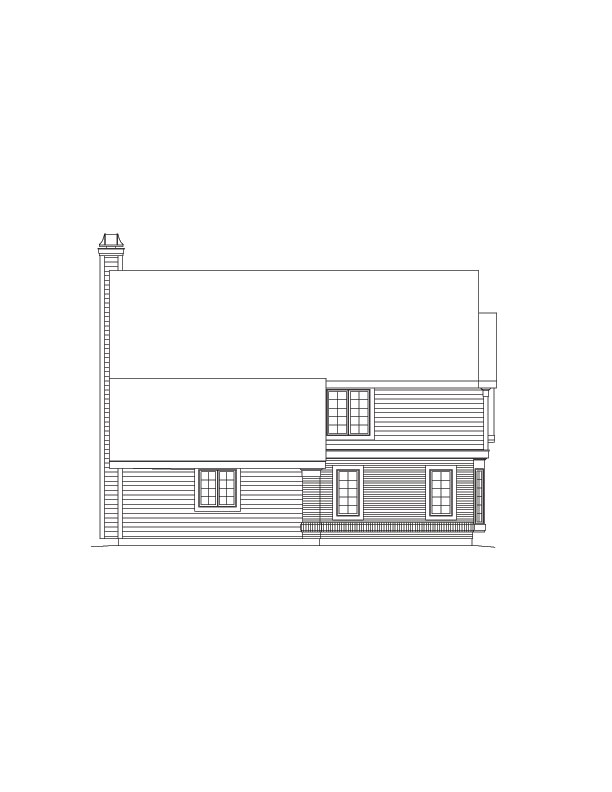

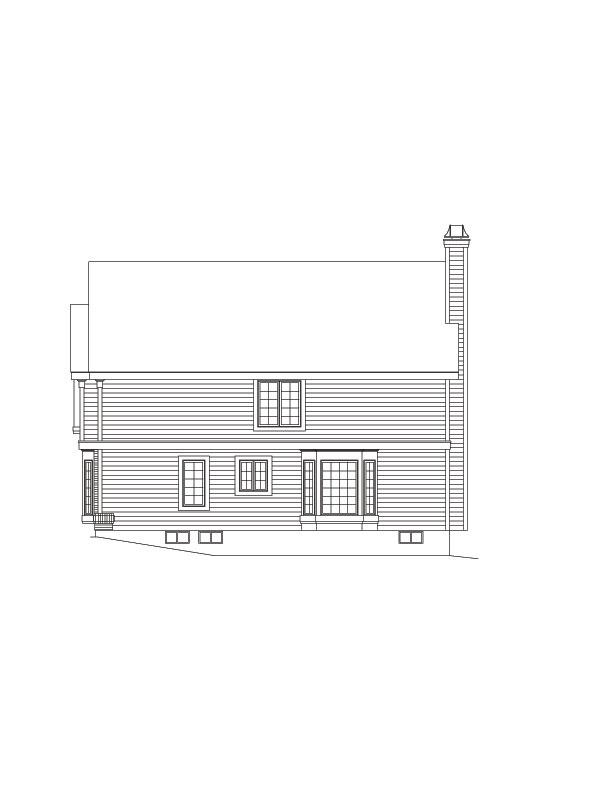

138-1065: Home Plan Rear Elevation

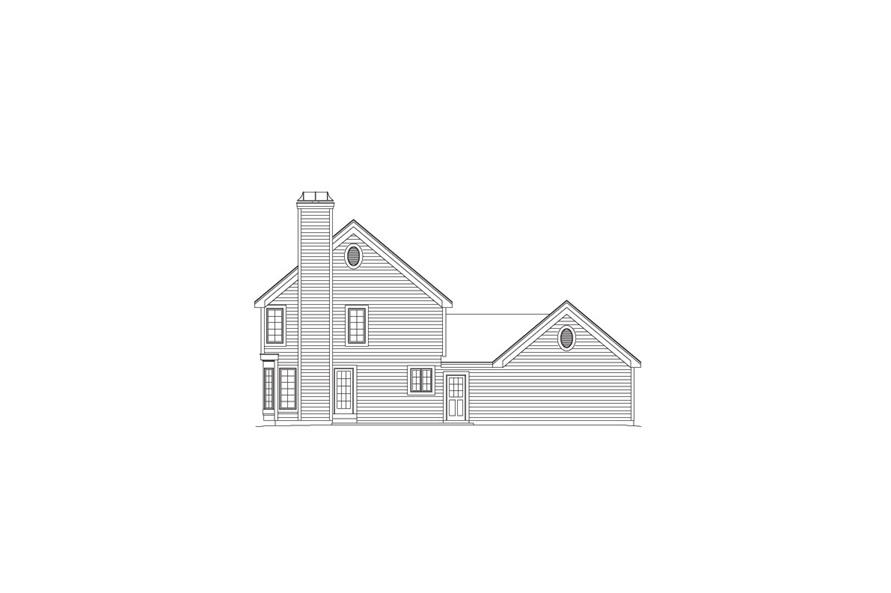

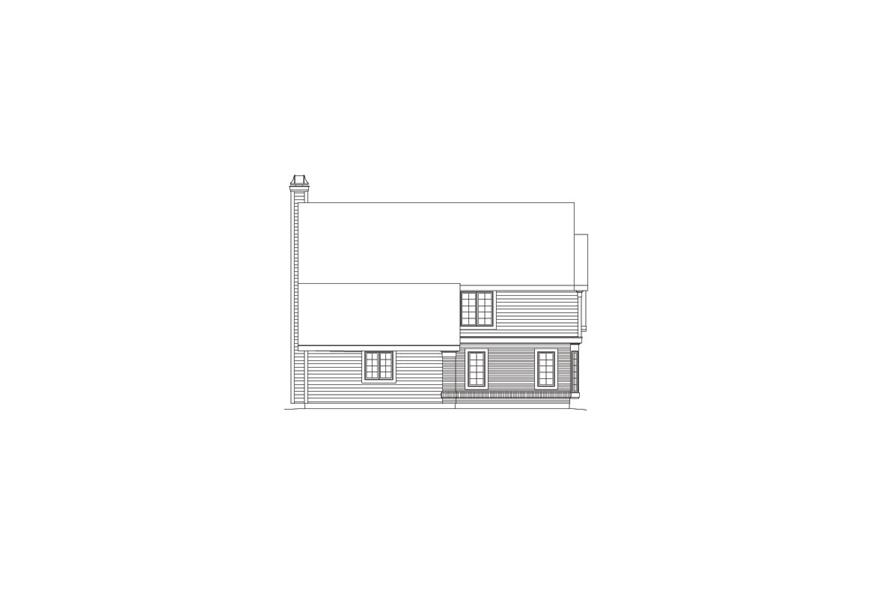

138-1065: Home Plan Left Elevation

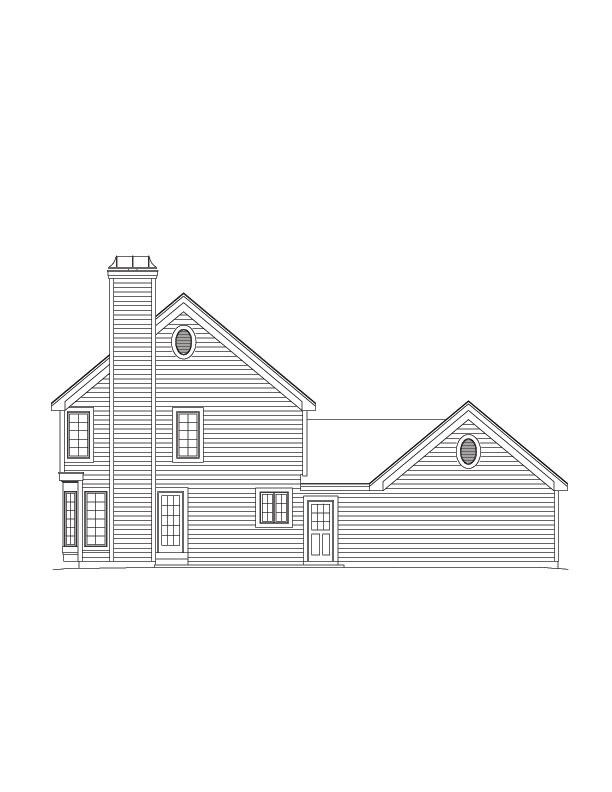

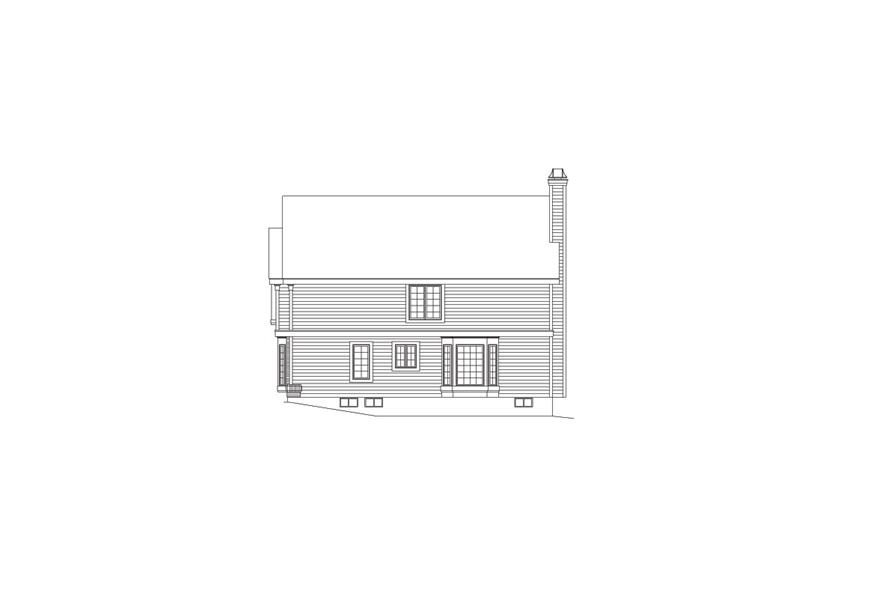

138-1065: Home Plan Right Elevation
138-1065: Home Plan Rendering
5-Bedroom, 2012 Sq Ft Traditional Home Plan - 138-1065 - Main Exterior
138-1065: Home Plan Rear Elevation
138-1065: Home Plan Left Elevation
138-1065: Home Plan Right Elevation
138-1065: Home Plan Rendering

About Plan # 138-1065

About Plan # 138-1065

2012 SQUARE FEET 5 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 55' 4" WIDTH 43' 0" DEPTH 2 GARAGE BAY

This lovely Traditional style home with Country influences (House Plan #138-1065) has 2012 square feet of living space. The 2 story floor plan includes 5 bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

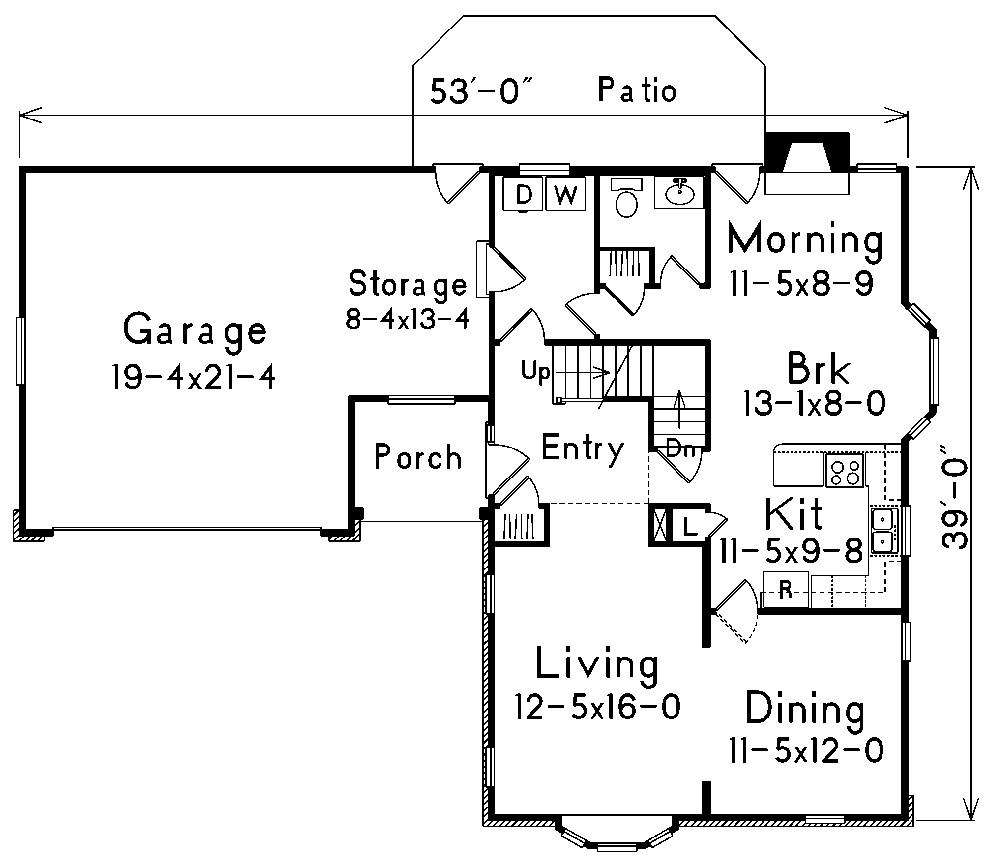

Home Plan: #138-1065 Floor Plan First Story - main level Floor Plan First Story of Traditional Plan #138-1065

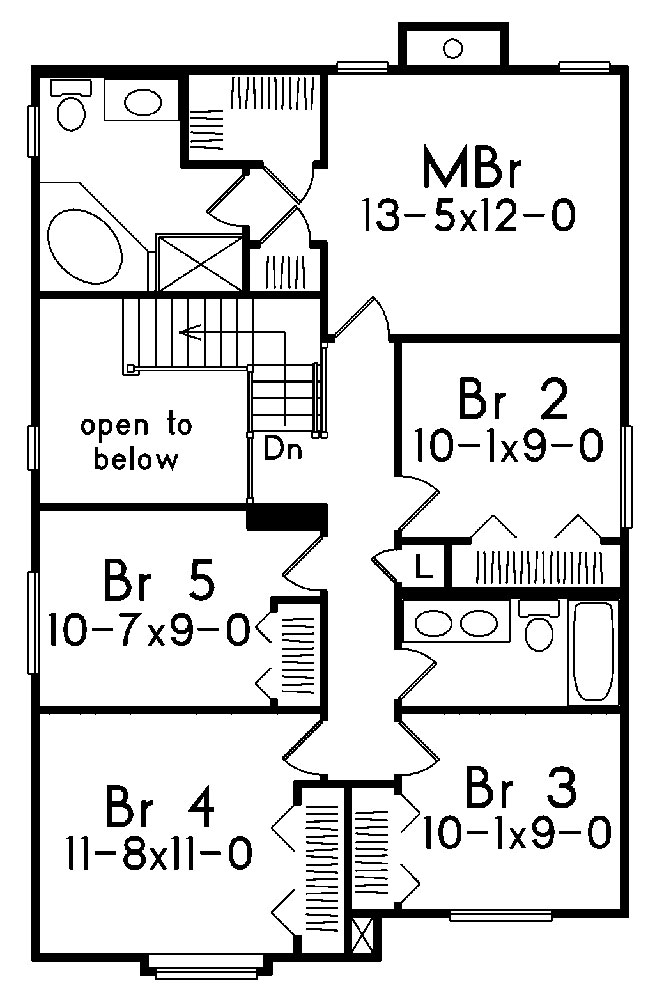

#138-1065 Floor Plan Second Story - upper level Floor Plan Second Story of Traditional Plan #138-1065
Home Plan: #138-1065 Floor Plan First Story - main level Floor Plan First Story of Traditional Plan #138-1065
#138-1065 Floor Plan Second Story - upper level Floor Plan Second Story of Traditional Plan #138-1065
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 138-1065
Floors:
2
Bedrooms:
5
Full Baths:
2
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
2012
Main Floor:
1022
Upper Floor:
990
Unfinished Sq Ft:
Lower Floor:
986
Garage :
411
Porch :
54

Dimensions

Width:
55' 4"
Depth:
43' 0"
Ridge Height:
28' 8"

Architectural Styles

Country
Traditional
Transitional

Exterior Wall Material

Brick
Vinyl Siding
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

10/12

Ceiling Height

8 Foot Ceiling

Special Feature

Balcony
Dining Room
Fireplace
Main Level Laundry
Open Floor Plan
Storage

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Eat-In Kitchen
Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Patio

Master Suite Features

Second Floor Master

Additional Notes from Designer

PLEASE NOTE: Not all plans from this designer can be modified! Please check before sending in a mod request. Thank you!

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.

Package & Price Help
Select Plan Package
