3-Bedroom, 1900 Sq Ft Ranch Plan with Bonus Room

Ranch home (ThePlanCollection: Plan #196-1183)
196-1183: Home Plan Rear Elevation
196-1183: Home Plan Left Elevation
196-1183: Home Plan Right Elevation
196-1183: Home Plan Front Elevation
3-Bedroom, 1900 Sq Ft Ranch Home - Plan #196-1183 - Main Exterior
196-1183: Home Plan Rear Elevation
196-1183: Home Plan Left Elevation
196-1183: Home Plan Right Elevation
196-1183: Home Plan Front Elevation

About Plan # 196-1183

About Plan # 196-1183

1900 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 60' 10" WIDTH 60' 5" DEPTH 2 GARAGE BAY

You'll feel revitalized by the sight of this wonderful Ranch style home with Cape Cod overtones. The playful levels of the roof, clerestory window, and brick materials give the house design an interesting curb appeal. This 1-story floor plan has 1900 square feet of living space and includes 3 bedrooms.

Each plan set includes the following:

a) Floor Plans: Floor plan drawings indicating dimensions for construction
b) Roof Plan: Drawings indicating roof slopes and unique conditions
c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
d) Building Sections: Drawings cut through important locations in the structure
e) Construction Details: Drawings showing specific construction of building elements at a large scale
f) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches, and outlets)
g) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
h) A building license: A single-use license for construction at one location only

Additional notes about engineering and building codes:

Our plans are designed to meet national building codes. We do not guarantee they will meet all local building requirements or building codes influenced by local geographic or climatic factors. It is the responsibility of the owner or builder to ensure these plans comply with city, county, municipal, and/or state/provincial building codes. Additionally, your plans will not be sealed or stamped by an engineer or architect. It is the owner’s (or builder’s) responsibility to hire a local professional to review and seal or stamp the plans if required by the building department. This must be handled by an engineer or architect licensed in the state/province where the plan is to be built.






Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

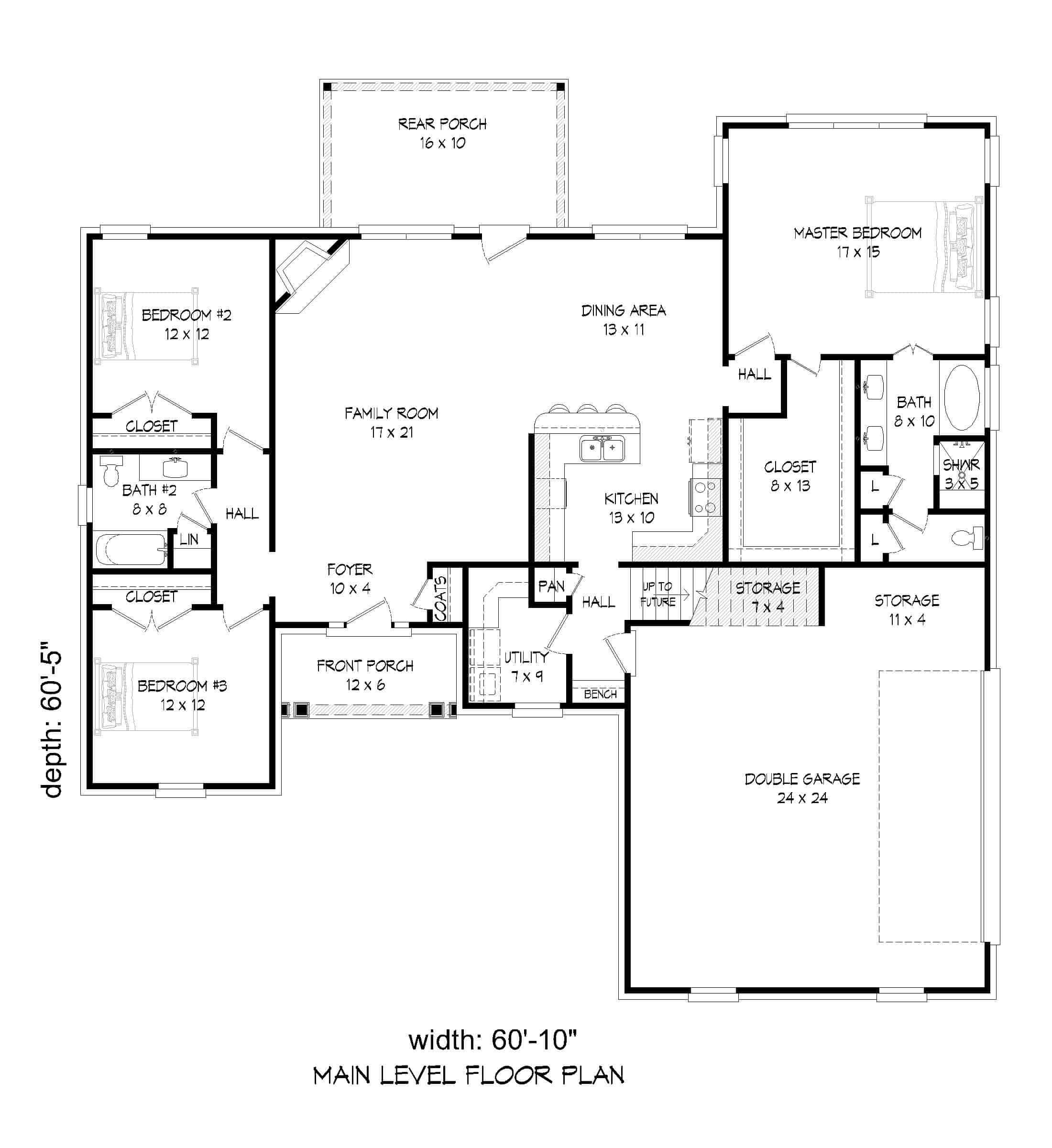

Home Plan: #196-1183 Floor Plan First Story - main level Floor Plan Main Level of Tudor Plan #196-1183

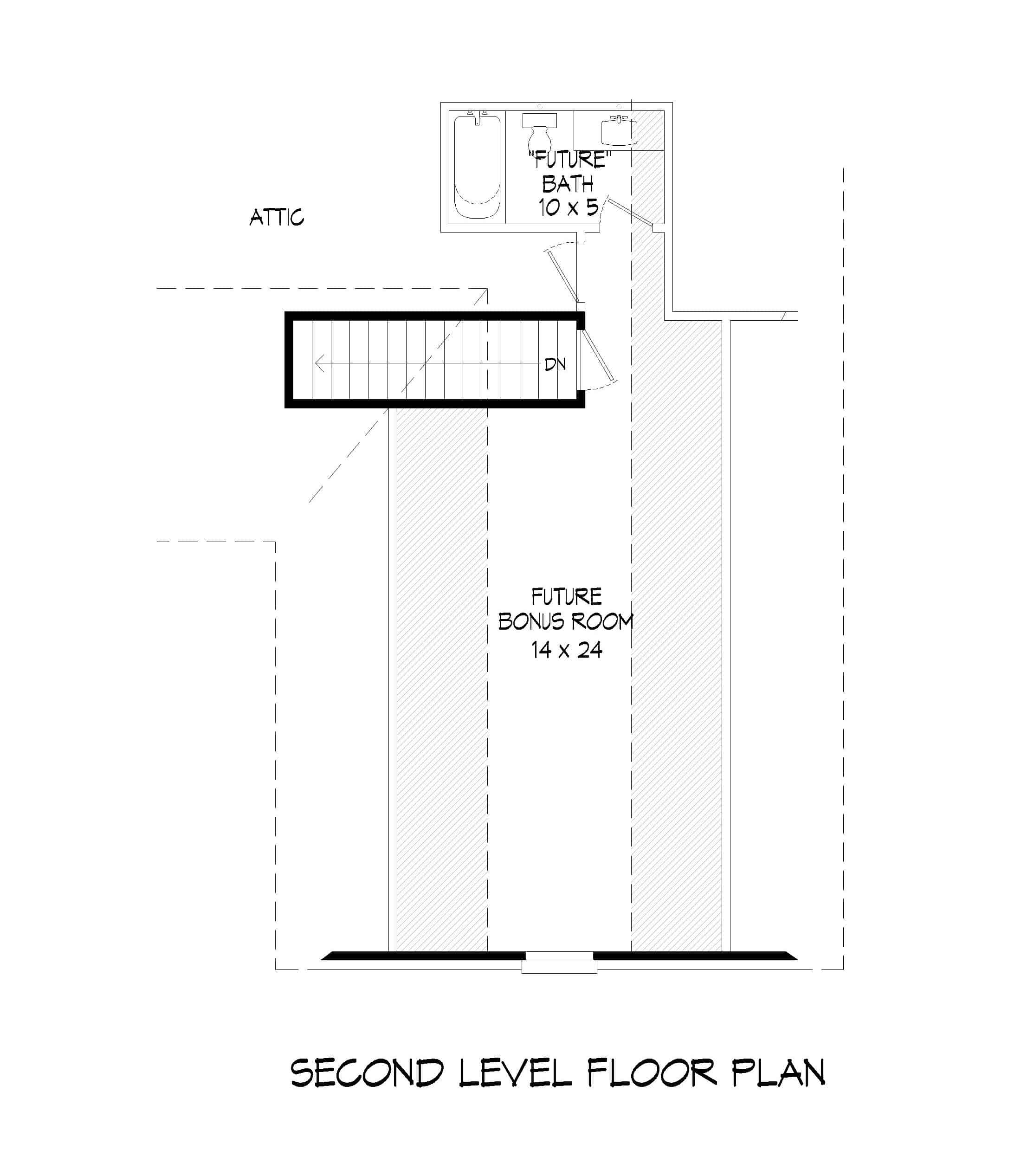

#196-1183 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Tudor Plan #196-1183
