4-Bedroom, 1846 Sq Ft Country Plan with Second Floor Master

Main image for house plan # 9856
4-Bedroom, 1846 Sq Ft Country Home Plan - 105-1091 - Main Exterior

About Plan # 105-1091

About Plan # 105-1091

1846 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 32' 0" WIDTH 37' 0" DEPTH 2 GARAGE BAY
This traditional home delights with its covered front porch, dormers and elegant columns, and a cozy terrace in the backyard. The living room, with large windows overlooking the front porch, and dining room areas, accessing the terrace through sliding glass doors, are separated by a two-way fireplace. The upper floor includes a luxurious master suite and master bath with whirlpool tub, and two additional bedrooms that share a full bath.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes a typical wall section, special detail sections, and kitchen cabinet elevations.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and location
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

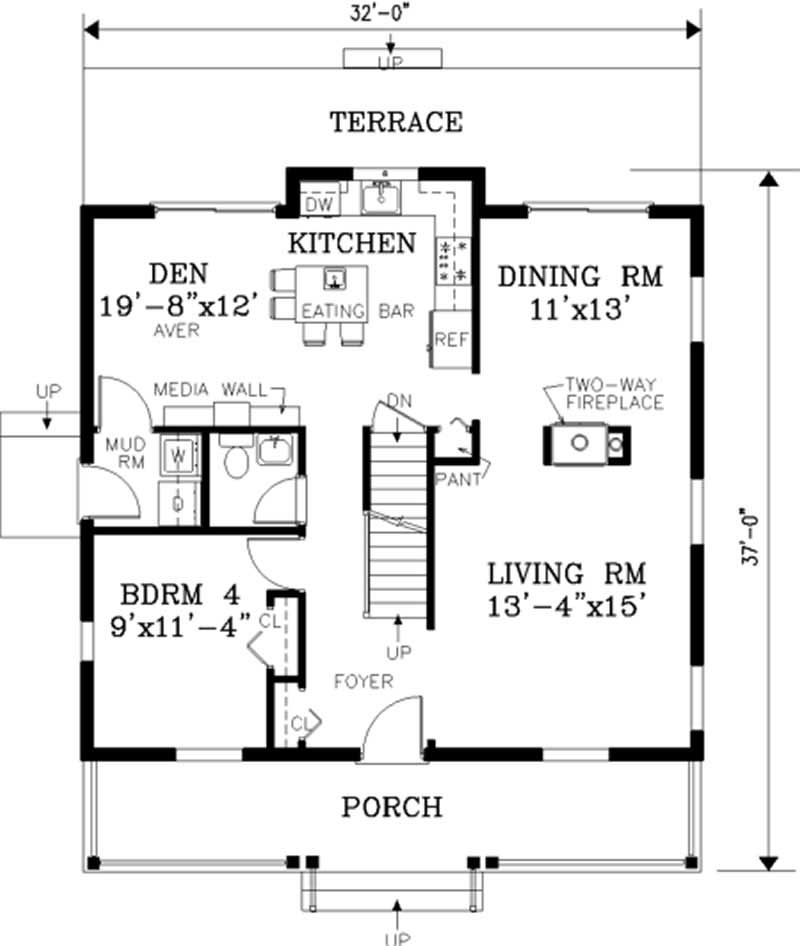

Home Plan: #105-1091 Floor Plan First Story - first Floor Plan First Story of Country Plan #105-1091

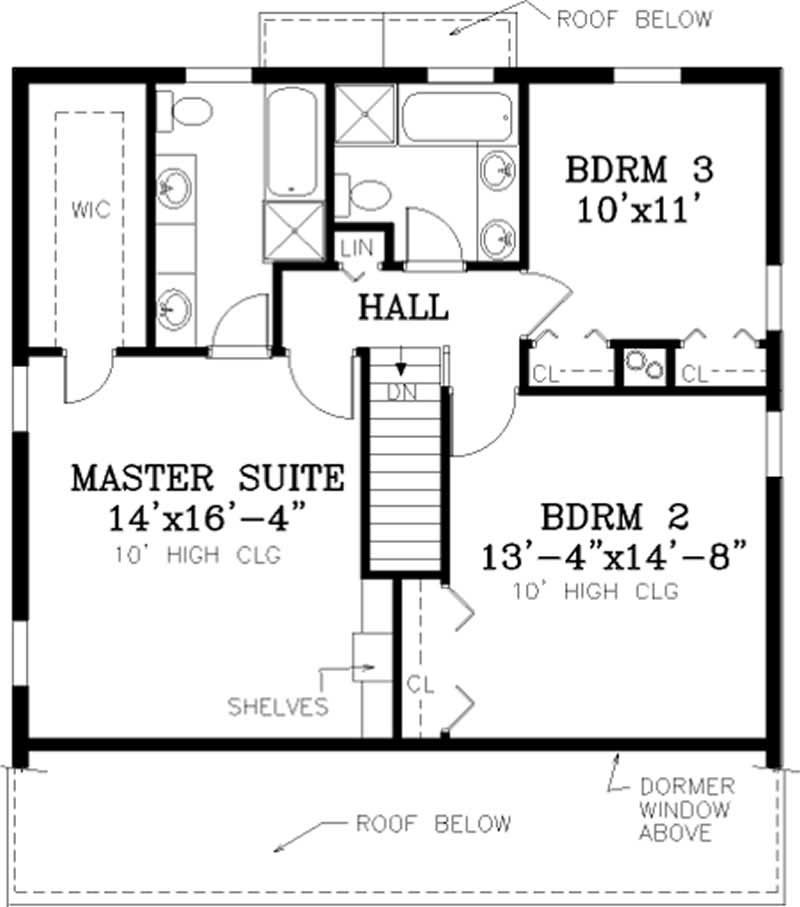

#105-1091 Floor Plan Second Story - second Floor Plan Second Story of Country Plan #105-1091
