3-Bedroom, 1793 Sq Ft Ranch Plan with Peninsula/Eating Bar

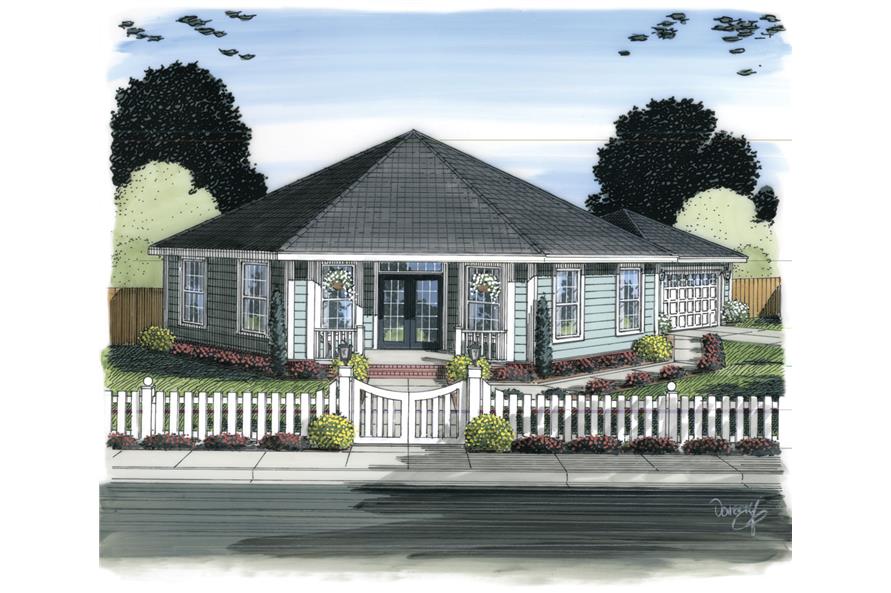

Front elevation of Ranch home (ThePlanCollection: House Plan #178-1311)

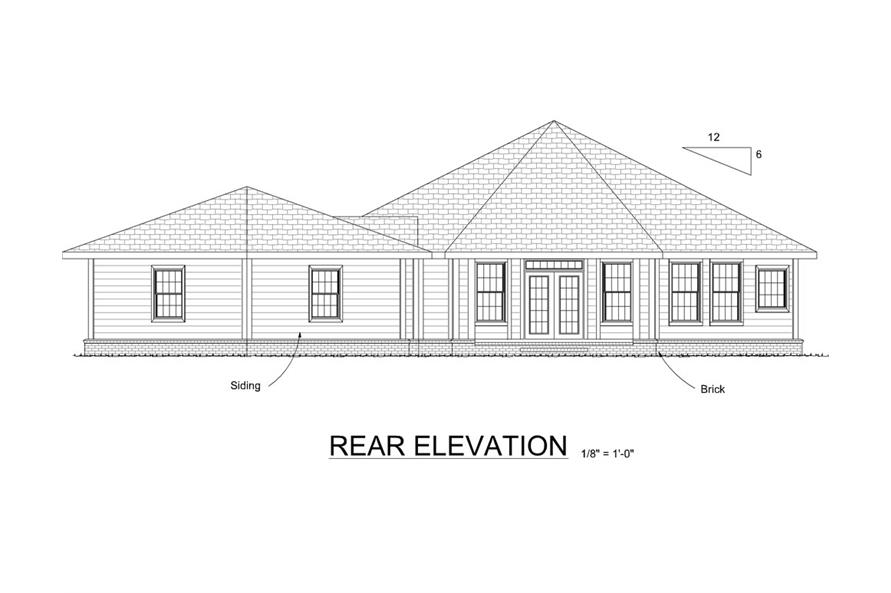

178-1311: Home Plan Rear Elevation
178-1311: Home Plan Rendering

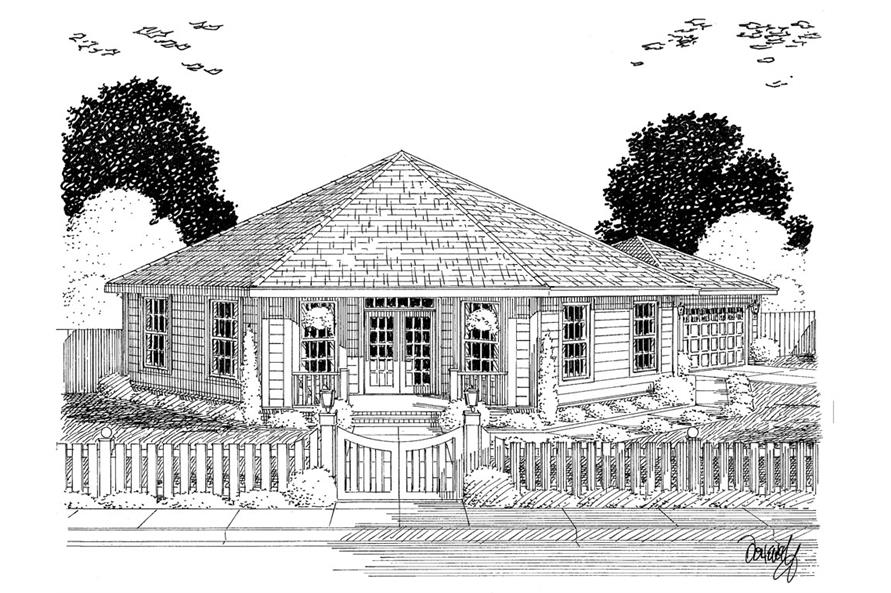

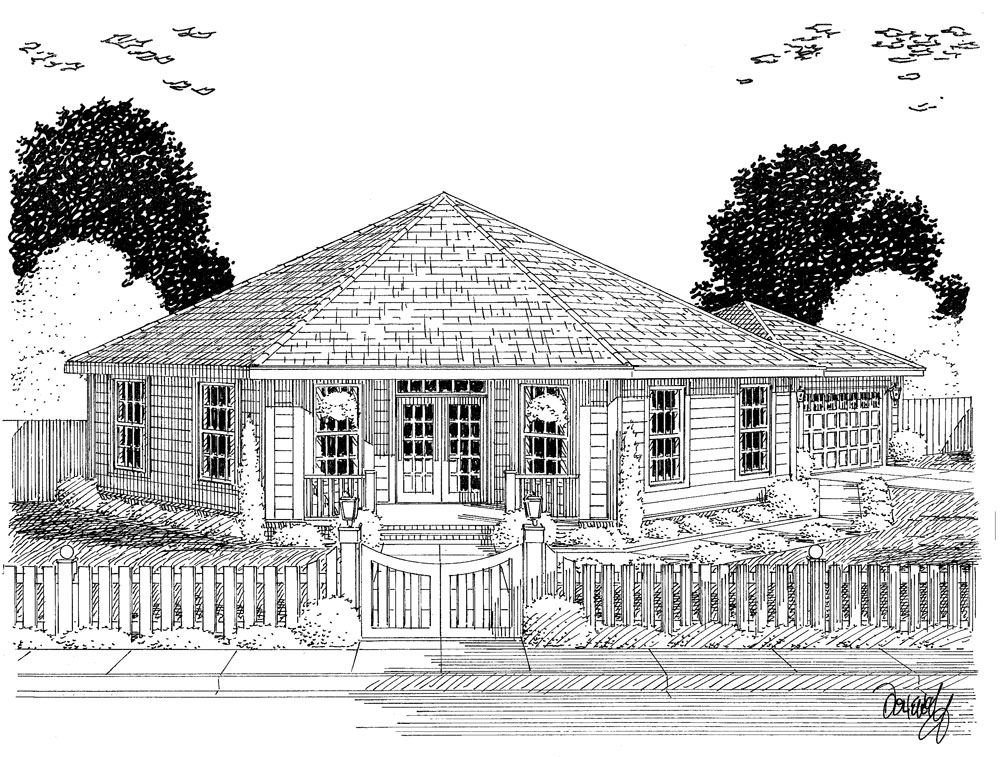

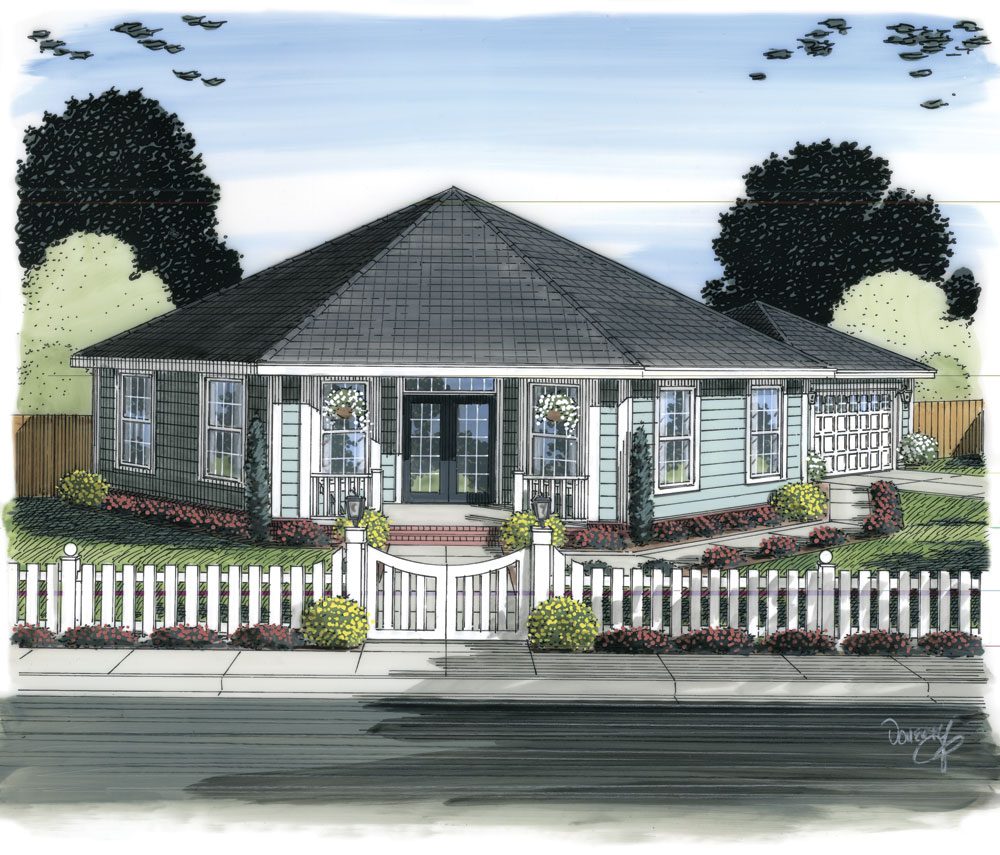

3-Bedroom, 1793 Sq Ft Ranch House Plan - 178-1311 - Front Exterior

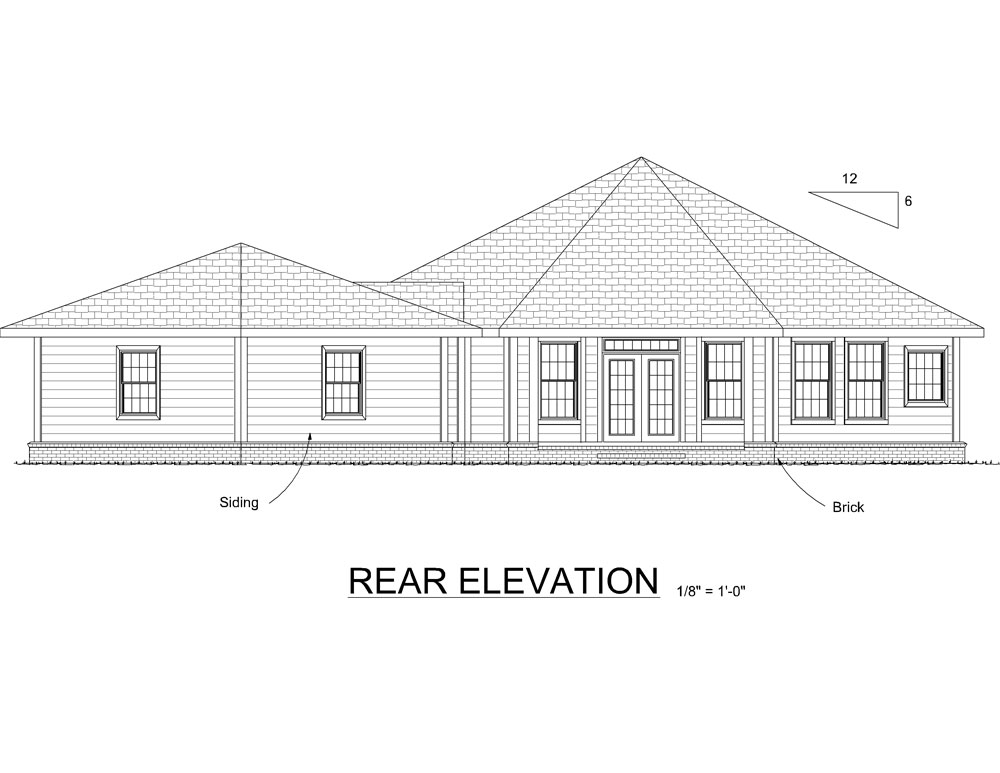

178-1311: Home Plan Rear Elevation
178-1311: Home Plan Rendering

About Plan # 178-1311

About Plan # 178-1311

1793 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 70' 2" WIDTH 70' 2" DEPTH 2 GARAGE BAY

This Ranch-style house plan is sure to leave an impression on anyone. Enter the home plan from the covered front porch, and step into the foyer. From the foyer, you have immediate access to the master suite. Enter the suite into the spacious master bedroom. From the bedroom you have access to his-and-her walk-in closets. Continue right into the ensuite bathroom, which has a split design and features dual sinks and a large soaking tub.

Continue into the home plan from the foyer, and step into the large great room, which features elegant 14-foot-tall ceilings and a built-in fireplace. The open concept of this floor plan allows the great room to flow into the kitchen and dining room. The rear of the great room turns into a rear foyer, which features French doors that open to the rear porch.

The house plan's kitchen features a great L-shape design with ample counter space. The kitchen also features a large, central island and peninsula with a built-in eating bar, whihc overhangs into the great room. From the kitchen, you have access to a hallway that leads to the large walk-in pantry, the main-floor laundry room, and the two-car, side entry garage.

Back in the great room, you have access to a hallway that leads to two bedrooms, split from the master suite. Both bedrooms have great 9-foot-tall ceilings and share a bathroom in the hallway. One bedroom features a walk in closet, while the other has a large reach-in closet.

Each plan set includes the following:

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan, including electrical, window and door sizes, floor joist span directions, and ceiling type notes (9’ ceiling, vault, etc)
  • Second-floor plan (if applicable) with the same info as shown on first-floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges & valleys.
  • Foundation plan

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

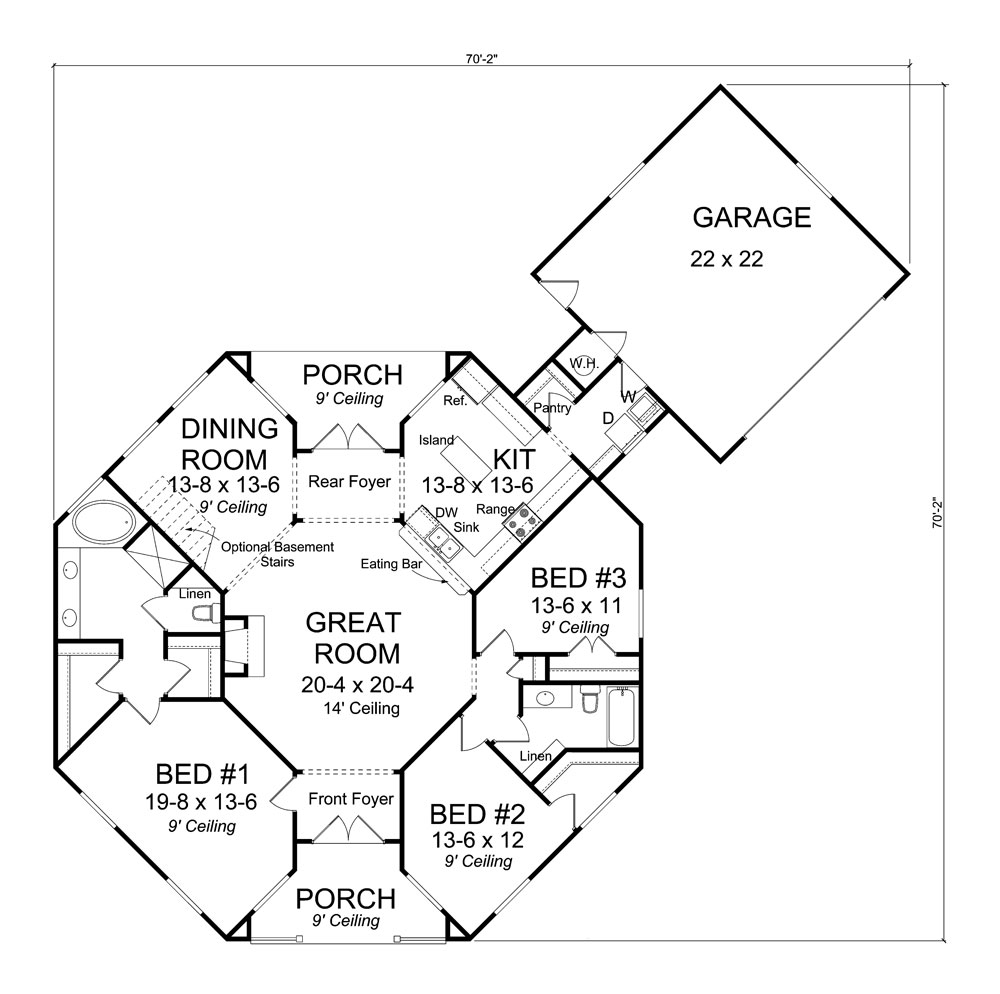

Home Plan: #178-1311 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #178-1311
