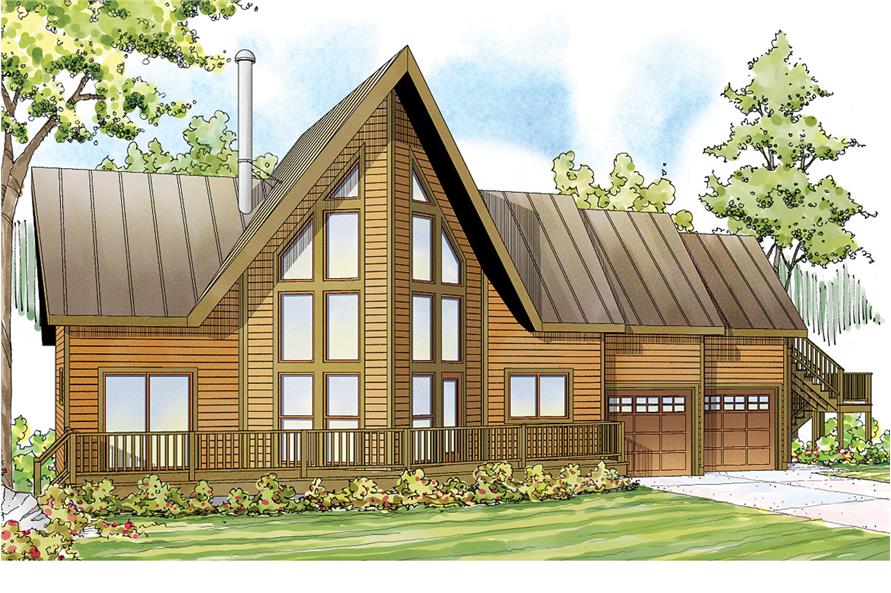

Front elevation of A Frame home (ThePlanCollection: House Plan #108-1746)

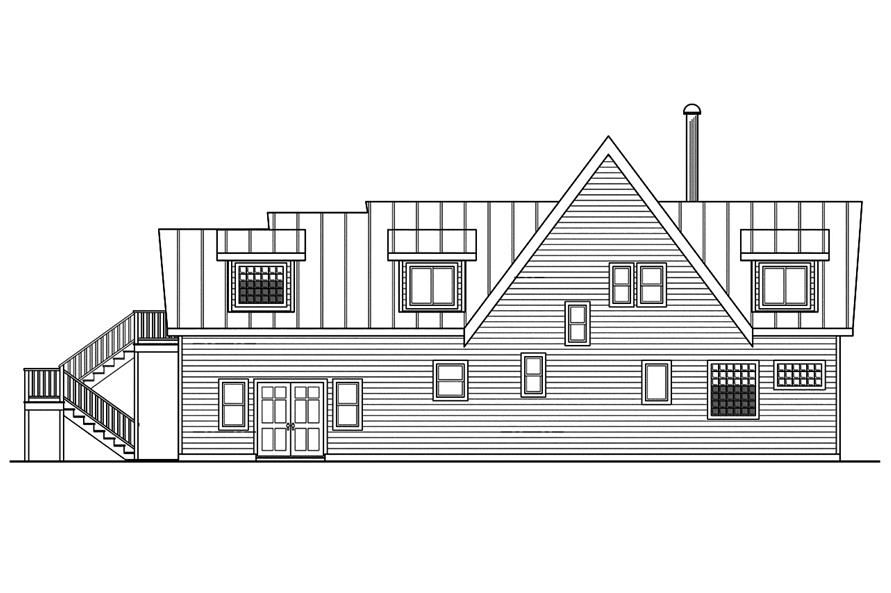

108-1746: Home Plan Rear Elevation

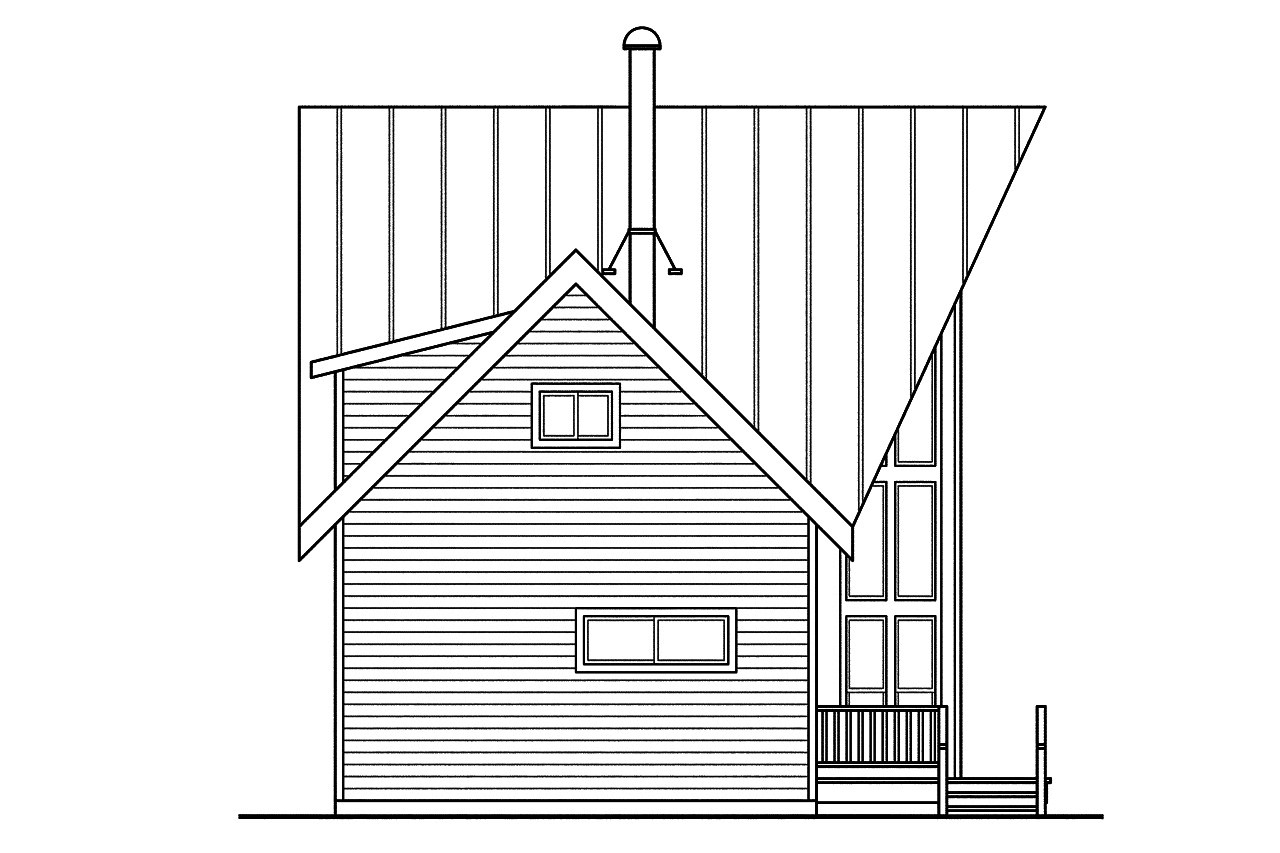

108-1746: Home Plan Left Elevation

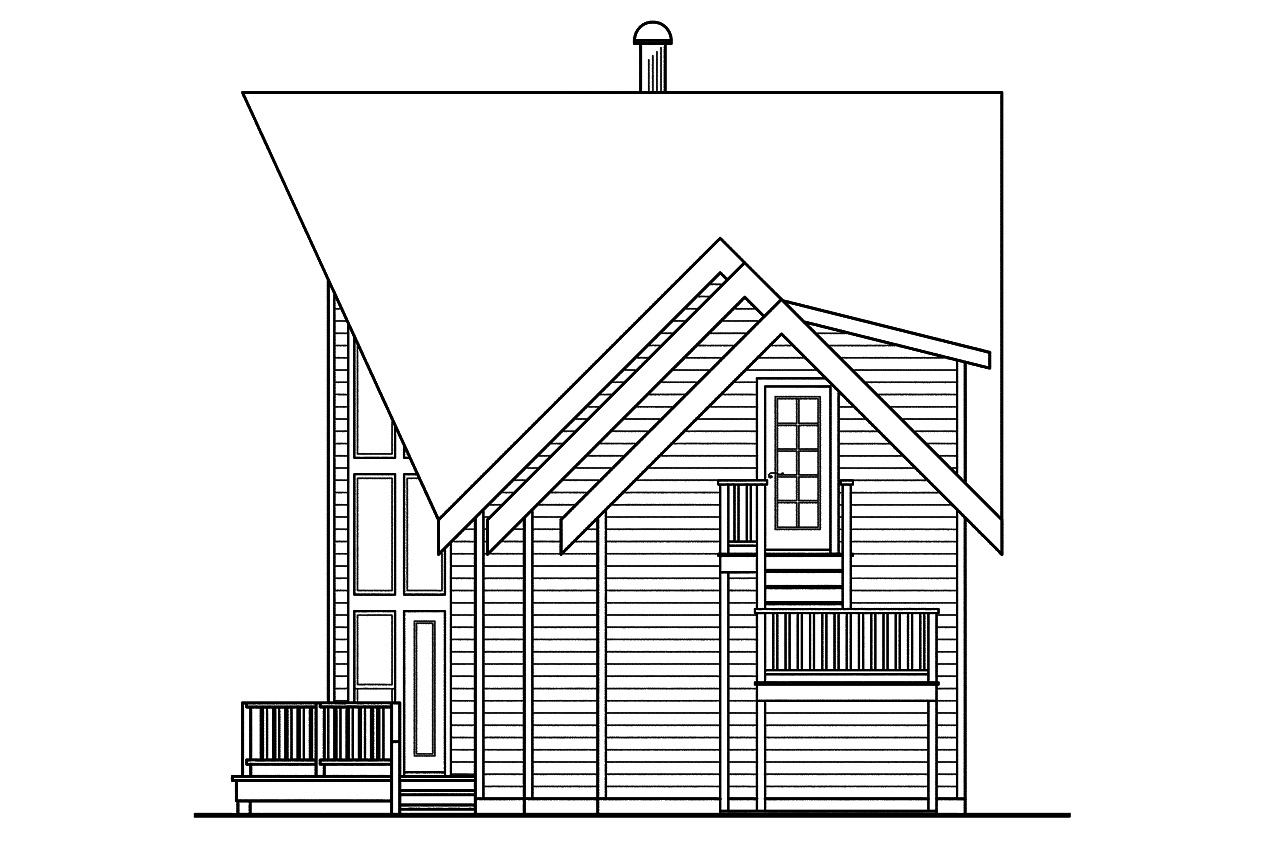

108-1746: Home Plan Right Elevation
3-Bedroom, 1680 Sq Ft A Frame Home Plan - 108-1746 - Main Exterior
108-1746: Home Plan Rear Elevation
108-1746: Home Plan Left Elevation
108-1746: Home Plan Right Elevation

About Plan # 108-1746

About Plan # 108-1746

1680 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 73' 11" WIDTH 26' 0" DEPTH 2 GARAGE BAY

An abundance of natural light washes into this roomy cabin through a four-high stack of windows in its central a-frame (Plan #108-1746). The living room’s vaulted ceiling is two stories high near the windows. Its spacious living area is open to the kitchen which includes a peninsular eating counter. The home design includes 2 bedrooms, 2 bathrooms and a wide loft upstairs.

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

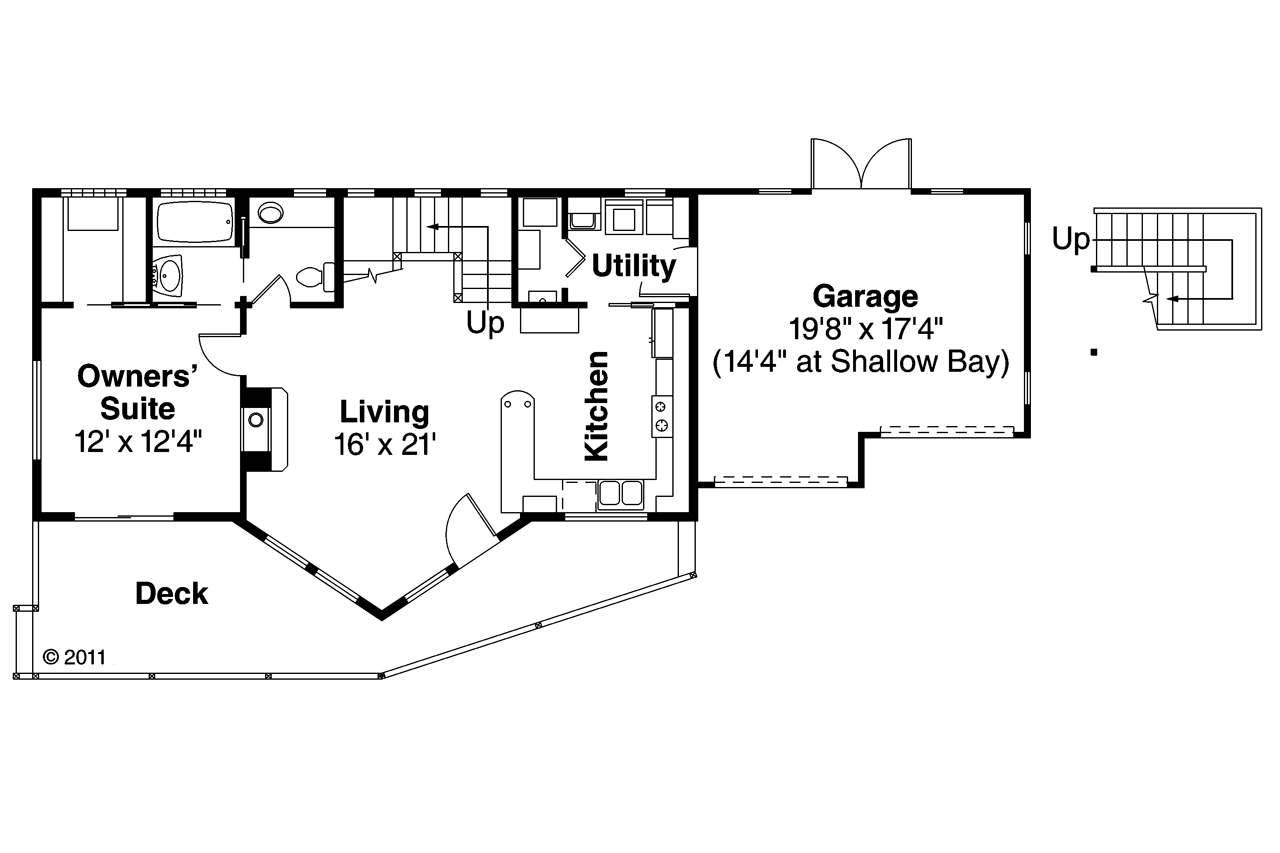

Home Plan: #108-1746 Floor Plan First Story - main level Floor Plan First Story of A Frame Plan #108-1746

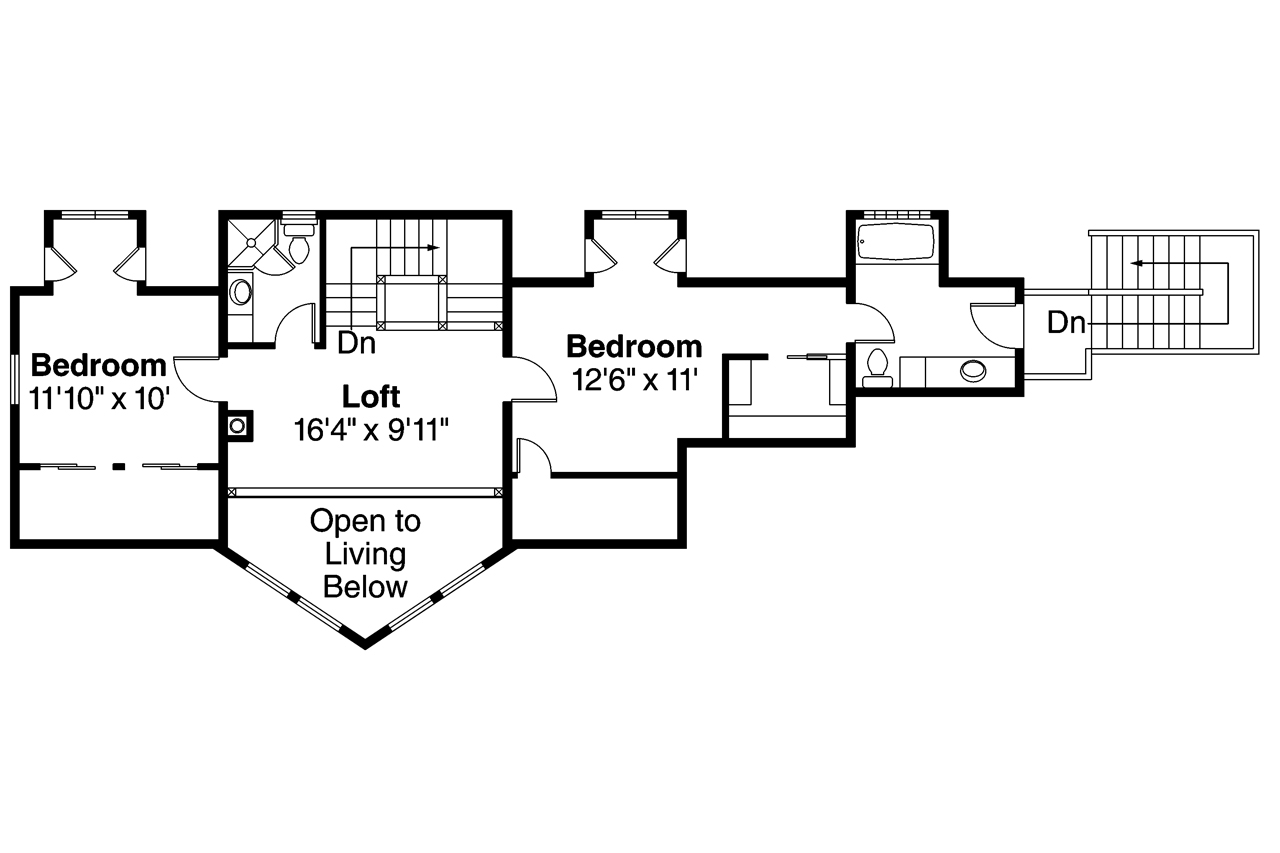

#108-1746 Floor Plan Second Story - upper level Floor Plan Second Story of A Frame Plan #108-1746
Home Plan: #108-1746 Floor Plan First Story - main level Floor Plan First Story of A Frame Plan #108-1746
#108-1746 Floor Plan Second Story - upper level Floor Plan Second Story of A Frame Plan #108-1746
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 108-1746
Floors:
2
Bedrooms:
3
Full Baths:
3
Garage :
2

Square Footage

Heated Sq Feet:
1680
Main Floor:
854
Upper Floor:
826
Unfinished Sq Ft:
Garage :
330

Dimensions

Width:
73' 11"
Depth:
26' 0"
Ridge Height:
29' 6"

Architectural Styles

Contemporary
A Frame
Cottage

Exterior Wall Material

Vinyl Siding
Wood Siding

Roofing Type

Gable

Roofing Material

Metal

Roof Pitch

12/12

Ceiling Height

8 Foot Ceiling

Special Feature

Fireplace
Main Level Laundry
Loft
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Kitchen Features

Peninsula/Eating Bar

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Private Deck
Split Master Bedroom

Additional Notes from Designer

PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.

PRICING OPTIONS

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
