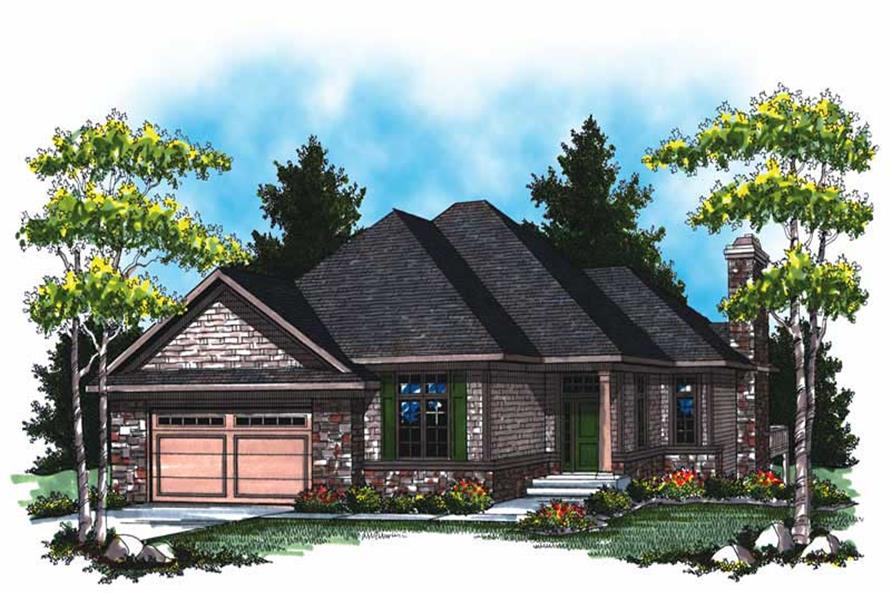

2-Bedroom, 1617 Sq Ft Craftsman House Plan - 101-1053 - Front Exterior

About Plan # 101-1053

About Plan # 101-1053

1617 SQUARE FEET 2 BEDROOMS 1 FULL BATH 1 HALF BATH
1 FLOOR 49' 8" WIDTH 58' 4" DEPTH 3 GARAGE BAY
A careful blend of stone masonry and shingle siding makes this hip-roofed ranch a perfect addition to any neighborhood. You enter the home with a view to an expansive great room, complete with fireplace for entertaining. The kitchen opens to the great room and features a breakfast bar and center island. A semi-formal dining area is surrounded by a large attached deck and is located adjacent to both the kitchen and the great room. The master suite is delightful with a trayed ceiling, large walk-in closet and dual sinks. A second bedroom that can double as a den can be found just off the entry to the front of the home. Finally, a three-stall, side-load garage provides plenty of storage for the growing family.

Each plan set includes the following:

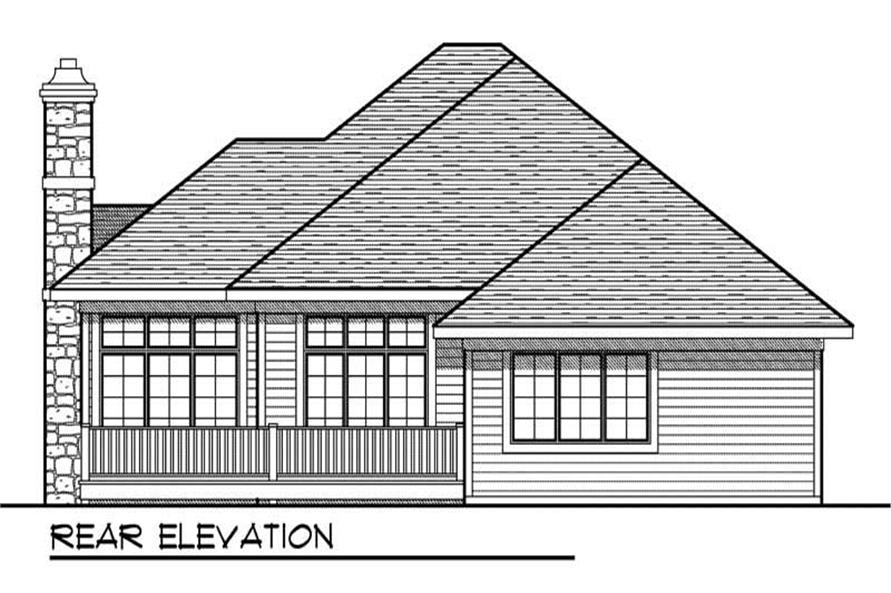

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

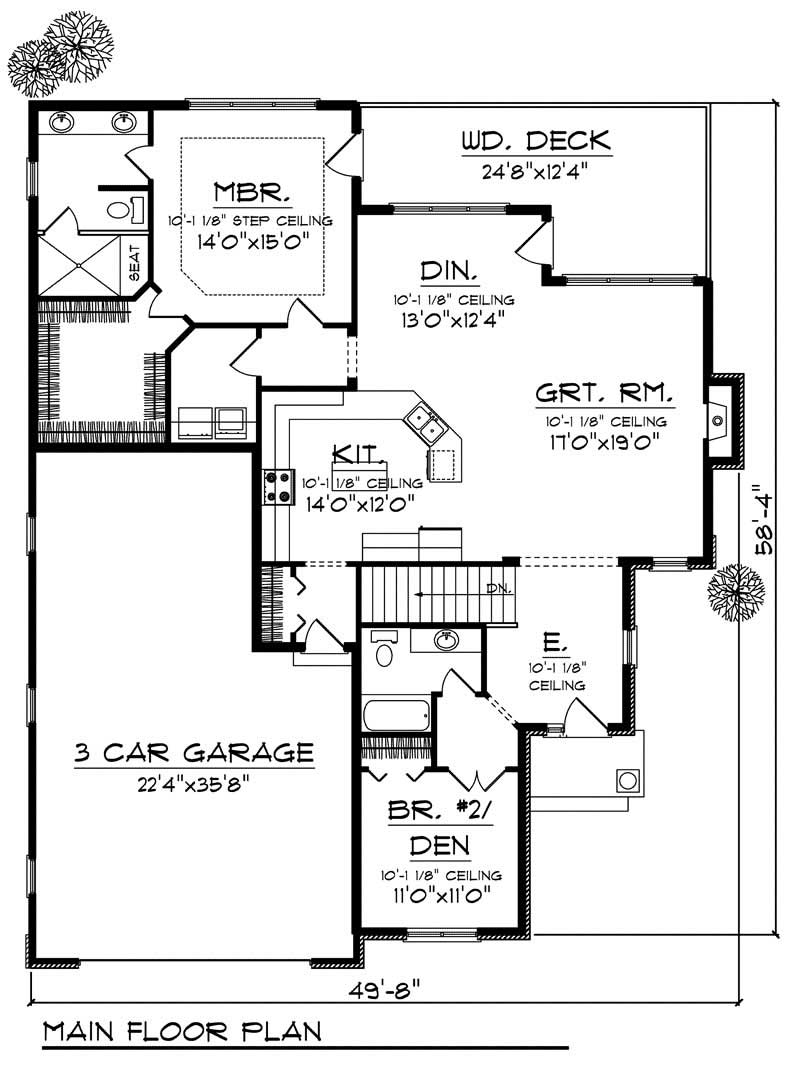

Home Plan: #101-1053 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #101-1053
Home Plan: #101-1053 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #101-1053
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 101-1053
Floors:
1
Bedrooms:
2
Full Baths:
1
Half Baths:
1

Square Footage

Heated Sq Feet:
1617
Main Floor:
1617
Unfinished Sq Ft:

Dimensions

Width:
49' 8"
Depth:
58' 4"
Ridge Height:
23-4' 0"

Architectural Styles

European
Ranch
Traditional
Craftsman
Transitional

Exterior Wall Material

Aluminum Siding
Vinyl Siding
Rock/Stone
Wood Siding
Shakes

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace

Garage Type

Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
