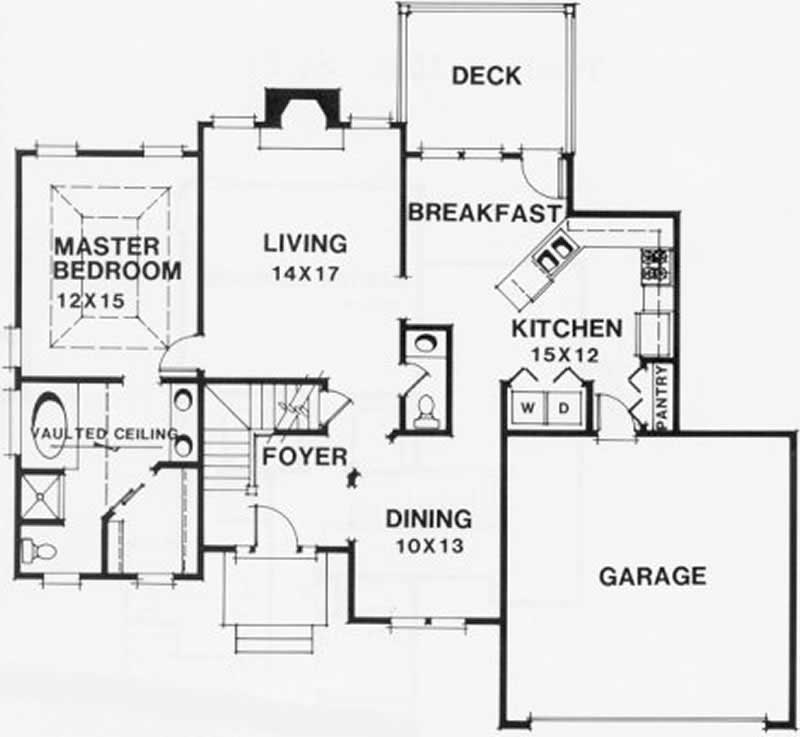

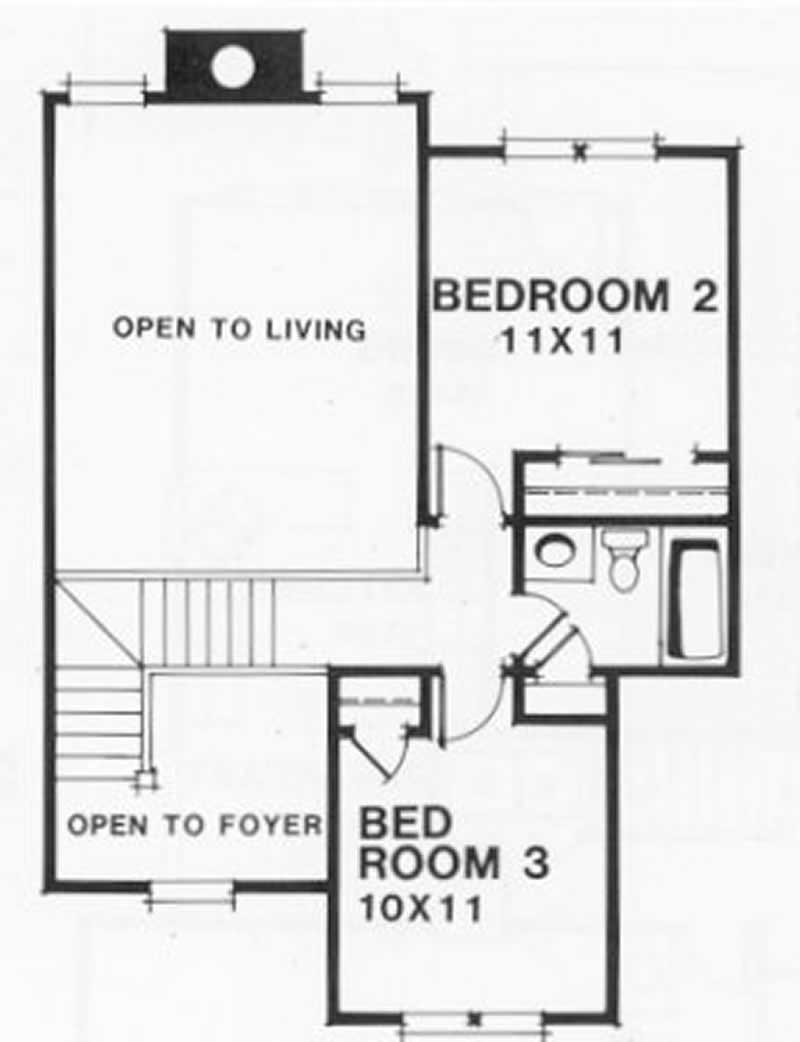

This home plan has 2 levels, 3 bedrooms, 2.5 baths, exterior deck, large kitchen with walk-in pantry and breakfast area, large master bedroom with an attached vaulted ceiling bathroom and closet. Foyer leading to upstairs where there is a look-down to the living room and 2 bedrooms.
Each plan set includes the following:
Front Elevation & Cabinet Details
Floor Plan with Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
Roof Plan (Birdseye view)
Foundation Plan & Details
Cross Sections & Details
Connection Details & Trim
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
