1208 Sq Ft 2-Bed, 2-Car Grage Apartment Plan + Workshop

About House Plan #163-1036

1208

Sq Ft

2

Bedrooms

1

Baths

0

Half Baths

3

Cars

2

Stories

28' 8'

Width

39

Depth

From$650What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

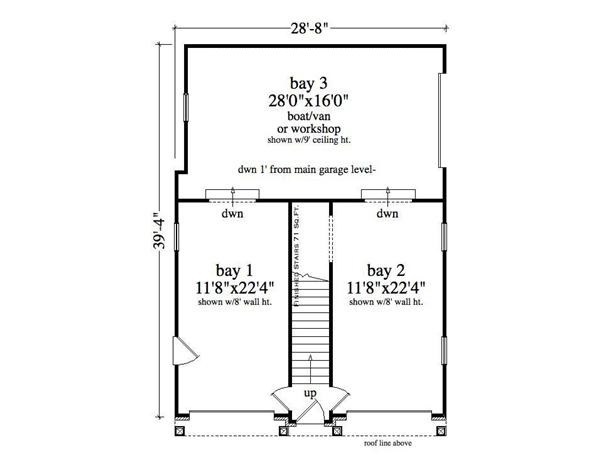

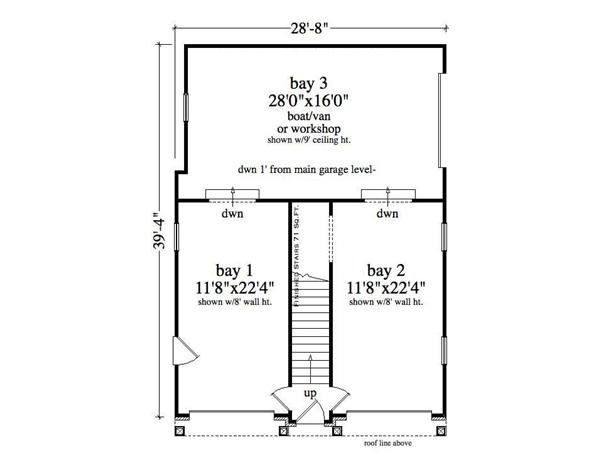

First Floor

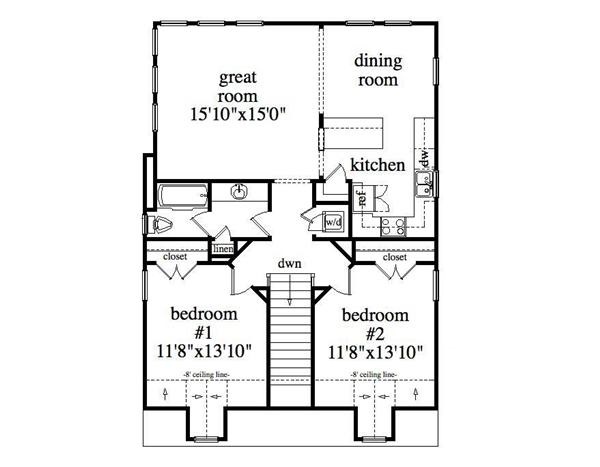

Second Floor

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

Please Note: There might be a 4-5 day delay in getting the sales orders out due to updates being made to the designer's plans.

House Plan Description

The first floor boasts a spacious 2-car garage, thoughtfully designed with an additional separate bay featuring a 9-foot ceiling. This versatile area is perfect for housing a boat or transforming it into a workshop.

Above this garage, a 1208 living sq ft, 2-bedroom apartment unfolds. This living space is far from ordinary, with its sizable living area and dining area offering ample room for relaxation and entertaining. The kitchen has a sleek peninsula and an eat-at bar, creating a perfect spot for morning coffees or casual meals. The thoughtful layout fosters a sense of...

Home Details

Summary

Plan #:163-1036

Floors:2

Bedrooms:2

Full Baths:1

Half Baths:0

Garage:

Square Footage

Heated Area:1208 Sq. Ft.

First Floor:71 Sq. Ft.

Second Floor:1137 Sq. Ft.

Unheated Area:

Garage:1107 Sq. Ft.

Dimensions

Width:28' 8''

Depth:39' 4''

Ridge Height:26' 0''

Architectural Styles

Garage Garage w/Apartments

Exterior Wall Material

Vinyl SidingRock/Stone

Roofing Type

Gable/Dormer

Roofing Material

Asphalt Shingles

Roof Pitch

12/125/12

Ceiling Height

8 Foot Ceiling

Special Feature

Dining Room

Garage Type

Attached GarageFront Entry

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

Kitchen Features

Peninsula/Eating Bar

Master Suite Features

Second Floor Master

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.

FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.

ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.

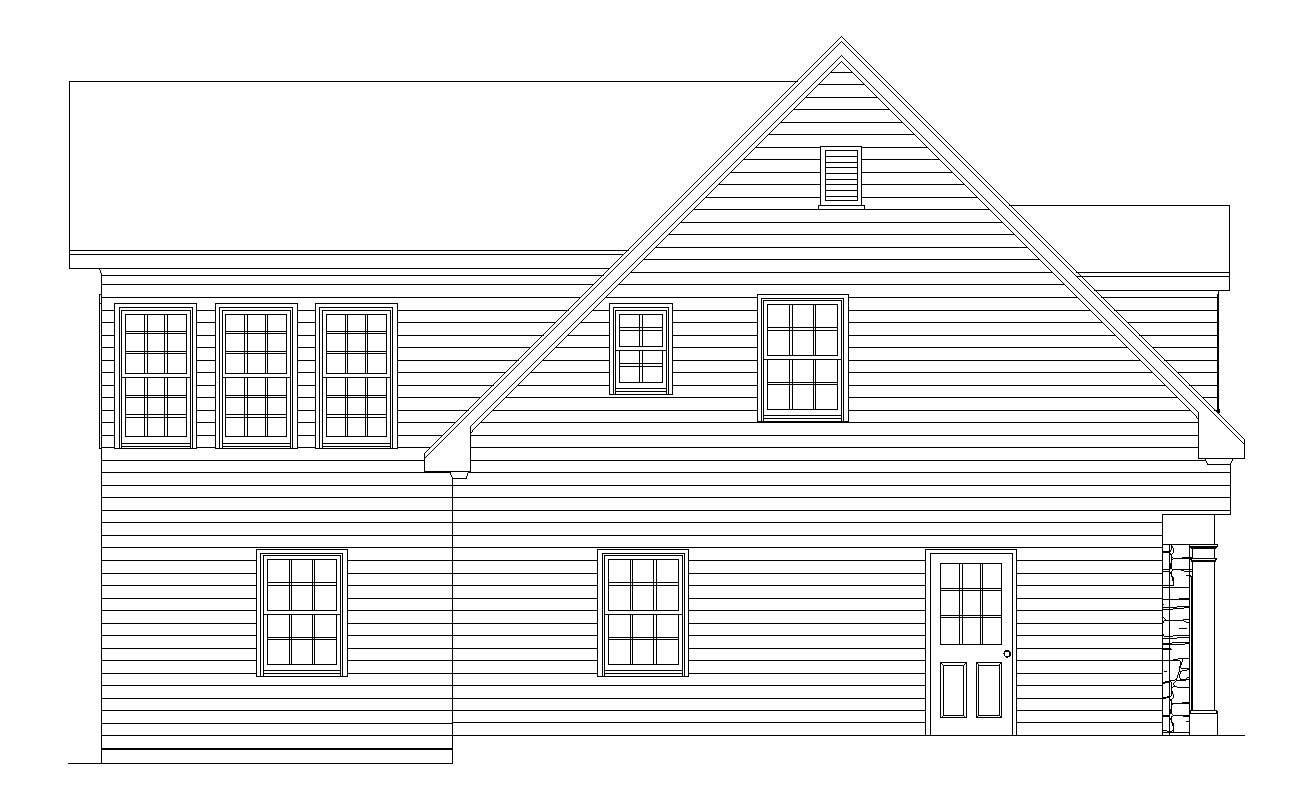

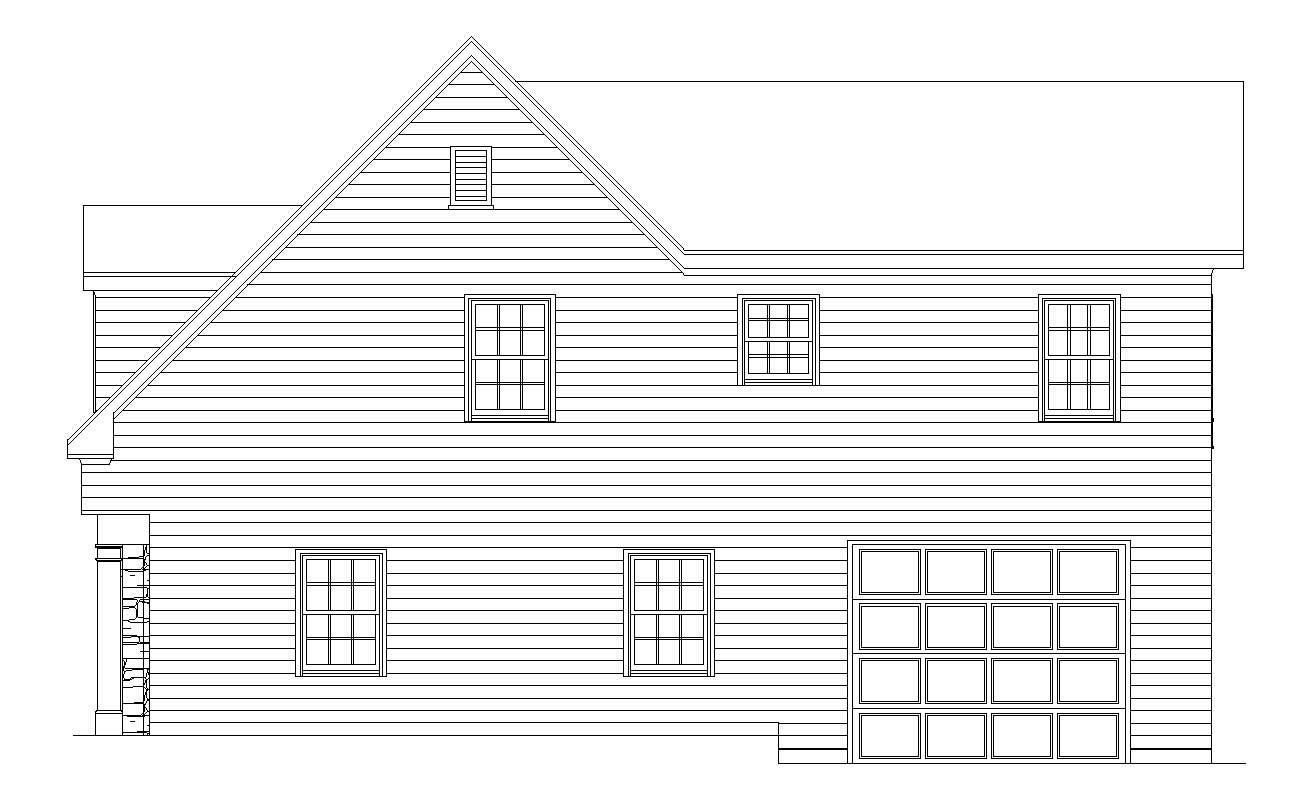

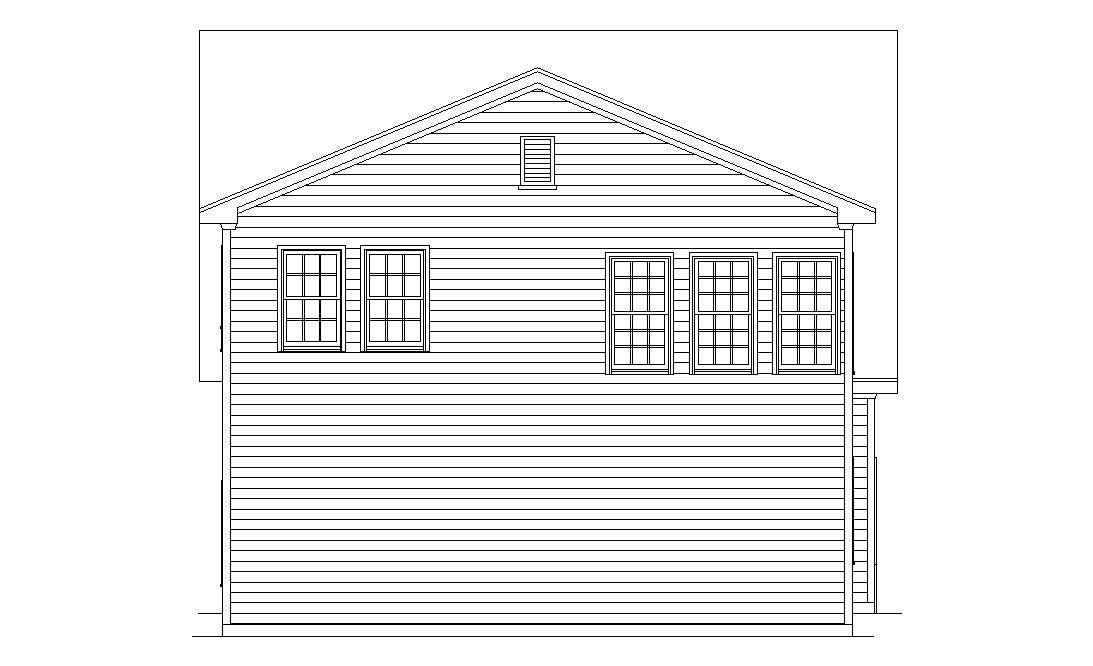

FRONT, REAR, AND SIDE ELEVATIONS:The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.

CROSS SECTIONS AND INTERIOR DETAILS:Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.Includes cabinet details and typical details.

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Electrical Layout (location of light fixtures, switches, and fans)- Although may be available for an additional charge.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
