2-Bedroom, 1160 Sq Ft Ranch Home Plan - 103-1111 - Main Exterior

About Plan # 103-1111

About Plan # 103-1111

1160 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 42' 0" WIDTH 56' 0" DEPTH 2 GARAGE BAY

*vaulted ceilings in living, dining, kitchen, master bed, and foyer *plant shelves *walk-in closet *Jacuzzi tub *fireplace *breakfast bar *covered porch *covered deck *optional finish basement with rec room, two beds with walk-in closets, and one full bath

Each plan set includes the following:

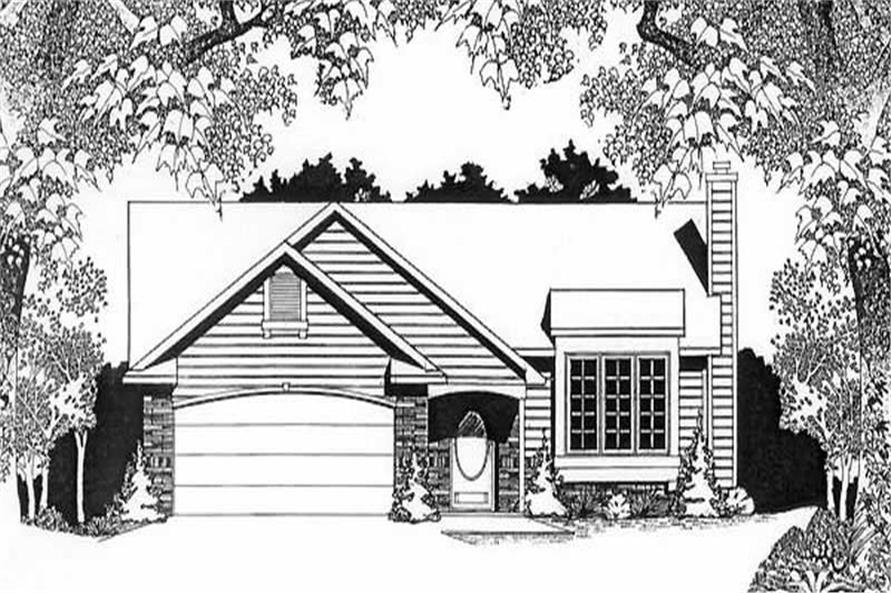

  • Front, Side & Rear Elevations
  • Floor Plan
  • Foundation Plan
  • Roof Plan (Birdseye view)
  • Electrical Layout (location of outlets, switches - it does not have wiring schematics)
  • Cabinet Details
  • Wall Section
  • Stair Details
  • Building Cross Section

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

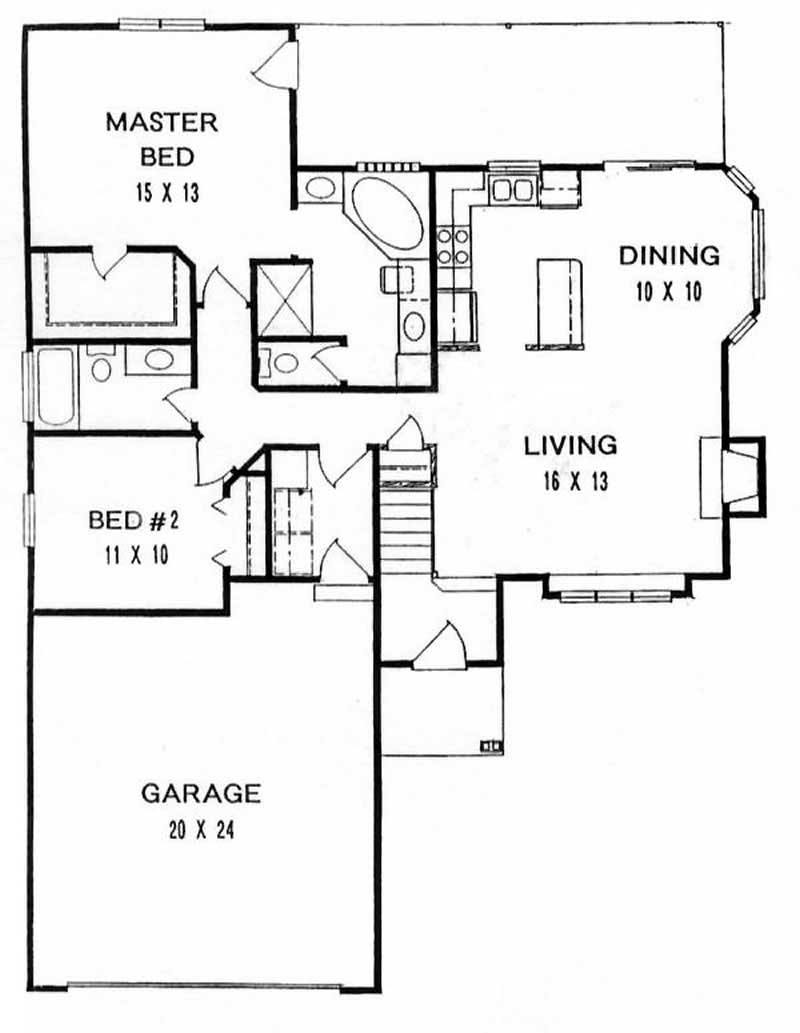

Home Plan: #103-1111 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #103-1111
Home Plan: #103-1111 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #103-1111
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
