5-Bedroom, 10672 Sq Ft Luxury Plan with Sundeck

Main image for luxury house plan # 19669

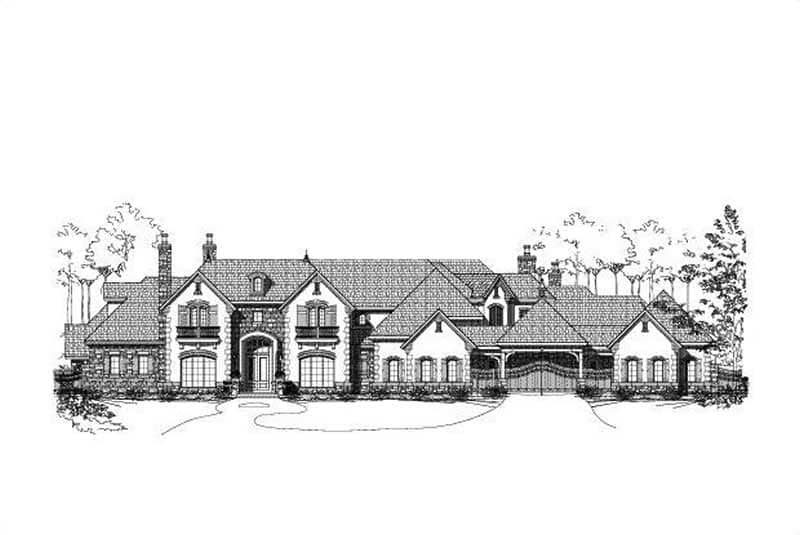

5-Bedroom, 10672 Sq Ft Luxury Home Plan - 156-1987 - Main Exterior

About Plan # 156-1987

About Plan # 156-1987

10672 SQUARE FEET 5 BEDROOMS 5 FULL BATH 3 HALF BATH
2 FLOOR 164' 0" WIDTH 125' 6" DEPTH 4 GARAGE BAY
OHP-20514 Luxury House Plans offer a large foyer with a spiral staircase leading to a balcony which overlooks the foyer. This well designed house plan provides privacy for all of the bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. This includes wall sections.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

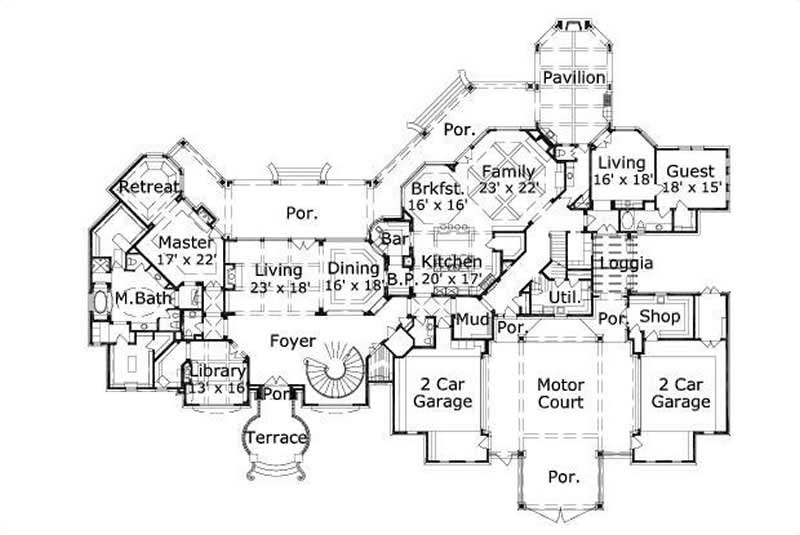

Home Plan: #156-1987 Floor Plan First Story - main level Floor Plan First Story of Luxury Plan #156-1987

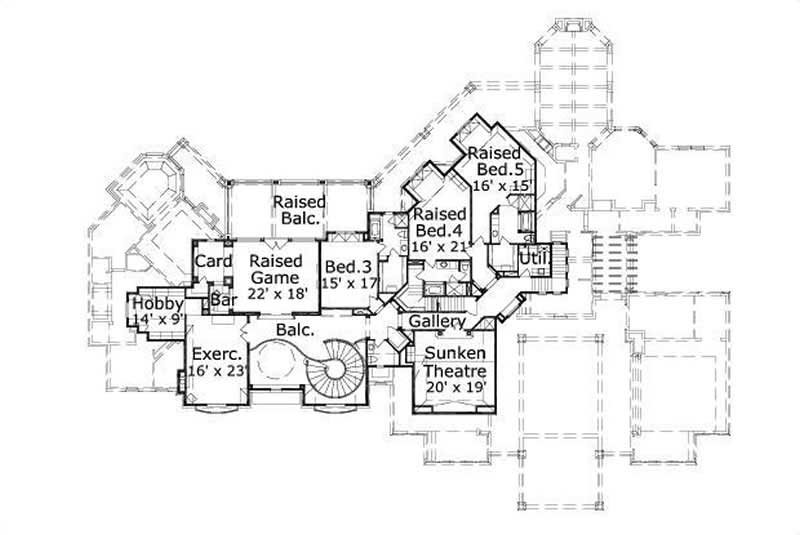

#156-1987 Floor Plan Second Story - second level Floor Plan Second Story of Luxury Plan #156-1987
