Ranch Style Garage w/Apartments with 2-Car, 1020 Sq Ft

About House Plan #187-1217

1

Sq Ft

0

Bedrooms

0

Baths

0

Half Baths

2

Cars

1

Stories

30' 0'

Width

34

Depth

Starting at$500.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

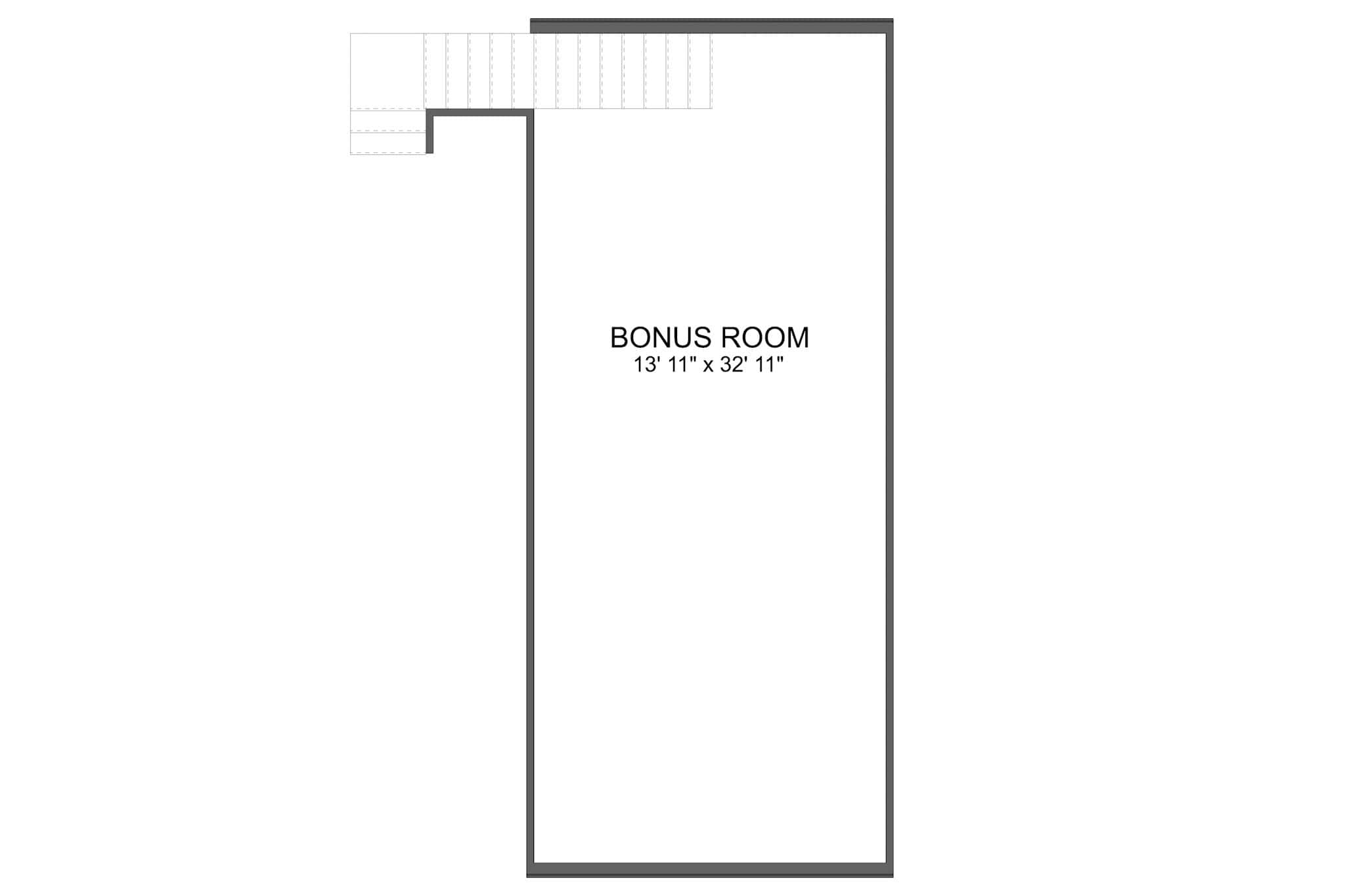

Bonus Room

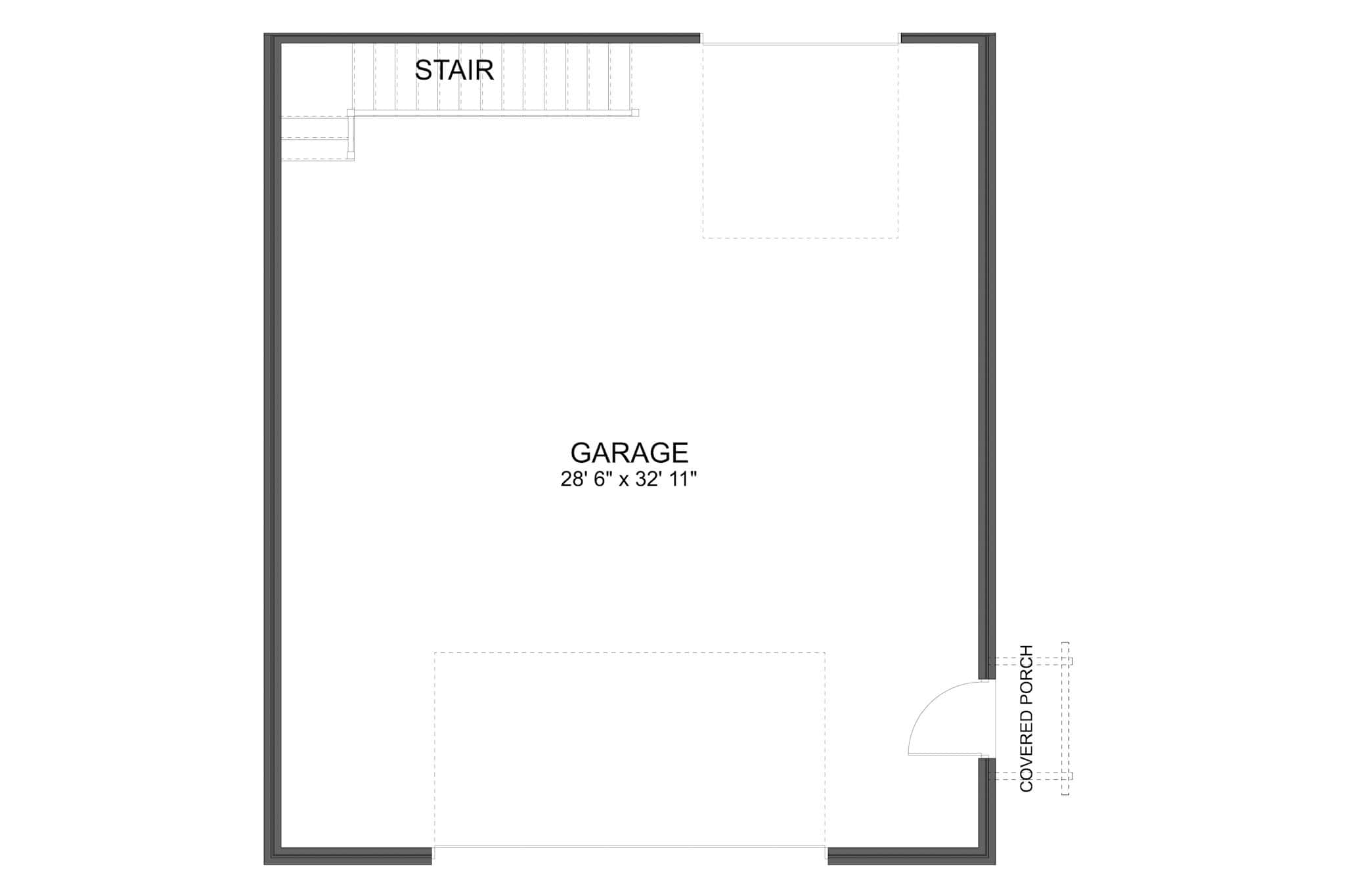

Garage

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE! Due to the high volume of requests, please note that timelines for quotes and order fulfillment for this designer will be longer. We are looking at a 2-week timeline until 4-5-2025. On some plans, alternate foundations could take up to ONE WEEK to produce. NOTE FROM DESIGNER: If you purchase a CAD, you will automatically receive the unlimited build license!

House Plan Description

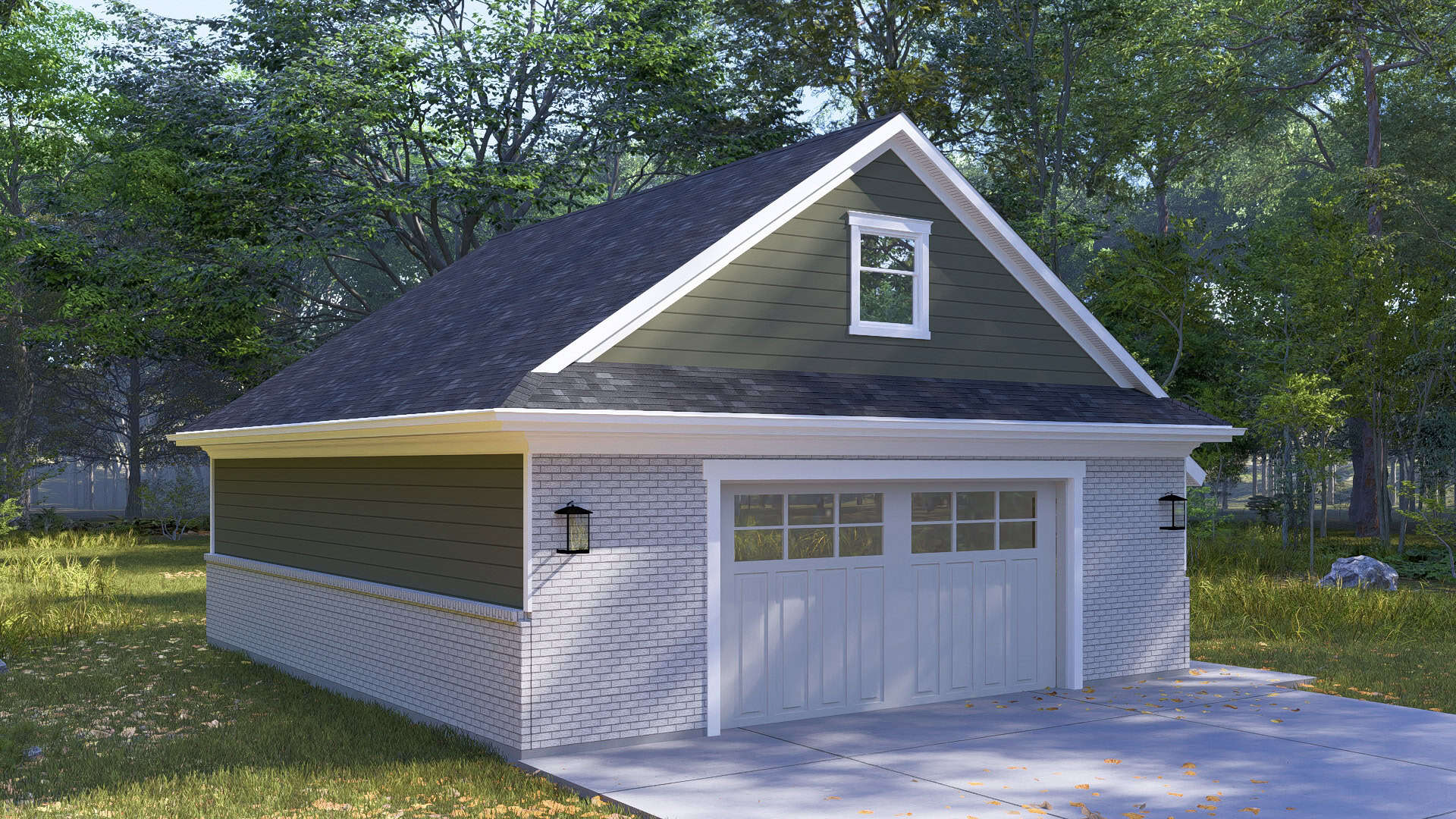

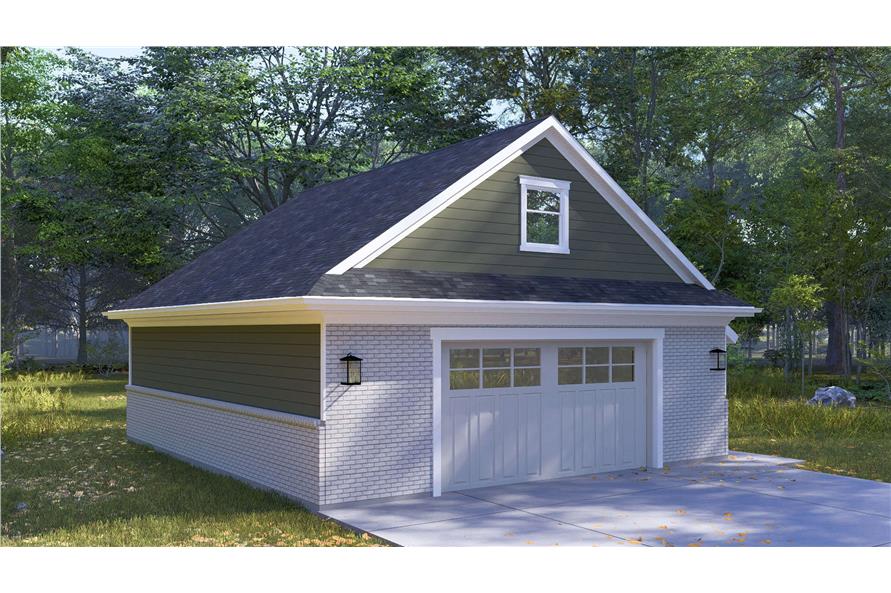

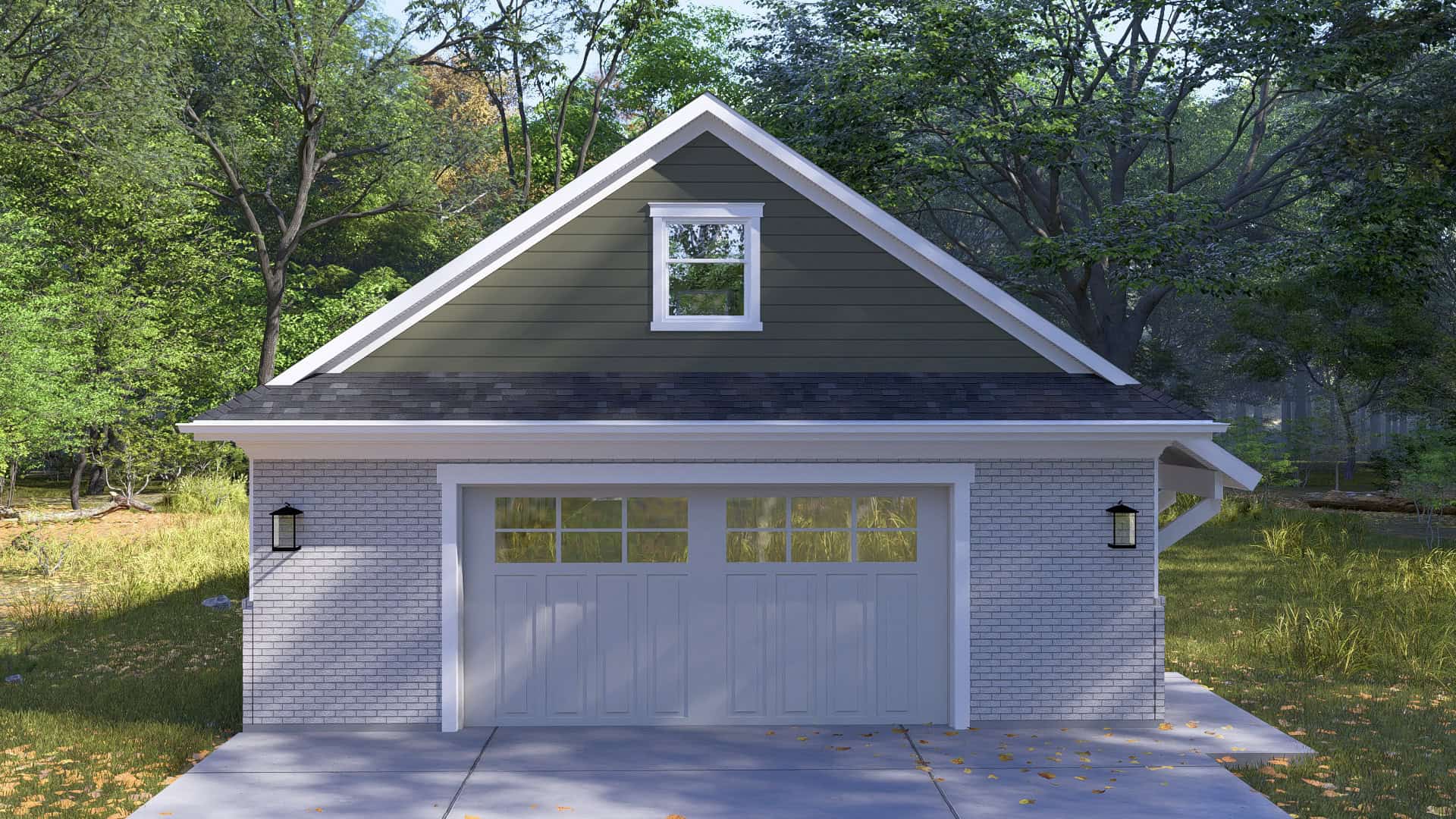

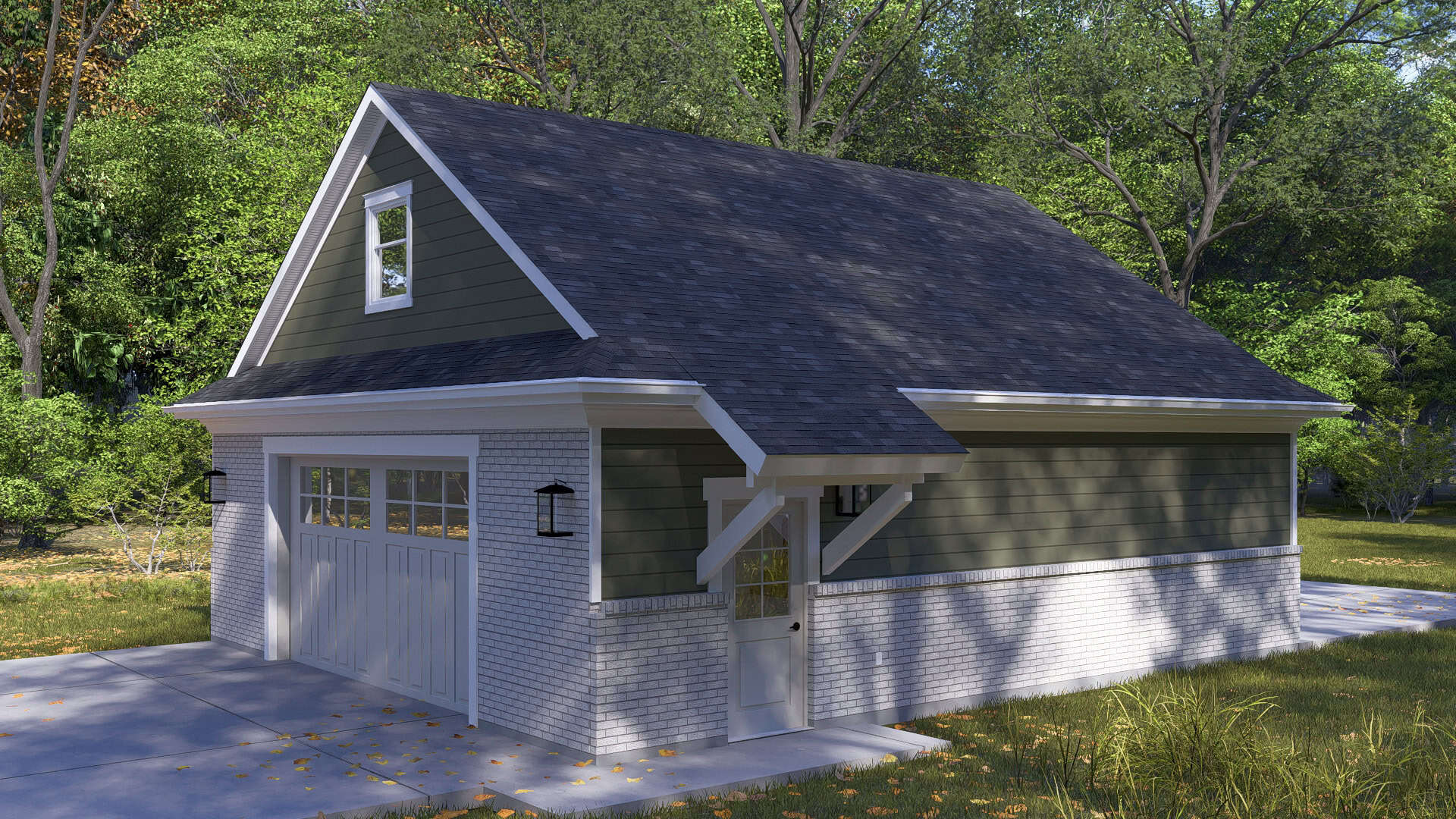

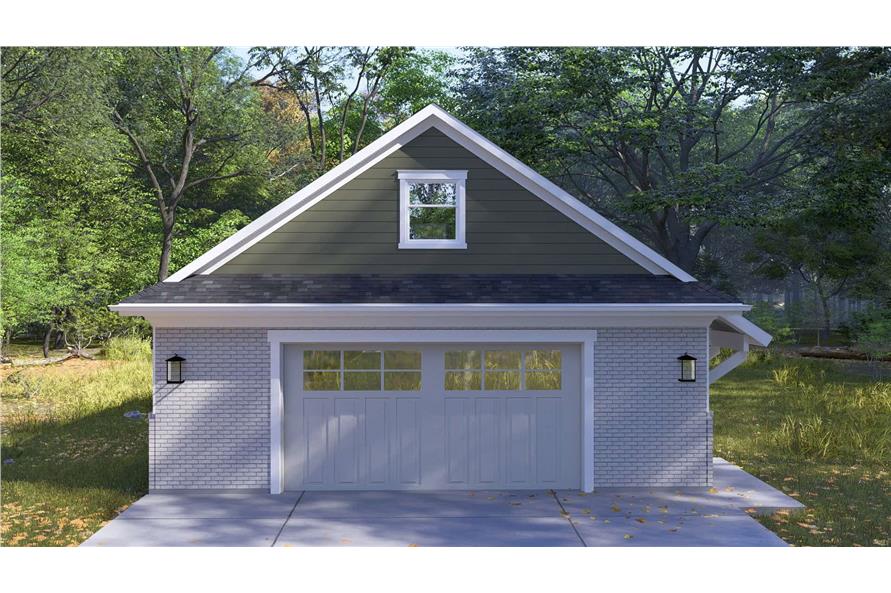

Designed with timelss Ranch charm, this 1,080 square-foot garage comfortably houses two vehicles and offers a flexible layout, allowing for potential workshop additions. Upstairs, a 495-square-foot fully conditioned bonus room provides endless possibilities—perfect for a home office, guest suite, entertainment area, or creative studio.

Home Details

Summary

Plan #:187-1217

Starting at:$500.00

Floors:1

Bedrooms:0

Full Baths:0

Half Baths:0

Garage:

Square Footage

Heated Area:1 Sq. Ft.

Bonus Room:495 Sq. Ft.

Unheated Area:

Garage:1020 Sq. Ft.

Dimensions

Architectural Styles

Garage Garage w/Apartments

Exterior Wall Material

BrickWood SidingLap Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Ceiling Height

10 Foot Ceiling8 Foot Ceiling

Special Feature

Bonus RoomColor PhotosVaulted Ceilings

Garage Type

Under Main Floor Entry

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Floor plans

Floor framing plans

Roof framing plan

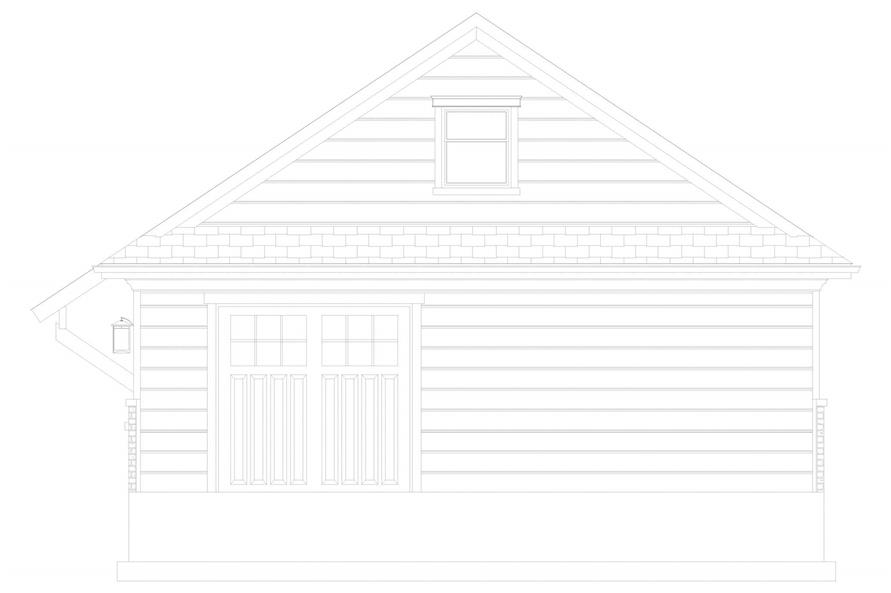

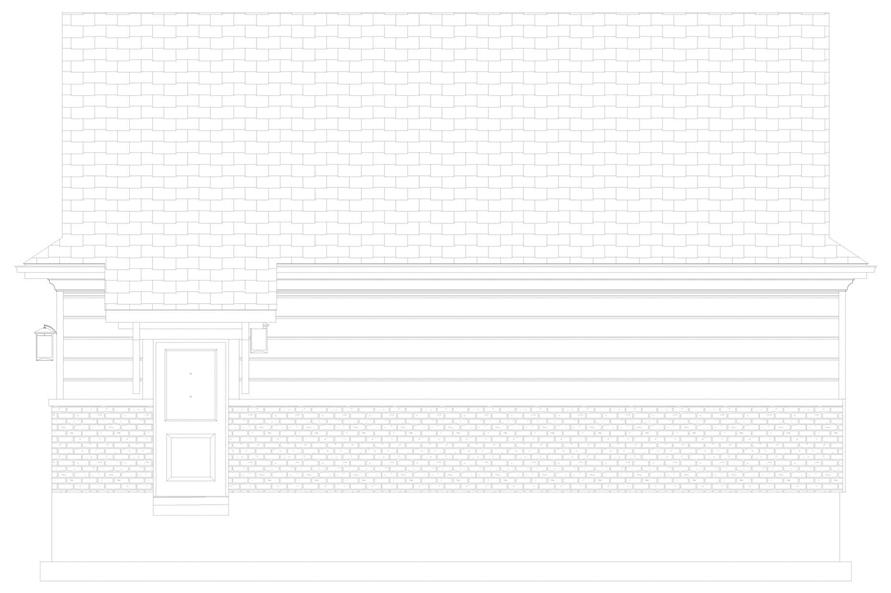

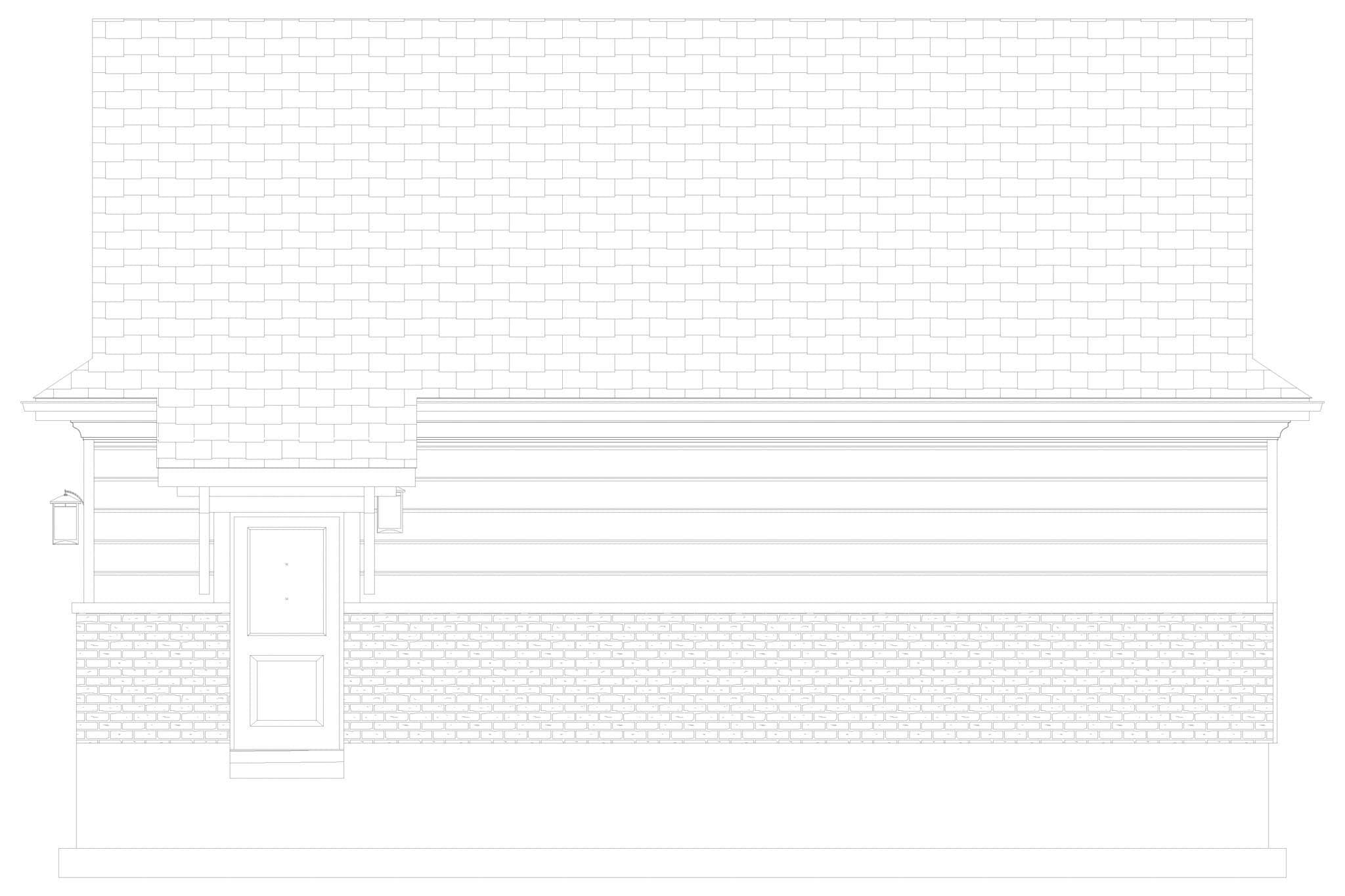

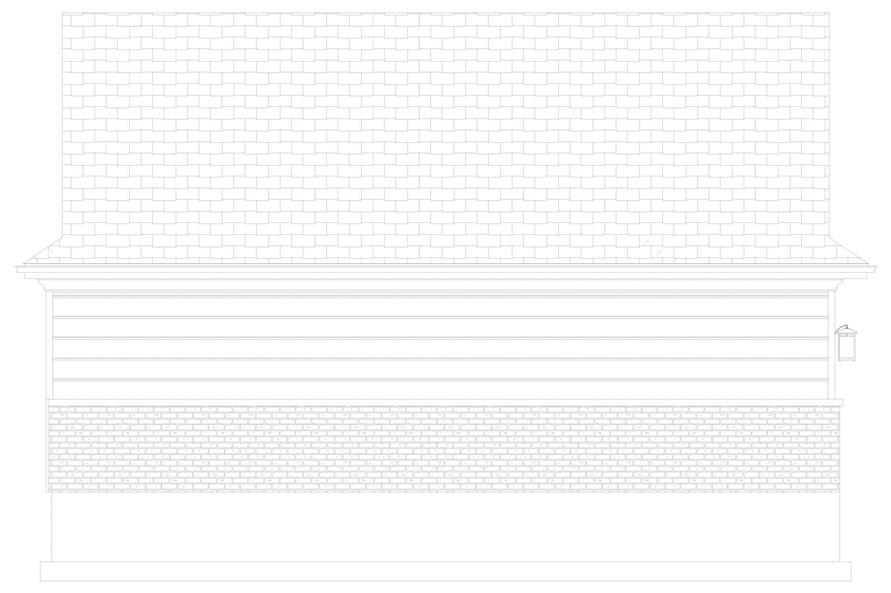

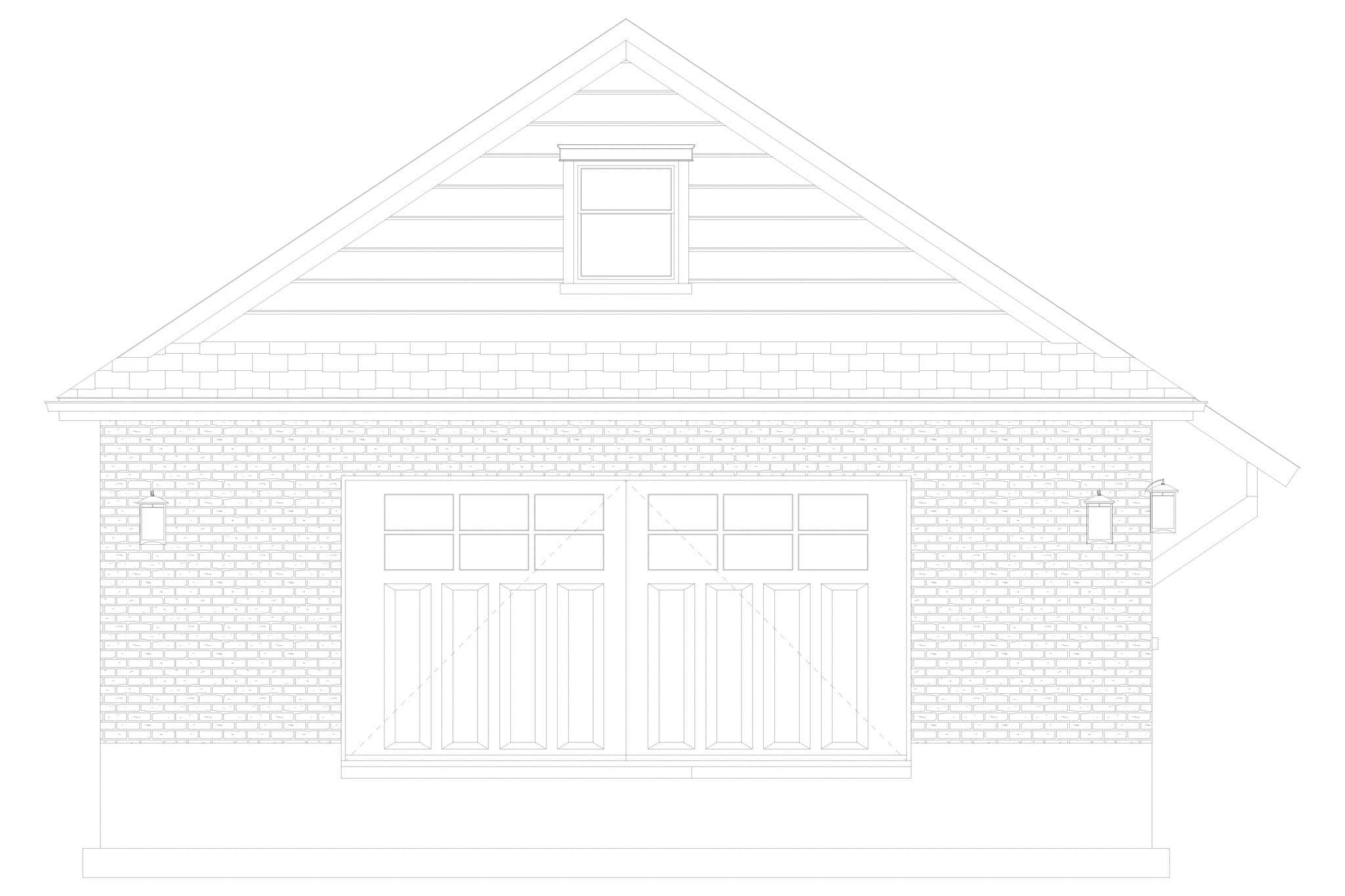

All 4 elevations

Cross-sections

Electrical layout

3-4 sheets of details

What’s Not Included

These items are NOT included:

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Site Plan - handled locally when required. Architectural or Engineering Stamp - handled locally if required.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
