About Plan # 132-1314

About Plan # 132-1314

1260 SQUARE FEET 0 BEDROOMS 0 FULL BATH 0 HALF BATH
1 FLOOR 42' 0" WIDTH 30' 0" DEPTH 1 GARAGE BAY

This impressive barn-style garage (Garage Plan #132-1314) has a 1-car garage, room for a workshop, & 1260 living sq ft.

Each plan set includes the following:

  • Exterior elevations: shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.
  • Floor plans: includes interior and exterior dimensions, window/door schedule, wall framing details.
  • Foundation plan: shows footing, stem wall, and slab placement, including all connection details.
  • Floor and roof framing plans show truss/rafter placements, including all beams/connection details.
  • Cross-sections: cut-through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc.
  • Electrical layout
  • General notes/details to cover the entirety of the project

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

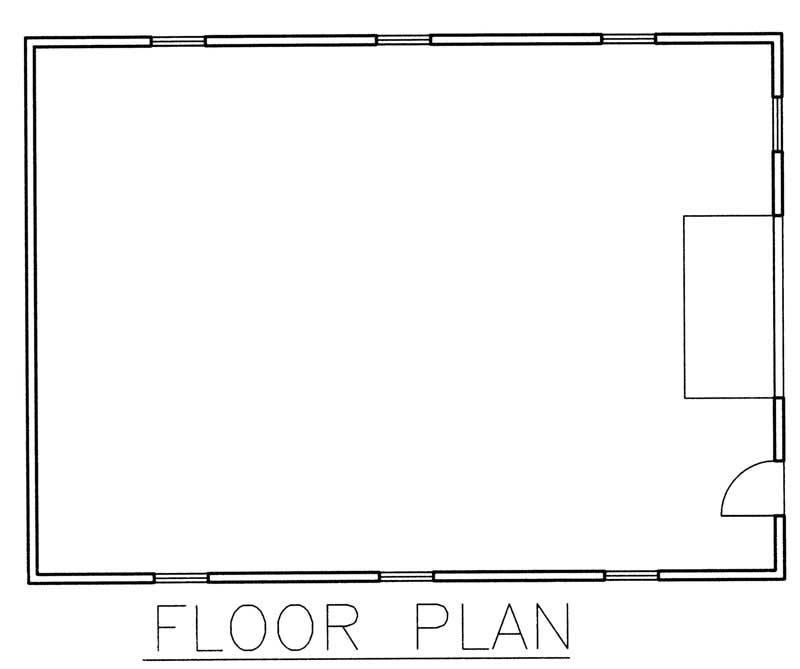

Home Plan: #132-1314 Floor Plan First Story Floor Plan First Story of Garage Plan #132-1314
Home Plan: #132-1314 Floor Plan First Story Floor Plan First Story of Garage Plan #132-1314
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 132-1314
Floors:
1
Garage :
1

Square Footage

Heated Sq Feet:
1260
Main Floor:
1260
Unfinished Sq Ft:

Dimensions

Width:
42' 0"
Depth:
30' 0"
Ridge Height:
18' 1"

Architectural Styles

Country
Garage
Small House Plans

Roof Pitch

7/12

Ceiling Height

10 Foot Ceiling

Special Feature

Workshop

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

Additional Notes from Designer

PLEASE NOTE! The CAD - Unlimited package is NOT an unlimited license - it is a license to build up to 5 homes. ATTENTION! Printed sets can ONLY be sent via ground shipping. NO priority or express shipping is available. ATTENTION! Printed sets can ONLY be sent by ground - NO priority or express shipping on printed sets!
