3-Bedroom, 2454 Sq Ft Colonial House Plan - 105-1093 - Front Exterior

About Plan # 105-1093

About Plan # 105-1093

2454 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 75' 0" WIDTH 48' 0" DEPTH 2 GARAGE BAY
A large front porch opens into this home's living room, which boasts a see-through fireplace shared with the vaulted Great Room, built-in shelves and a wet bar. The island kitchen enjoys a menu desk, a nearby bayed dinette and a formal dining room. The adjoining mud room offers a convenient spot for the washer and dryer. The main-floor master suite enjoys a cathedral ceiling, a walk-in closet and a private bath with a garden whirlpool tub and a dual-sink vanity. Upstairs, three additional bedrooms share the balcony and the large full bath.

Each plan set includes the following:

  • Elevations
  • Sections - Include structural design & specifications
  • Kitchen cabinet elevations
  • Floor Plan
  • Roof Plan
  • Typical wall section
  • Construction & Specification notes
  • Special detail sections
  • Plumbing riser diagram
  • Window and door sizes
  • Structural design joists and beams
  • Electrical Layout
  • Special Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and location
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

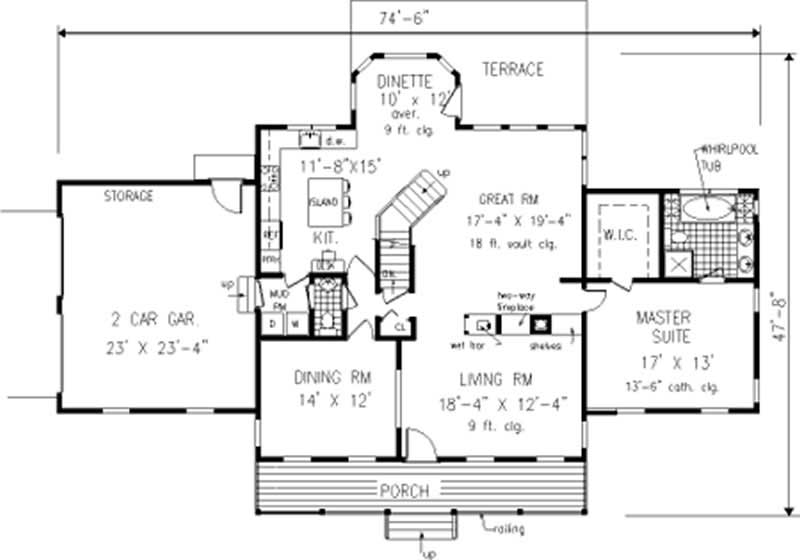

Home Plan: #105-1093 Floor Plan First Story Floor Plan First Story of Colonial Plan #105-1093

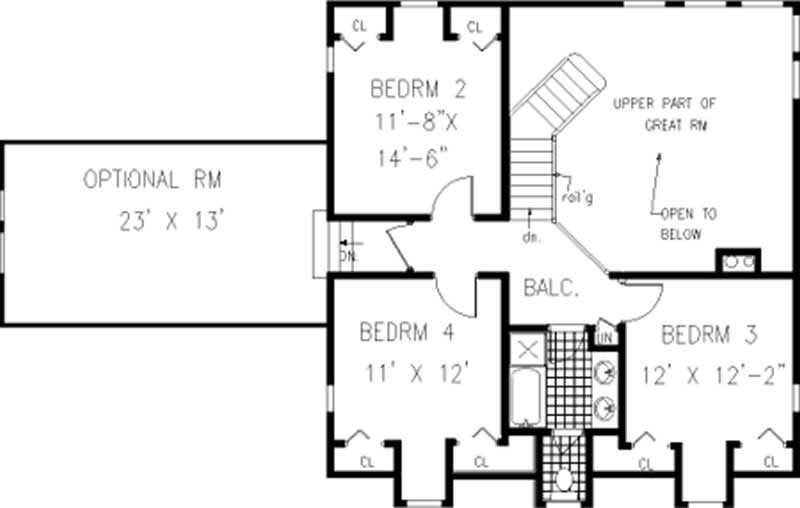

#105-1093 Floor Plan Second Story Floor Plan Second Story of Colonial Plan #105-1093
Home Plan: #105-1093 Floor Plan First Story Floor Plan First Story of Colonial Plan #105-1093
#105-1093 Floor Plan Second Story Floor Plan Second Story of Colonial Plan #105-1093
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 105-1093
Floors:
2
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
2454
Main Floor:
1648
Upper Floor:
806
Unfinished Sq Ft:
Garage :
559

Dimensions

Width:
75' 0"
Depth:
48' 0"

Architectural Styles

Colonial
Country
Southern

Exterior Wall Material

Wood Siding

Special Feature

Fireplace
Dining Room
Mud Room

Garage Type

Attached Garage

Exterior Wall Framing

2x4

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
