4-Bedroom, 2042 Sq Ft Log Cabin Plan with Master Bathroom
| 2042 SQUARE FEET | 4 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 2 FLOOR | 50' 8" WIDTH | 40' 10" DEPTH | 0 GARAGE BAY |
Log House Plans GHD-1048 feature Butt & Pass Construction and a lovely Covered Wrap-Around 10' Porch. The Main Floor is simple, yet beautiful with a large Eat-In Kitchen with a range island, and the Living Room has a warm wood stove. The Second and Third Levels are truly delightful, both with two bedrooms and a bath looking down on the main level.
Each plan set includes the following:
- FLOOR PLAN: Includes interior and exterior dimensions, window/door schedule, wall framing details.
- FOUNDATION PLAN: Shows footing, stem wall, and slab placement; includes all connection details.
- ROOF & FLOOR FRAMING PLANS: Shows truss/rafter placements, including all beams/connection details.
- ELECTRICAL LAYOUT

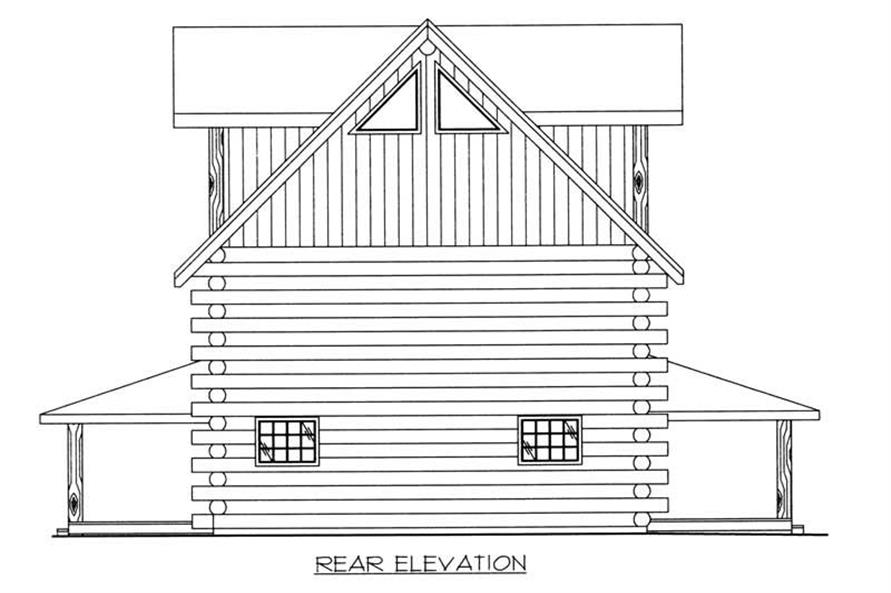

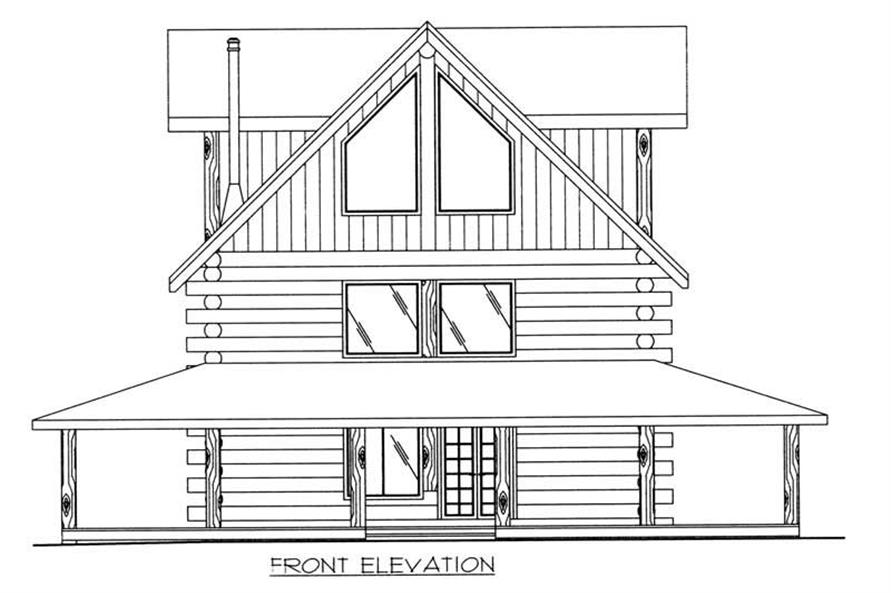

- FRONT, REAR, AND SIDE ELEVATIONS: Shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.
- CROSS SECTIONS: Cut through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc. Includes general notes/details to cover the entirety of the project.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images

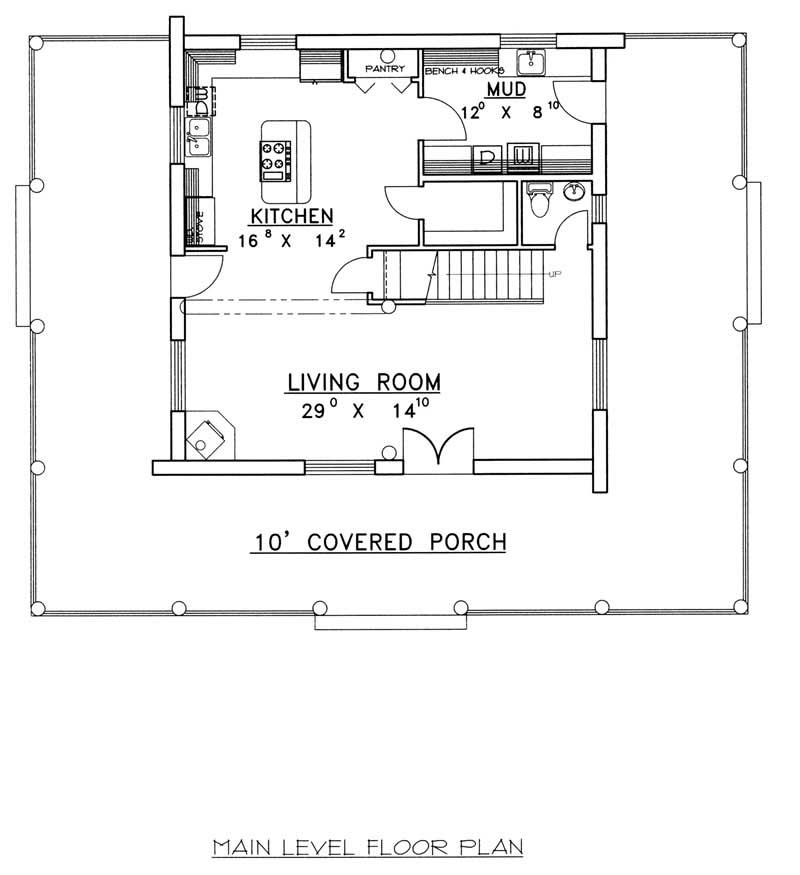

Home Plan: #132-1292 Floor Plan First Story
-
main level
![Floor Plan First Story of Log Cabin Plan #132-1292]( "MAIN LEVEL FLOOR PLAN")

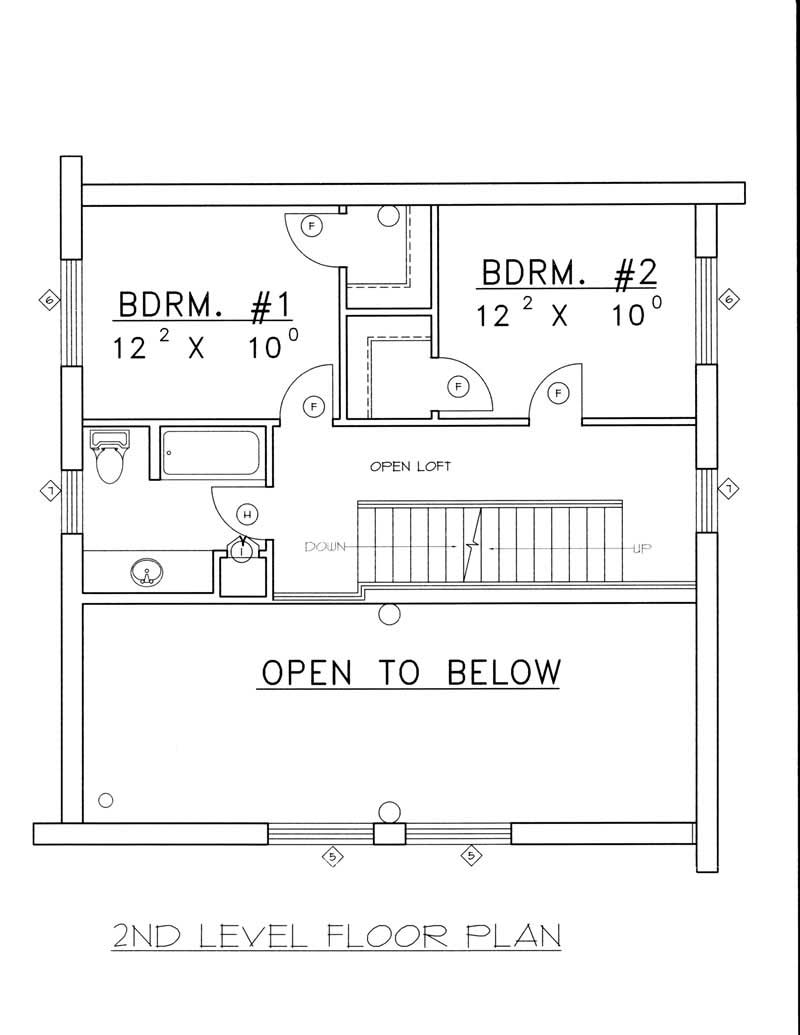

#132-1292 Floor Plan Second Story
-
second level
![Floor Plan Second Story of Log Cabin Plan #132-1292]( "SECOND LEVEL FLOOR PLAN")

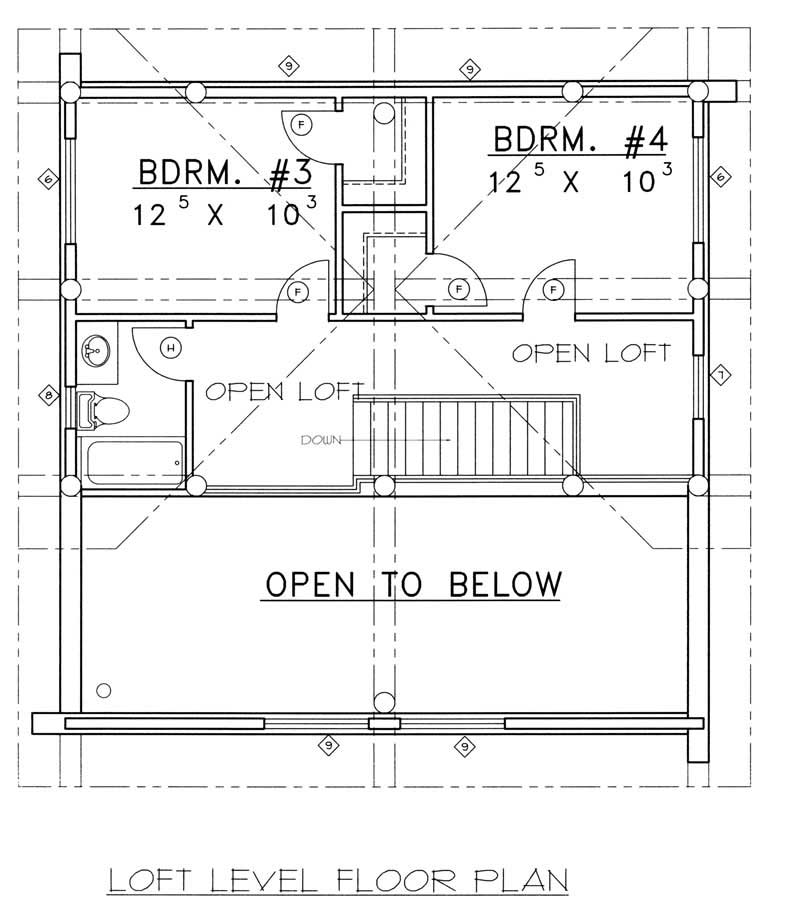

#132-1292 Floor Plan Third Story
-
