Craftsman, Shingle House Plans - Home Design CD 2780BT # 9285

Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.

About House Plan #115-1398

2805

Sq Ft

4

Bedrooms

2

Baths

0

Half Baths

3

Cars

2

Stories

40' 0'

Width

62

Depth

From$1950What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Start with Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

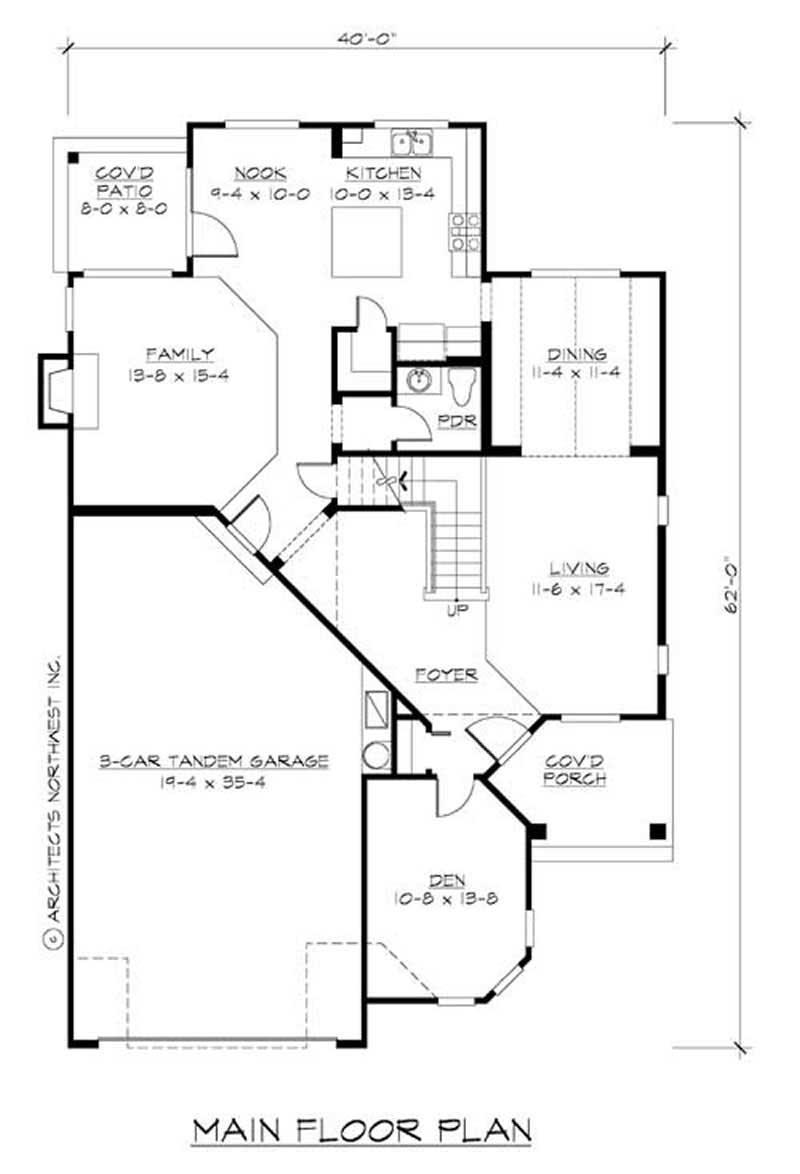

Floor Plan First Story

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!

House Plan Description

For related plans, please see: SPS 2780, SPS 2780A, and/or SPS 2780B.

Home Details

Summary

Plan #:115-1398

Floors:2

Bedrooms:4

Full Baths:2

Half Baths:0

Garage:

Square Footage

Heated Area::2805 Sq. Ft.

Main Floor:1363 Sq. Ft.

Upper Floor:1442 Sq. Ft.

Dimensions

Ridge Height:27'10' 0''

Architectural Styles

Craftsman Shingle

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling8 Foot Ceiling

Garage Type

Attached Garage

Fireplaces

One Fireplace

Building Lot Type

Narrow Lot Design

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Cover Sheet

Schedule Sheet

Detail Sheet

Foundation Plan Sheet

Floor Plan/Floor Framing Sheet(s)

Roof Framing Plan Sheet

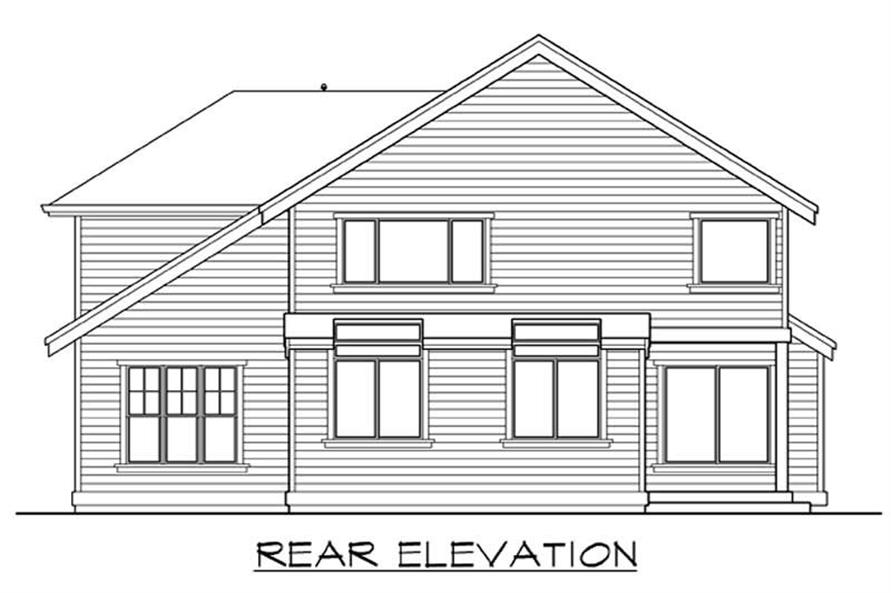

Elevation Sheet

Building Section Sheet

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
