4-Bedroom, 2472 Sq Ft Traditional Plan with Eat-In Kitchen

Main image for house plan # 6833

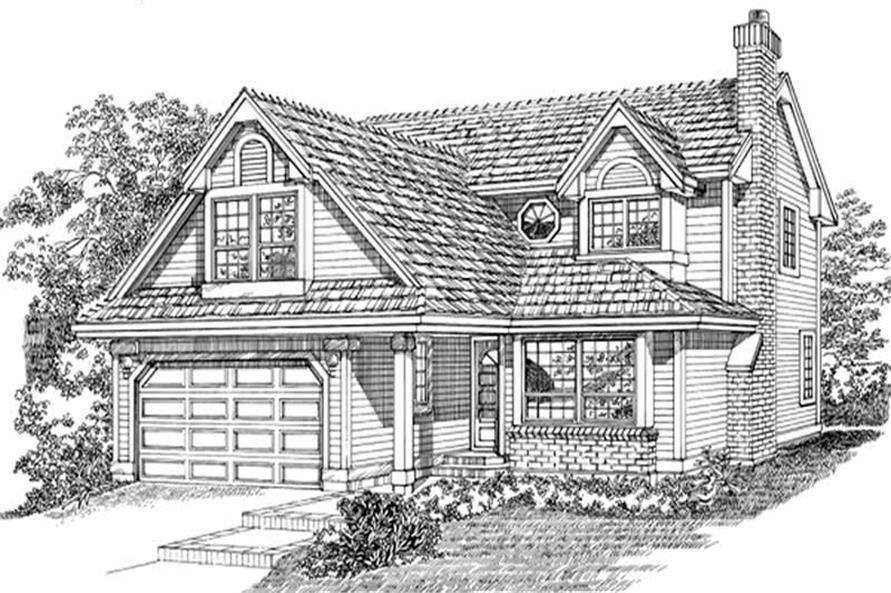

4-Bedroom, 2472 Sq Ft Traditional House Plan - 167-1510 - Front Exterior

About Plan # 167-1510

About Plan # 167-1510

2472 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 36' 0" WIDTH 57' 0" DEPTH 2 GARAGE BAY
Foyer spills to sunken living room. Garden planter adorns dining room. U-shaped kitchen is open to breakfast and family rooms. Family room has masonry fireplace and sliding glass doors to patio.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

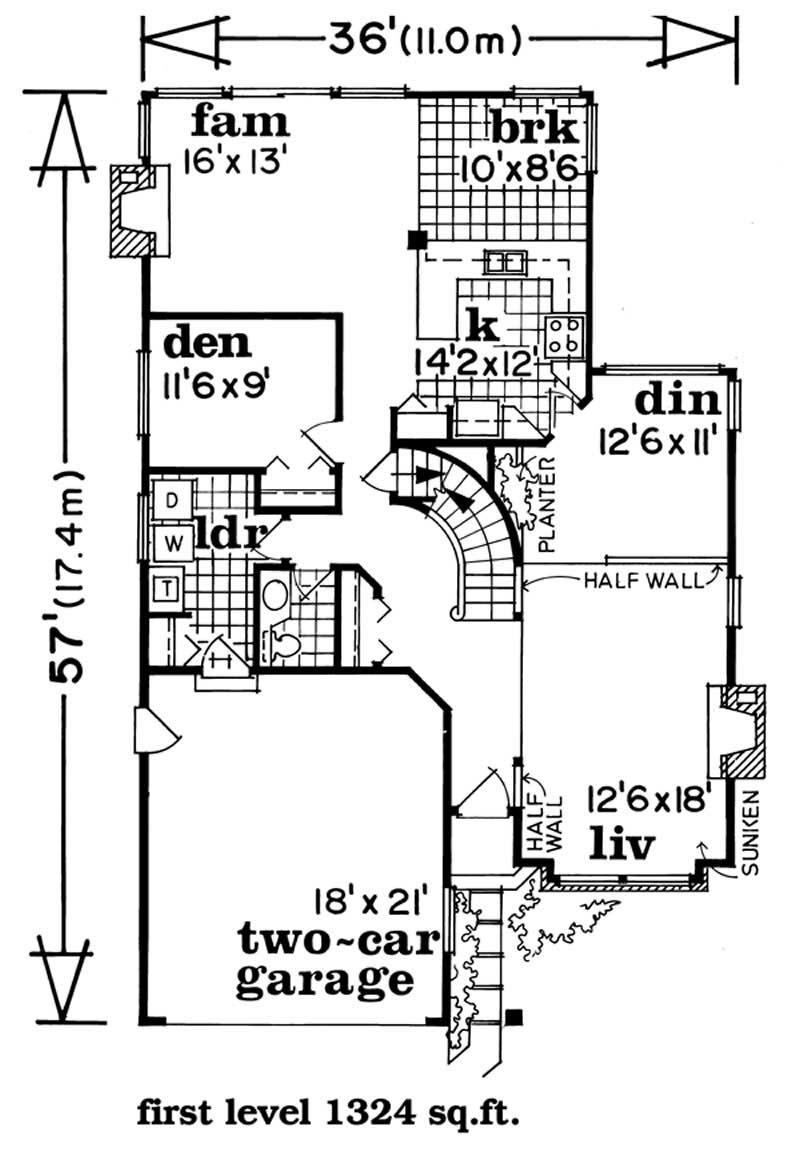

Home Plan: #167-1510 Floor Plan First Story - main Floor Plan First Story of Traditional Plan #167-1510

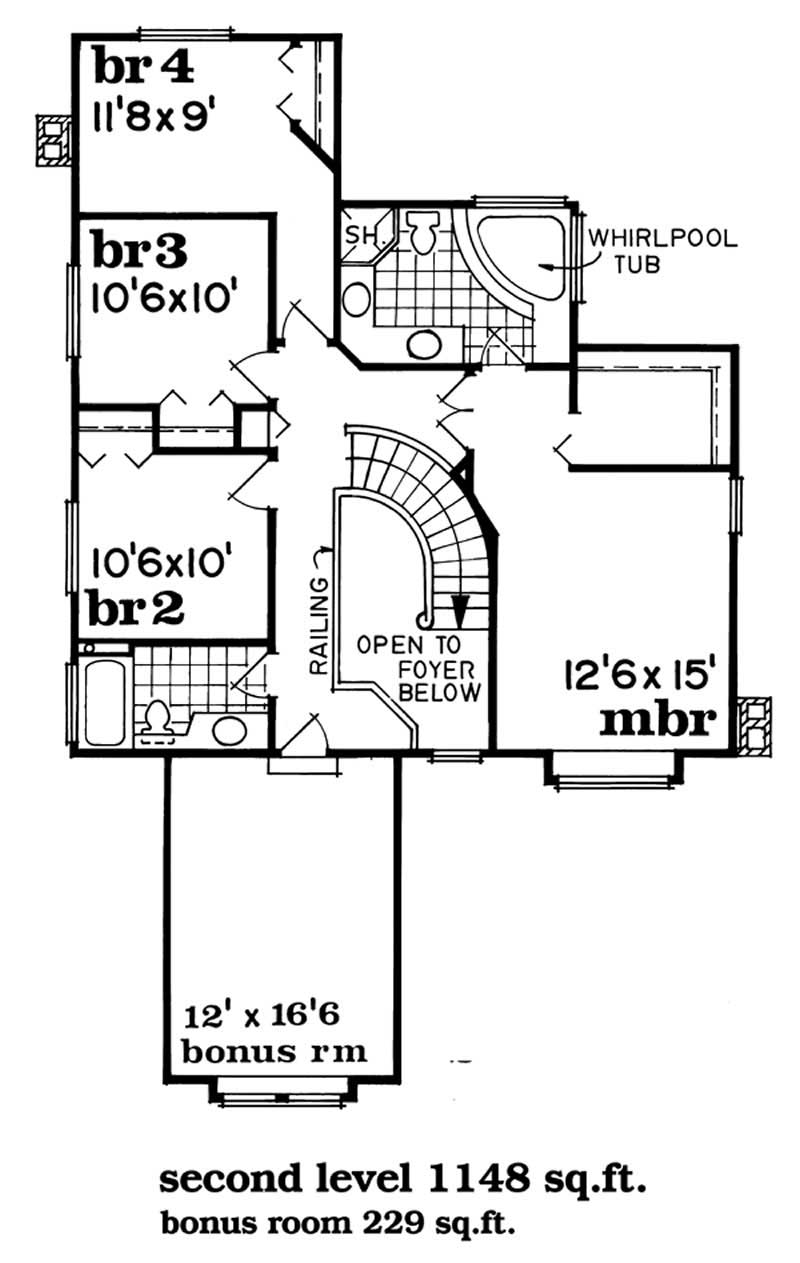

#167-1510 Floor Plan Second Story - upper level Floor Plan Second Story of Traditional Plan #167-1510
Home Plan: #167-1510 Floor Plan First Story - main Floor Plan First Story of Traditional Plan #167-1510
#167-1510 Floor Plan Second Story - upper level Floor Plan Second Story of Traditional Plan #167-1510
