3-Bedroom, 1559 Sq Ft Craftsman Plan with Walk In Closet

Main image for house plan # 4061
EXTERIOR ELEVATIONS
3-Bedroom, 1559 Sq Ft Craftsman House Plan - 153-1287 - Front Exterior
EXTERIOR ELEVATIONS

About Plan # 153-1287

About Plan # 153-1287

1559 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 34' 4" WIDTH 59' 6" DEPTH 2 GARAGE BAY
This Arts and Crafts style home is simple yet elegant. A beaded ceiling and double columns set atop brick pillars enhancing the covered front porch. As you enter the foyer, admire eight-inch columns inviting you into a spacious great room with fireplace and swinging door to the kitchen. Family can enjoy a sunny breakfast nook adjoining the kitchen and accessing a rear-grilling porch. Just across the hall is a formal dining room for large family gatherings or perhaps a den if desired. For privacy and convenience, this split bedroom plan places the spacious master suite on the main level. Two additional two bedrooms, a full bath and a loft area with window are located upstairs.

For a similar Arts and Crafts House Plan, check out House Plan NDG-625 For a similar Arts and Crafts House Plan, check out House Plan NDG-626 For a similar Arts and Crafts House Plan, check out House Plan NDG-628

Each plan set includes the following:

  • FLOOR PLAN(S): Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.

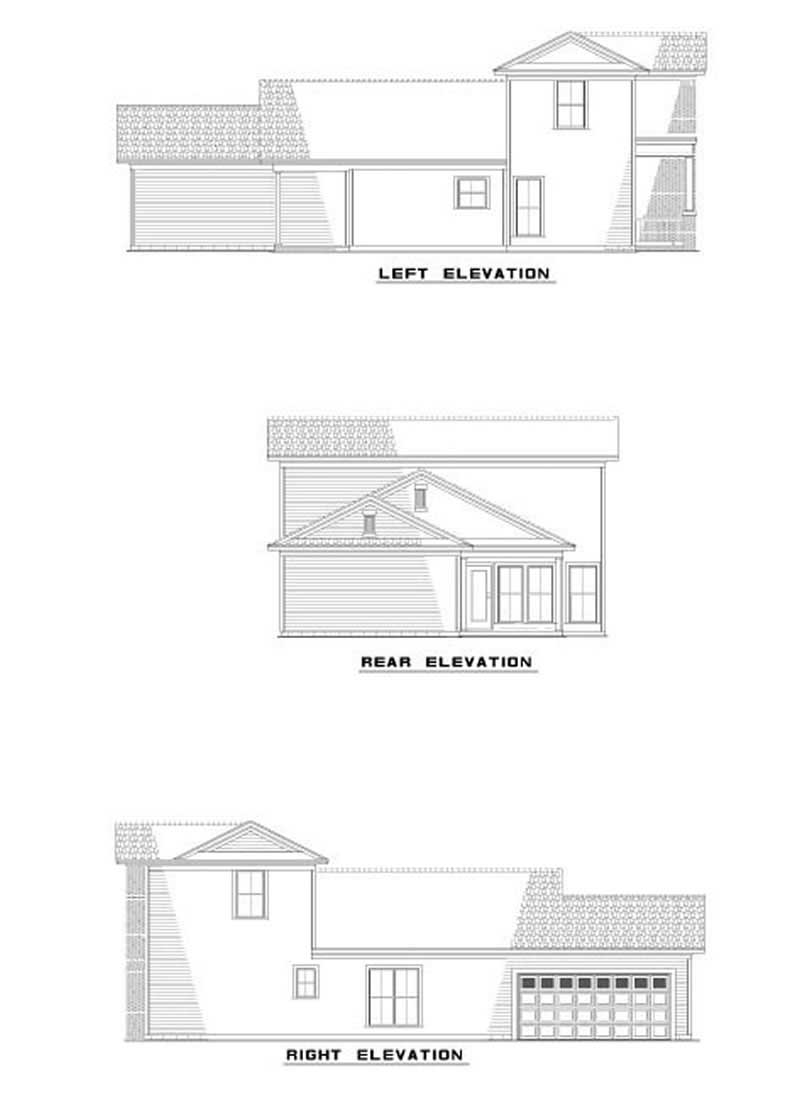

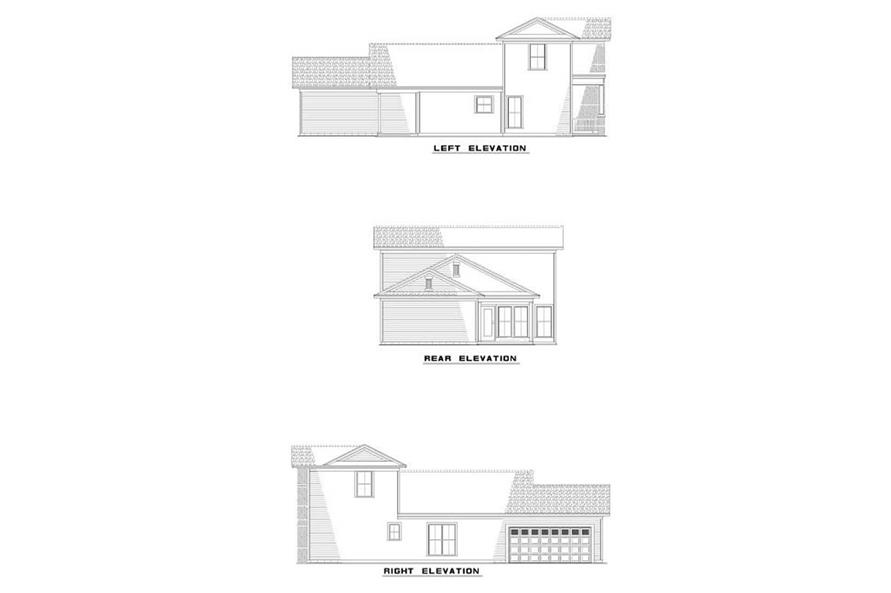

  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF OVERVIEW PLAN: Dimensioned bird's-eye view of the roof showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • BUILDING SECTIONS AND MISCELLANEOUS DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • KITCHEN AND BATH ELEVATIONS: Showing the kitchen and bath details such as cabinets.
  • ELECTRICAL DIAGRAM: Bird's-eye view of rooms defining the location of lights, fans, switches, etc.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

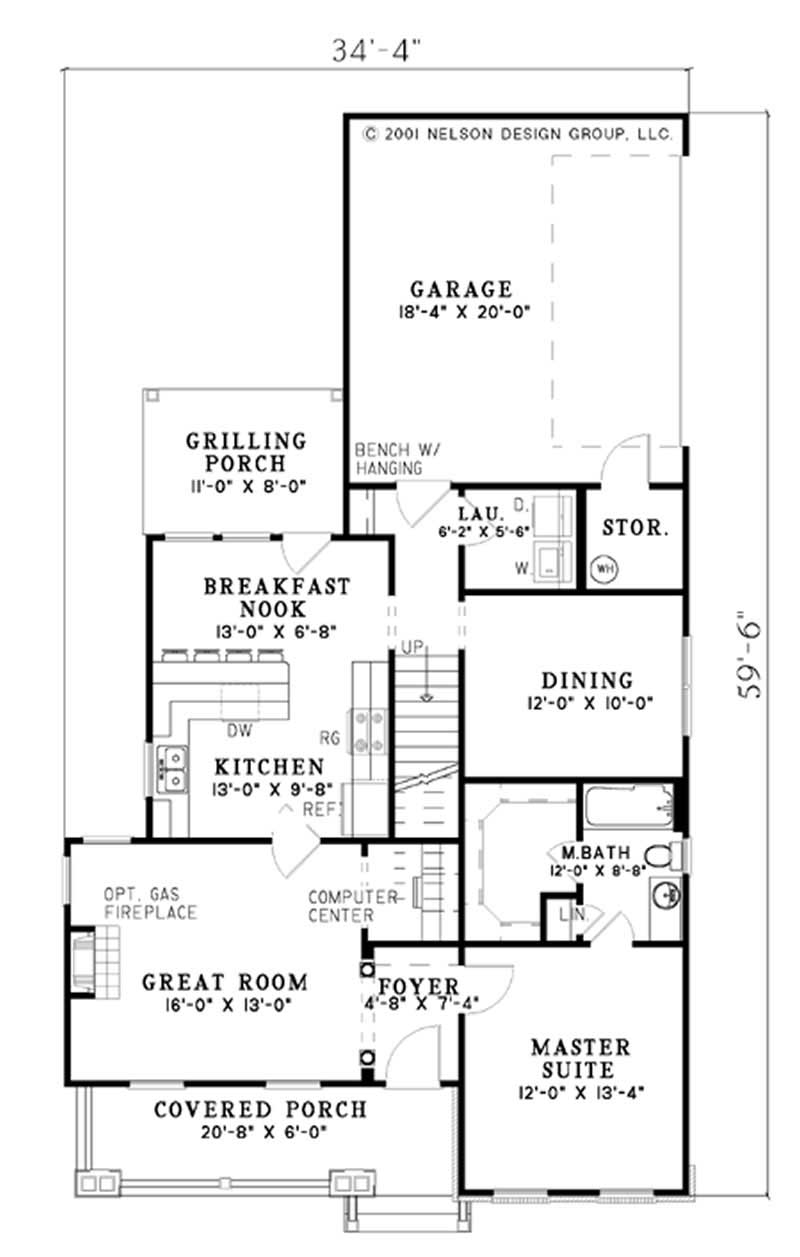

Home Plan: #153-1287 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #153-1287

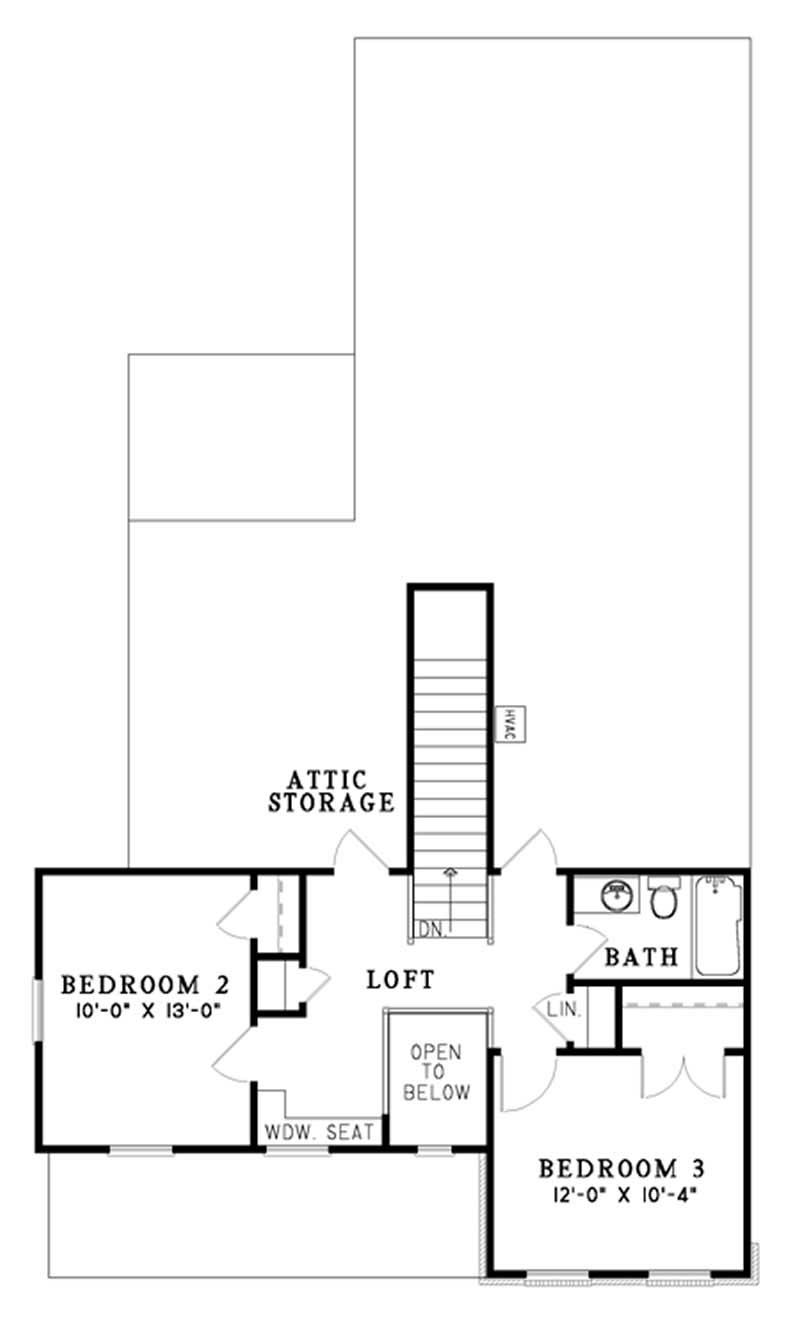

#153-1287 Floor Plan Second Story - upper level Floor Plan Second Story of Craftsman Plan #153-1287
Home Plan: #153-1287 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #153-1287
#153-1287 Floor Plan Second Story - upper level Floor Plan Second Story of Craftsman Plan #153-1287
