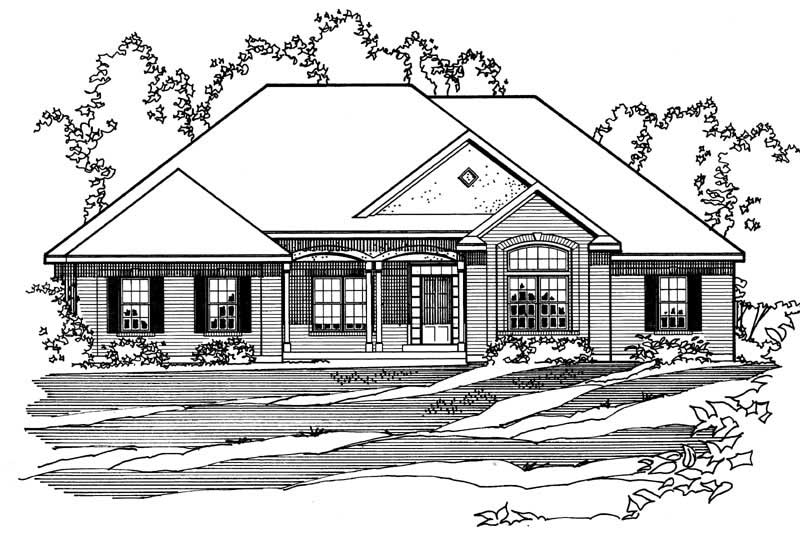

5-Bedroom, 1989 Sq Ft Contemporary House Plan - 172-1002 - Front Exterior
Rear Elevation

About Plan # 172-1002

About Plan # 172-1002

1989 SQUARE FEET 5 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 66' 10" WIDTH 47' 4" DEPTH 2 GARAGE BAY
The Henley offers a spacious feel with it's large great room, open foyer and stairwell. Three bedrooms and two baths on one level provide plenty of room while a laundry room located closely to the entrance from the garage provides a place to kick off the muddy boots before entering the rest of the house. You'll also enjoy the side entry garage.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

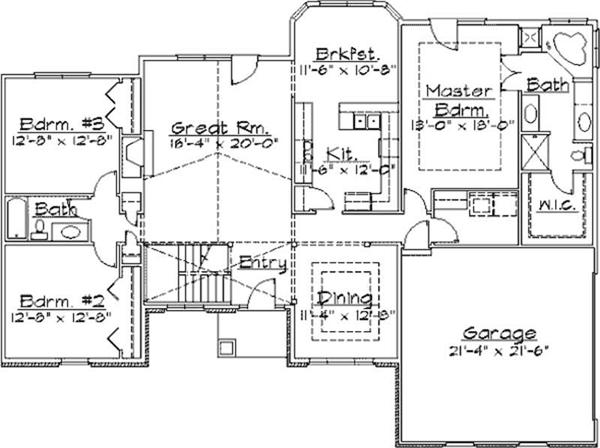

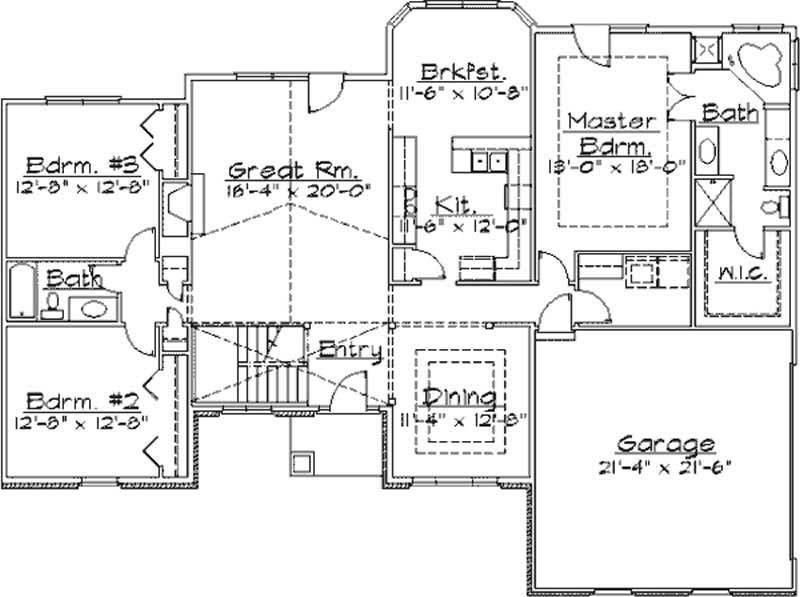

Home Plan: #172-1002 Floor Plan First Story - main level Floor Plan First Story of Contemporary Plan #172-1002

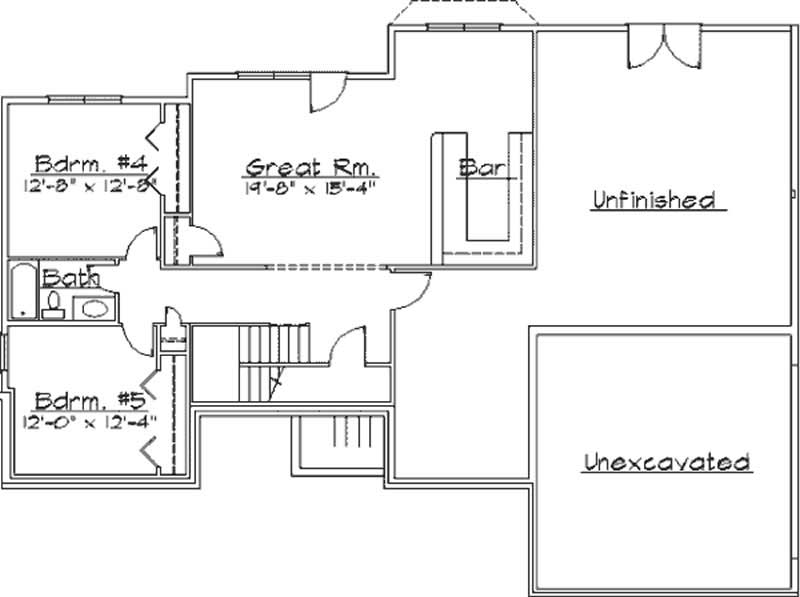

#172-1002 Floor Plan Basement - basement Floor Plan Basement of Contemporary Plan #172-1002
