About Plan # 108-1397

About Plan # 108-1397

2094 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 55' 0" WIDTH 64' 0" DEPTH 2 GARAGE BAY

The #108-1397 house plan is a great two story Spanish style house plan with 2094 total living square feet. Gentle arched openings and bold stucco columns create a breezy porch for this Spanish home plan. Vaulted ceiling overarches the central foyer, family room and dining room. The kitchen has an eating bar, nook, sliders to screened porch which is close to the utility.

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

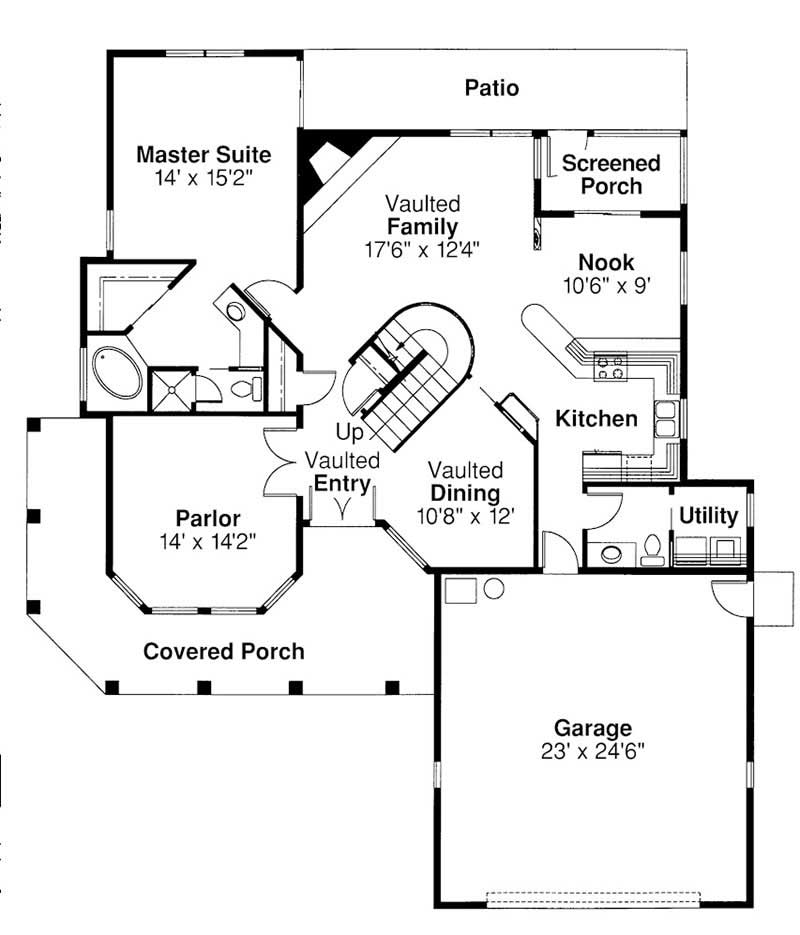

Home Plan: #108-1397 Floor Plan First Story - kendall first floor Floor Plan First Story of Mediterranean Plan #108-1397

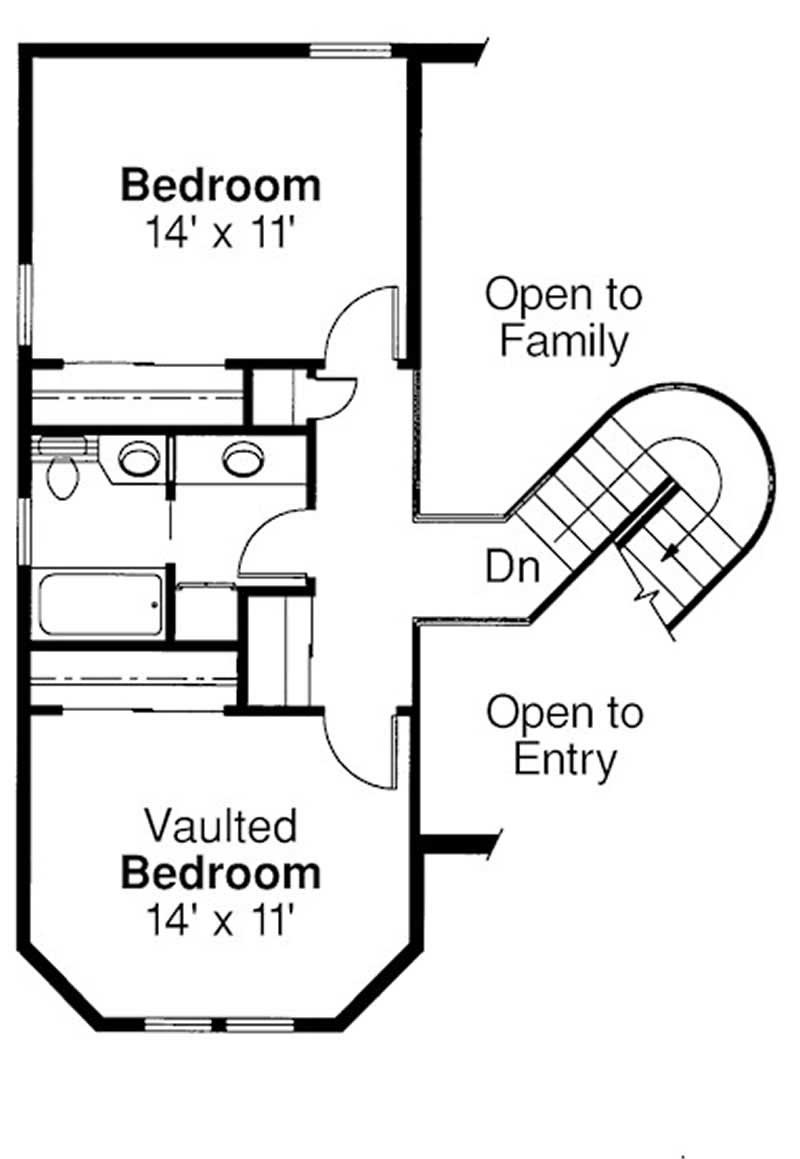

#108-1397 Floor Plan Second Story - kendall second floor Floor Plan Second Story of Mediterranean Plan #108-1397
