About Plan # 153-2040

About Plan # 153-2040

4736 SQUARE FEET 5 BEDROOMS 5 FULL BATH 1 HALF BATH
1 FLOOR 88' 2" WIDTH 74' 4" DEPTH 2 GARAGE BAY

This remarkable Luxury style home with Craftsman characteristics (Plan #153-2040) has 4736 square feet of heated and cooled living space. The 1-story floor plan includes 5 bedrooms and

• Covered front and rear porches
• Home office
• Mud Room
• Safe room
• Game room
• Home Theater
• Huge walk-in kitchen pantry
• Split master bedroom layout

Each plan set includes the following:

  • floorplan

  •  4 side exterior elevations,

  • electrical plan,

  • birds-eye view of the roof,

  • foundation plan,

  • and some miscellaneous details.

    Please Note

    We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

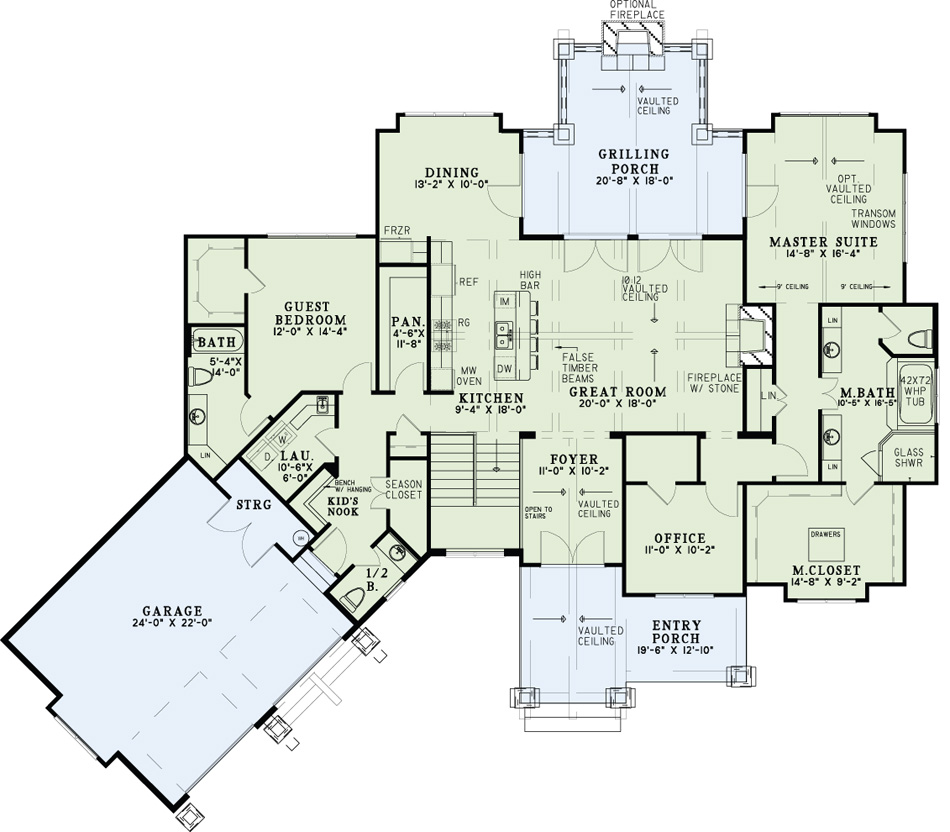

Home Plan: #153-2040 Floor Plan First Story - main level

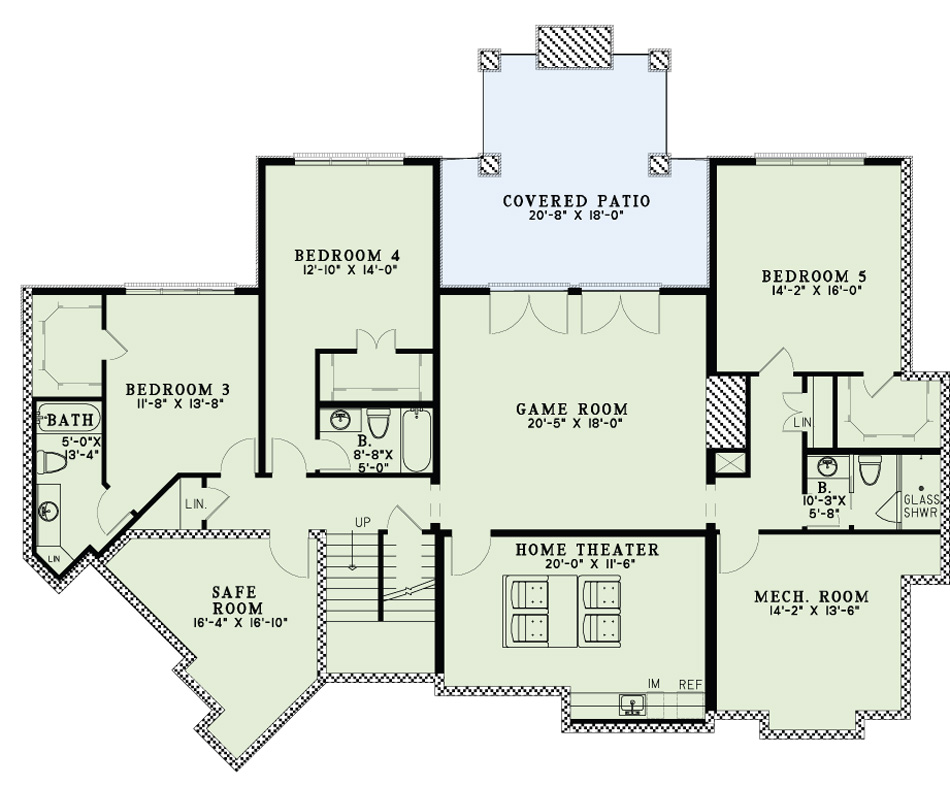

#153-2040 Floor Plan Basement - basement Floor Plan Basement of Luxury Plan #153-2040
Home Plan: #153-2040 Floor Plan First Story - main level
#153-2040 Floor Plan Basement - basement Floor Plan Basement of Luxury Plan #153-2040
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 153-2040
Floors:
1
Bedrooms:
5
Full Baths:
5
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
4736
Main Floor:
2391
Lower Floor:
2345
Unfinished Sq Ft:
Garage :
618
Porch :
535

Dimensions

Width:
88' 2"
Depth:
74' 4"
Ridge Height:
27' 8"

Architectural Styles

Country
Ranch
Luxury
Craftsman
Transitional
Rustic

Exterior Wall Material

Vinyl Siding
Wood Siding
Shakes

Roofing Type

Gable
Dutch Gable
Gable/Dormer

Roofing Material

Asphalt Shingles

Roof Pitch

10/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Guest Room
Home Office
Mud Room
Family Room
Game Room
Main Level Laundry
Home Theater
Split Bathroom
Storage
Vaulted Ceilings
Open Floor Plan
L-Shaped

Garage Type

Attached Garage
Front Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x4

Building Lot Type

Down Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Covered Rear Patio

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

Plans by this designer do NOT usually come with FRAMING - some plans may have framing available for an extra fee - please contact us to find out about a specific plan & we will check with the designer!! Additionally: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions! PLEASE NOTE: Multi-licenses are available. The plans do not come with ICF specifications. If ICF construction method is desired, the CAD plan can be purchased and then forwarded to the ICF dealer and they’ll do a takeoff to assist with that specific projec
