Craftsman, 2-Car Garage Plan with Future Apartment

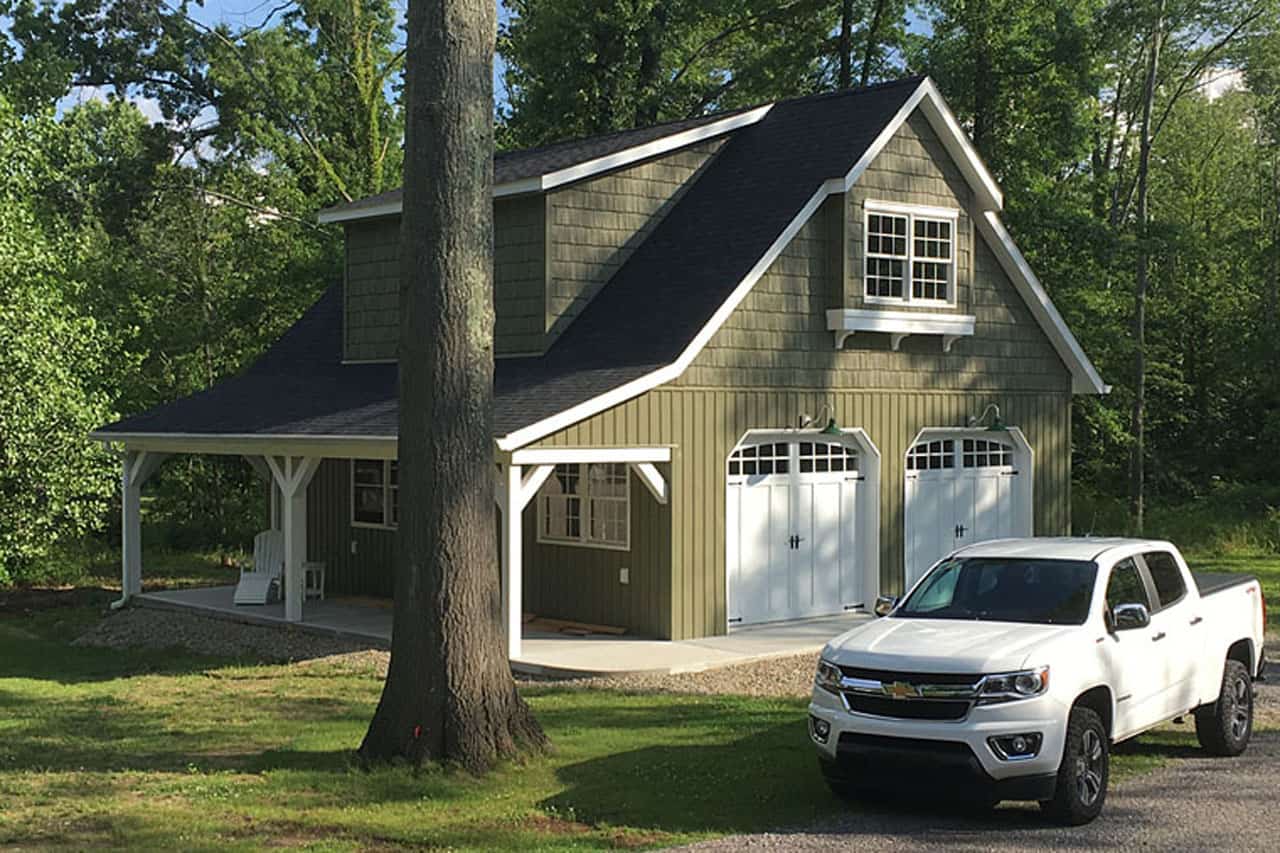

Craftsman home (ThePlanCollection: Plan #108-1770)

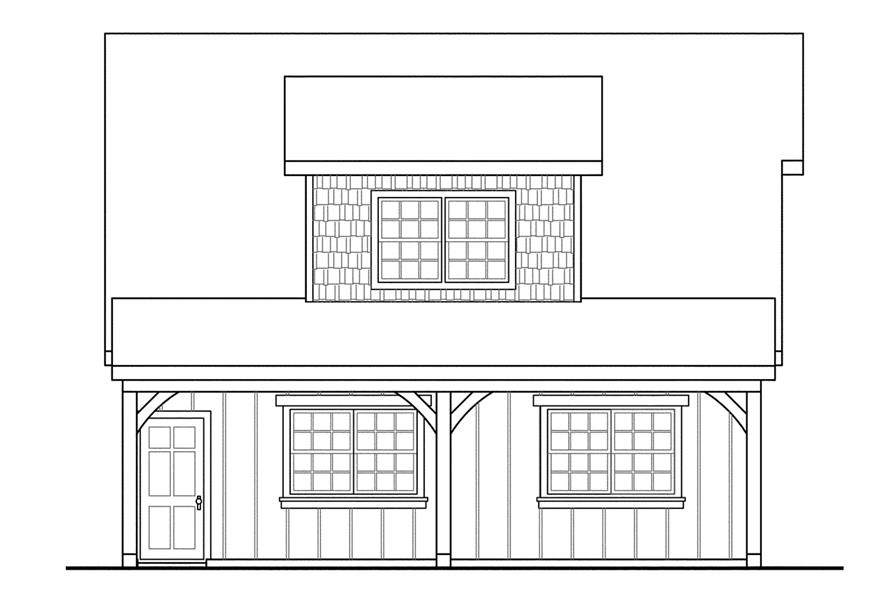

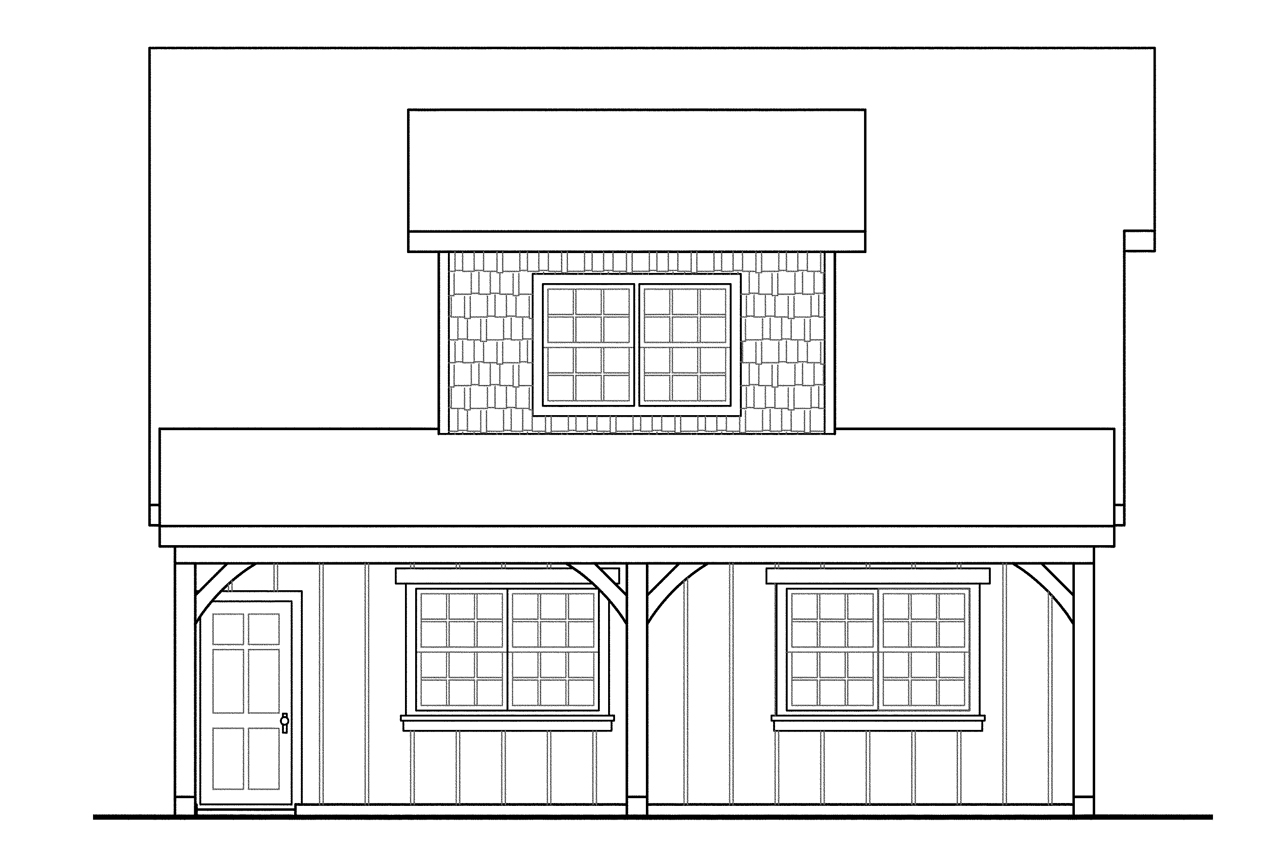

108-1770: Home Plan Rear Elevation

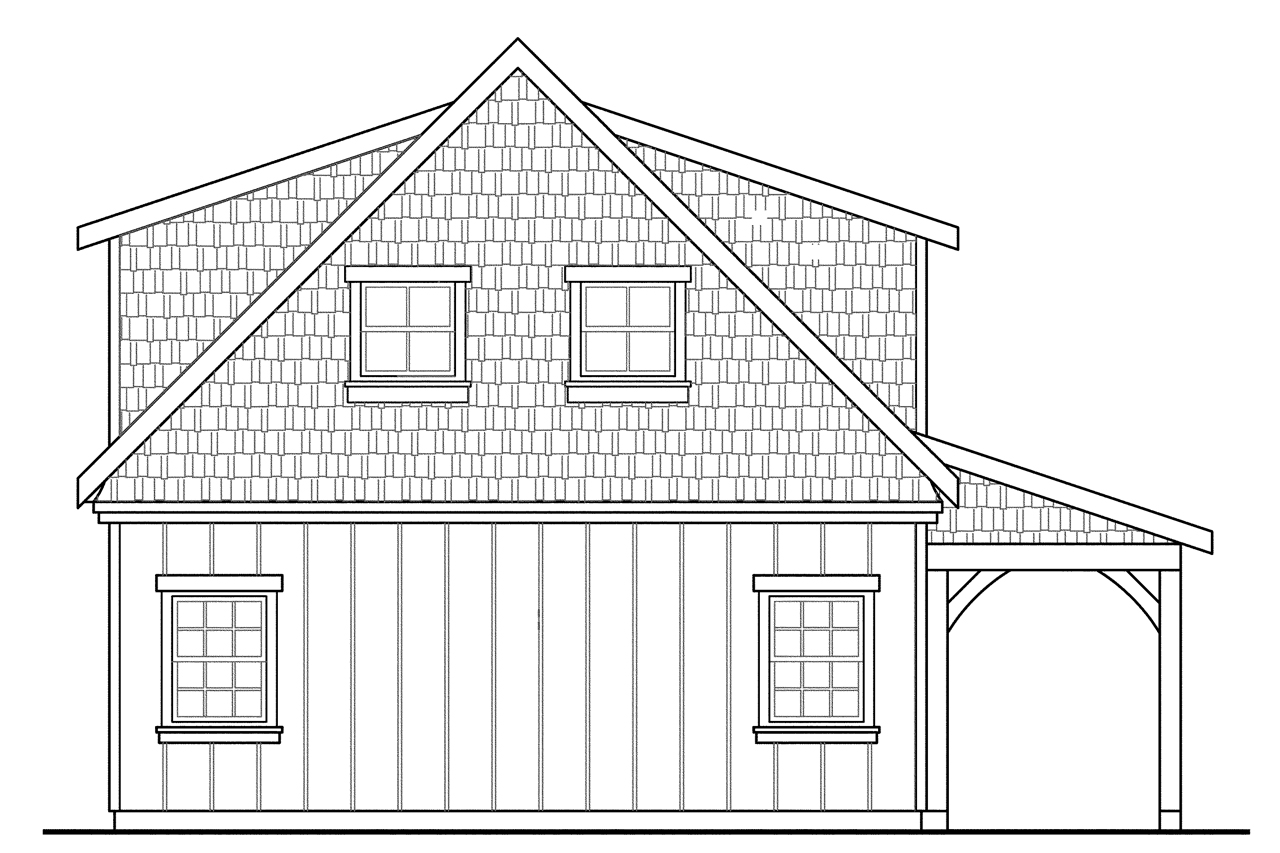

108-1770: Home Plan Left Elevation

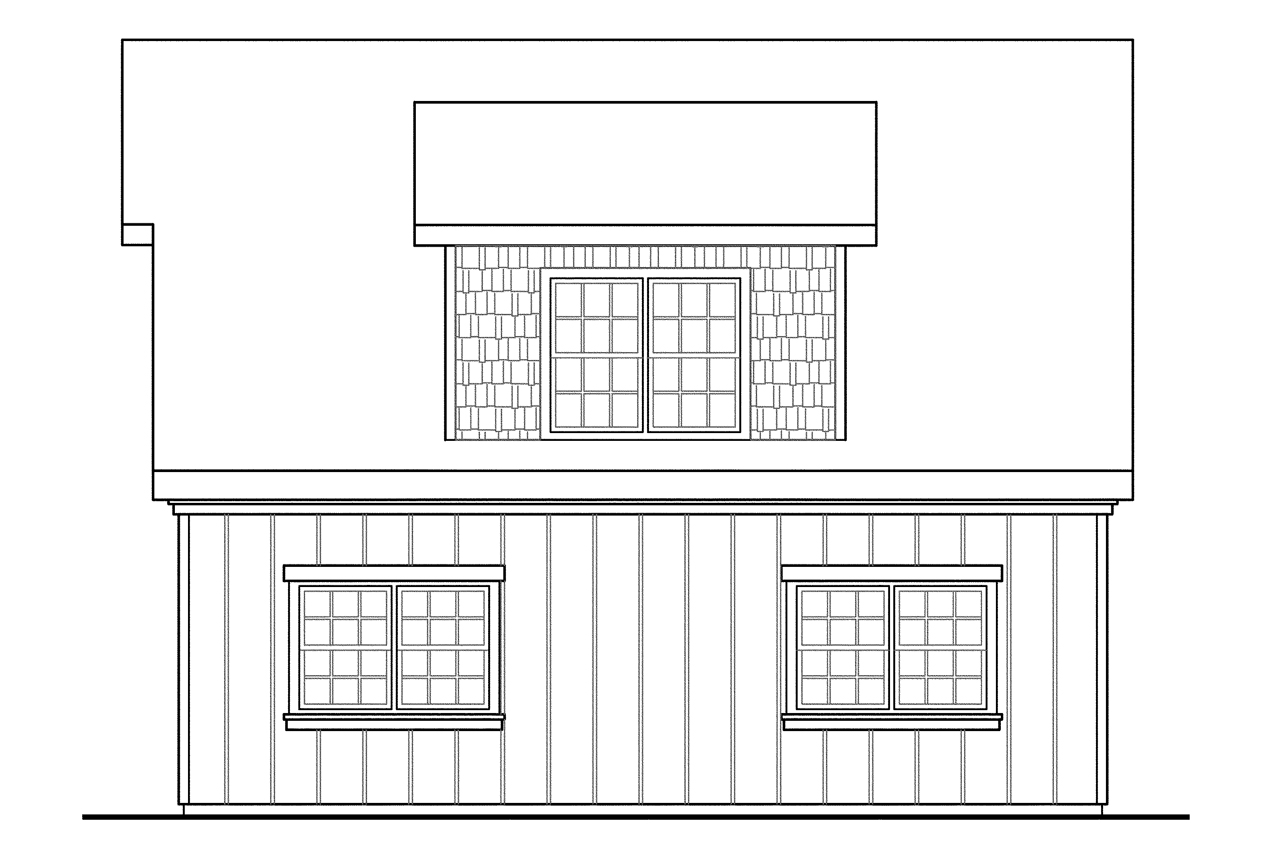

108-1770: Home Plan Right Elevation
594 Sq Ft Craftsman Garage with Apartment - Plan #108-1770 - Front Exterior
108-1770: Home Plan Rear Elevation
108-1770: Home Plan Left Elevation
108-1770: Home Plan Right Elevation

About Plan # 108-1770

About Plan # 108-1770

1374 SQUARE FEET 0 BEDROOMS 0 FULL BATH 0 HALF BATH
2 FLOOR 34' 0" WIDTH 30' 0" DEPTH 2 GARAGE BAY

House Plan Description

This Craftsman style garage plan with Country influences has 2 stories and 594 square feet of unfinished apartment space above the 780 sq ft garage level. The plan has wood siding and vaulted ceilings in the loft space. The open space in the upper level can be configured as desired.


Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

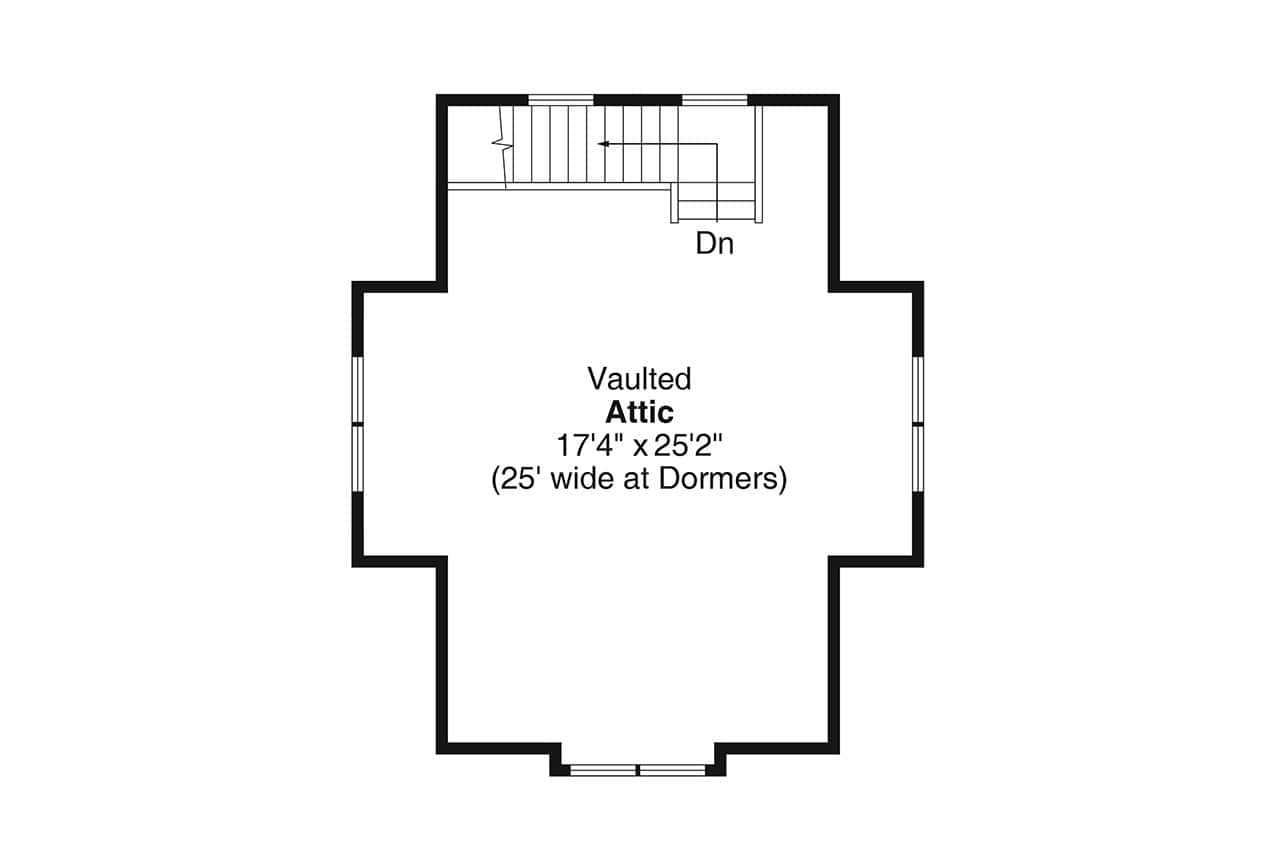

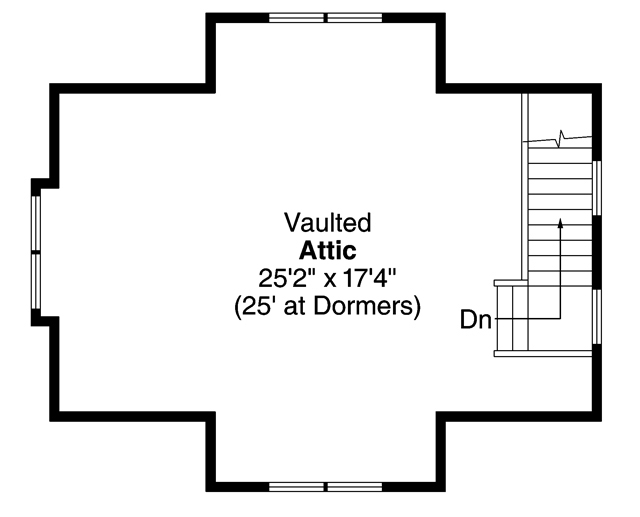

Home Plan: #108-1770 Floor Plan Second Story - upper level Floor Plan Second Story of Craftsman Plan #108-1770

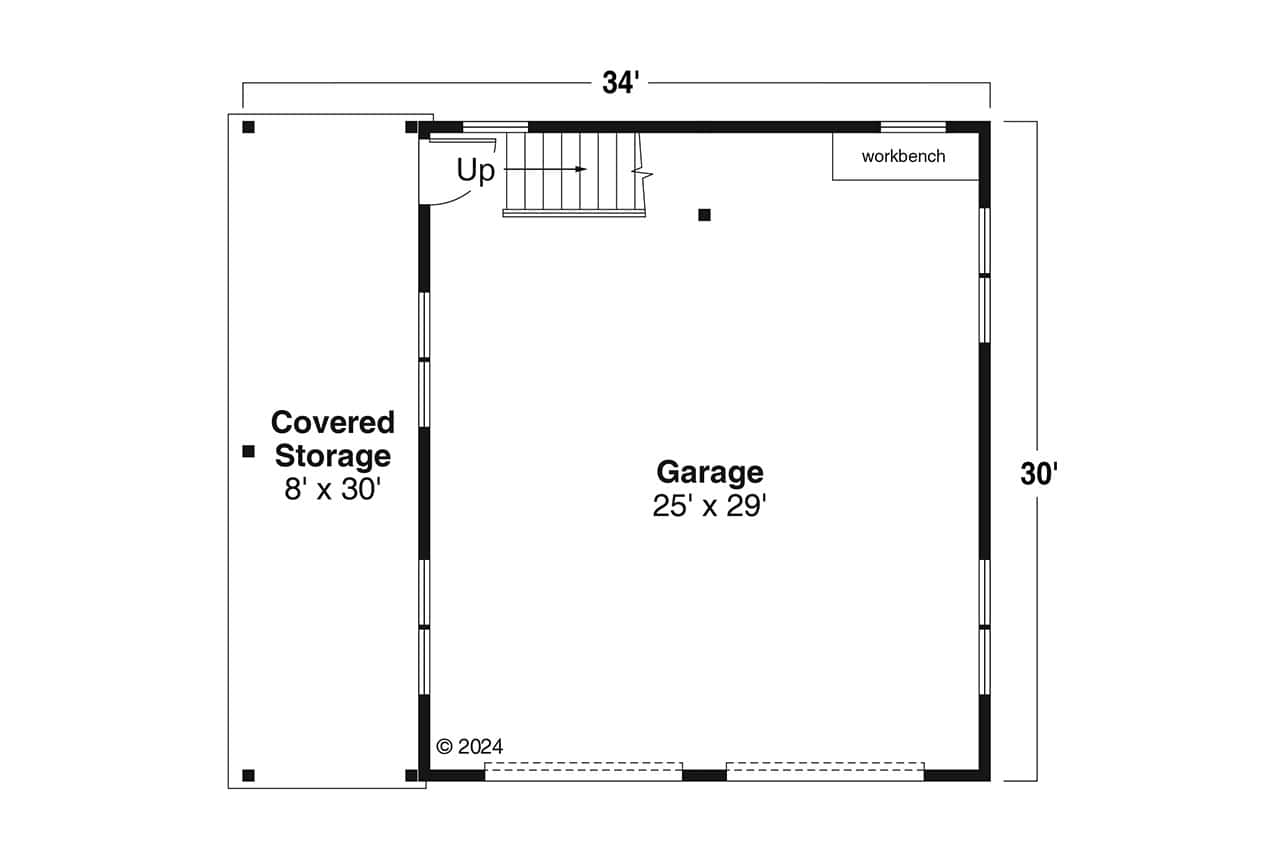

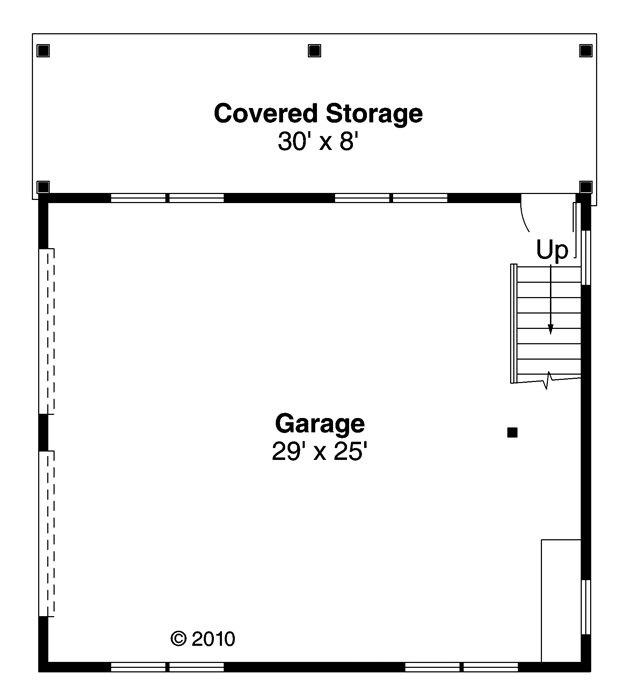

#108-1770 Floor Plan Garage - garage Floor Plan Garage of Craftsman Plan #108-1770
Home Plan: #108-1770 Floor Plan Second Story - upper level Floor Plan Second Story of Craftsman Plan #108-1770
#108-1770 Floor Plan Garage - garage Floor Plan Garage of Craftsman Plan #108-1770
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 108-1770
Floors:
2
Garage :
2

Square Footage

Heated Sq Feet:
1374
Unfinished Sq Ft:
Upper Floor:
594
Garage :
780

Dimensions

Width:
34' 0"
Depth:
30' 0"
Ridge Height:
25' 3"

Architectural Styles

Arts and Crafts
Country
Craftsman
Garage

Exterior Wall Material

Shakes
Vinyl Siding
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

4/12

Ceiling Height

9 Foot Ceiling

Special Feature

Storage
Vaulted Ceilings

Garage Type

Detached Garage

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

Additional Notes from Designer

The total square footage for the garage (both main level and attic) is 1374 sq ft. The garage level is 780 sq ft and the attic is 594 sq ft.


PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY!

PRICING OPTIONS

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

Eight printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 8 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
