3-Bedroom, 2549 Sq Ft Colonial Plan with Sundeck

The Plan Collection: Front Elevation of Traditional House # 189-1000
189-1000: Home Plan Rear Elevation
3-Bedroom, 2549 Sq Ft Colonial Home Plan - 189-1000 - Main Exterior
189-1000: Home Plan Rear Elevation

About Plan # 189-1000

About Plan # 189-1000

2549 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 86' 7" WIDTH 64' 7" DEPTH 2 GARAGE BAY

This lovely Colonial home with its generous rooms is the perfect home for busy families. The cozy family room with its fireplace and French doors offers a gathering area with a  look-thru space into the Kitchen.  This well-planned kitchen has a breakfast area set in a bay, angled bar seating and large walk-in pantry.  The must-have laundry/mud room complete with benches, cabinets, sink and closet space provides an entrance and landing area that your on-the-go family needs.  The two family bedrooms  with oversized closets share a large hall bath with separate vanities. The master bedroom suite includes double vanities, garden tub, angled shower, vanity table and "his and hers" walk-in closets.  Plus, there is plenty of unfinished space with the bonus room.

Each plan set includes the following:

  • PERSPECTIVES: Front exterior color rendering of what the house would look like once built. Aerial view of what the house would look like once built.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • FIRST FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window and door schedule.
  • SECOND FLOOR PLAN (if any): Includes the same details as found on the first floor plan.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: Dimensioned bird's-eye view of the roof showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys. Includes roof framing plan.
  • FRAMING PLANS: Includes the first floor framing, second floor framing, and the second floor ceiling framing plans.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and schematic defining the location of lighting fixtures, switches, outlets, fans, etc.
  • BUILDING SECTIONS AND DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes eave detail and typical stair detail.
  • INTERIOR PERSPECTIVES & ELEVATIONS: Includes interior perspectives where deemed necessary and kitchen elevations.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

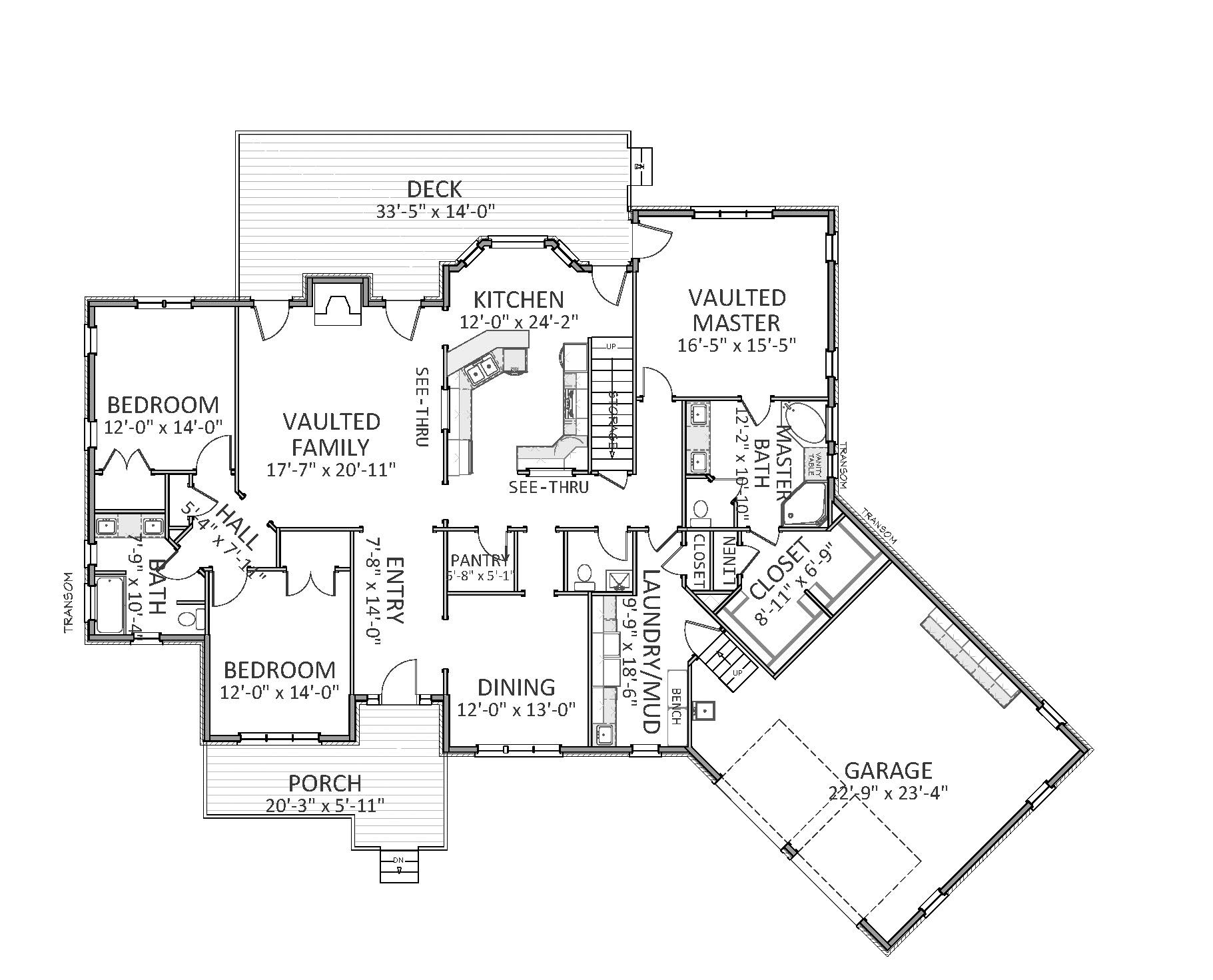

Home Plan: #189-1000 Floor Plan First Story - first story Floor Plan First Story of Colonial Plan #189-1000

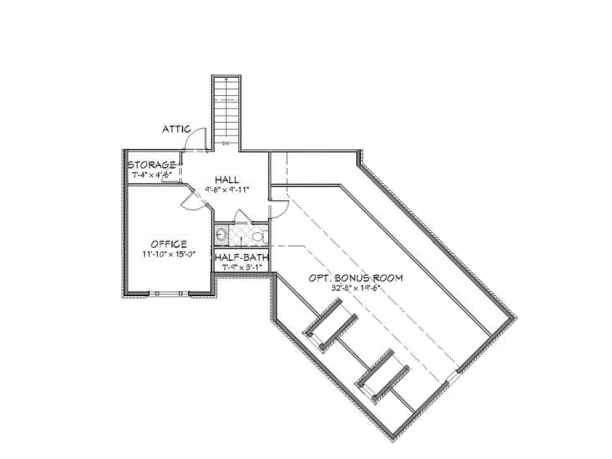

#189-1000 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Colonial Plan #189-1000
Home Plan: #189-1000 Floor Plan First Story - first story Floor Plan First Story of Colonial Plan #189-1000
#189-1000 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Colonial Plan #189-1000
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 189-1000
Floors:
1
Bedrooms:
3
Full Baths:
2
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
2549
Main Floor:
2549
Unfinished Sq Ft:
Bonus Room:
921
Garage :
636
Porch :
175

Dimensions

Width:
86' 7"
Depth:
64' 7"
Ridge Height:
30' 6"
Ridge Height:
30' 6"

Architectural Styles

Colonial
Ranch
Traditional

Exterior Wall Material

Brick
Rock/Stone
Shakes

Roofing Material

Asphalt Shingles

Roof Pitch

12/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Mud Room
Bonus Room
Family Room
Main Level Laundry
Storage
Vaulted Ceilings

Garage Type

Attached Garage
Courtyard Entry

Exterior Wall Framing

2x6

Kitchen Features

Nook/Breakfast Area
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

Please Note: Optional foundations are available for this plan but may take up to two weeks for delivery. Please contact us or click "Modify this Plan" for more information.


Please Note: CAD Files for this plan typically take 2-3 additional business days to prepare. PLEASE NOTE: Some options (different foundations, RRR, etc.) may take an additional 2-3 business days to prepare! Please keep this in mind regarding shipping when ordering. Thank you!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.

Package & Price Help
Select Plan Package
Select Foundation
  {{addOnOption.Cost | currency:"$"}}
{{addOnOption.Cost | currency:"$"}}
{{addOnOption.InventoryOptionName}}
  {{addOnOption.Cost | currency:"$"}}
{{addOnOption.InventoryOptionName}}
  {{addOnOption.Cost | currency:"$"}}

How much will this plan cost to build?

- OR -

Modify this plan

This plan can be customized
Contact us for free quote

Modify this plan

This plan can be customized
Contact us for free quote
