This is the front elevation for these Duplex Home Plans.

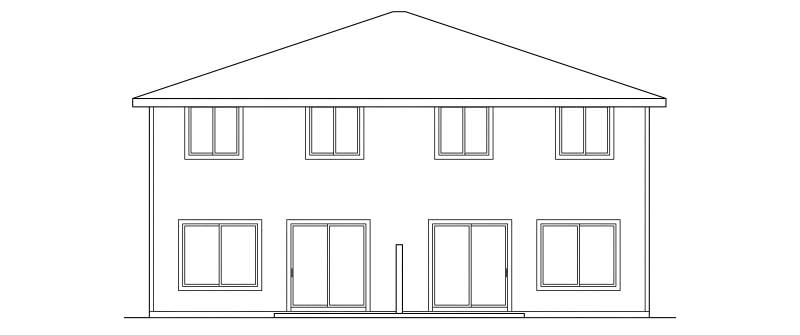

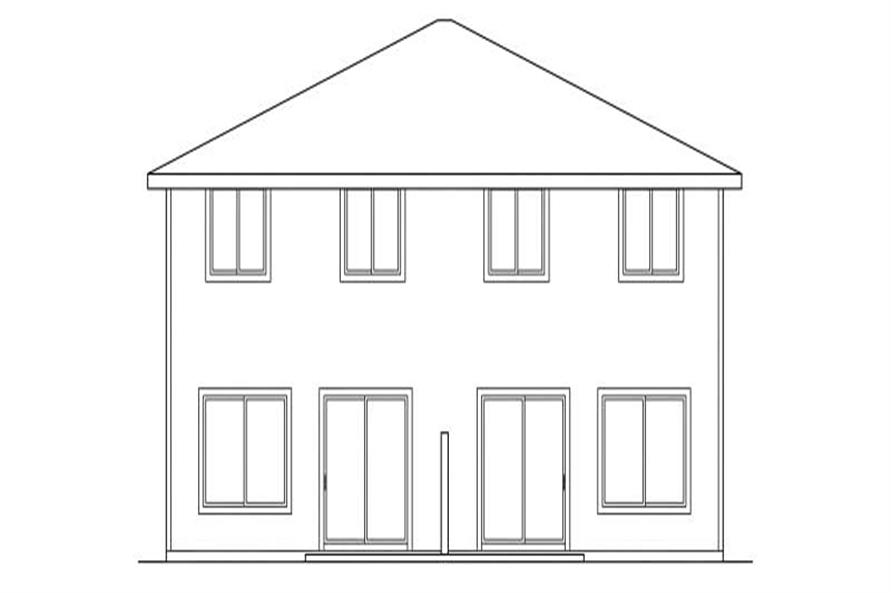

Home Plan Rear Elevation
4-Bedroom, 2568 Sq Ft Multi-Unit House Plan - 108-1007 - Front Exterior

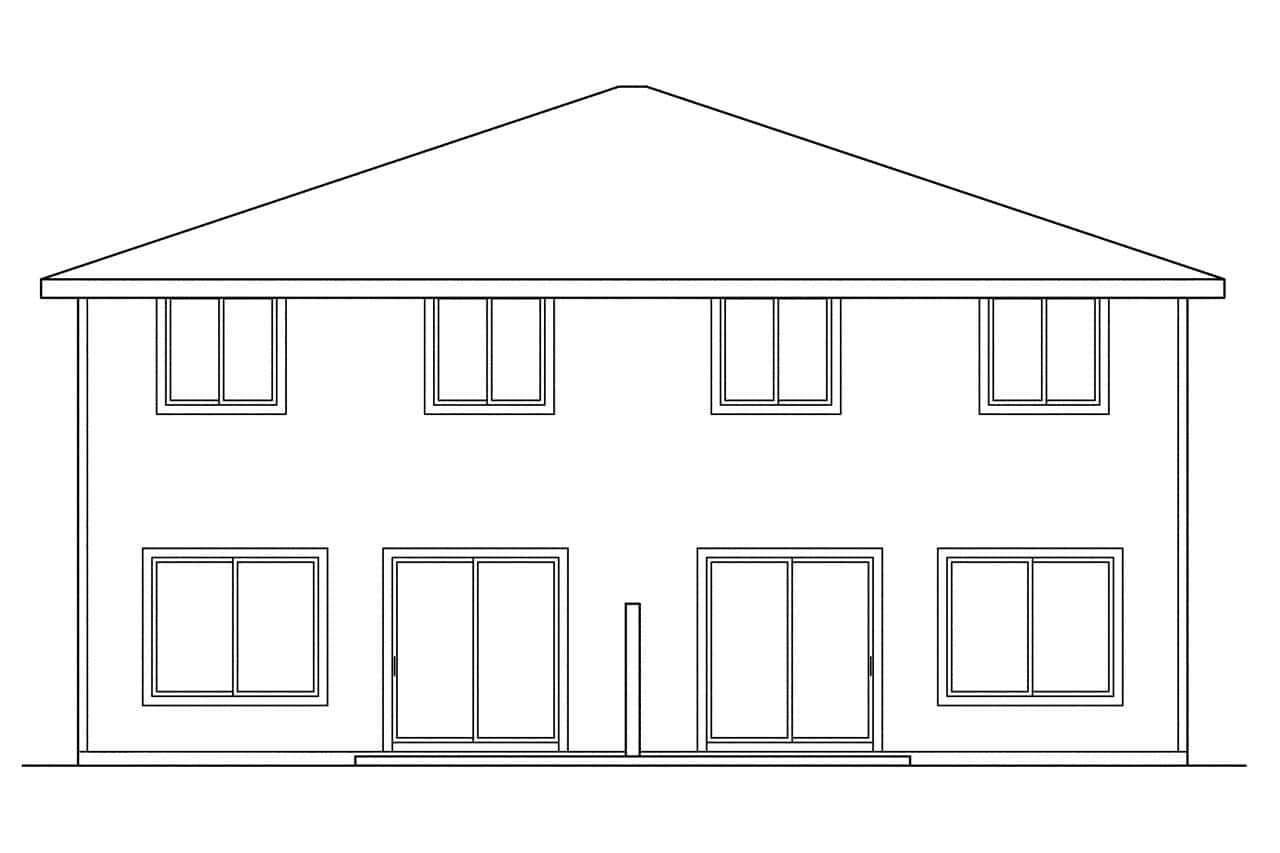

Home Plan Rear Elevation

About Plan # 108-1007

About Plan # 108-1007

2568 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 40' 0" WIDTH 44' 0" DEPTH 2 GARAGE BAY

Each unit in this exceptionally spacious two-story Craftsman duplex plan has four bedrooms and three bathrooms. On the ground floor of each, living, dining and kitchen areas flow together in one bright and spacious room. Laundry appliances are near the kitchen, and sliders in the dining room open onto a patio. In the world of duplexes, four bedroom units are rare. The #108-1007 has four bedrooms, plus a whopping three bathrooms as well! Family living spaces are on the ground floor; bedrooms, along with two of the bathrooms, are upstairs. This two-story duplex works well as a townhouse. The plan is as economical to build as it is to maintain, and its compact footprint fits neatly on a narrow lot. Multi-paned windows give the building a charming, cottage look. Each of the mirror-imaged units offer nearly 1,300 square feet of living space, plus a deep one-car garage. Since they are totally similar, only one will be described. Living, dining and kitchen areas flow together at the rear, where glass fills much of the wall. Sliders in the dining room open onto a patio. The kitchen is enclosed on three sides, but totally open to the dining area at the rear. Counters and cupboards are amply supplied in this step-saving floor plan. The big three--refrigerator, stove and sink--are set in a tight triangle, so it's easy to move from one to the other. Laundry appliances are nearby as well, in a pass-through utility hallway that links the house and garage. The powder room there is as handy for a quick dash in from playing, as it is convenient for the main floor rooms. Upstairs, a surprisingly large walk-in closet hides behind a pocket door in the #108-1007's master bathroom. The other three bedrooms share another bathroom, which is outfitted with a combination tub and shower. Linen storage is in good supply, with one closet in the upper hallway, and another in the shared bathroom.

Each plan set includes the following:

  • ARTIST'S RENDERING: An artist's drawing of the home, usually viewed from the front, and general construction notes.

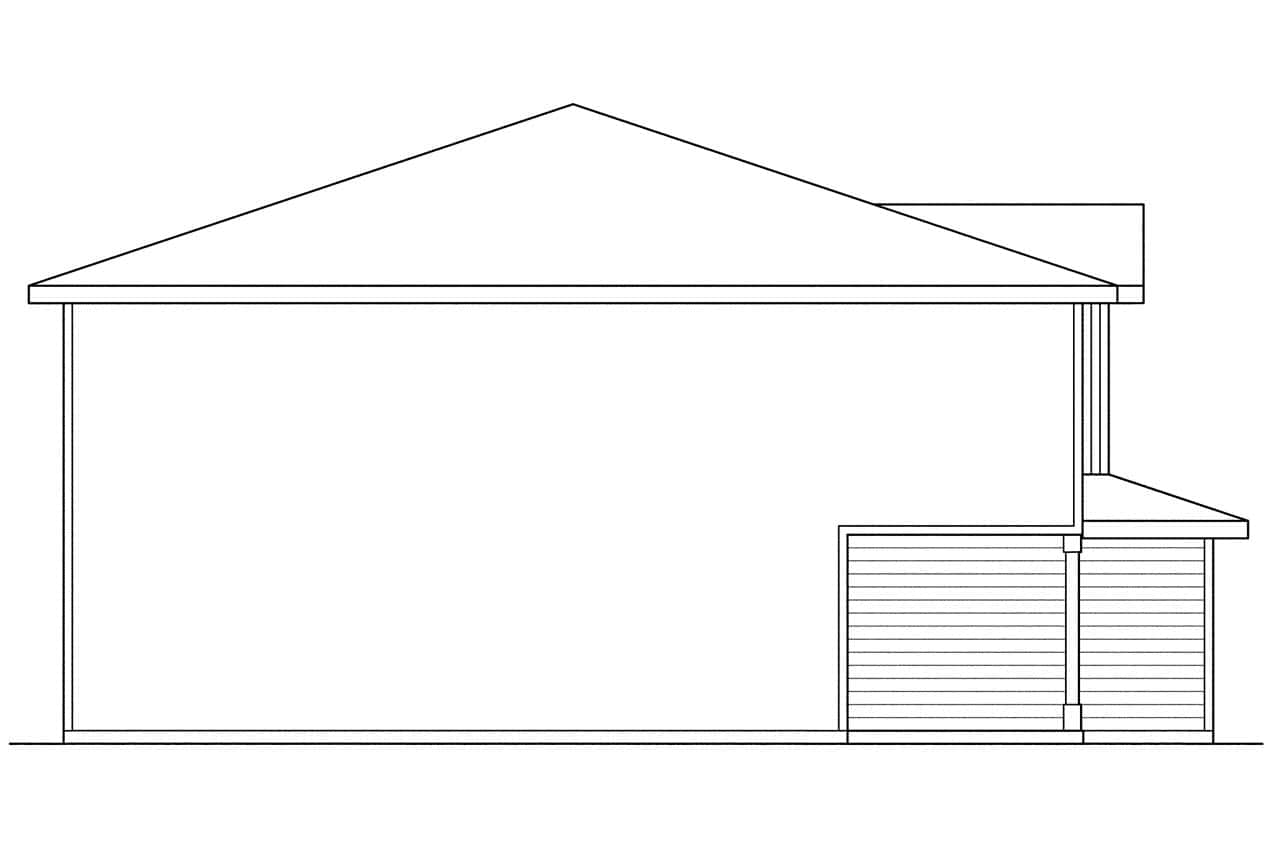

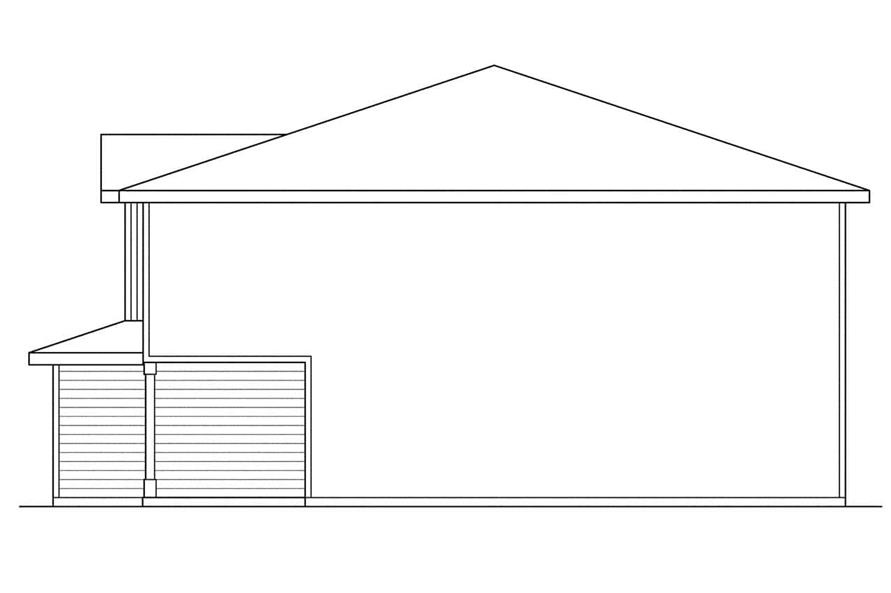

  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Each plan set is drawn at 1/4"=1' scale. Showing the placement and dimensions of all walls, windows, and doors. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

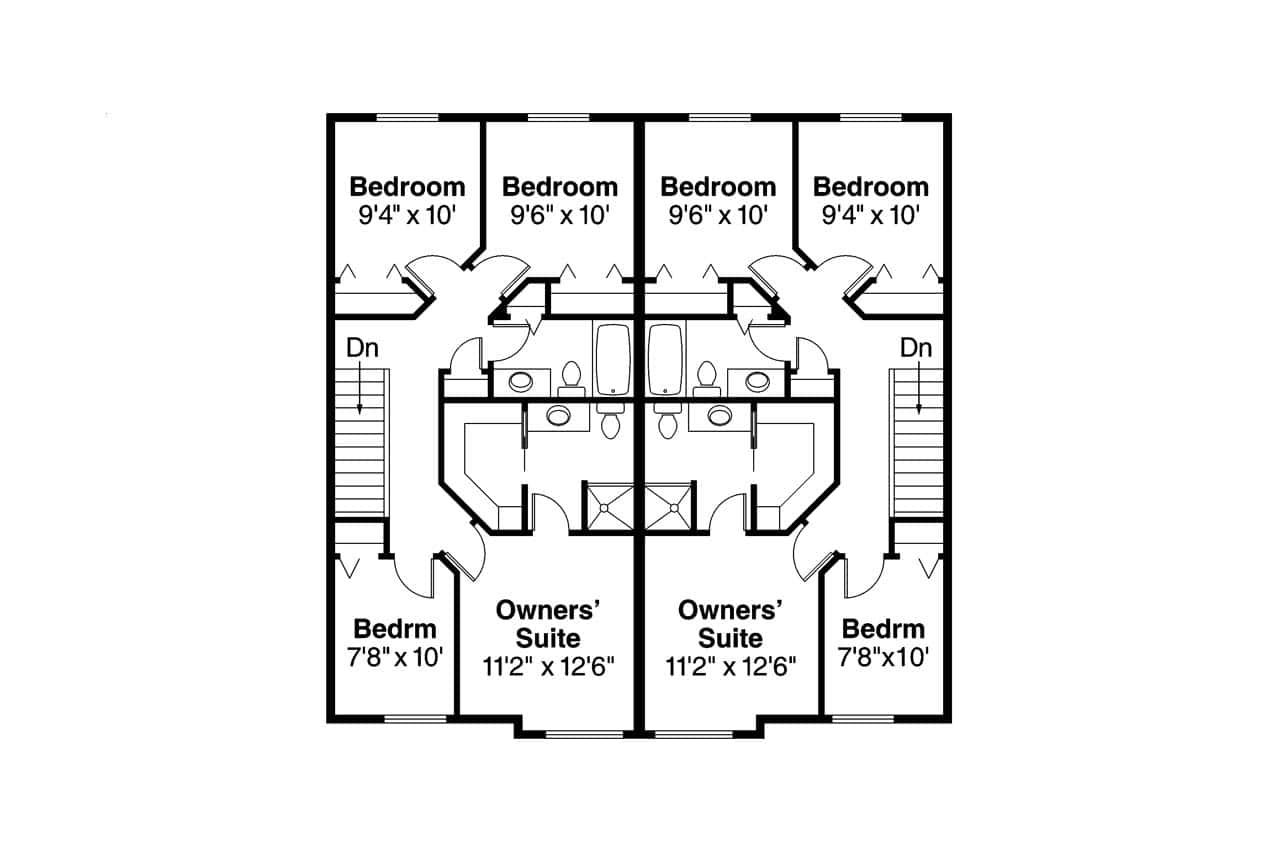

  • SECOND FLOOR PLAN (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • FOUNDATION PLAN: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • ROOF FRAMING PLAN: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
  • SECTIONS AND DETAILS: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints. These details can be helpful for the contractor.
  • ELECTRICAL PLAN: A schematic layout of all lighting, switches, and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

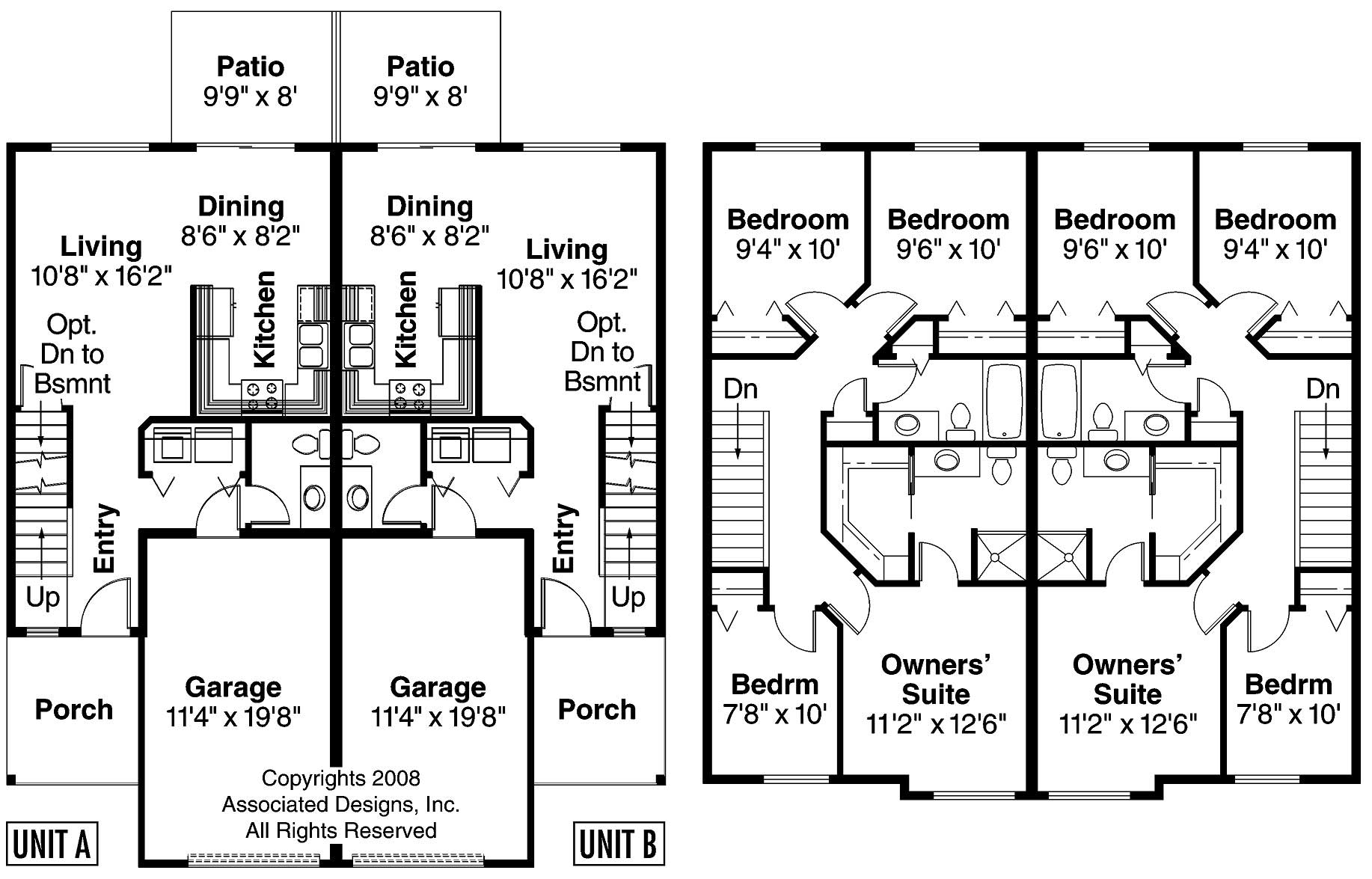

FLOOR PLANS Flip Images

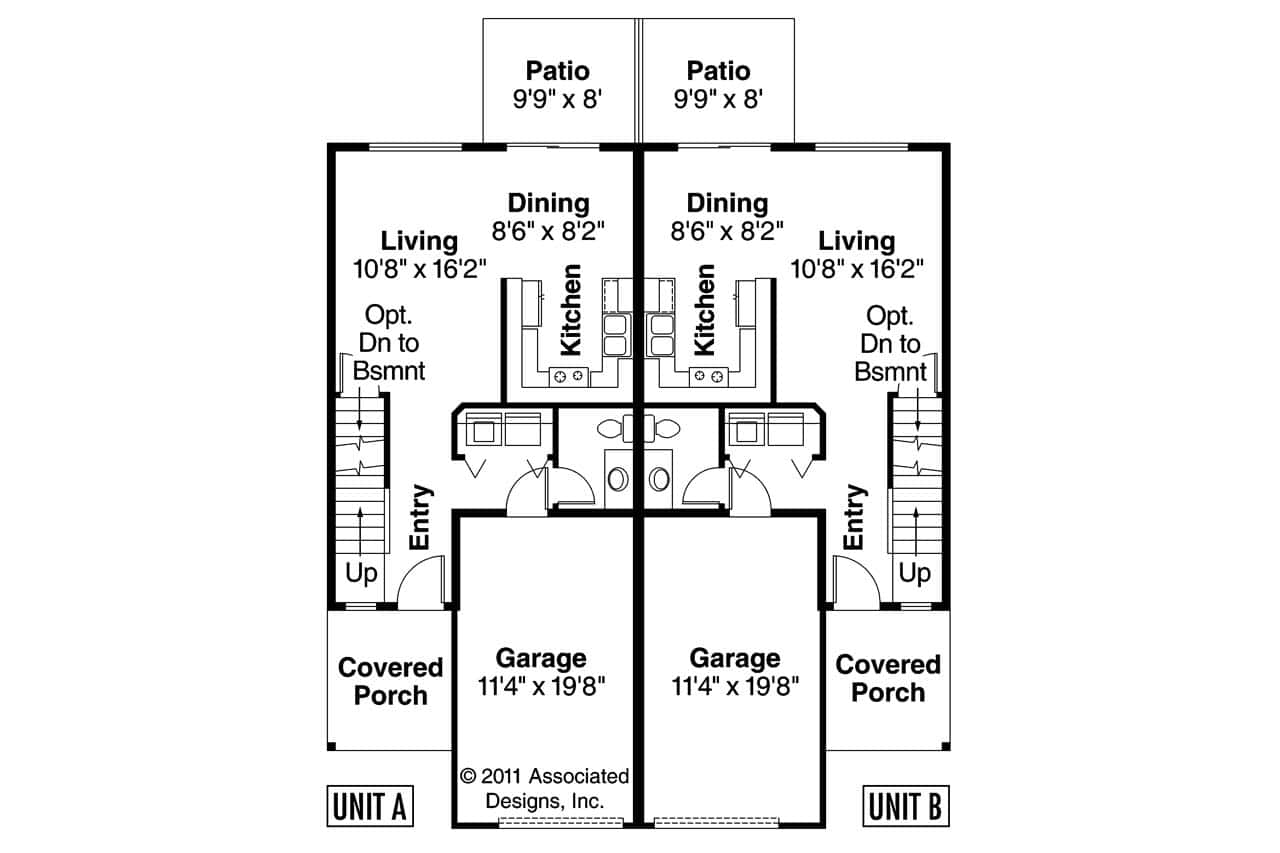

Home Plan: #108-1007 Floor Plan First Story - first story Floor Plan First Story of Multi-Unit Plan #108-1007
Home Plan: #108-1007 Floor Plan First Story - first story Floor Plan First Story of Multi-Unit Plan #108-1007
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 108-1007
Floors:
2
Bedrooms:
4
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
2568
Main Floor:
531
Upper Floor:
753
Unfinished Sq Ft:

Dimensions

Width:
40' 0"
Depth:
44' 0"

Architectural Styles

Country
Multi-Unit

Exterior Wall Material

Wood Siding

Roofing Type

Gable
Hip

Roofing Material

Asphalt Shingles

Roof Pitch

4/12

Special Feature

Dining Room
Main Level Laundry

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

Kitchen Features

Eat-In Kitchen
Nook/Breakfast Area

Porches and Exterior Features

Covered Front Porch
Patio

Master Suite Features

Master Bathroom
Second Floor Master
Walk In Closet

Additional Notes from Designer

PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.

PRICING OPTIONS

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

Eight printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 8 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
