2-Bedroom, 1820 Sq Ft Craftsman Plan with Eat-In Kitchen

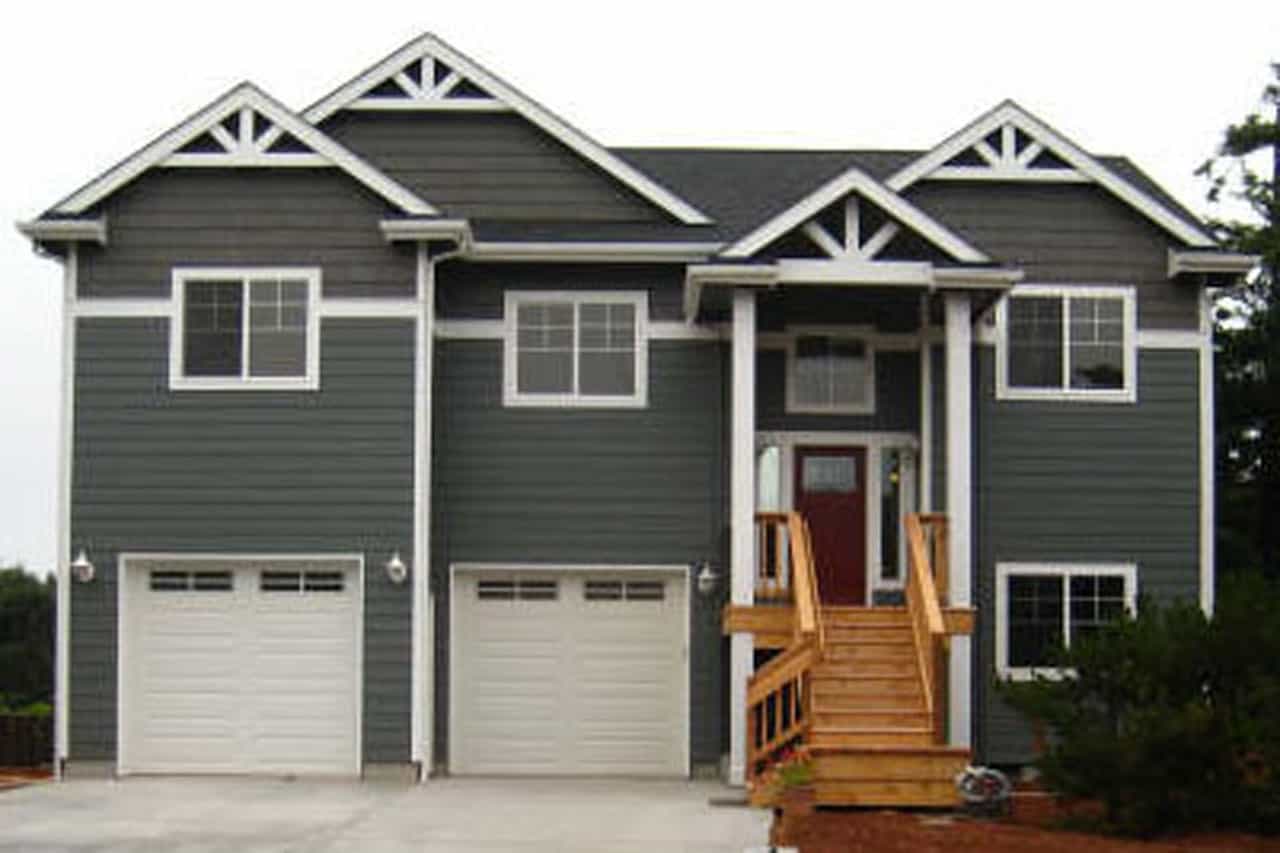

This is the front elevation for these Craftsman Homeplans.
2-Bedroom, 1820 Sq Ft Craftsman House Plan - 108-1531 - Front Exterior

About Plan # 108-1531

About Plan # 108-1531

1820 SQUARE FEET 2 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 43' 0" WIDTH 41' 0" DEPTH 2 GARAGE BAY

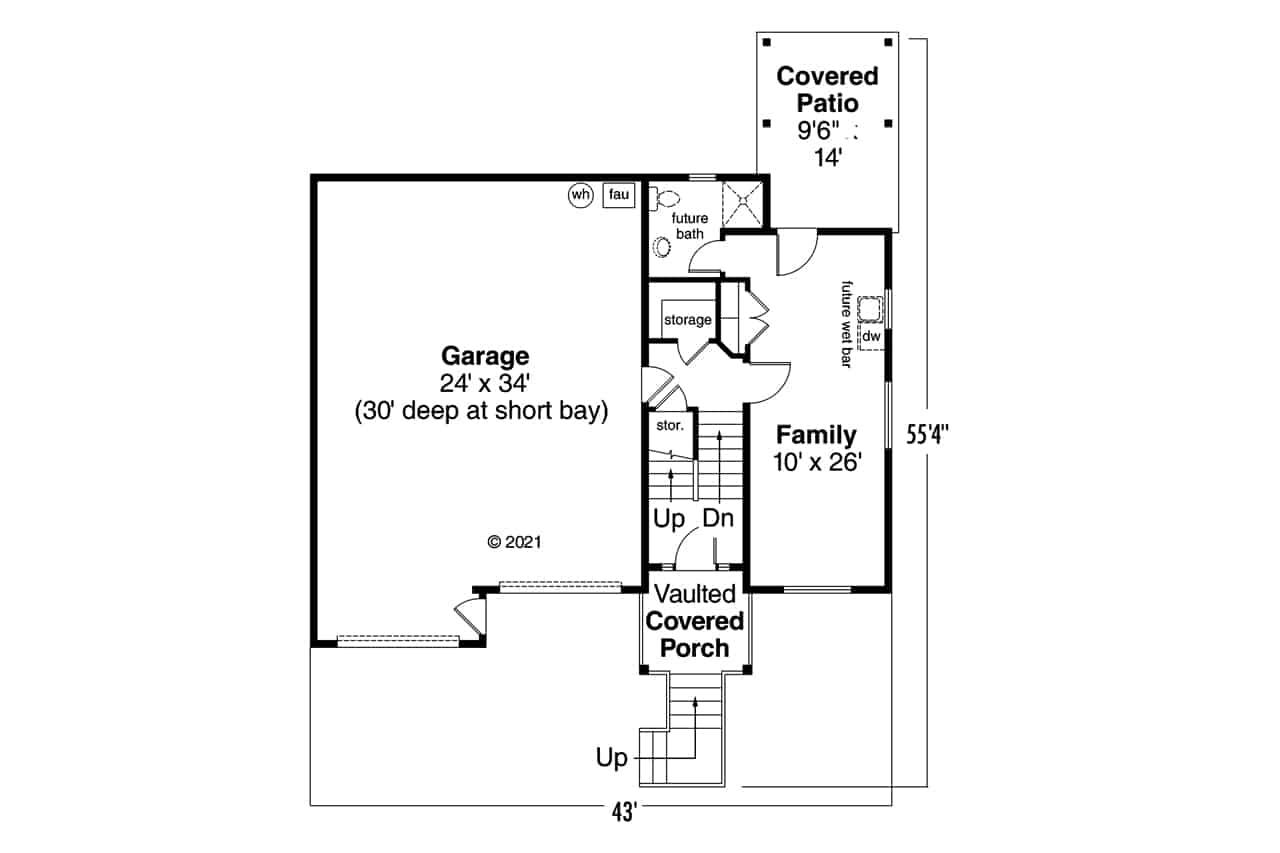

Cape Cod home plans. In this Cape Cod-style beach cottage, the main floor is one flight up from ground level. The vaulted living room is open to the dining room, which is linked to the kitchen. Glass sparkles across most of the rear wall, so these joined areas are both bright and spacious. The vaulted owners' suite boasts a large bathroom with a deep soaking tub and walk-in closet. In this Cape Cod-style beach cottage, the main floor is one flight up from ground level. A double garage with plenty of storage space fills the #108-1531's lower level, along with an unfinished family room. Additional storage space is also located here, and the area is plumbed to simplify the later inclusion of a wet bar and compact bathroom. The vaulted entry porch is a half flight up from the ground. Inside, at the top of another half flight, are three linked interior gathering spaces, and one exterior. The vaulted living room is open to the dining room on the right, where glass sparkles across most of the rear wall. The stunning trio of windows in the living room have the characteristic Craftsman gridded uppers. A smaller transom window crowns the threesome at the vault's apex. Wide sliding glass doors in the dining area open onto a partially vaulted deck, which could be screened. An eating counter is all that stands between the dining room and kitchen. Its location near the range makes it a breeze to serve up steaming soups and snacks. Counters wrap around sections of all four sides of the kitchen, and the assortment of cabinets on three of the sides include a roomy pantry. Rooms to the left of the #108-1531's stairs are more private, though the den could function as a shared space as well. It could be a study, library, or home office, if not needed as a third bedroom. The owners' suite is vaulted and boasts a large bathroom with a walk-in closet. A pocket door seals the closet off from a bathroom with a deep soaking tub. Another pocket door slides closed to offer toilet privacy and shower steam containment.

Each plan set includes the following:

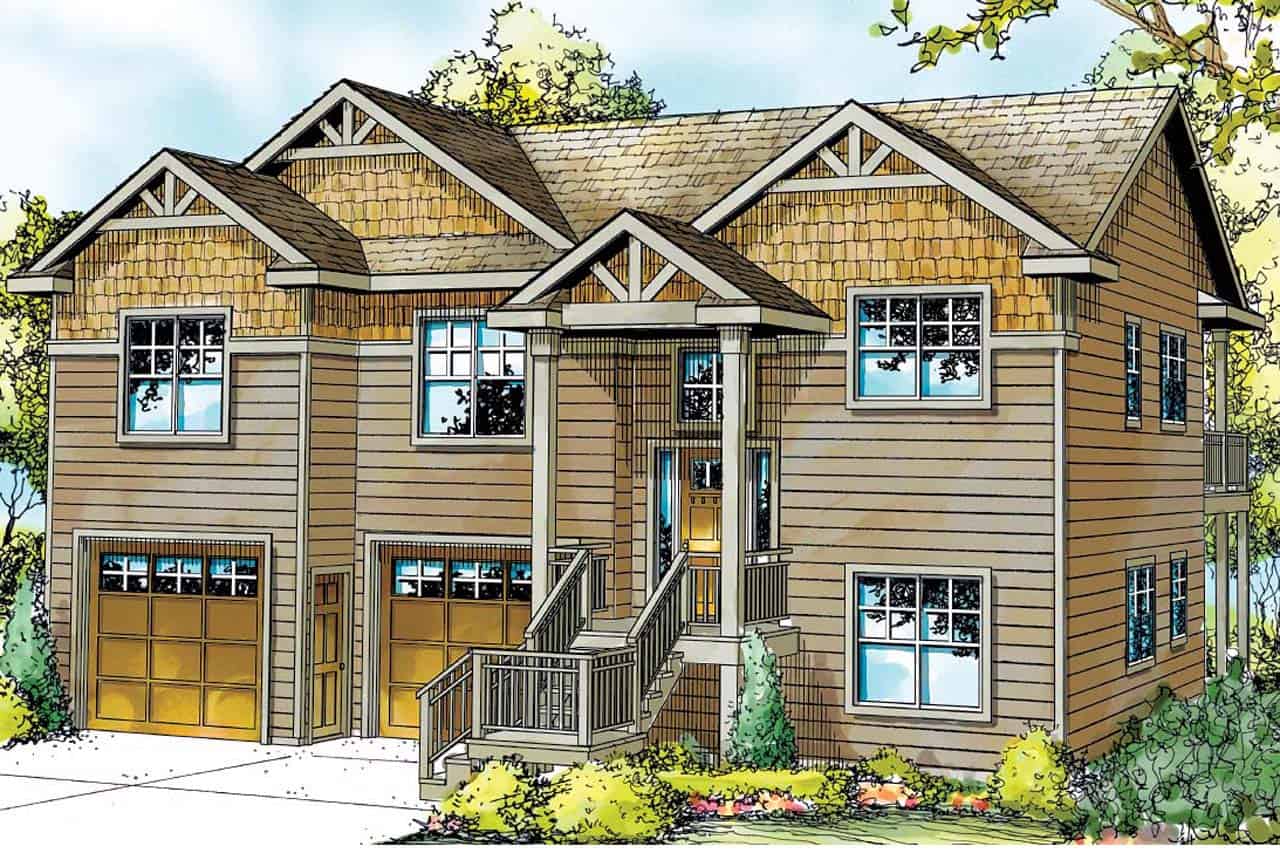

  • ARTIST'S RENDERING: An artist's drawing of the home, usually viewed from the front, and general construction notes.

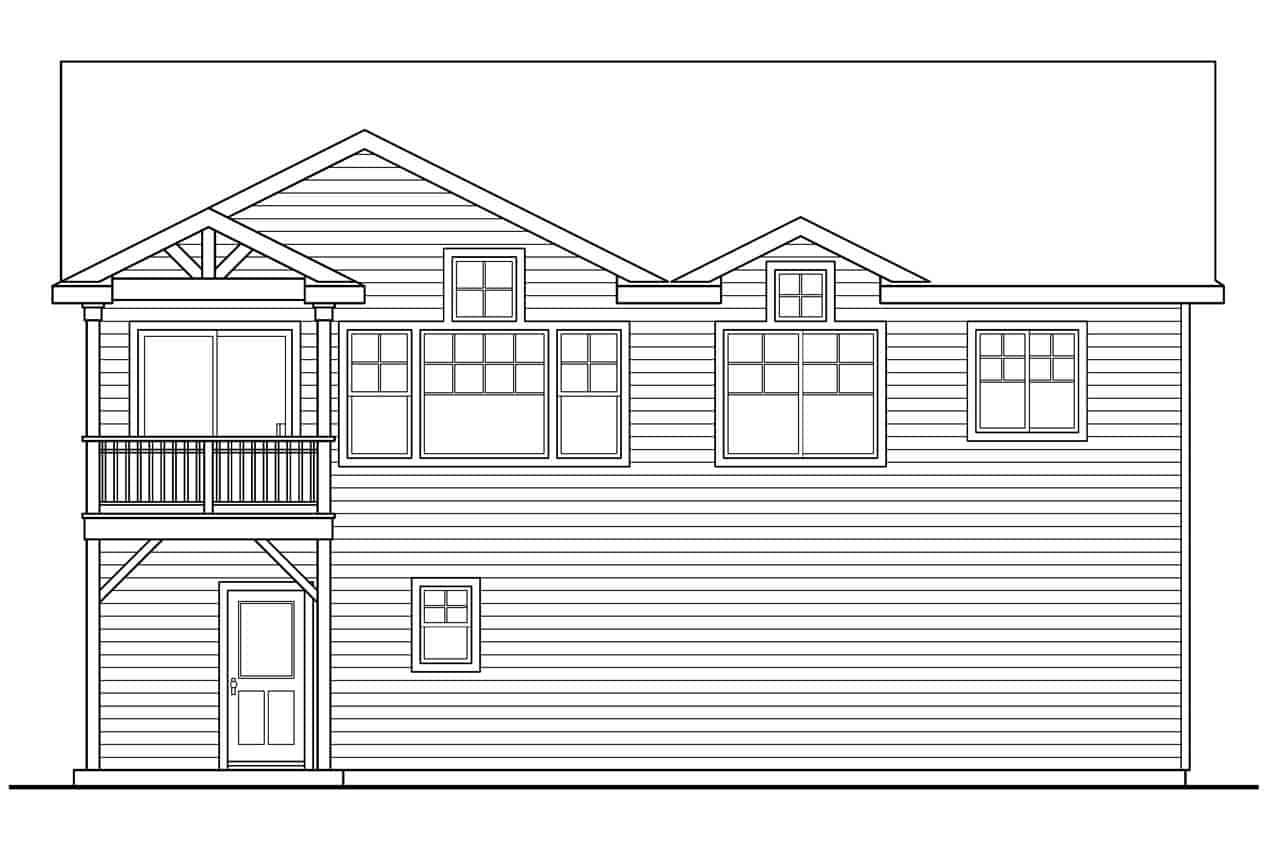

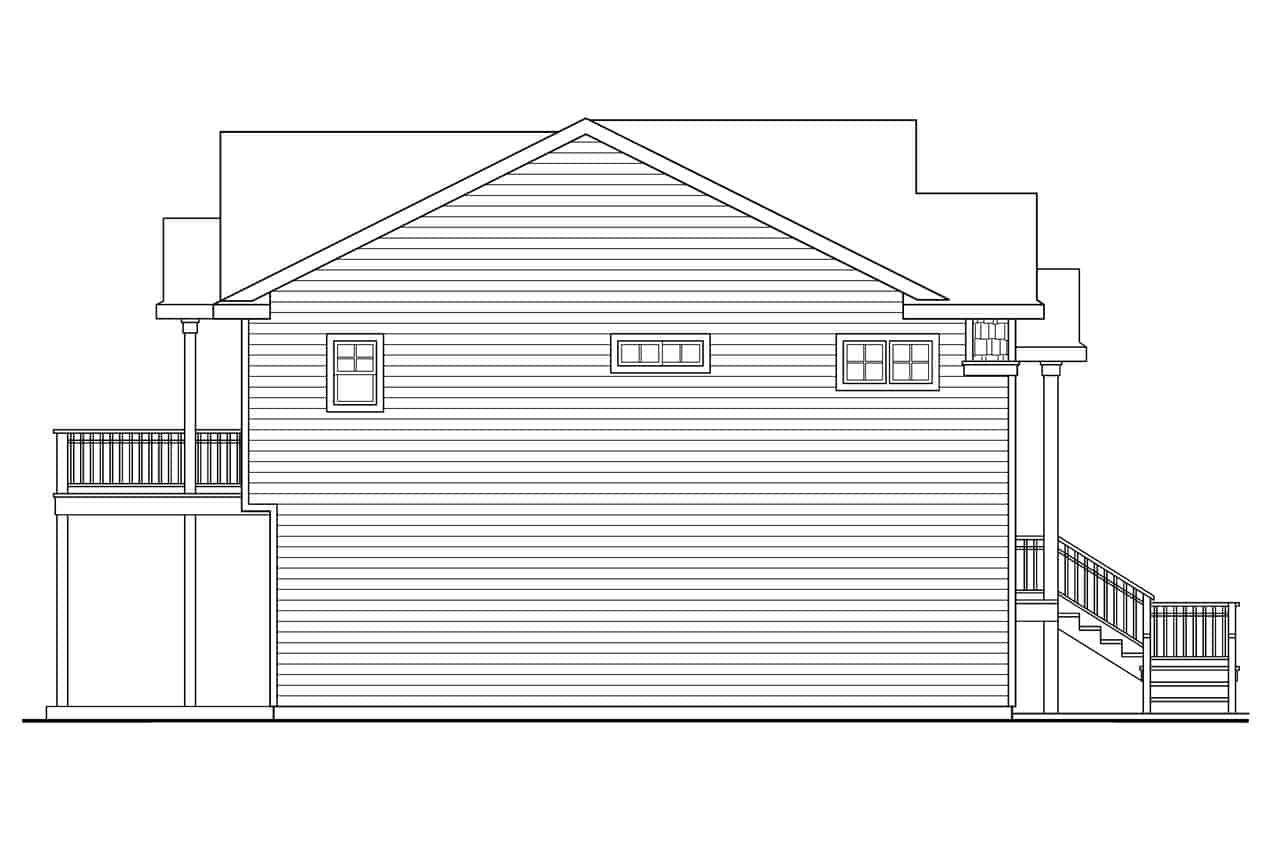

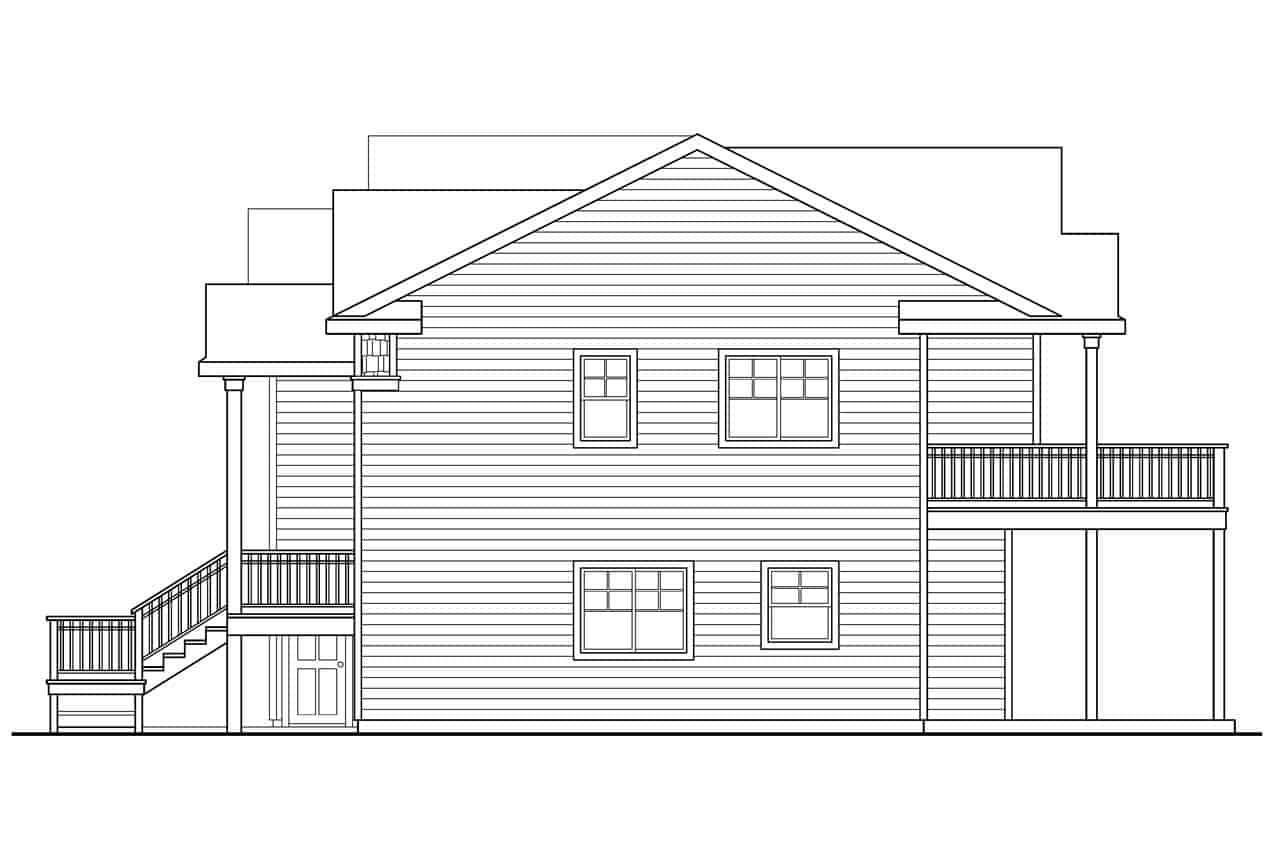

  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Each plan set is drawn at 1/4"=1' scale. Showing the placement and dimensions of all walls, windows, and doors. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • SECOND FLOOR PLAN (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • FOUNDATION PLAN: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • ROOF FRAMING PLAN: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
  • SECTIONS AND DETAILS: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints. These details can be helpful for the contractor.
  • ELECTRICAL PLAN: A schematic layout of all lighting, switches, and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

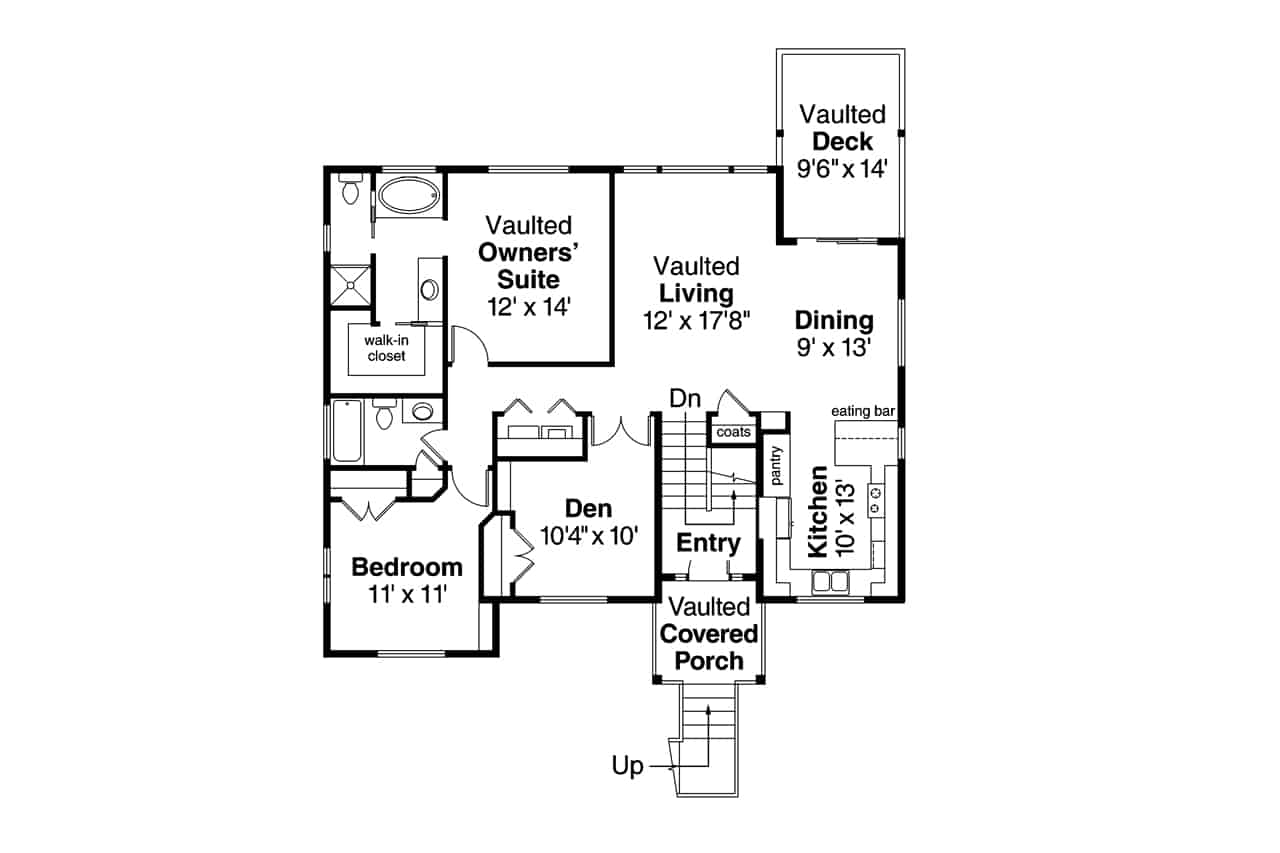

Home Plan: #108-1531 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #108-1531
Home Plan: #108-1531 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #108-1531
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 108-1531
Floors:
2
Bedrooms:
2
Full Baths:
3

Square Footage

Heated Sq Feet:
1820
Main Floor:
1383
Upper Floor:
437
Unfinished Sq Ft:
Garage :
812

Dimensions

Width:
43' 0"
Depth:
41' 0"
Ridge Height:
28-4' 0"

Architectural Styles

Craftsman
Multi-Level
Traditional

Exterior Wall Material

Shakes
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling

Special Feature

Den
Dining Room
Family Room
Main Level Laundry
Vaulted Ceilings

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

Kitchen Features

Peninsula/Eating Bar

Porches and Exterior Features

Patio
Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.

PRICING OPTIONS

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

Eight printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 8 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
