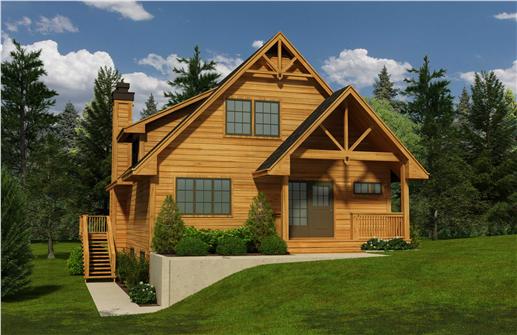

This is a 3D rendering of these Cabin House Plans.
5-Bedroom, 1662 Sq Ft Craftsman House Plan - 160-1002 - Front Exterior

About Plan # 160-1002

About Plan # 160-1002

1662 SQUARE FEET 5 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 36' 0" WIDTH 50' 6" DEPTH 0 GARAGE BAY

The Great room in this narrow lot cottage design redefines the terms; open floor plan, versatile and spaciousness with its twenty-three foot clear span width and partial vaulted ceiling. The side screened porch area adjacent to the kitchen, the partially rear cover deck and rear open sundeck ensures ongoing individual or group activities regardless of the weather or local resident insect life intrusions. I have given the Great Room staircase the moniker a square spiral staircase, having all the great attributes of a spiral staircase but having none of the tight restrictiveness and limited furniture access usually associated with one. The two second floor bedrooms with ten and twelve foot ceilings and private covered balcony bring a soothing airiness to this vaulted level. Daylight basement plan contains two additional bedrooms, shared bathroom and multipurpose recreation room with patio access. The separate private entrance easily transforms this level into a home office or business space.

Each plan set includes the following:

  • Cover sheet with rendering and art floor plans.
  • General notes and specifications.
  • Foundation plan
  • Main floor plan
  • Second-floor plan (if applicable)
  • Structural floor/Roof information
  • Electrical layout
  • Minimum of two cross-sections Details
  • Exterior Elevations Generic detail sheet

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #160-1002 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #160-1002
#160-1002 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #160-1002
#160-1002 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #160-1002
#160-1002 Floor Plan Basement - lower level Floor Plan Basement of Craftsman Plan #160-1002
Home Plan: #160-1002 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #160-1002
#160-1002 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #160-1002
#160-1002 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #160-1002
#160-1002 Floor Plan Basement - lower level Floor Plan Basement of Craftsman Plan #160-1002
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 160-1002
Floors:
2
Bedrooms:
5
Full Baths:
3

Square Footage

Heated Sq Feet:
1662
Main Floor:
976
Upper Floor:
686
Unfinished Sq Ft:

Dimensions

Width:
36' 0"
Depth:
50' 6"
Ridge Height:
25' 0"

Architectural Styles

Cabin
Craftsman

Roof Pitch

12/12
6/12

Ceiling Height

8 Foot Ceiling

Special Feature

Fireplace
Main Level Laundry
Split Bathroom
Storage
Vaulted Ceilings
Balcony

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Flat Site
Narrow Lot Design

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Sundeck
Screened Porch/Sunroom

Master Suite Features

Master Bathroom
Private Deck
Second Floor Master

Additional Notes from Designer

For our Ontario customers - BCIN is available for this designer's plans. Please submit a modification request to receive a free quote.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
