5-Bedroom, 5064 Sq Ft European Plan with Kitchen Island

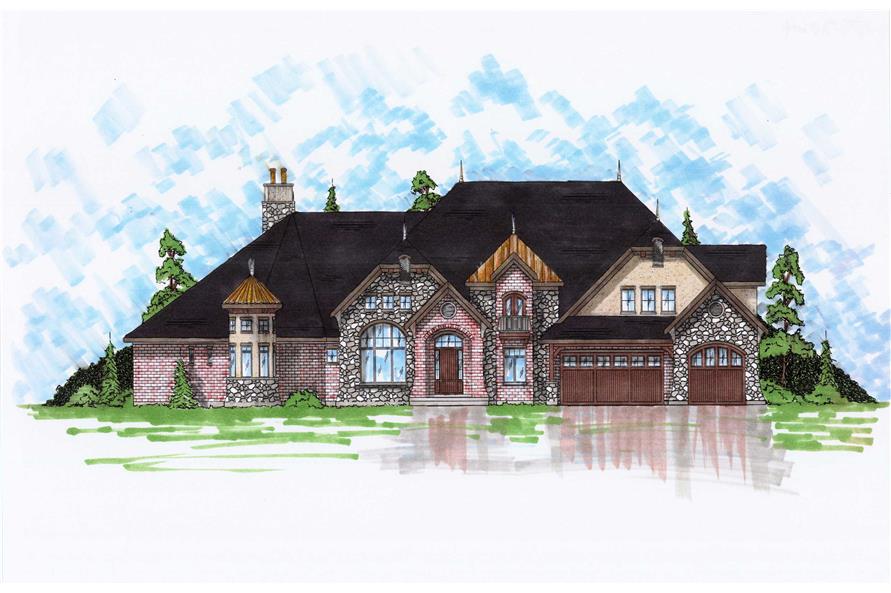

Color Rendering of this house plan

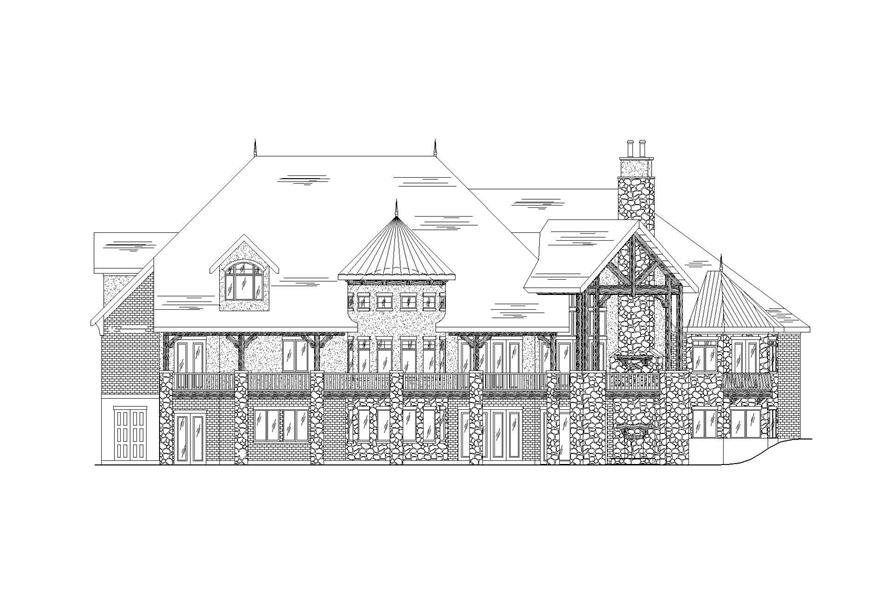

Home Plan Rear Elevation
5-Bedroom, 5064 Sq Ft European Home Plan - 135-1091 - Main Exterior

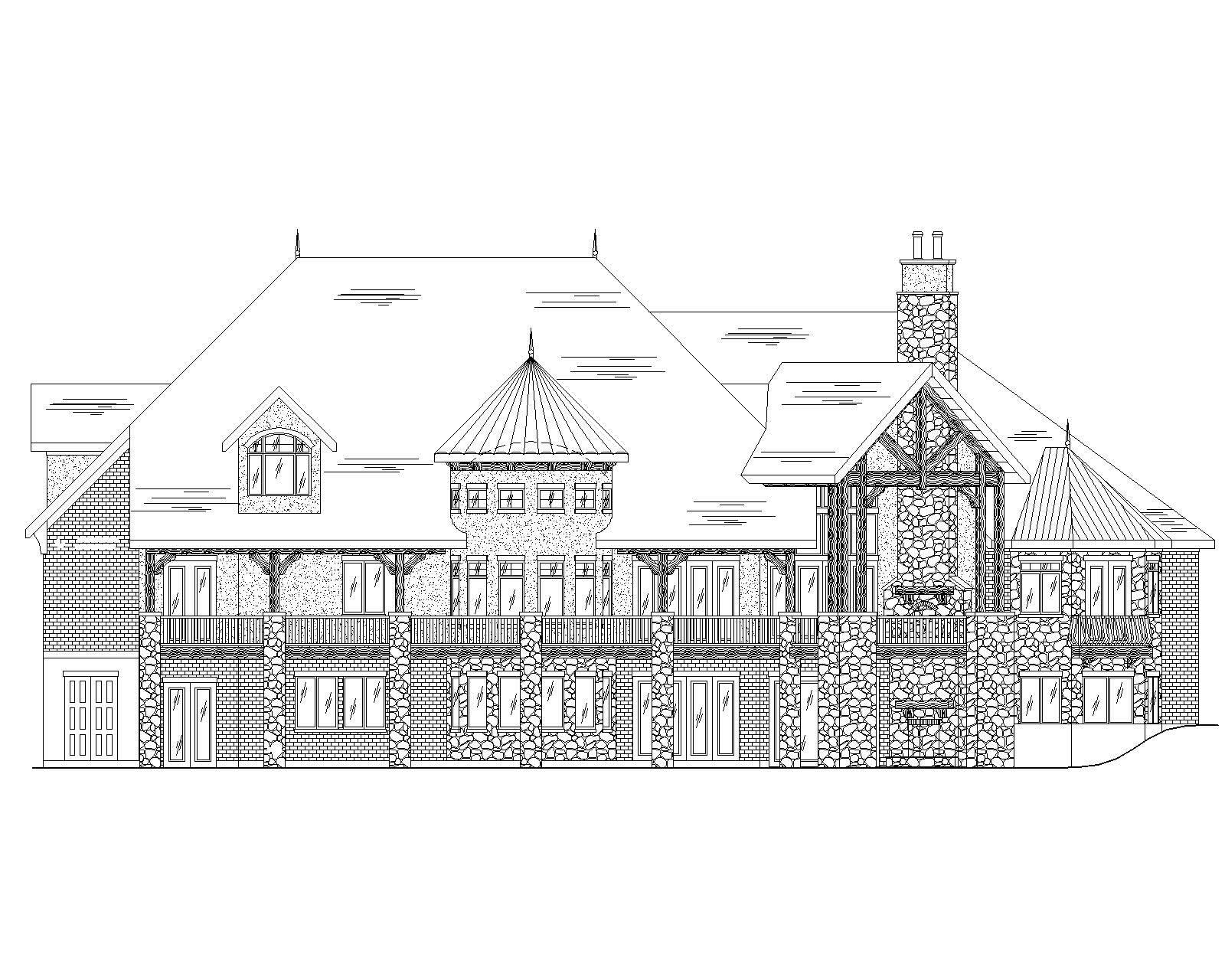

Home Plan Rear Elevation

About Plan # 135-1091

About Plan # 135-1091

5064 SQUARE FEET 5 BEDROOMS 6 FULL BATH 0 HALF BATH
2 FLOOR 108' 10" WIDTH 69' 3" DEPTH 3 GARAGE BAY
Designed to be a luxury home, this European plan has a large basement with entertainment for all ages and interests. The main and second stories are great living spaces with five bedrooms and six bathrooms.

Each plan set includes the following:

  • Cover
  • General notes
  • Foundation/Footing plan
  • Basement plan
  • Floor framing plan
  • Main level plan
  • Upper-level floor framing (if applicable)
  • Upper floor plan (if applicable)
  • Roof framing plan
  • Building sections/details
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

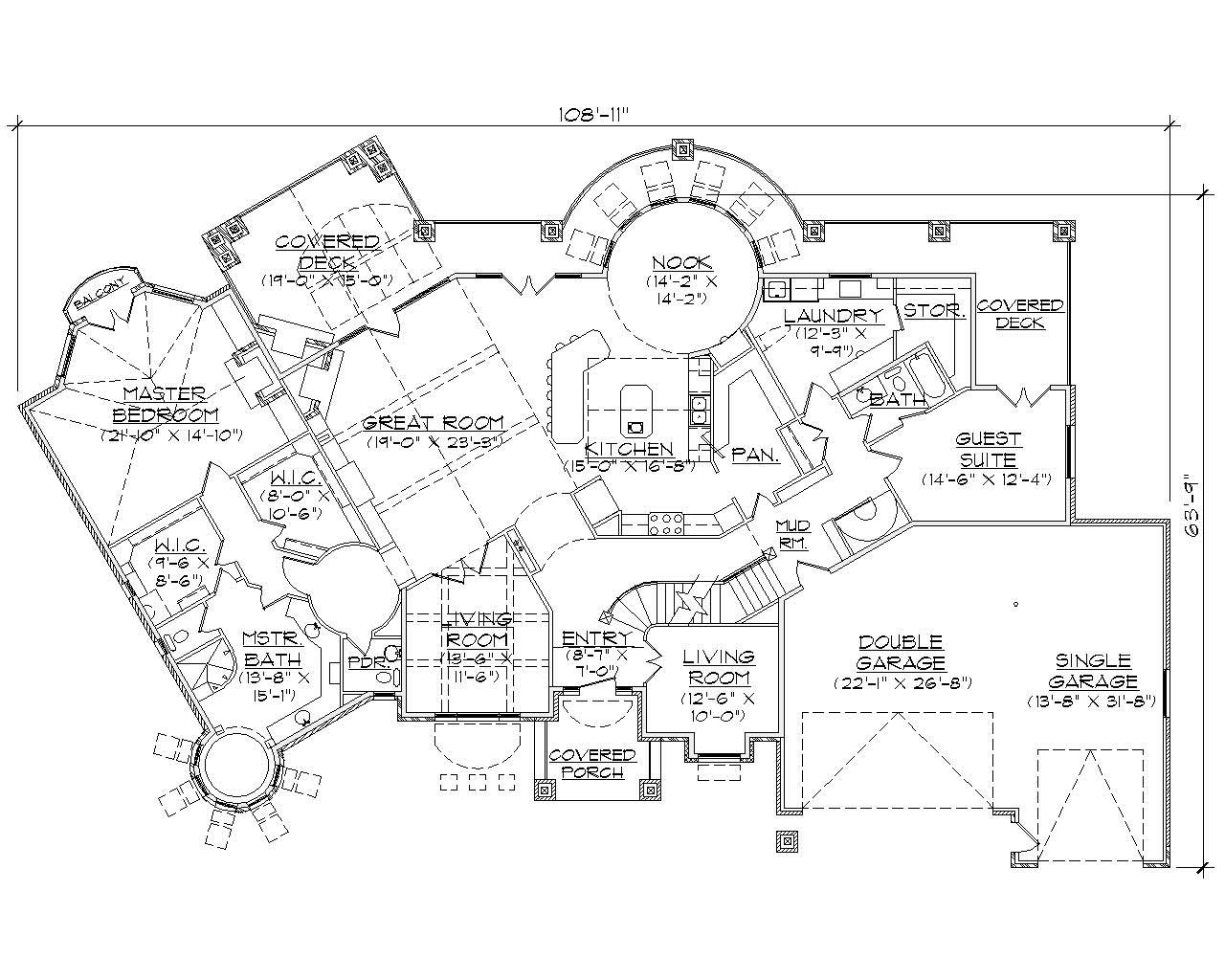

Home Plan: #135-1091 Floor Plan First Story - first story Floor Plan First Story of European Plan #135-1091

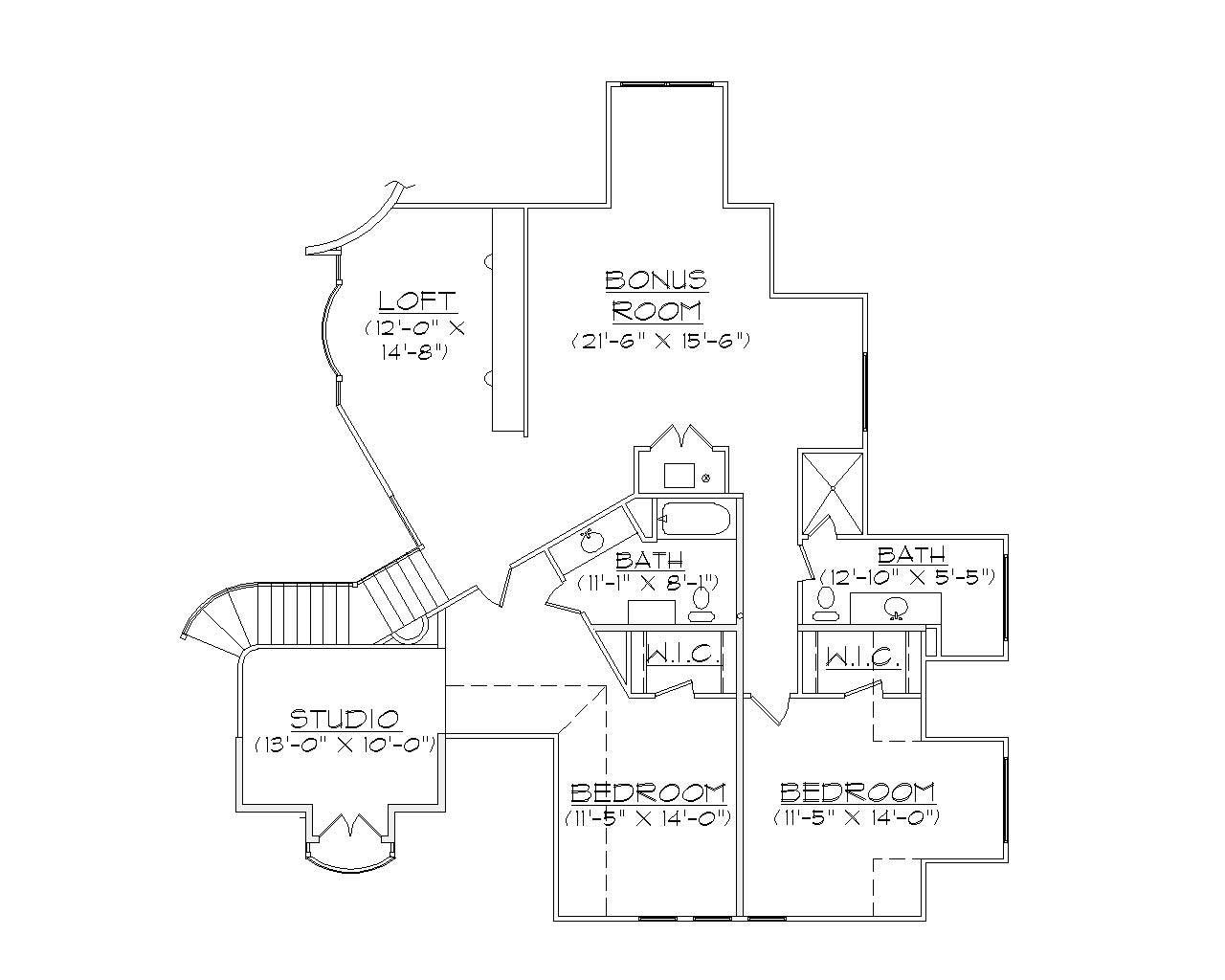

#135-1091 Floor Plan Second Story - second story Floor Plan Second Story of European Plan #135-1091

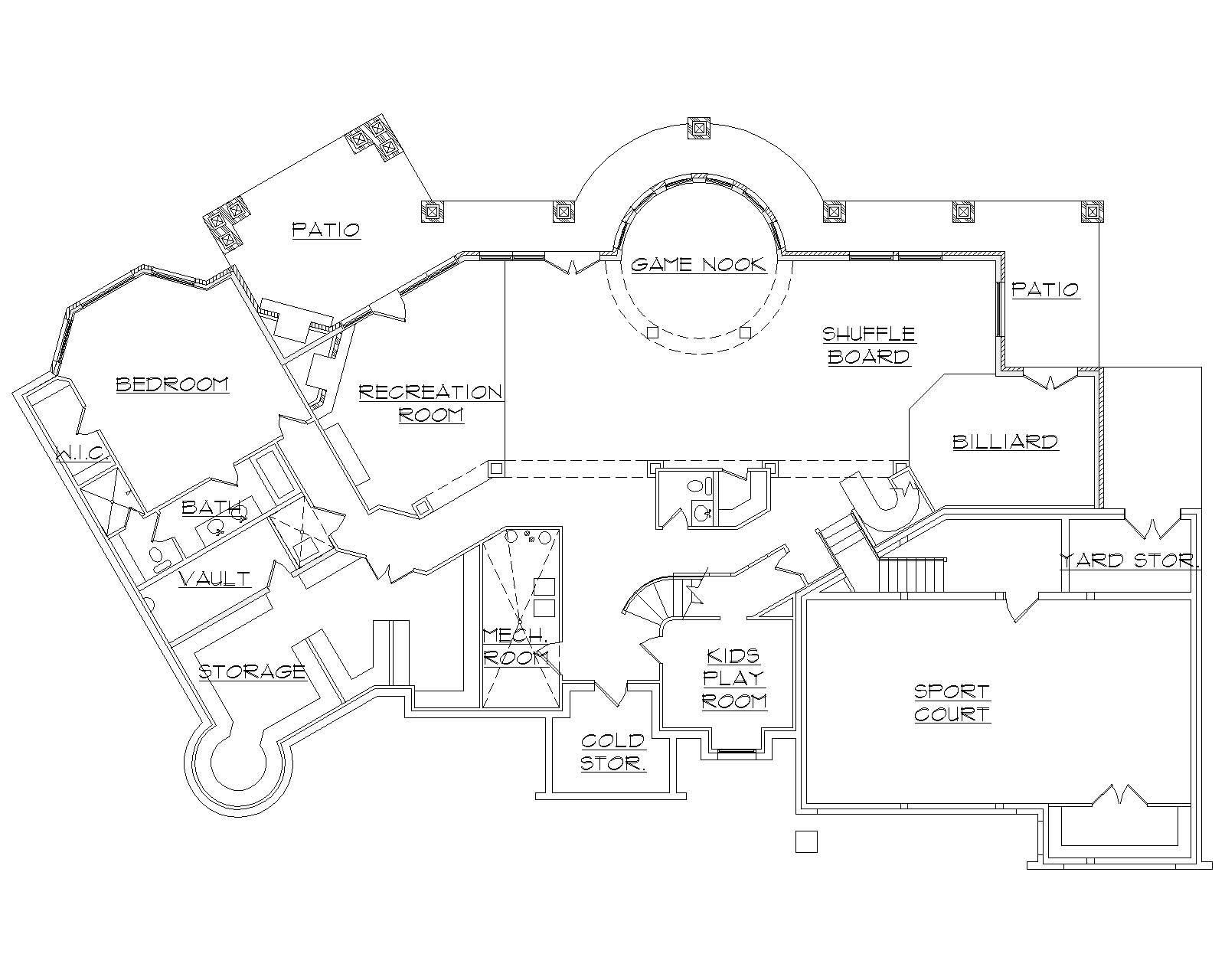

#135-1091 Floor Plan Basement - basement Floor Plan Basement of European Plan #135-1091
Home Plan: #135-1091 Floor Plan First Story - first story Floor Plan First Story of European Plan #135-1091
#135-1091 Floor Plan Second Story - second story Floor Plan Second Story of European Plan #135-1091
#135-1091 Floor Plan Basement - basement Floor Plan Basement of European Plan #135-1091
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 135-1091
Floors:
2
Bedrooms:
5
Full Baths:
6

Square Footage

Heated Sq Feet:
5064
Main Floor:
3391
Upper Floor:
1673
Unfinished Sq Ft:
Lower Floor:
4379

Dimensions

Width:
108' 10"
Depth:
69' 3"
Ridge Height:
38'6"' 0"

Architectural Styles

European
Luxury

Exterior Wall Material

Brick
Stucco
Rock/Stone

Roofing Type

Hip

Roof Pitch

12/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Fireplace
Guest Room
Bonus Room
Game Room
Main Level Laundry
Loft
Storage

Garage Type

Front Entry

Building Lot Type

Down Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Fireplace in Master
Master Bathroom
Walk In Closet
Private Deck

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
