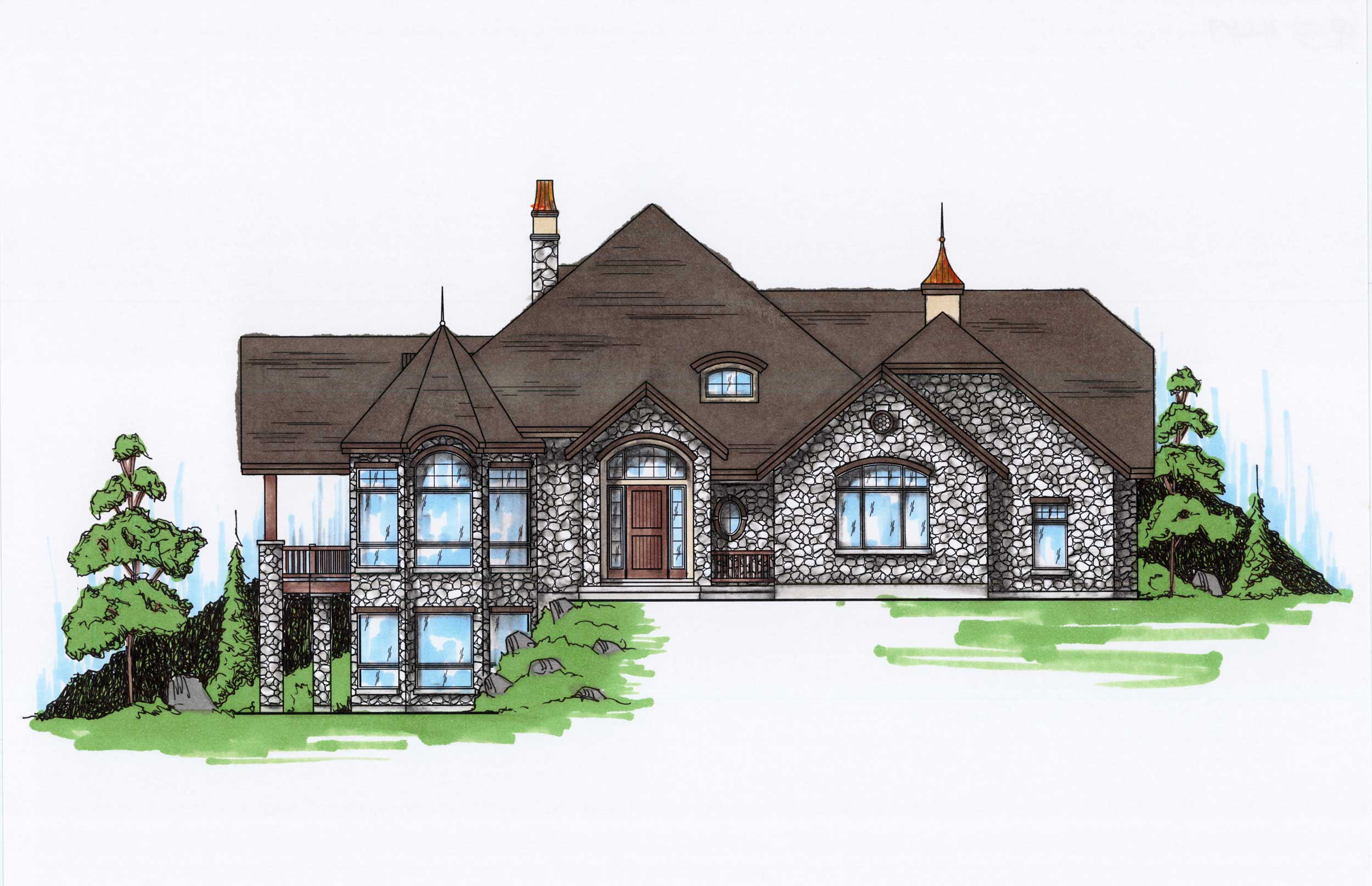

Color Rendering of this house plan

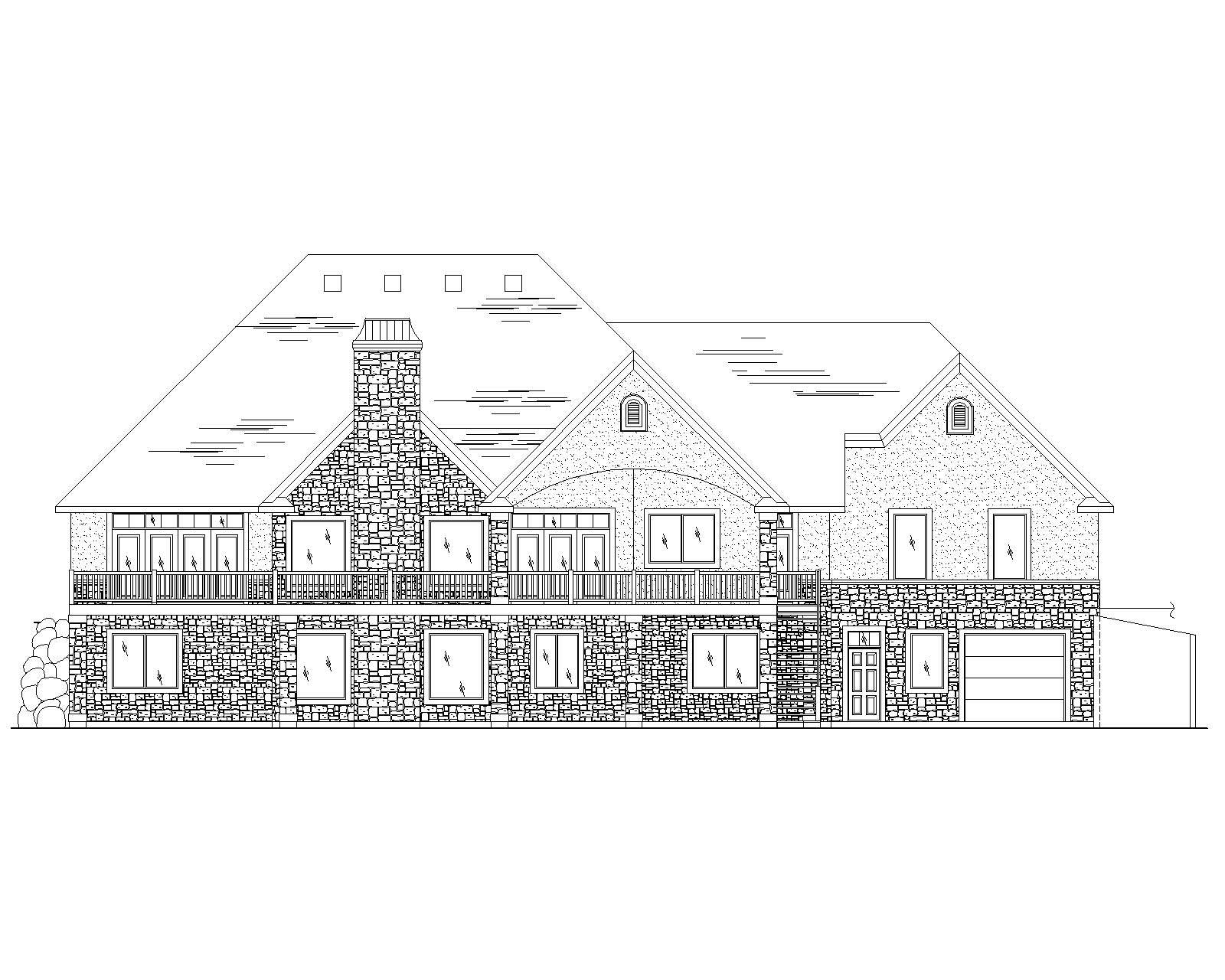

Home Plan Rear Elevation

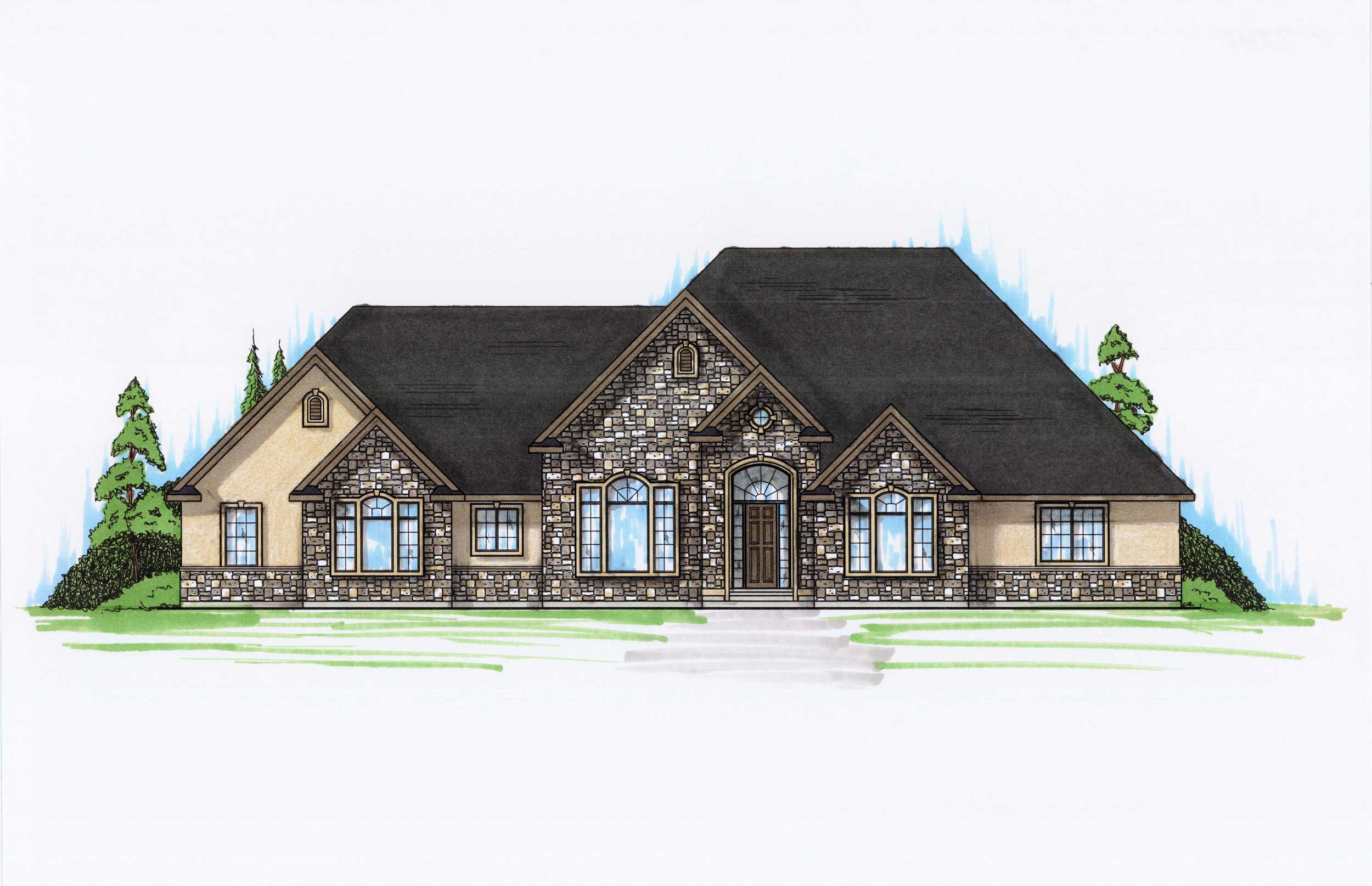

4-Bedroom, 2942 Sq Ft European Home Plan - 135-1017 - Main Exterior
Home Plan Rear Elevation

About Plan # 135-1017

About Plan # 135-1017

2942 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 94' 0" WIDTH 59' 0" DEPTH 4 GARAGE BAY
This mix of a Spanish and European designs features vaulted ceilings on the deck and in the great room.

Each plan set includes the following:

  • Cover
  • General notes
  • Foundation/Footing plan
  • Basement plan
  • Floor framing plan
  • Main level plan
  • Upper-level floor framing (if applicable)
  • Upper floor plan (if applicable)
  • Roof framing plan
  • Building sections/details
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

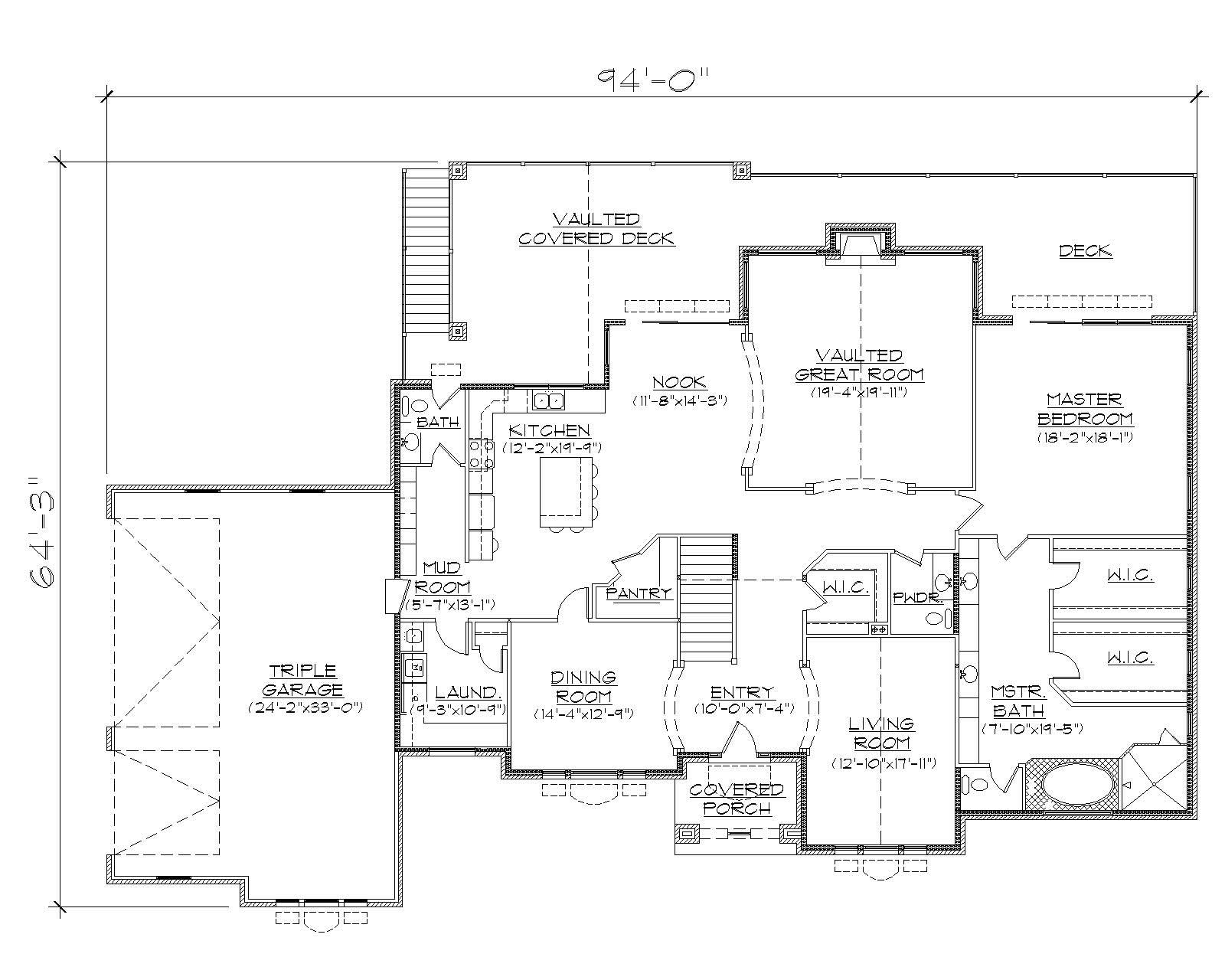

Home Plan: #135-1017 Floor Plan First Story - first story Floor Plan First Story of European Plan #135-1017

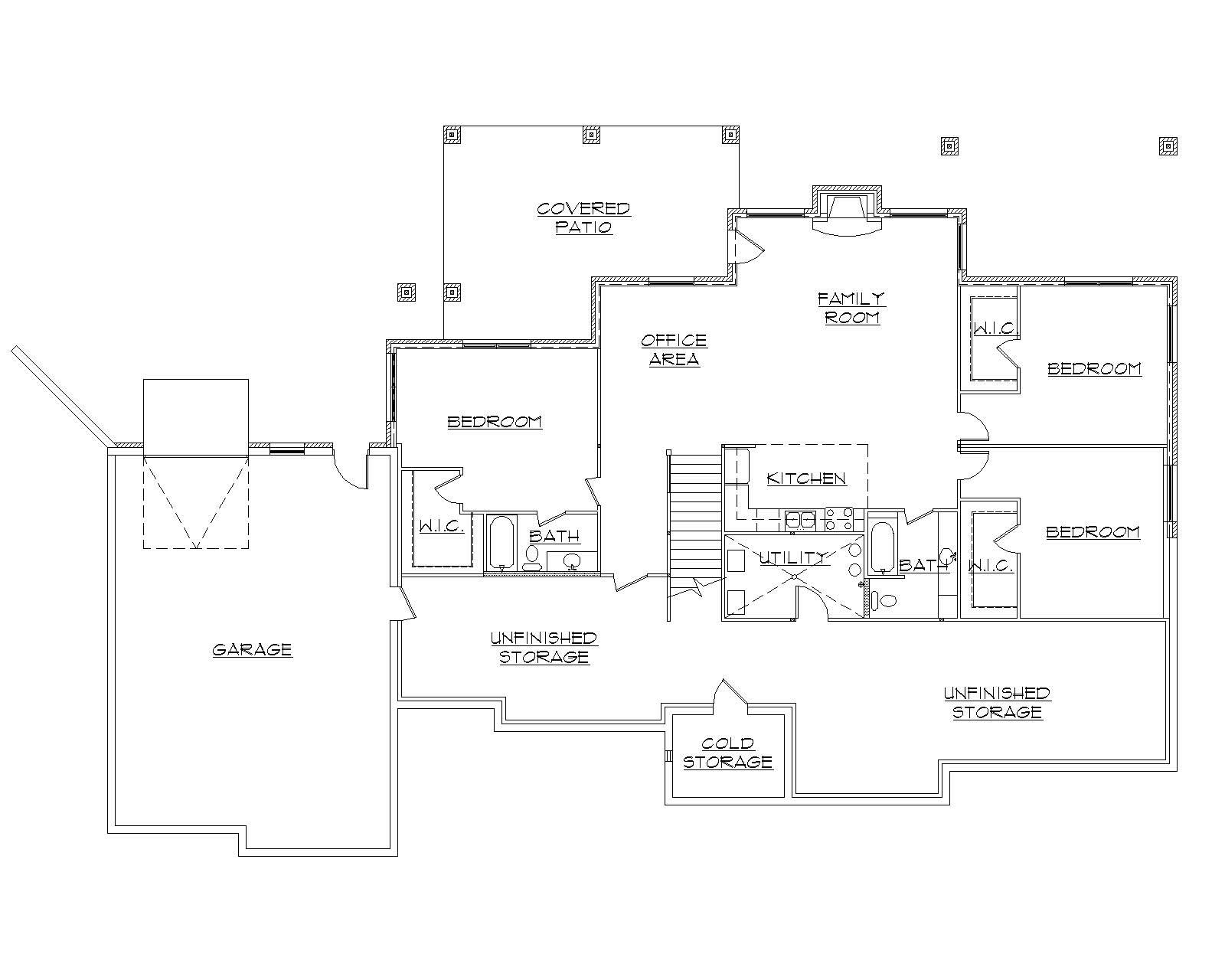

#135-1017 Floor Plan Basement - basement Floor Plan Basement of European Plan #135-1017
Home Plan: #135-1017 Floor Plan First Story - first story Floor Plan First Story of European Plan #135-1017
#135-1017 Floor Plan Basement - basement Floor Plan Basement of European Plan #135-1017
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 135-1017
Floors:
1
Bedrooms:
4
Full Baths:
4

Square Footage

Heated Sq Feet:
2942
Main Floor:
2942
Unfinished Sq Ft:
Lower Floor:
2852

Dimensions

Width:
94' 0"
Depth:
59' 0"
Ridge Height:
33'8"' 0"

Architectural Styles

European
Spanish

Exterior Wall Material

Brick
Stucco

Roofing Type

Hip

Roof Pitch

12/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Home Office
Mud Room
Family Room
Main Level Laundry
Storage

Garage Type

Side Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x6

Building Lot Type

Down Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
