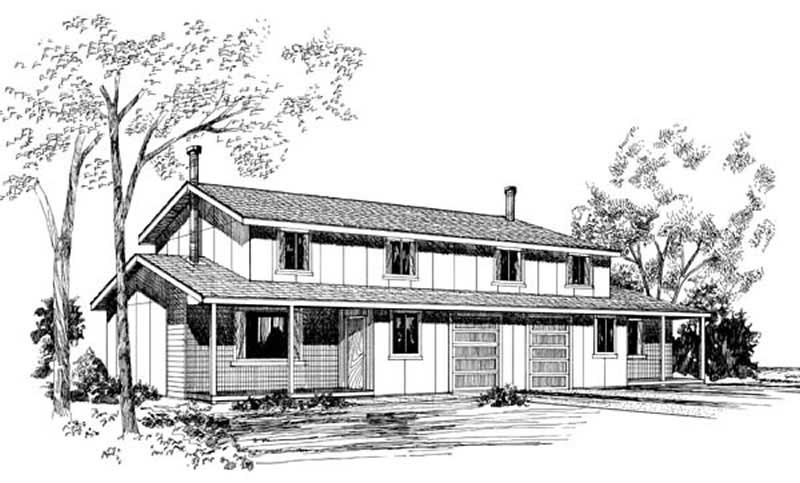

Front view of Duplex home (ThePlanCollection: House Plan #145-1566)
6-Bedrooms, 2896 Total Sq Ft Duplex House Plan - 145-1566 - Front Exterior

About Plan # 145-1566

About Plan # 145-1566

2896 SQUARE FEET 6 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 76' 0" WIDTH 30' 0" DEPTH 2 GARAGE BAY
This country duplex has a total of 2896 square feet of living space. The two-story floor plan includes a total of 6 bedrooms with 3 bedrooms and 1.5 baths per unit.

Each plan set includes the following:

  • Floor plans
  • Foundations
  • Elevations
  • Framing
  • Electrical
  • Roofing
  • Detailed Construction Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

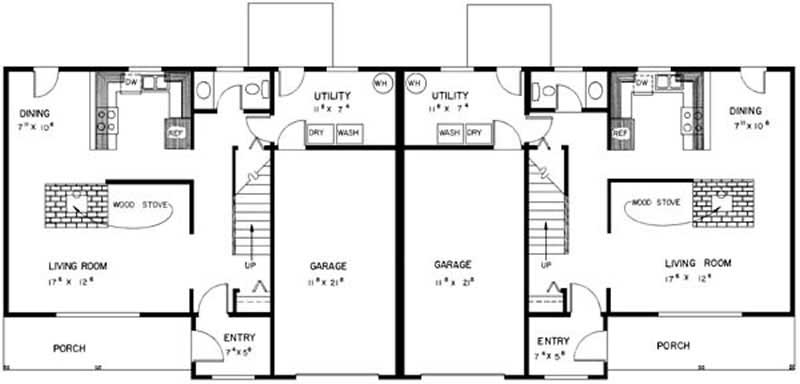

Home Plan: #145-1566 Floor Plan First Story - first story Floor Plan First Story of Multi-Unit Plan #145-1566

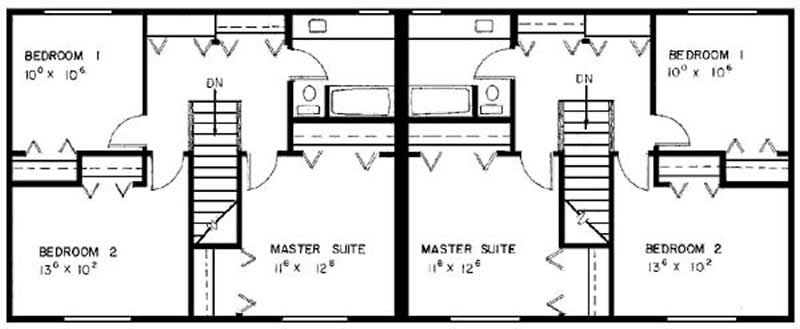

#145-1566 Floor Plan Second Story - second story Floor Plan Second Story of Multi-Unit Plan #145-1566
Home Plan: #145-1566 Floor Plan First Story - first story Floor Plan First Story of Multi-Unit Plan #145-1566
#145-1566 Floor Plan Second Story - second story Floor Plan Second Story of Multi-Unit Plan #145-1566
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 145-1566
Floors:
2
Bedrooms:
6
Full Baths:
2

Square Footage

Heated Sq Feet:
2896
Main Floor:
1536
Upper Floor:
1360
Unfinished Sq Ft:
Garage :
528

Dimensions

Width:
76' 0"
Depth:
30' 0"
Ridge Height:
21'0"' 0"

Architectural Styles

Duplex/Multi-Unit

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Roof Pitch

10/12

Ceiling Height

8 Foot Ceiling

Special Feature

Fireplace
Dining Room

Garage Type

Front Entry

Fireplaces

One Fireplace

Building Lot Type

Flat Site

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Second Floor Master

Additional Notes from Designer

NOTE: Due to a family emergency, NO modifications are available with this designer at this time. If you would like to purchase a CAD or Right Reading Reverse, please contact us for availability and price as not all plans are available in CAD or RRR.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
