Front view of Duplex/Multi-Family home (ThePlanCollection: House Plan #145-1513)

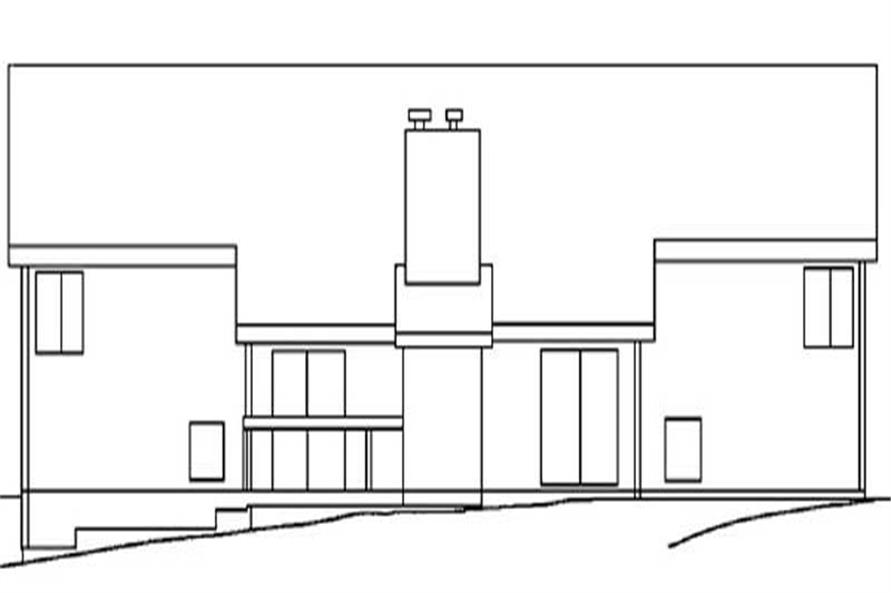

Home Plan Rear Elevation

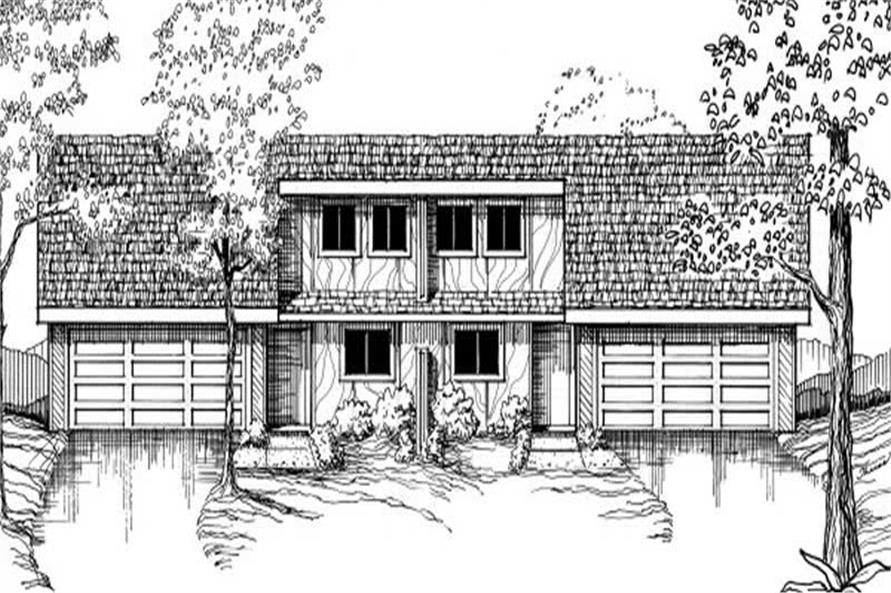

4 Bedrooms, 2644 Sq Ft Duplex Plan- 145-1513 - Front Exterior
Home Plan Rear Elevation

About Plan # 145-1513

About Plan # 145-1513

2644 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 68' 0" WIDTH 50' 0" DEPTH 2 GARAGE BAY
This contemporary duplex has a total of 2644 living sq ft. The two-story floor plan includes 2 bedrooms and 2 baths per unit plus a loft space.

Each plan set includes the following:

  • Floor plans
  • Foundations
  • Elevations
  • Framing
  • Electrical
  • Roofing
  • Detailed Construction Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

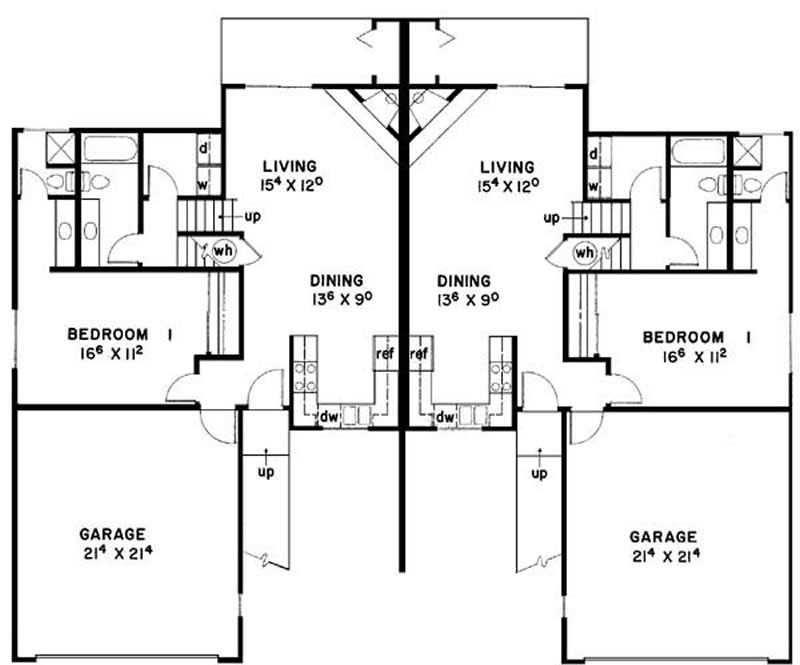

Home Plan: #145-1513 Floor Plan First Story - first story Floor Plan First Story of Multi-Unit Plan #145-1513

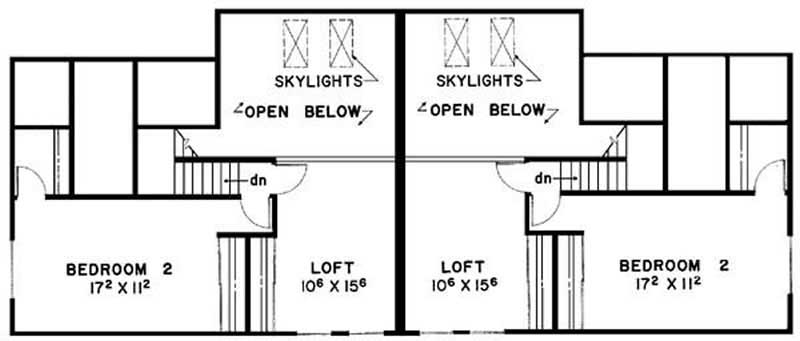

#145-1513 Floor Plan Second Story - second story Floor Plan Second Story of Multi-Unit Plan #145-1513
Home Plan: #145-1513 Floor Plan First Story - first story Floor Plan First Story of Multi-Unit Plan #145-1513
#145-1513 Floor Plan Second Story - second story Floor Plan Second Story of Multi-Unit Plan #145-1513
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 145-1513
Floors:
2
Bedrooms:
2
Full Baths:
2

Square Footage

Heated Sq Feet:
2644
Main Floor:
1818
Upper Floor:
826
Unfinished Sq Ft:

Dimensions

Width:
68' 0"
Depth:
50' 0"
Ridge Height:
20'6"' 0"

Architectural Styles

Duplex/Multi-Unit

Exterior Wall Material

Vinyl Siding

Roofing Type

Gable

Roof Pitch

8/12

Ceiling Height

8 Foot Ceiling

Special Feature

Fireplace
Dining Room
Main Level Laundry
Loft

Garage Type

Front Entry

Fireplaces

One Fireplace

Building Lot Type

Flat Site

Master Suite Features

Main Floor Master
Master Bathroom

Additional Notes from Designer

NOTE: Due to a family emergency, NO modifications are available with this designer at this time. If you would like to purchase a CAD or Right Reading Reverse, please contact us for availability and price as not all plans are available in CAD or RRR.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
