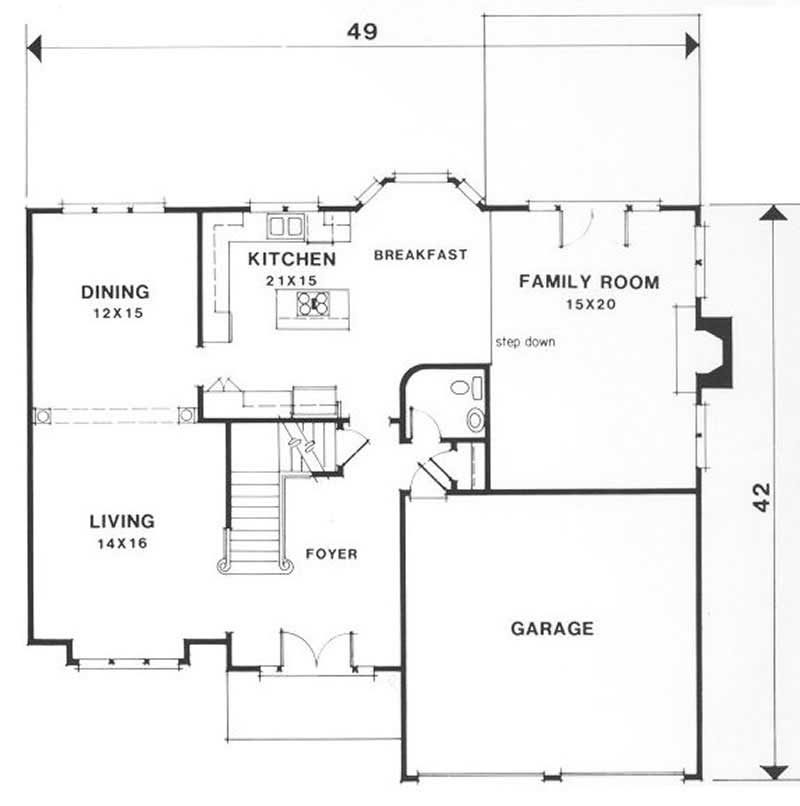

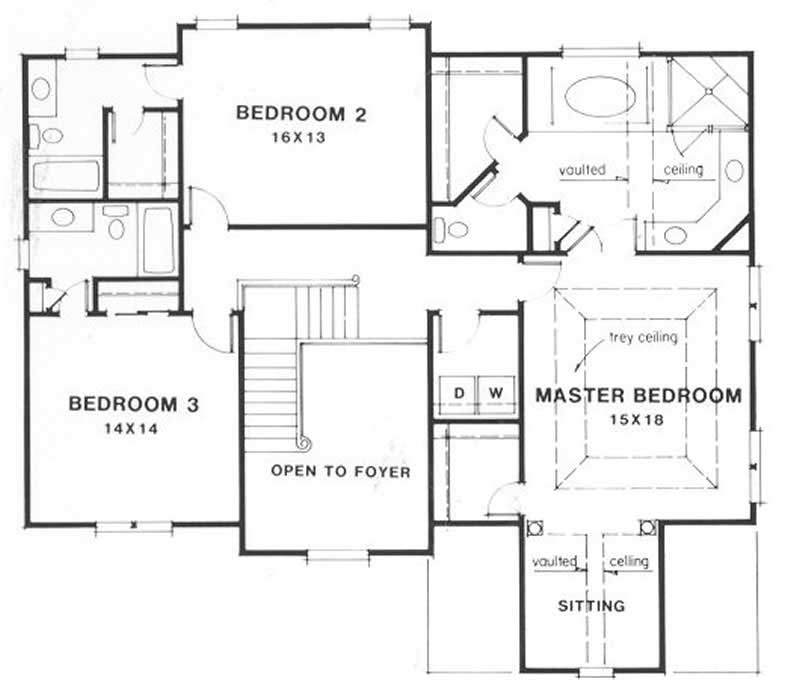

This home plan is a 2-level home with 3 bedrooms, 3.5 baths. Lower level has a spacious kitchen, living room, formal dining room, raised family room, and breakfast area. Three bedrooms upstairs each have full baths. Upper level laundry room. Master suite features a separate sitting area and vaulted ceilings.
Each plan set includes the following:
Front Elevation & Cabinet Details
Floor Plan with Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
Roof Plan (Birdseye view)
Foundation Plan & Details
Cross Sections & Details
Connection Details & Trim
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
