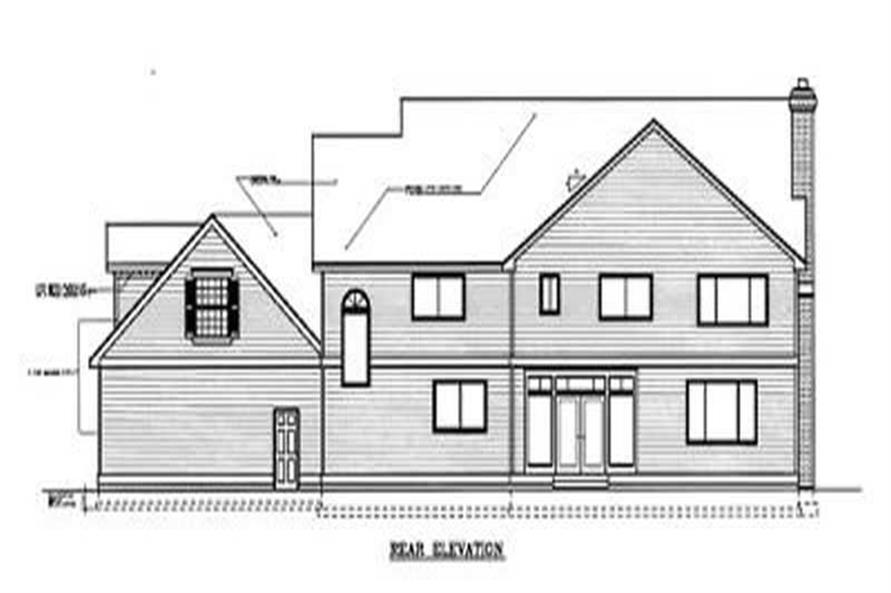

Rear Elevation
119-1146: Home Other Image-Front View
5-Bedroom, 4260 Sq Ft Colonial House Plan - 119-1146 - Front Exterior
Rear Elevation
119-1146: Home Other Image-Front View

About Plan # 119-1146

About Plan # 119-1146

4260 SQUARE FEET 5 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 83' 0" WIDTH 55' 0" DEPTH 3 GARAGE BAY

Suited for view lot and/or corner lot. Open floor plan. Family room, bonus room, den/office/computer, hobby/rec room, loft/balcony, and kitchen island. Walk-in pantry, nook/breakfast area, butler's pantry, dining room, and walk-in closet. Side-entry garage and unfinished/future space.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

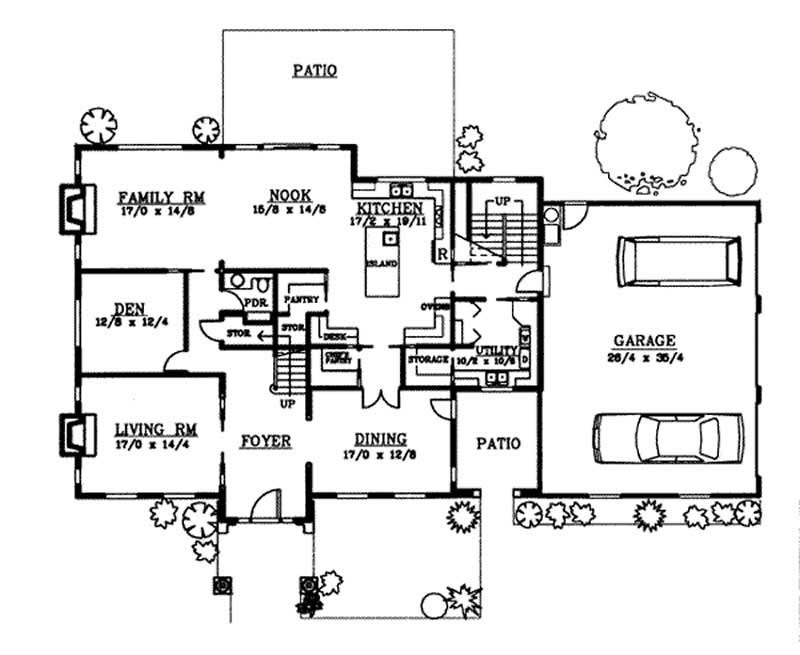

Home Plan: #119-1146 Floor Plan First Story - main Floor Plan First Story of Colonial Plan #119-1146

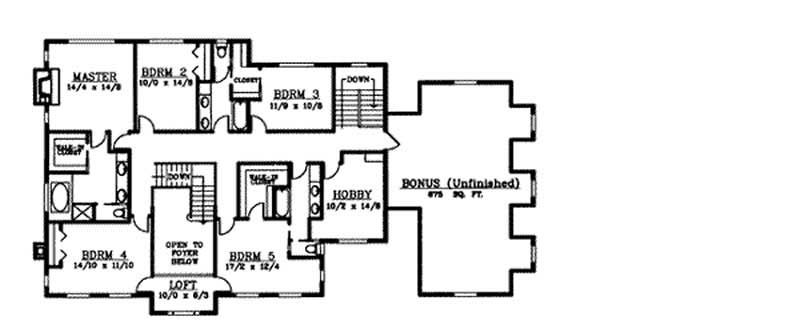

#119-1146 Floor Plan Second Story - upper Floor Plan Second Story of Colonial Plan #119-1146
