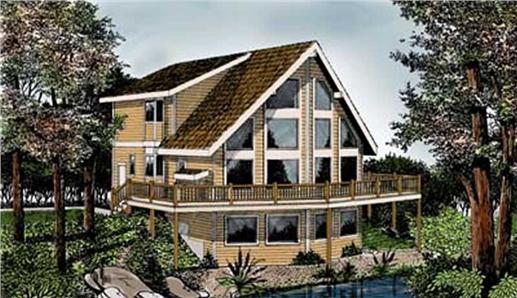

Main image for house plan # 2028
Rear Elevation
119-1046: Home Other Image-Front View
Rear Elevation
2-Bedroom, 1770 Sq Ft Vacation Homes House Plan - 119-1046 - Front Exterior
Rear Elevation
119-1046: Home Other Image-Front View
Rear Elevation

About Plan # 119-1046

About Plan # 119-1046

1770 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 28' 0" WIDTH 41' 0" DEPTH 0 GARAGE BAY
Wrap-around porch. Suited for view lot, narrow lot, and/or sloping lot. Suited for vacation home. Volume/vaulted ceiling, open floor plan, great room, loft/balcony, peninsula/eating bar, walk-in closet, and main floor bed & bath. Unfinished basement and daylight basement.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #119-1046 Floor Plan First Story - main Floor Plan First Story of Vacation Homes Plan #119-1046
#119-1046 Floor Plan Second Story - upper Floor Plan Second Story of Vacation Homes Plan #119-1046
Home Plan: #119-1046 Floor Plan First Story - main Floor Plan First Story of Vacation Homes Plan #119-1046
#119-1046 Floor Plan Second Story - upper Floor Plan Second Story of Vacation Homes Plan #119-1046
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 119-1046
Floors:
2
Bedrooms:
2
Full Baths:
2

Square Footage

Heated Sq Feet:
1770
Main Floor:
1093
Upper Floor:
677
Unfinished Sq Ft:
Lower Floor:
1093

Dimensions

Width:
28' 0"
Depth:
41' 0"
Ridge Height:
25' 0"

Architectural Styles

Vacation Homes
Traditional

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Building Lot Type

Narrow Lot Design

Kitchen Features

Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
