3-Bedroom, 1356 Sq Ft Small House Plans Plan with Covered Front Porch

Main image for house plan # 18434

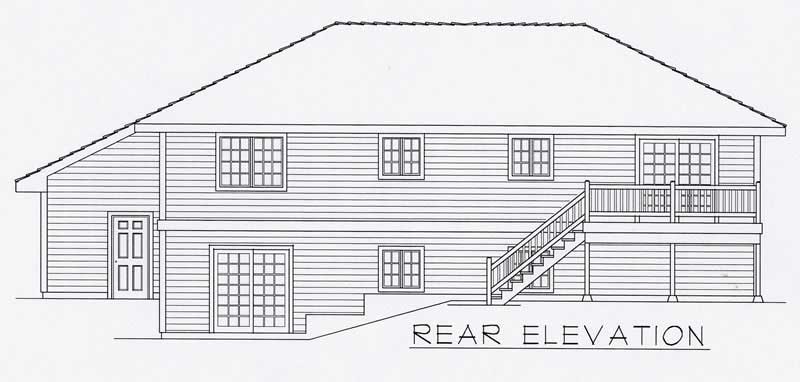

House Plan RDI-1356SE1-B Rear Elevation

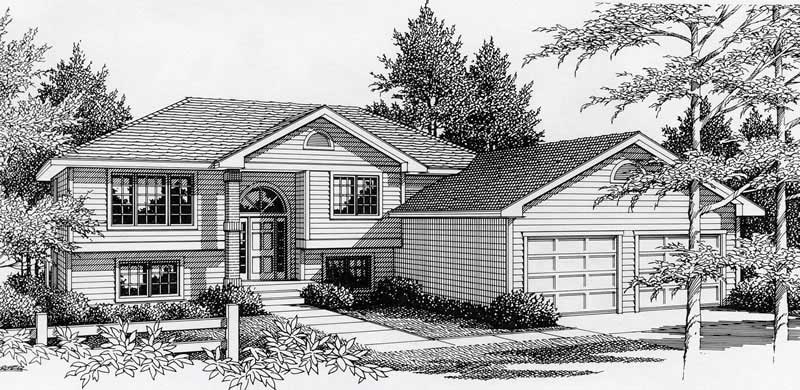

3-Bedroom, 1356 Sq Ft Small House Plans - 162-1005 - Main Exterior
House Plan RDI-1356SE1-B Rear Elevation

About Plan # 162-1005

About Plan # 162-1005

1356 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1.5 FLOOR 57' 6" WIDTH 54' 0" DEPTH 2 GARAGE BAY
House Plan RDI-1356SE1-B is a comfortable split level design. The main floor features a spacious living room open to the dining room. The kitchen is sensible with a pantry and a snack bar. The bedrooms are private and the unfinished basement comes with a suggested floor plan.

Each plan set includes the following:

  • Exterior Elevations
  • Floor Plans
  • Foundation Plan
  • Roof Framing Plan
  • Building Sections
  • Wall Sections
  • Stair Detail
  • Cabinet Elevations
  • Notes
  • Electrical Layout
  • Door & Window Sizes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

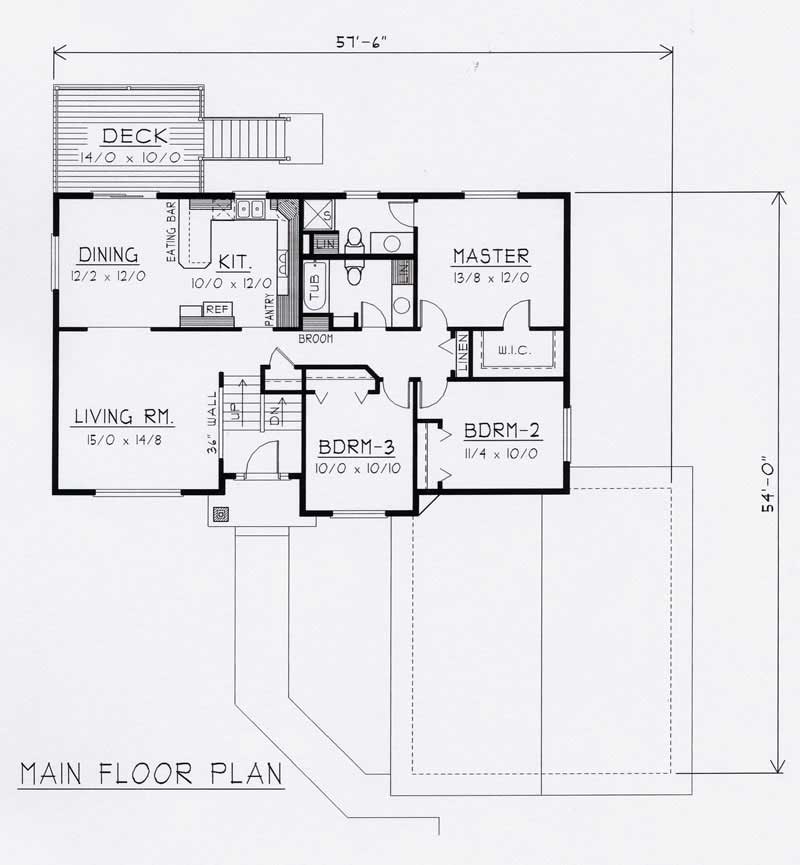

Home Plan: #162-1005 Floor Plan First Story - main Floor Plan First Story of Small House Plans #162-1005
