Southwest, Spanish House Plans - Home Design OHP-10418 # 16450

About House Plan #156-1236

3255

Sq Ft

3

Bedrooms

2

Baths

0

Half Baths

2

Cars

1

Stories

80' 0'

Width

79

Depth

From$1000What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

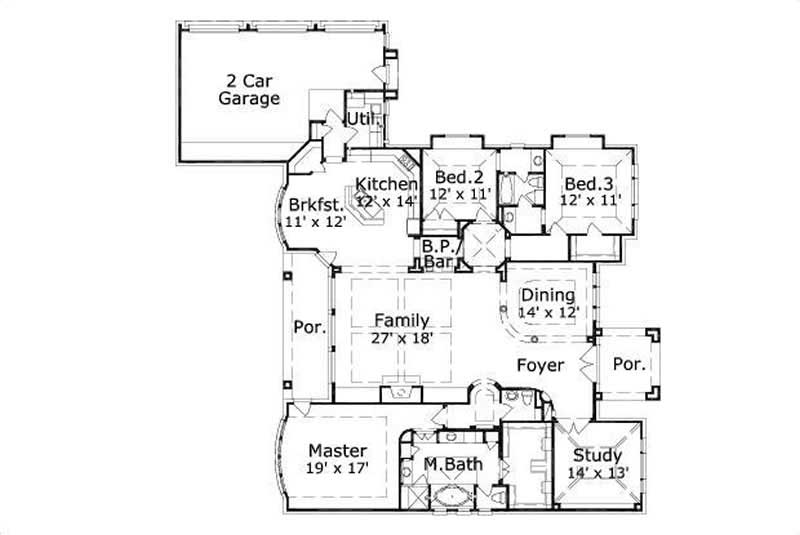

First Floor Plan

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

CAD files may take up to 3 business days to receive - please contact us for availability.

House Plan Description

Home Plan #10418 is a single story Hacienda style home with brick and stone exterior and 3255 total living square feet. It has 3 bedrooms, 2 baths, and a straight in side load 2 car garage. This house plan also has1 living area, 1 dining area, a bar, a covered rear porch, a shop, a butler pantry, and a master with sitting area.

Home Details

Summary

Plan #:156-1236

Floors:1

Bedrooms:3

Full Baths:2

Half Baths:0

Garage:

Square Footage

Heated Area:3255 Sq. Ft.

First Floor:3255 Sq. Ft.

Unheated Area:

Dimensions

Ridge Height:27' 0''

Architectural Styles

Southwest Spanish Texas Style

Exterior Wall Material

BrickRock/Stone

Ceiling Height

10 Foot Ceiling

Porches and Exterior Features

Covered Rear Porch

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Exterior,

Elevations

Floor Plans

Electrical Layout

Building Sections

Roofing Plan

Interior Elevations

General Details

Wall Sections

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
