5-Bedroom, 7706 Sq Ft Luxury Plan with Guest Suite

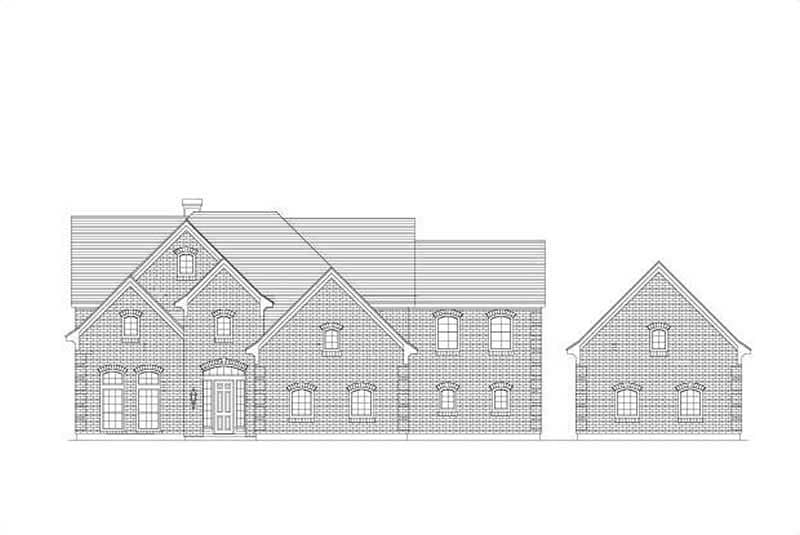

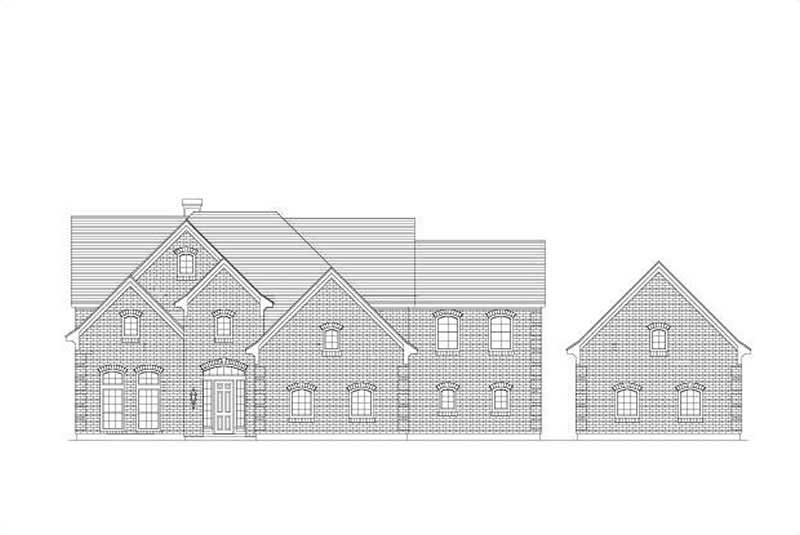

Front elevation of Luxury home (ThePlanCollection: House Plan #156-1076)

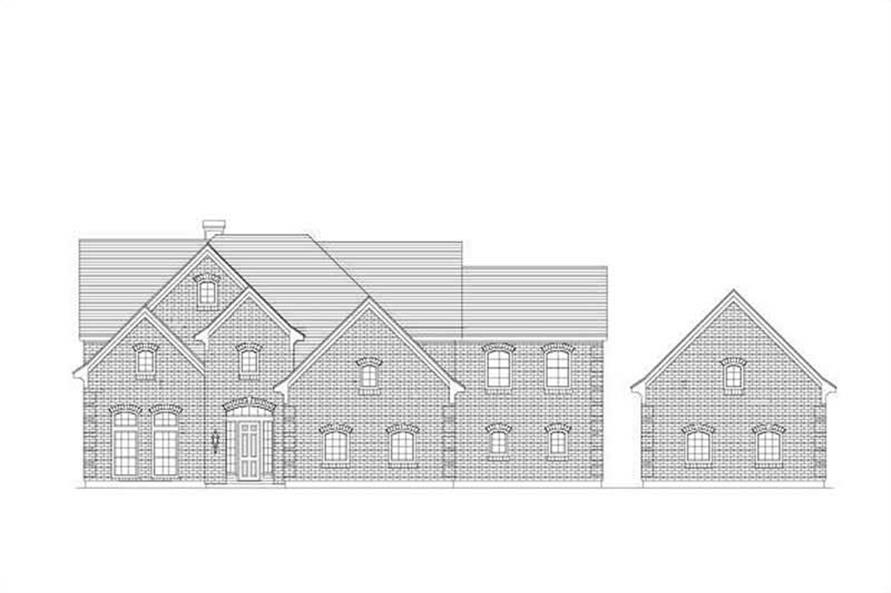

5-Bedroom, 7706 Sq Ft Luxury Home Plan - 156-1076 - Main Exterior

About Plan # 156-1076

About Plan # 156-1076

7706 SQUARE FEET 5 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 67' 0" WIDTH 73' 0" DEPTH 2 GARAGE BAY

Home plan number 156-1076 is a single story, Traditional style home with a total square footage of 7,706. THere are 5 bedrooms and 2 and 1/2 bathrooms, along with a side entry, front loading, 2 car garage. The master bedroom includes a sitting area. Plan number 30815 has a covered rear porch. Features include a foyer and gallery.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. This includes wall sections.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

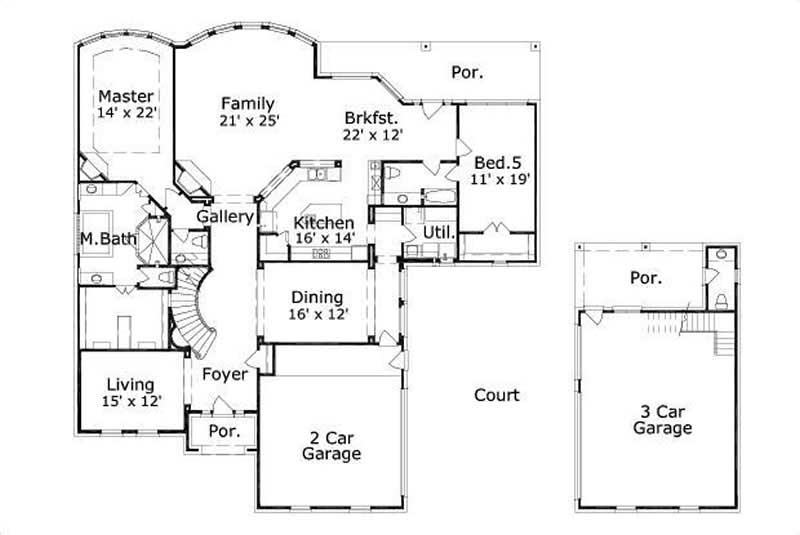

Home Plan: #156-1076 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #156-1076

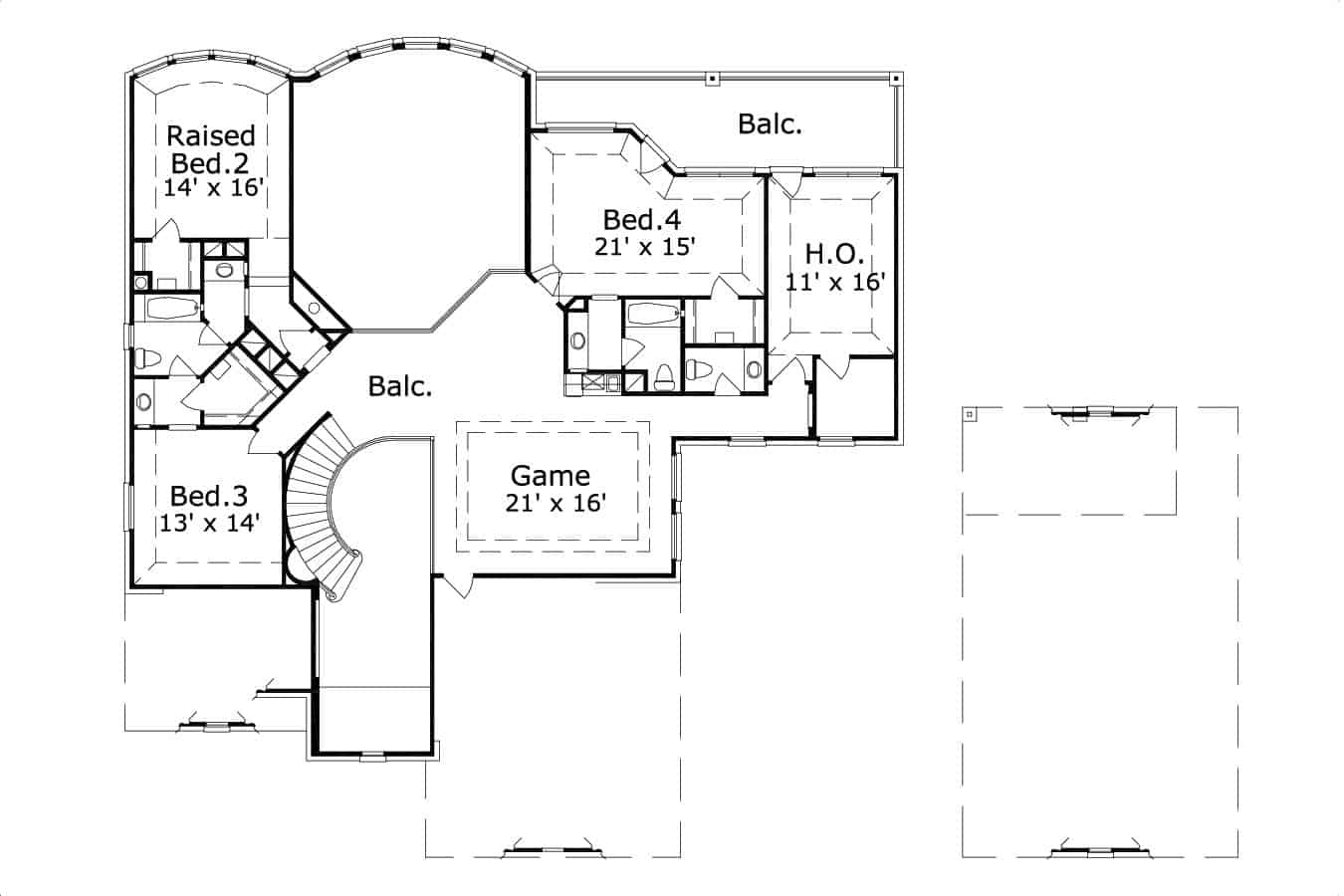

#156-1076 Floor Plan Second Story - upper level Floor Plan Upper Level of Luxury Plan #156-1076
