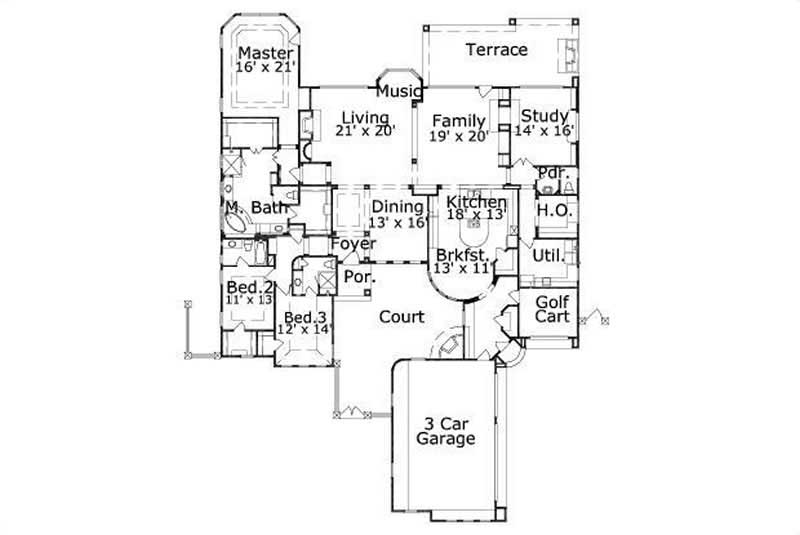

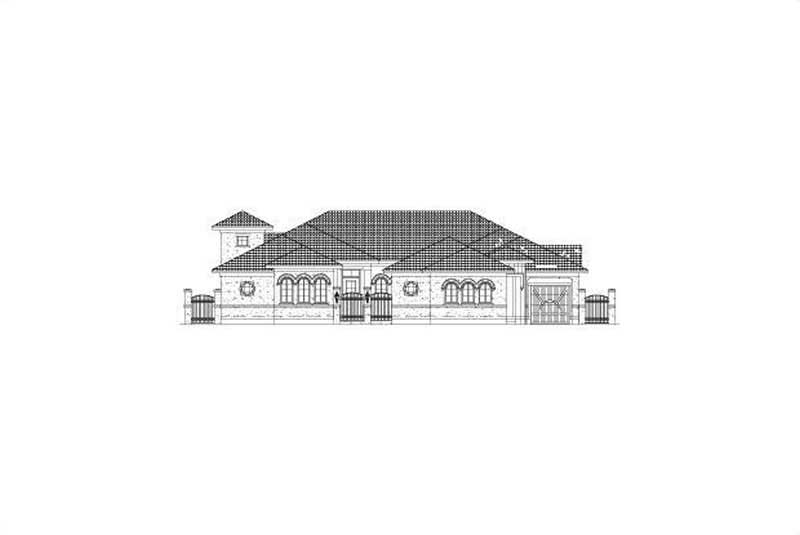

House Plan #990135-4 is a single story mediterranean style home with stucco exterior and 3775 total living square feet. It has 3 bedrooms, 3 baths, and a swing front load 3 car garage. This home plan also has 2 living areas, 2 dining areas, a bar, a covered rear porch, a golf cart storage, a master with sitting area, a separate master closet, a butler pantry, an entry courtyard, a home office, a portico, and a theater/media.
Each plan set includes the following:
- Floor Plans
- Electrical Layout
- Building Sections
- Roofing Plan
- Interior Elevations
- General Details
- Wall Sections
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
