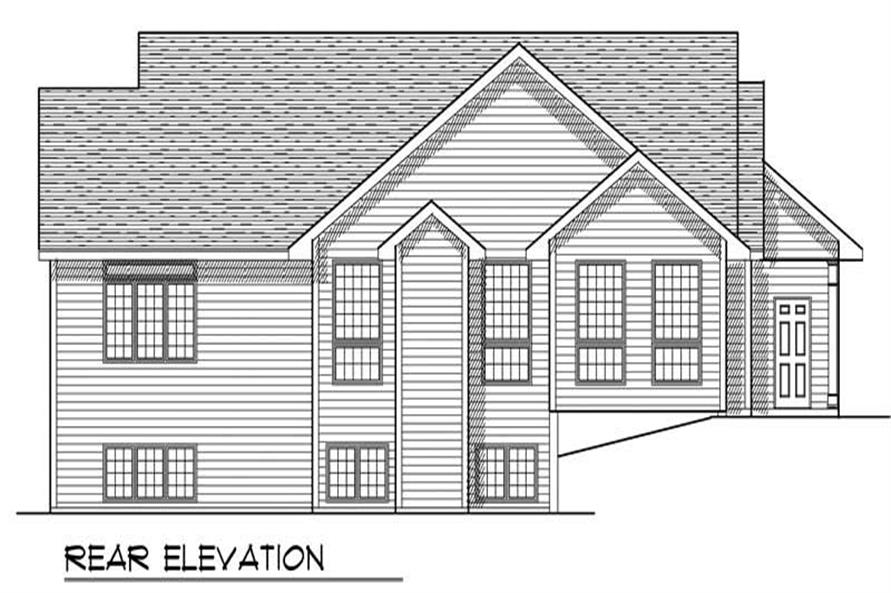

REAR ELEVATION

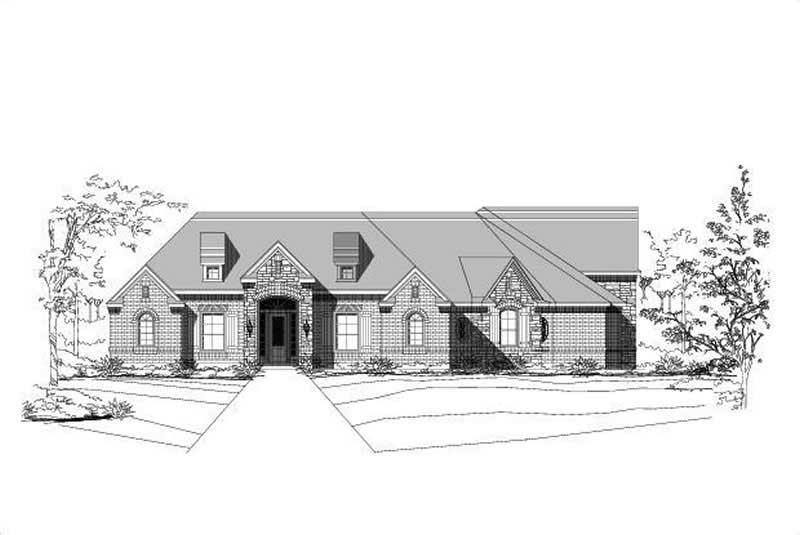

3-Bedroom, 2794 Sq Ft Ranch House Plan - 101-1383 - Front Exterior
REAR ELEVATION

About Plan # 101-1383

About Plan # 101-1383

2794 SQUARE FEET 3 BEDROOMS 0 FULL BATH 3 HALF BATH
1 FLOOR 63' 0" WIDTH 77' 0" DEPTH 2 GARAGE BAY
This traditional ranch home has a handsome exterior combination of brick and siding, which will help it to look at home in any neighborhood. The graceful arched entryways to the great room will draw your attention; the fireplace surrounded by windows will encourage you to linger. The large kitchen features an eating bar, a center island, and a walk in pantry, and is close to the dining room, making it easy to prepare and serve meals. You can even enjoy meals out back on the three-season porch. The master bedroom has an extra-large walk-in closet and a private bath while the other bedroom, which could also serve as a den, has private access to the hallway bath. Family and guests alike will love time spent in this home.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

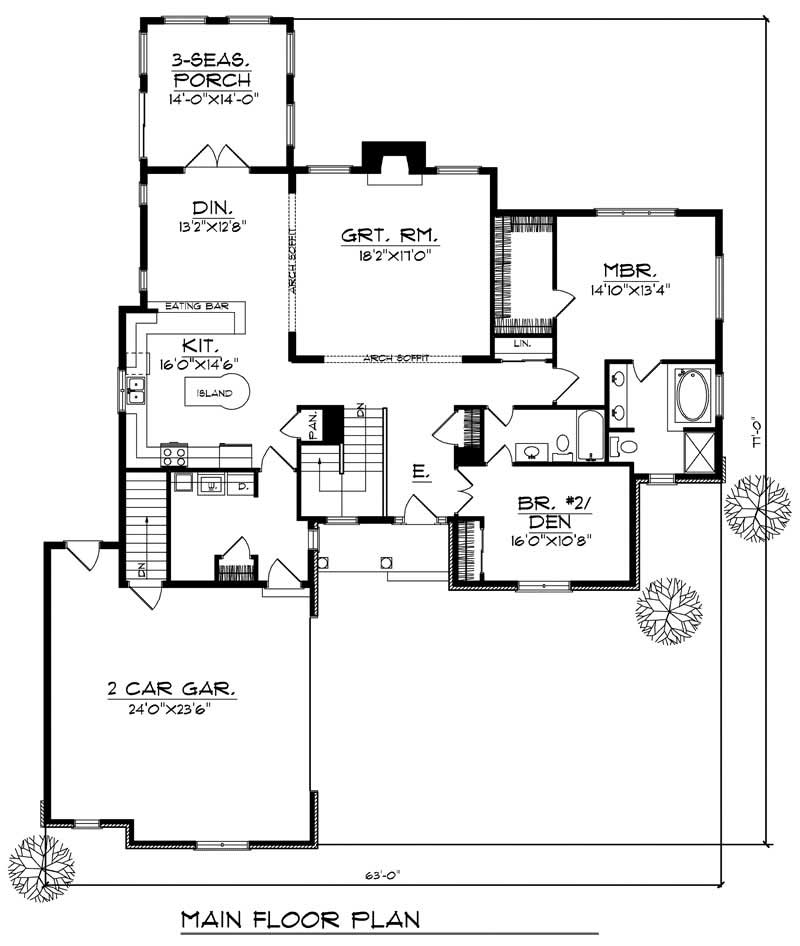

Home Plan: #101-1383 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1383

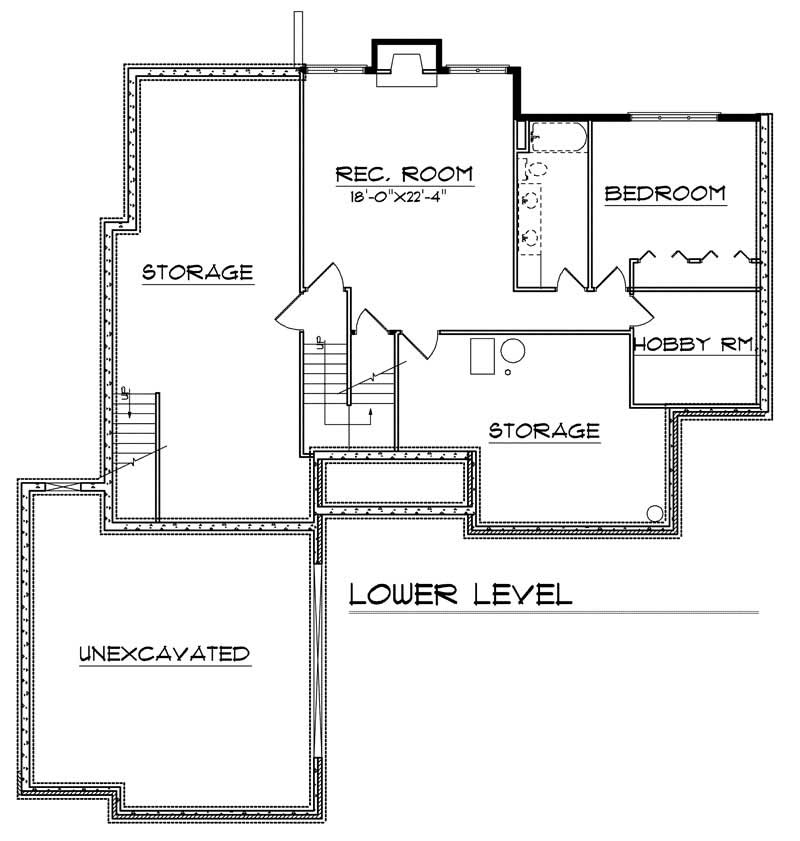

#101-1383 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #101-1383
Home Plan: #101-1383 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1383
#101-1383 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #101-1383
