4-Bedroom, 2523 Sq Ft Country Plan with Peninsula/Eating Bar

Main image for house plan # 13354

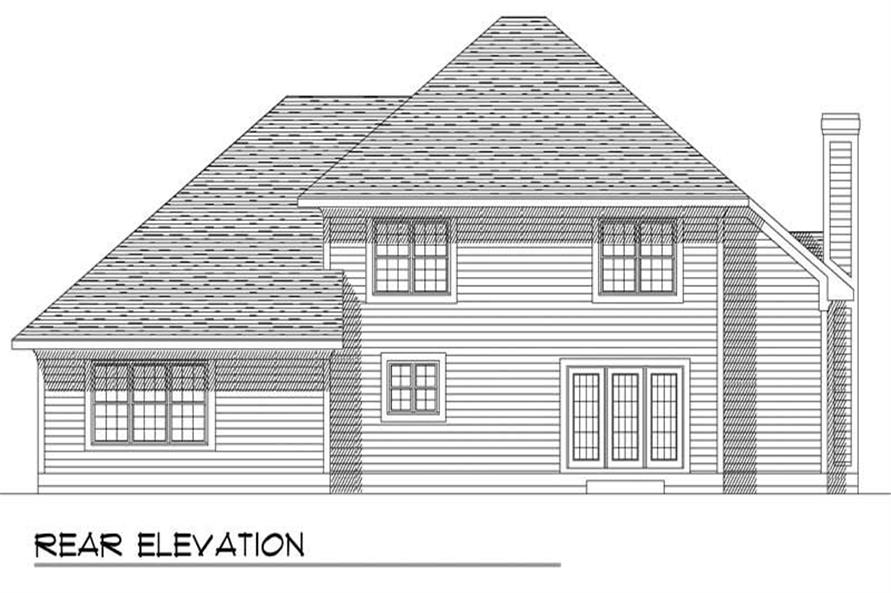

REAR ELEVATION
4-Bedroom, 2523 Sq Ft Country House Plan - 101-1797 - Front Exterior
REAR ELEVATION

About Plan # 101-1797

About Plan # 101-1797

2523 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 60' 8" WIDTH 50' 0" DEPTH 2 GARAGE BAY
This spacious four-bedroom, two-story home is designed for the family that needs a practical design and desires attractive design details. On the main floor, an open great room with cathedral ceilings invites you to spend evenings gathered around the fireplace. The kitchen's generous cupboards and cooking area are sure to please the chef and is adjacent to the large formal dinning room. For more casual meals, there is an eating bar and a large nook convenient to the backyard. The main floor master bedroom suite is spacious and the master bath is designed with a Jacuzzi bath perfect for taking the edge off a stressful day. The two-car garage offers access to the home through a large laundry and closet area that will help keep your home organized. Upstairs three additional bedrooms share a large bath with a double vanity and separated shower area. No matter which room is your favorite, this stunning home is sure to be the home of your dreams.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION LAYOUT: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: A birdseye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not include wiring schematics.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. These can include wall and stair sections. Kitchen layout and cabinet elevations included.
  • RENDERING: Sketch of what the finished home may look like. Also includes general notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

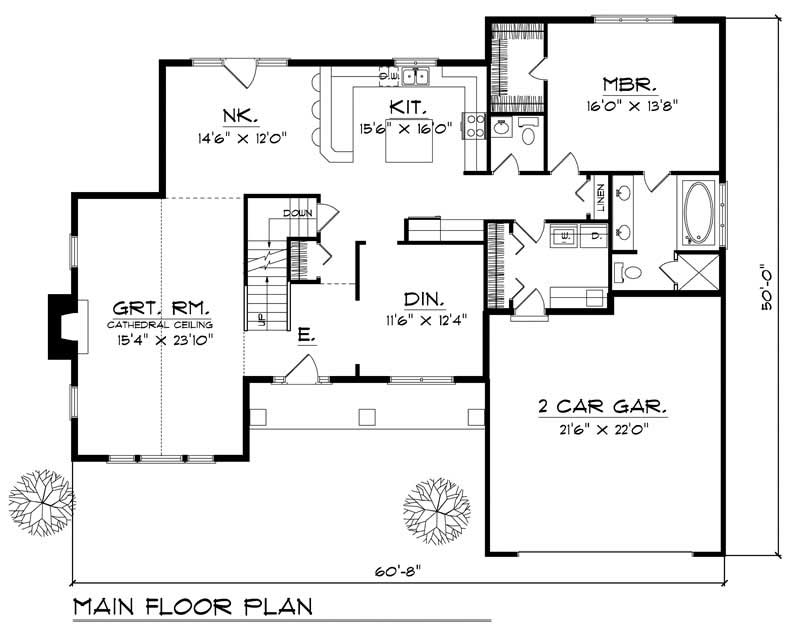

Home Plan: #101-1797 Floor Plan First Story - main Floor Plan First Story of Country Plan #101-1797

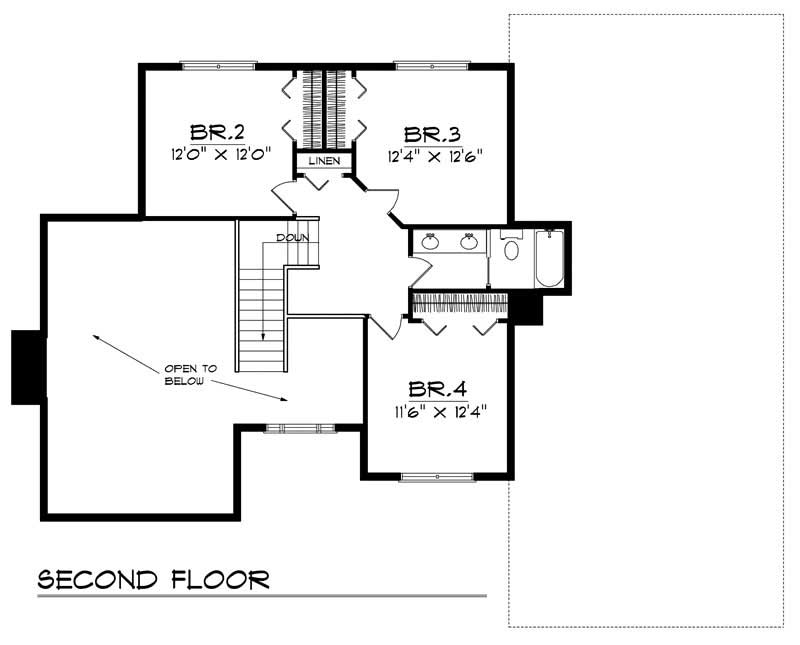

#101-1797 Floor Plan Second Story - second Floor Plan Second Story of Country Plan #101-1797
Home Plan: #101-1797 Floor Plan First Story - main Floor Plan First Story of Country Plan #101-1797
#101-1797 Floor Plan Second Story - second Floor Plan Second Story of Country Plan #101-1797
